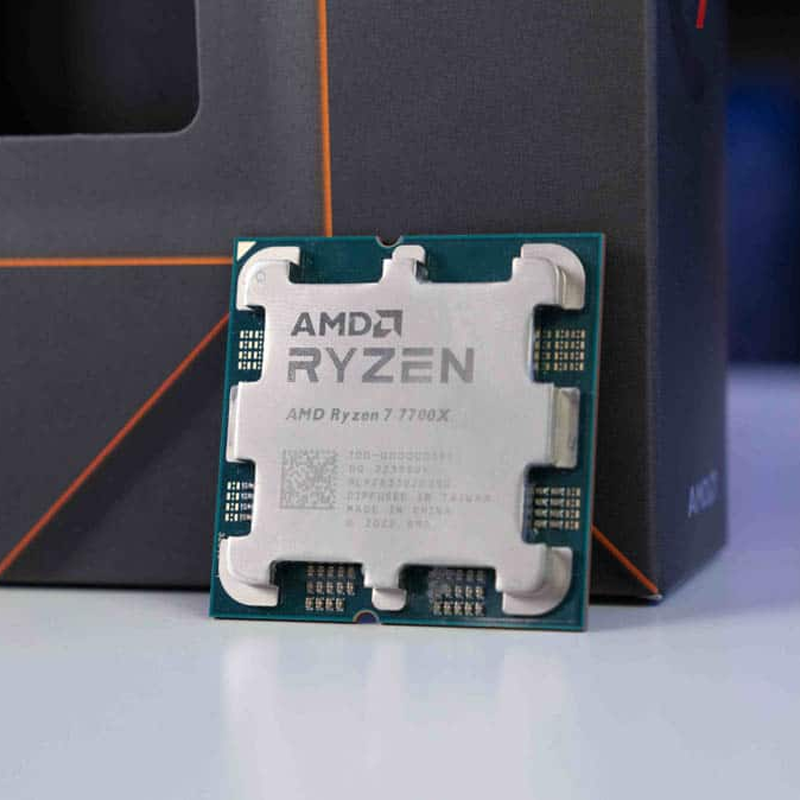

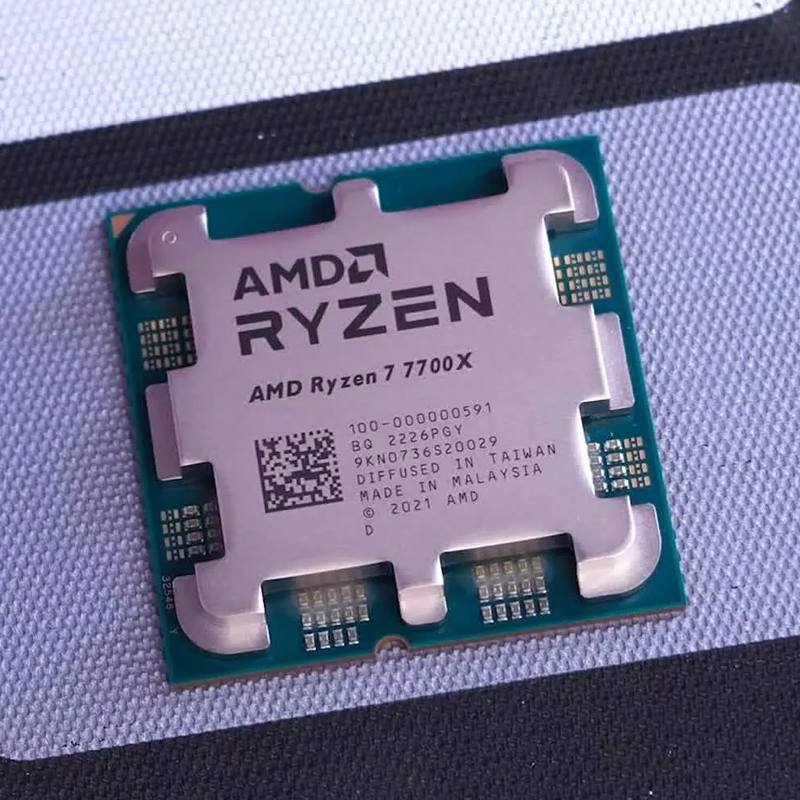

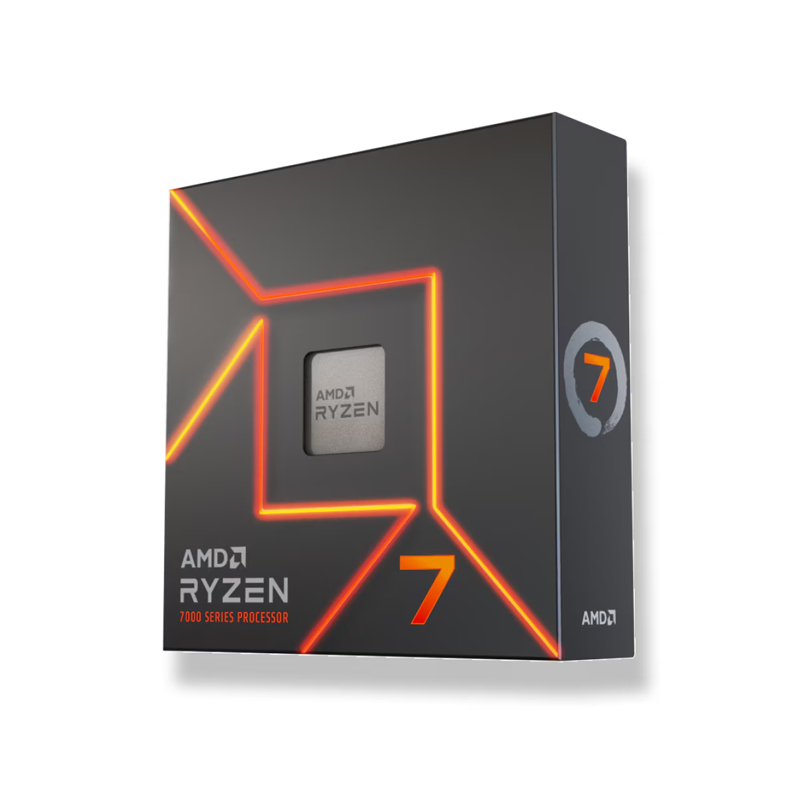

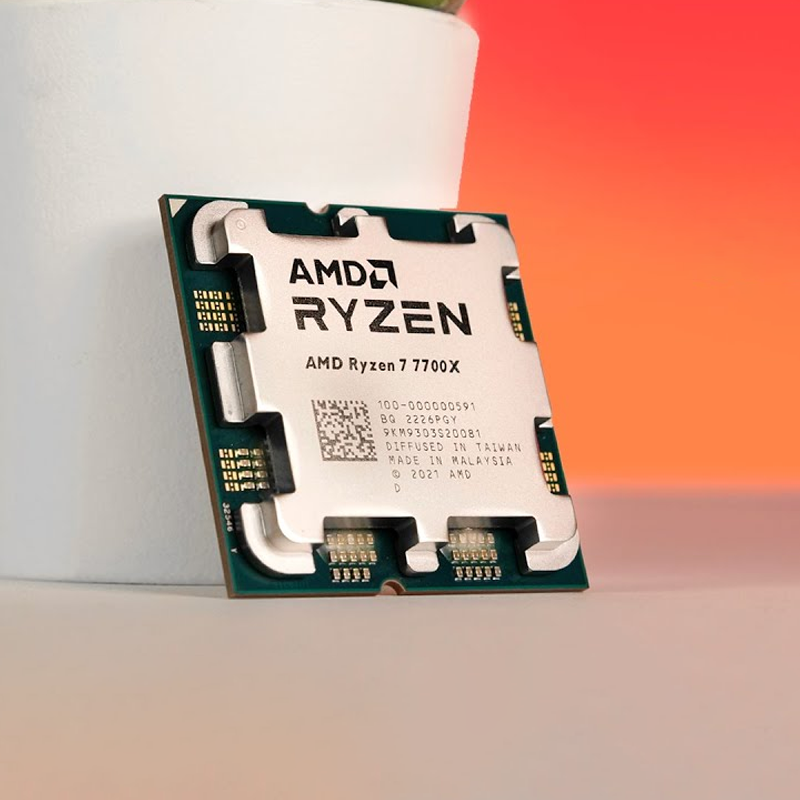

AMD Ryzen™ 7 7700X Desktop Processor – Box
₨ 77,499
- 8 cores / 16 threads with Zen 4 architecture on 5nm process
- 4.5GHz base / 5.4GHz max boost
- 40MB total cache (8MB L2 + 32MB L3)
- Integrated AMD Radeon Graphics (2 cores at 2200MHz) — no discrete GPU needed for basic display
- PCIe 5.0 support and DDR5 memory up to 5200 MT/s
- Unlocked for overclocking with Precision Boost Overdrive
- 105W TDP — requires premium cooler (not included)
- AM5 socket. Boxed processor but no cooler included.
| Specification | Details |
|---|---|
| Product Name | AMD Ryzen 7 7700X Box (No Cooler) |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor | Desktop, Boxed Processor (No Cooler Included) |
| Market Segment | Enthusiast Desktop |
| Former Codename | Raphael AM5 |
| Processor Architecture | Zen 4 |
| Process Technology (CPU Cores) | TSMC 5nm FinFET |
| Process Technology (I/O Die) | TSMC 6nm FinFET |
| CPU Cores | 8 |
| Threads | 16 |
| Multithreading (SMT) | Yes |
| Max Boost Clock | Up to 5.4 GHz |
| Base Clock | 4.5 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 8 MB |
| L3 Cache | 32 MB |
| Default TDP | 105W |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen Master Support | Yes |

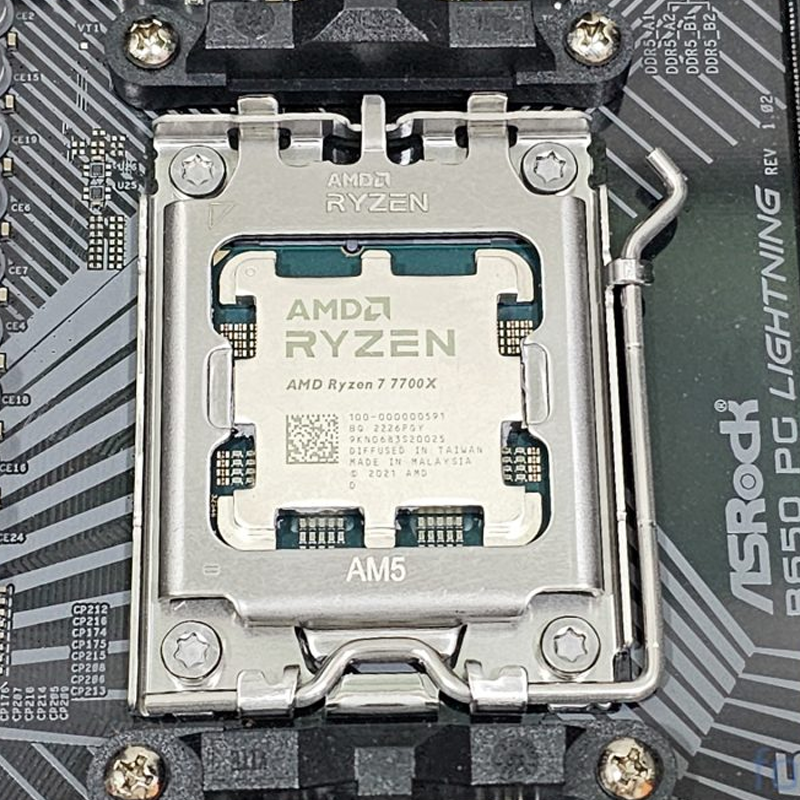

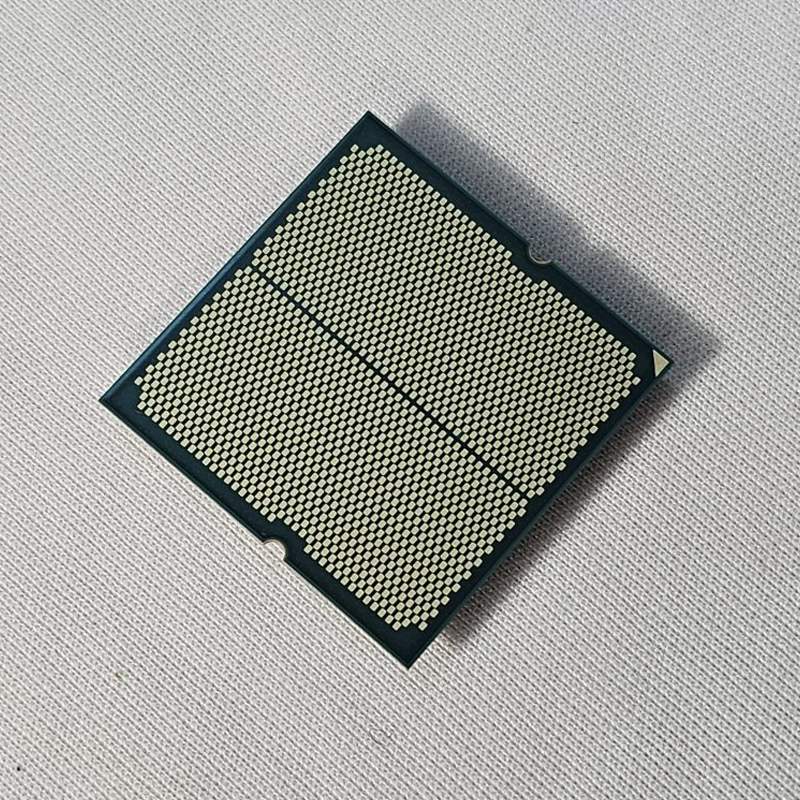

| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology | Precision Boost 2 |
| Thermal Solution | Not included |
| Recommended Cooler | Premium air cooler or liquid cooler recommended |
| Max Operating Temperature (Tjmax) | 95°C |
| Launch Date | September 27, 2022 |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes (Total/Usable) | 28 / 24 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max Memory | 128 GB |
| Max Memory Speed | 2x1R / 2x2R: DDR5-5200, 4x1R / 4x2R: DDR5-3600 |
| ECC Support | Yes (Requires motherboard support) |
| Native USB Ports | 4 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 (480Mbps) |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| Graphics Model | AMD Radeon Graphics (2 cores) |
| Graphics Frequency | 2200 MHz |
| USB Type-C DisplayPort Alternate Mode | Yes |
| OS Support | Windows 11 (64-bit), Windows 10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit |
