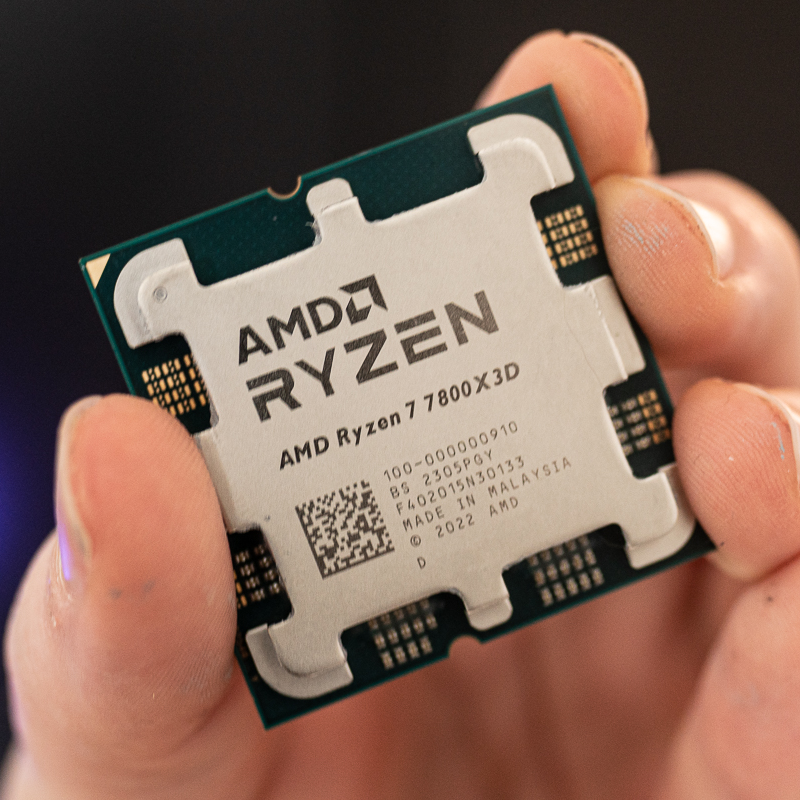

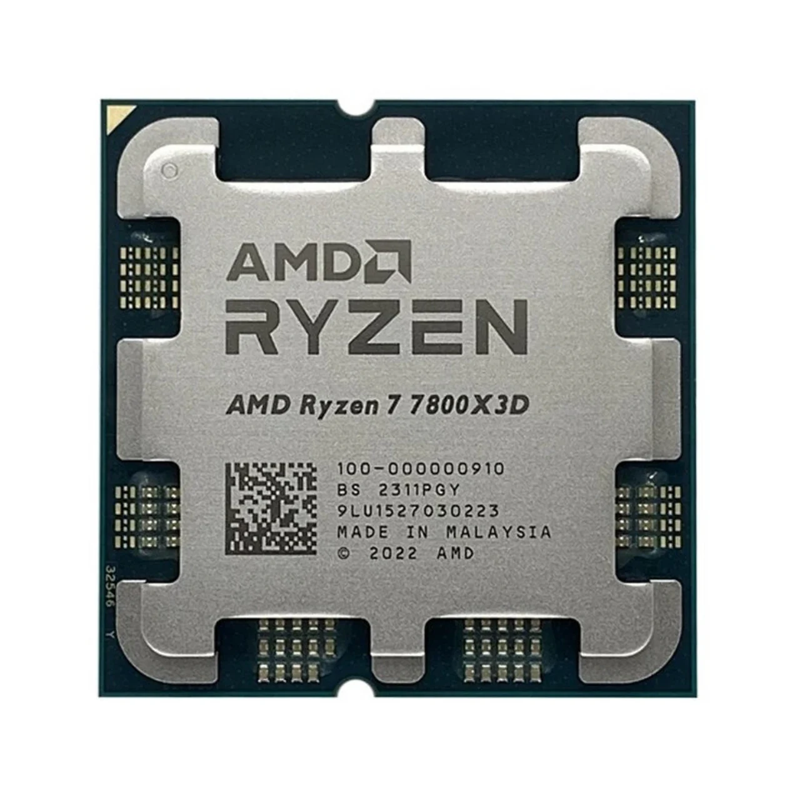

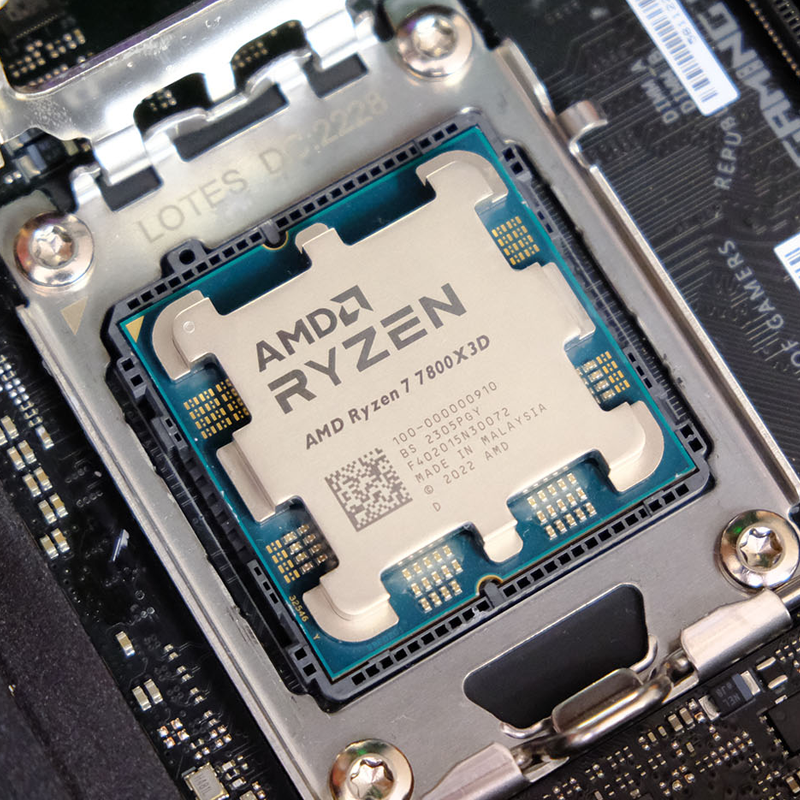

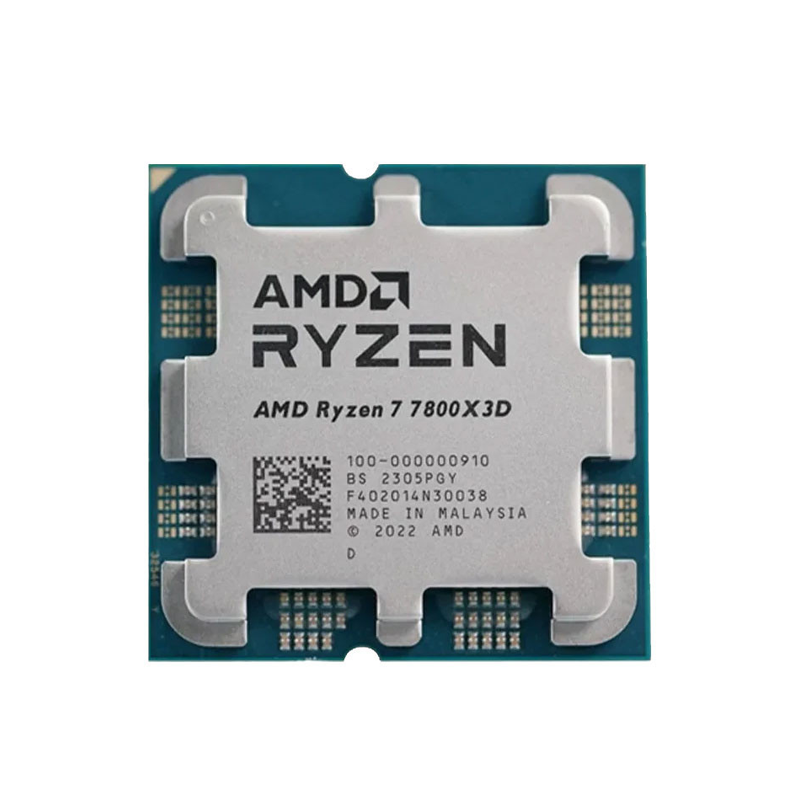

AMD Ryzen™ 7 7800X3D Gaming Processor – Tray
₨ 99,999
- 8 Cores / 16 Threads – Zen 4 with 3D V-Cache™ – Up to 5.0 GHz Boost, 96MB L3 Cache, TSMC 5nm FinFET
- AM5 Platform – DDR5 & PCIe 5.0 Ready – Compatible with A620, B650, B650E, X670, X670E, X870, X870E, B840, B850 Chipsets
- Unlocked for Overclocking – Precision Boost 2, AMD EXPO™, Curve Optimizer, PBO Support
- Tray Processor (No Box / No Cooler) – Liquid cooler recommended, ideal for enthusiast desktop builds
<
| Overview | |
| Product Name | AMD Ryzen 7 7800X3D Tray |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor | Desktop, Tray (No Box / No Cooler) |
| Market Segment | Enthusiast Desktop |
| Former Codename | Raphael AM5 |
| Architecture & Performance | |
| Processor Architecture | Zen 4 with 3D V-Cache™ |
| Process Technology (CPU Cores) | TSMC 5nm FinFET |
| Process Technology (I/O Die) | TSMC 6nm FinFET |
| CPU Cores | 8 |
| Threads | 16 |
| Multithreading (SMT) | ✔️ Yes |
| Max Boost Clock | Up to 5.0 GHz |
| Base Clock | 4.2 GHz |
| Cache & Power | |
| L1 Cache | 512 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB (3D V-Cache™) |
| Default TDP | 120W |
| Max Operating Temperature (Tjmax) | 89°C |
| Thermal Solution | Not included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Overclocking & Tuning | |
| Unlocked for Overclocking | ✔️ Yes |
| AMD EXPO™ Memory Overclocking | ✔️ Yes |
| Precision Boost Overdrive | ✔️ Yes |
| Curve Optimizer Voltage Offsets | ✔️ Yes |
| AMD Ryzen Master Support | ✔️ Yes |
| CPU Boost Technology | Precision Boost 2 |
| Platform & Memory | |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max Memory | 128 GB |
| Max Memory Speed | 2x1R / 2x2R: DDR5-5200 | 4x1R / 4x2R: DDR5-3600 |
| ECC Support | ✔️ Yes (Requires motherboard support) |
| Connectivity & Graphics | |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes (Total/Usable) | 28 / 24 |
| Native USB Ports | 4 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 (480Mbps) |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| Graphics Model | AMD Radeon™ Graphics (2 cores) |
| Graphics Frequency | 2200 MHz |
| USB Type-C® DisplayPort™ Alternate Mode | ✔️ Yes |
| OS Support & Launch | |
| OS Support | Windows 11 (64-bit), Windows 10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit |
| Launch Date | April 6, 2023 |
