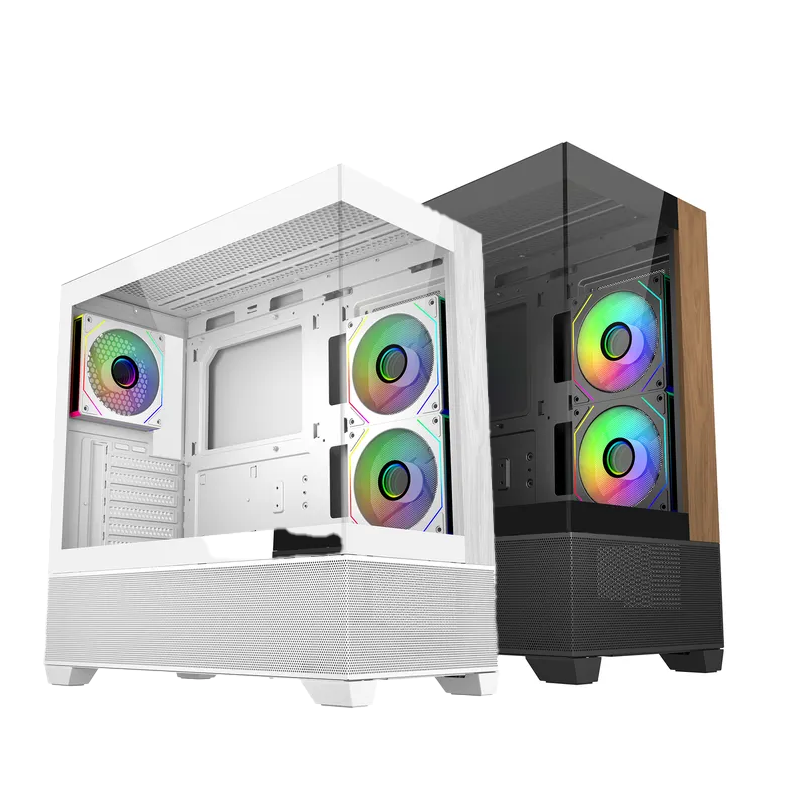

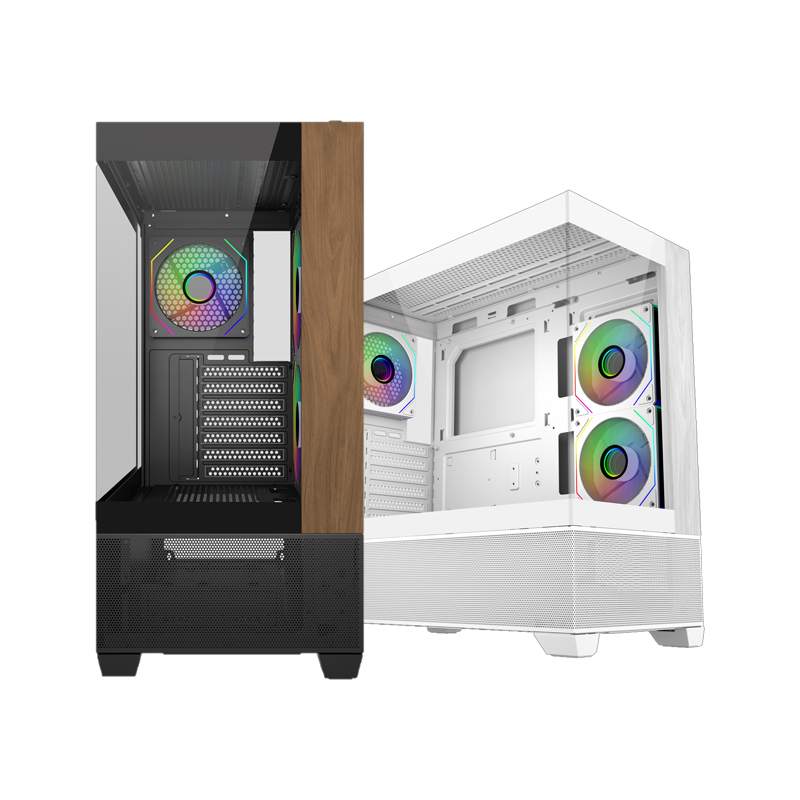

Cooler Master Elite 690 Wood – Gaming PC Case
₨ 17,999
- Wood-textured front panel with dual tempered glass — natural aesthetics meet immersive viewing
- Top and bottom ventilation for vertical cooling — supports multiple fan and radiator configurations
- Mesh front intake for improved airflow efficiency
- Fits CPU coolers up to 170mm and GPUs up to 425mm
- USB Type C 20Gbps port included on I/O panel
- Pre-installed ARGB PWM fans (1 rear + 2 side reverse fans)
| Specification | Details |
|---|---|
| Model Number | Black: E690-KHNN-S00 / White: E690-WHNN-S00 |
| Color | Black / White |
| Materials – Front Panel | Tempered Glass + Wood |
| Material – Side Panel (Left) | Tempered Glass |
| Material – Side Panel (Right) | Steel |
| Dimensions (L x W x H) | 434 x 218 x 454 mm (Incl. Protrusions) / 430 x 218 x 435 mm (Excl. Protrusions) |
| Volume | 42.93 L (Incl. Protrusions) |
| Motherboard Support | ITX / Micro-ATX / ATX |
| Expansion Slots | 7 |
| 5.25″ Drive Bays | 0 |
| 3.5″ Drive Bays | 1 (Max. 2) |
| 2.5″ Drive Bays | 1 (Max. 2) |
| I/O Panel – USB Ports | 1 x USB Type C 20Gbps, 2 x USB 3.0 |
| I/O Panel – Audio | 1 x 3.5mm Combo |
| Pre-installed Fans – Rear | 1 x 120mm ARGB PWM |
| Pre-installed Fans – Side Mount | 2 x 120mm ARGB PWM Reverse Fan |
| Fan Support – Top | 2 x 140mm / 3 x 120mm |
| Fan Support – Rear | 1 x 120mm |
| Fan Support – Side Mount | 2 x 120mm |
| Fan Support – Bottom | 3 x 120mm |
| Radiator Support – Top | 120 / 240 / 360 (Max height 45mm) |
| Radiator Support – Bottom | 120 / 240 / 360mm |
| Radiator Support – Side Mount | 120 / 240mm |
| Clearance – CPU Cooler | 170mm |
| Clearance – PSU | 250mm |
| Clearance – Graphics Card | 425mm |
| Power Supply Support | ATX |
| Warranty | 2 Years |
| Size | Mid Tower |
| Series | Elite Series |
| Color | Black, White |
|---|
Brand
CoolerMaster
