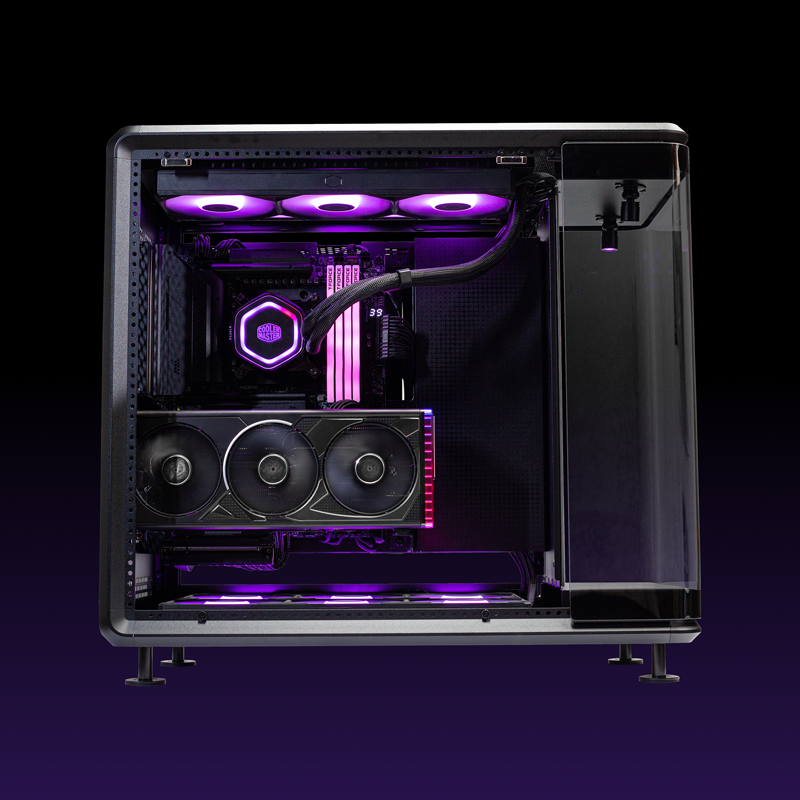

Cooler Master MasterFrame 360 Series ATX Gaming Case
Price range: ₨ 58,999 through ₨ 69,999

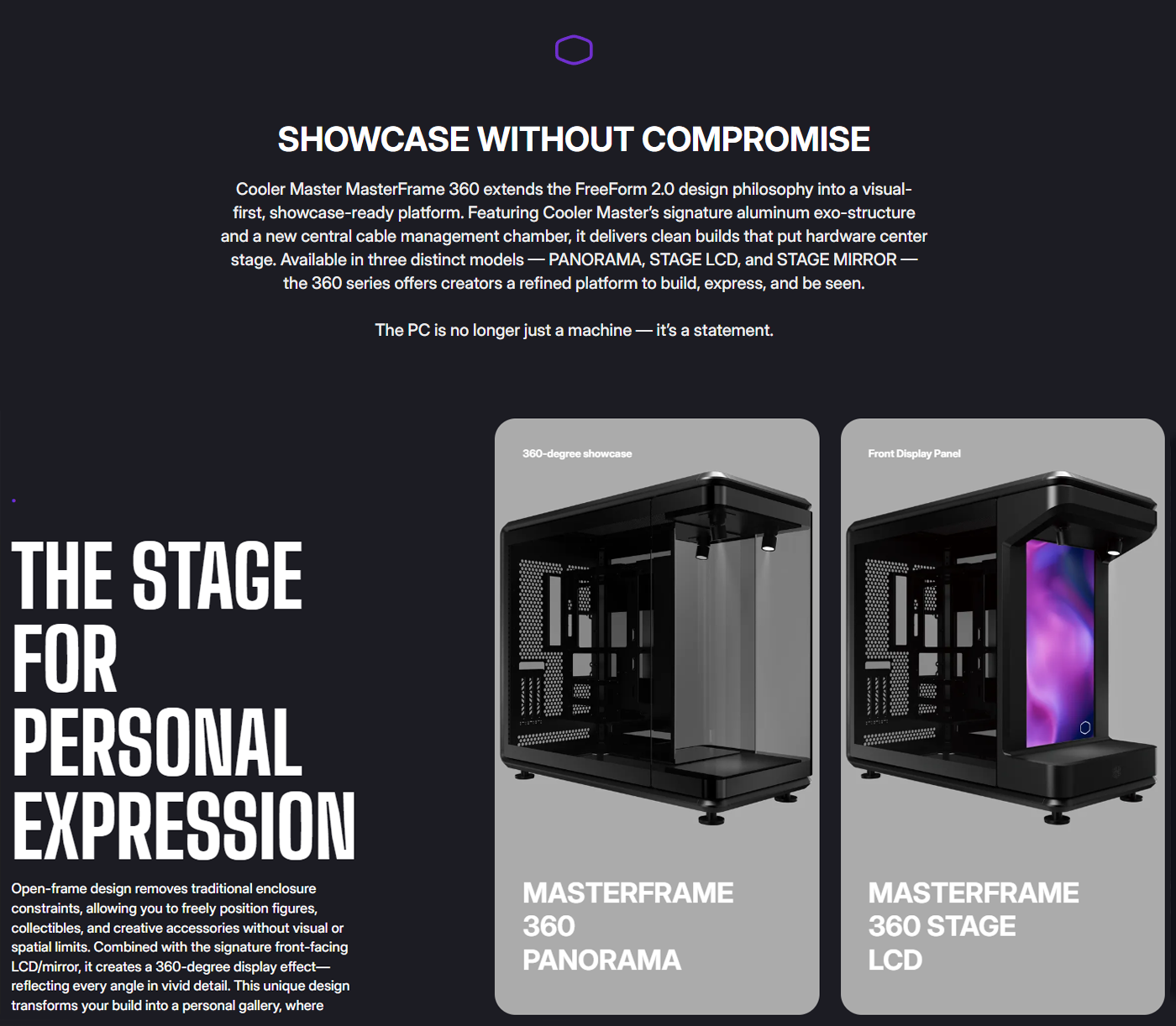

- FreeForm 2.0 design with aluminum exo-structure for showcase-ready builds
- Central cable management chamber with 110mm routing space for clean aesthetics

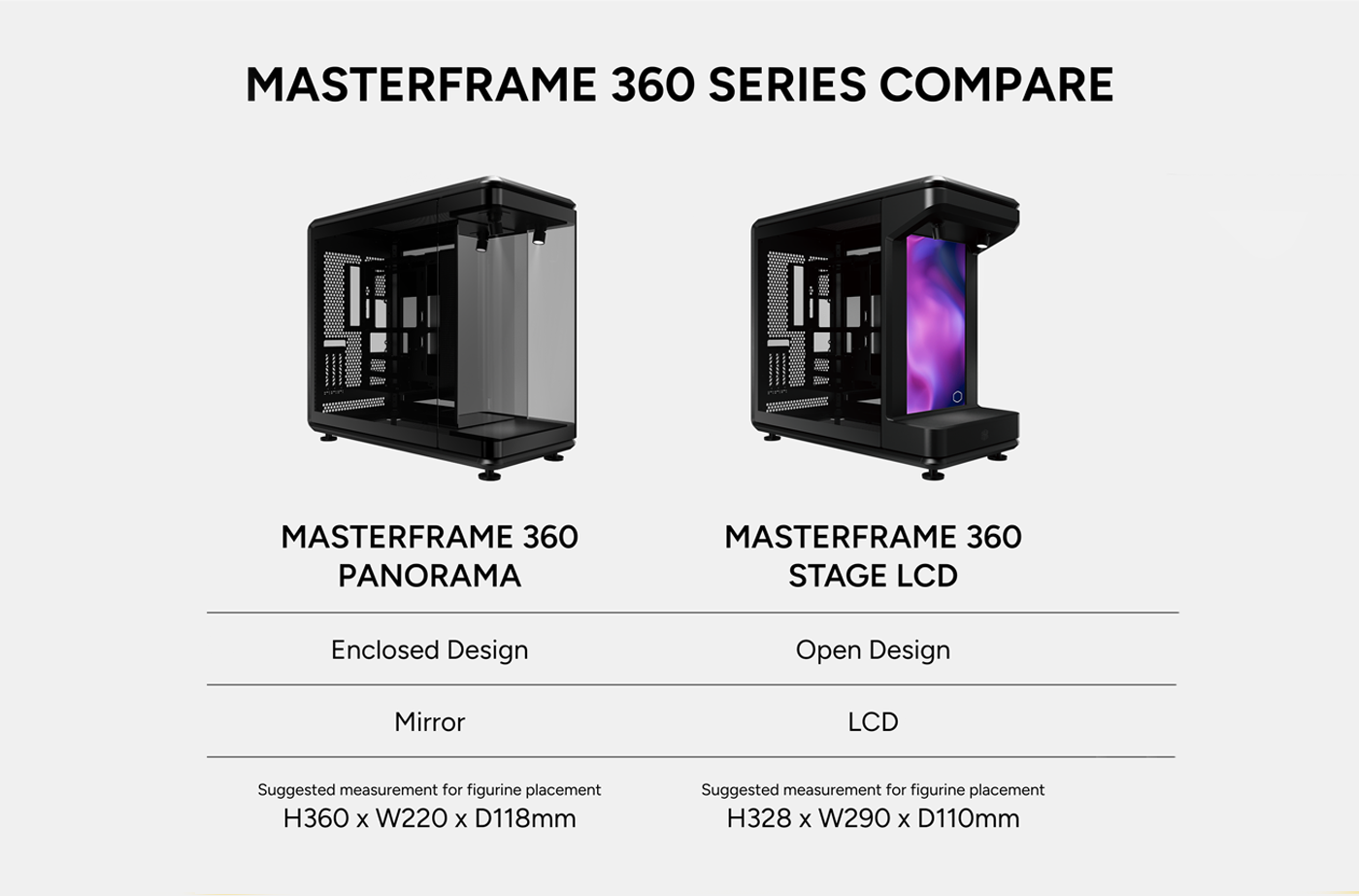

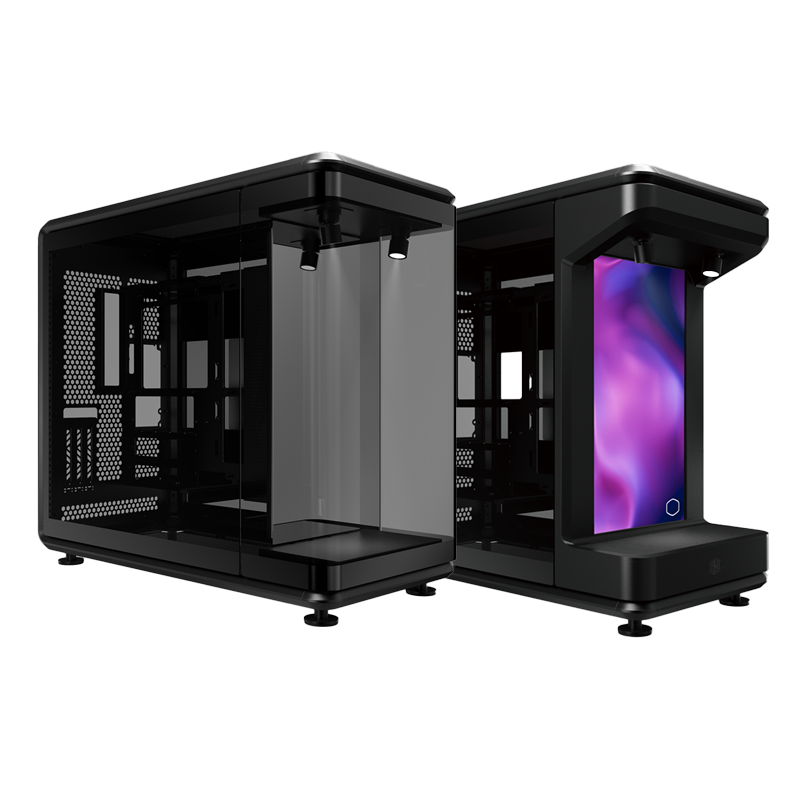

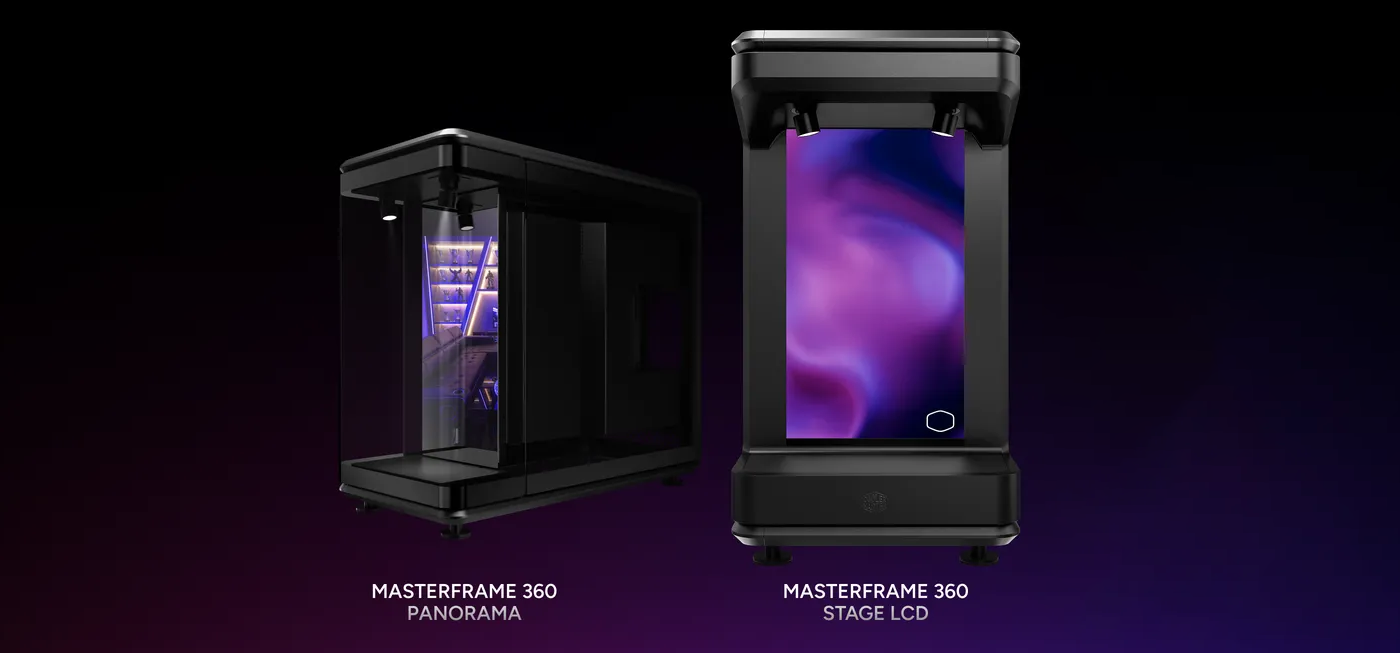

- Three variants available — Panorama, Stage LCD, and Stage Mirror

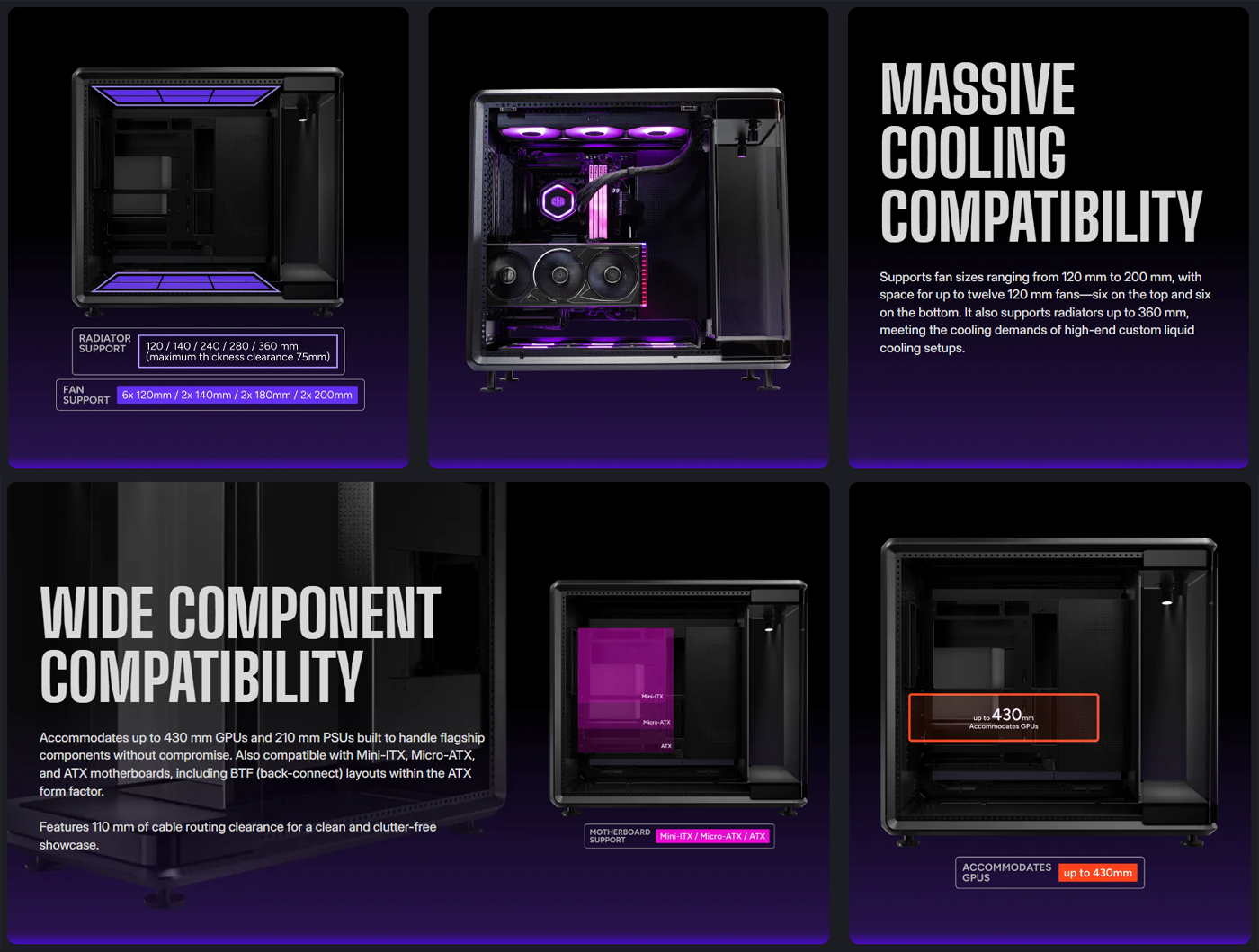

- Massive cooling support — up to 6 fans each on top and bottom plus dual 360mm radiators
- Fits collectibles up to 328 x 290 x 110mm for figure display
- USB 4.0 Type-C with PCIe 5.0 riser cable included
- 430mm GPU clearance and 210mm PSU clearance
| Specification | MasterFrame 360 Panorama | MasterFrame 360 Stage LCD |
|---|---|---|
| Model Number | MF360-KINN-S00 | MF360-KHNN-S02 |
| Color | Black | Black |
| Materials – Exterior | SGCC | SGCC |
| Materials – Side Panel | Tempered Glass / Tempered Glass | Tempered Glass / Tempered Glass |
| Dimensions (L x W x H) | 549 x 291 x 581mm (Incl.) / 511 x 291 x 581mm (Excl.) | Same |
| Volume | 86L (w/o panel) / 93L (with panel) | Same |

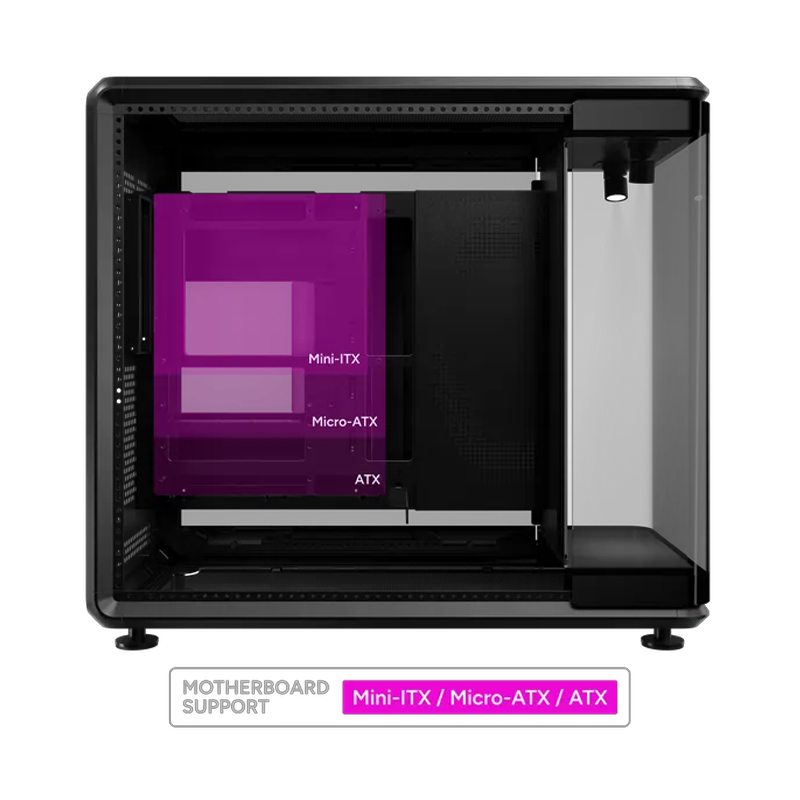

| Motherboard Support | Mini-ITX, Micro-ATX, ATX, BTF (ATX) | Same |
| Power Supply Support | ATX | ATX |
| PCI Expansion Slots | 3.5 | 3.5 |
| 3.5″ Drive Bays | 0 | 0 |
| 2.5″ / 3.5″ Combo Drive | 1 x HDD or 2 x SSD | Same |
| I/O Panel – USB Ports | 2 x USB 3.2 Gen 1 Type-A, 1 x USB 4.0 Gen 2×2 Type-C | Same |
| I/O Panel – Audio | 1 x 3.5mm Headset Jack | Same |

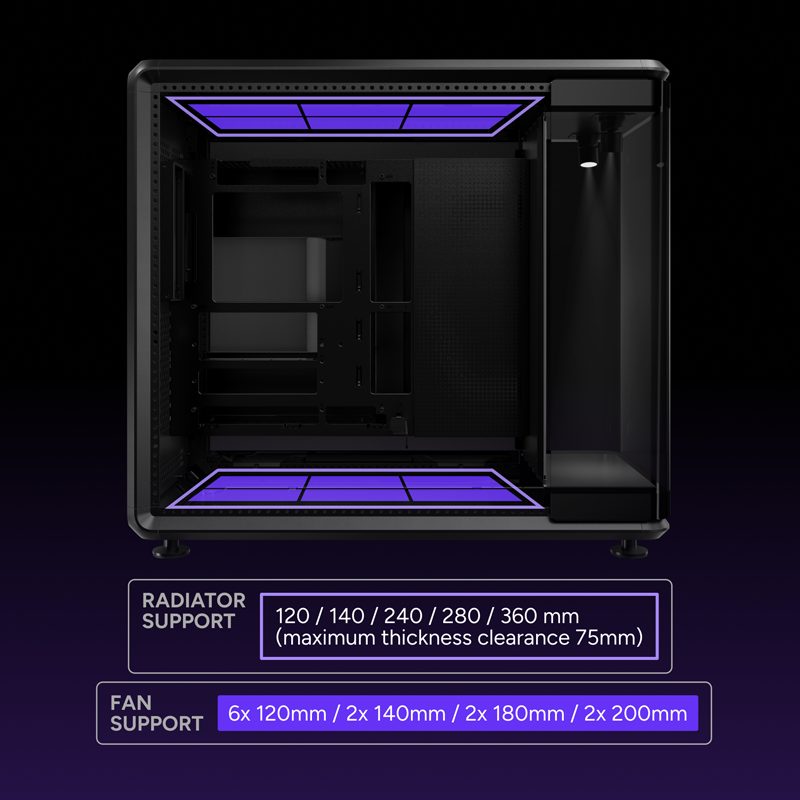

| Fan Support – Top | 6 x 120mm, 2 x 140mm, 2 x 180mm, 2 x 200mm | Same |
| Fan Support – Bottom | 6 x 120mm, 2 x 140mm, 2 x 180mm, 2 x 200mm | Same |
| Radiator Support – Top | 120/140/240/280/360mm (max 75mm thickness) | Same |
| Radiator Support – Bottom | 120/140/240/280/360mm (max 75mm thickness) | Same |
| Dust Filters | Mesh Only (Removable) | Same |

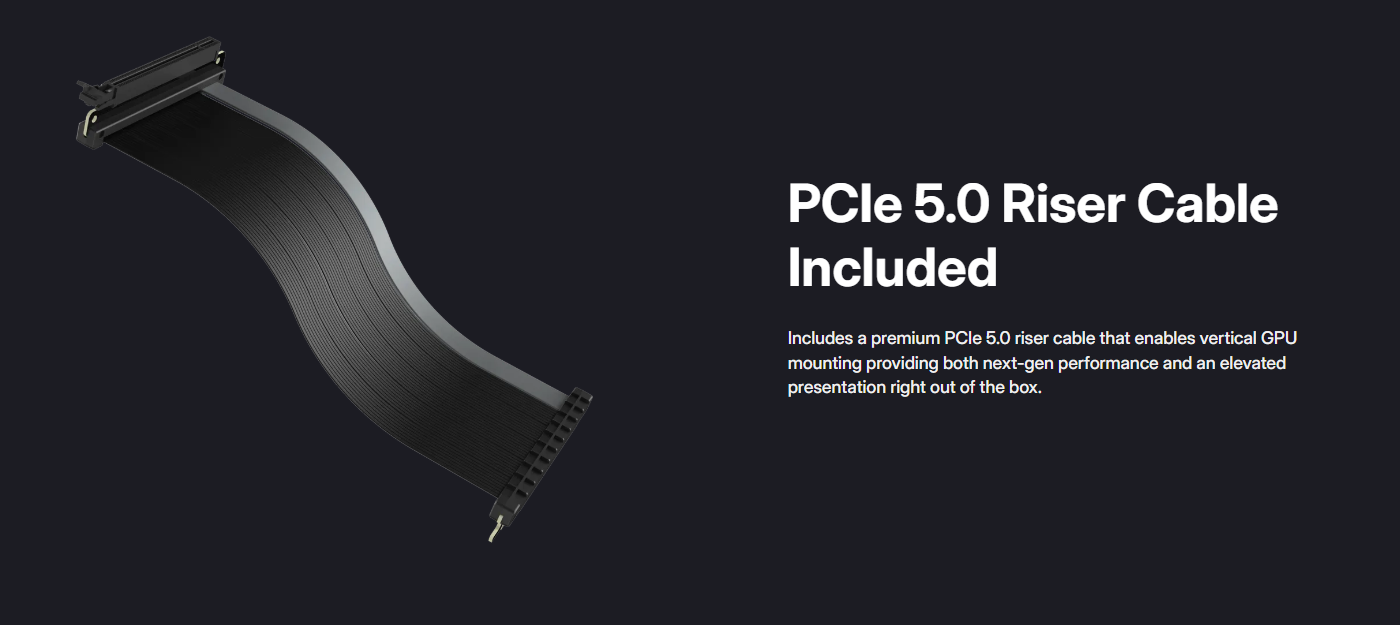

| Included Electronics | 1 x PCIe 5.0 Riser, 2 x ARGB Spotlight | Same |
| Collectibles Display Size (H x W x D) | 328 x 290 x 110mm | Same |
| DIY Tank & Pump Support | Yes (Right side bracket) | Yes (Left side) |
| Toolbox | Yes | Yes |
| Clearance – CPU Cooler | 145mm | 145mm |
| Clearance – PSU | 210mm | 210mm |

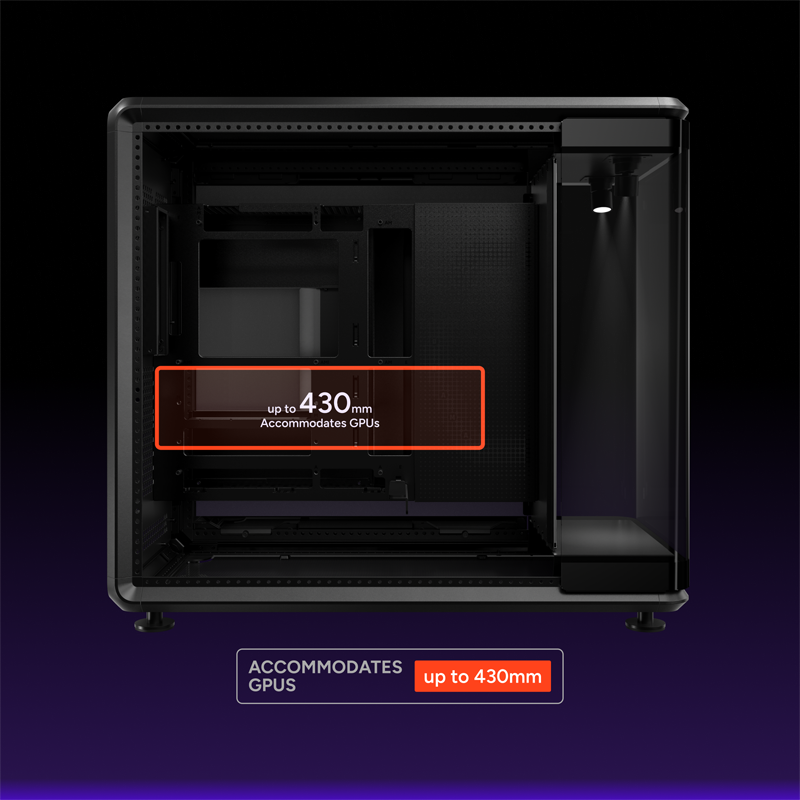

| Clearance – Graphics Card | 430mm | 430mm |
| Cable Routing – Behind MB Tray | 110mm | 110mm |
| Series | MasterFrame Series | MasterFrame Series |
| Size | Mid Tower | Mid Tower |
| Variant | PANORAMA, STAGE LCD |
|---|
