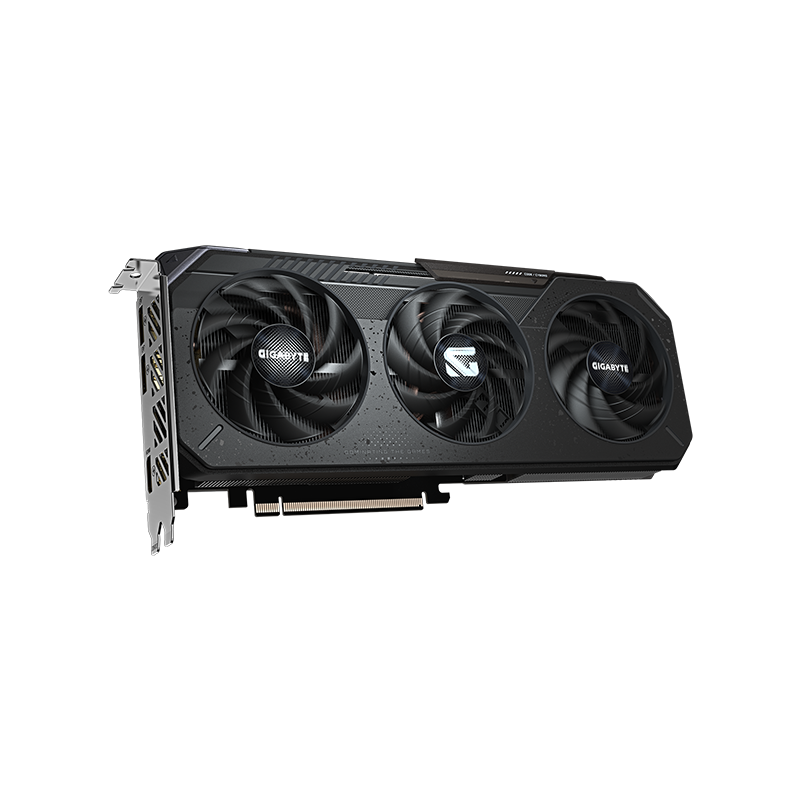

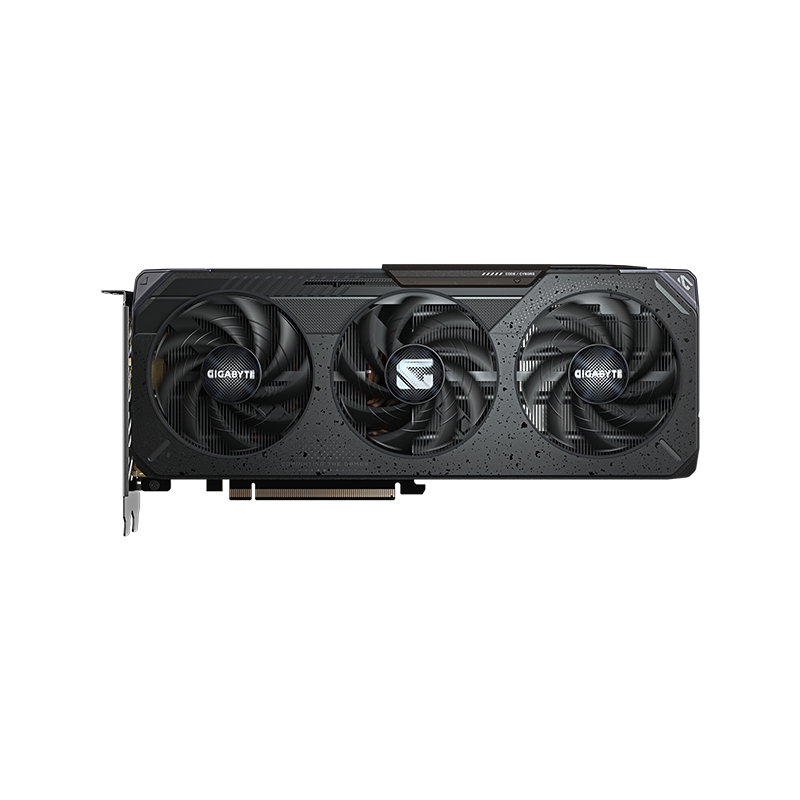

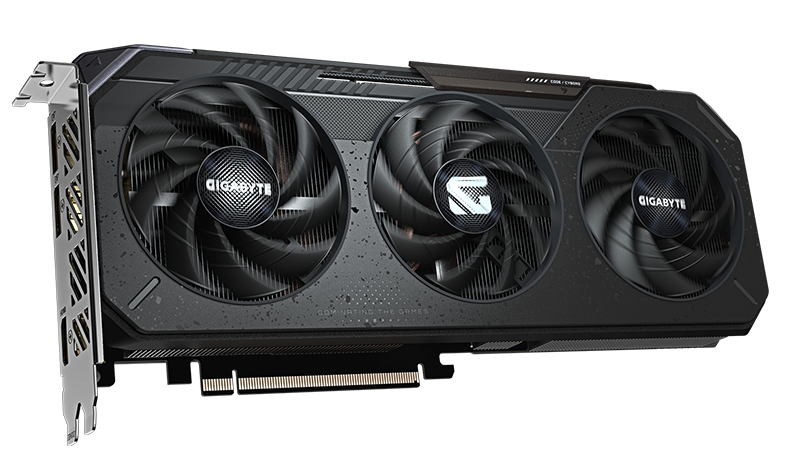

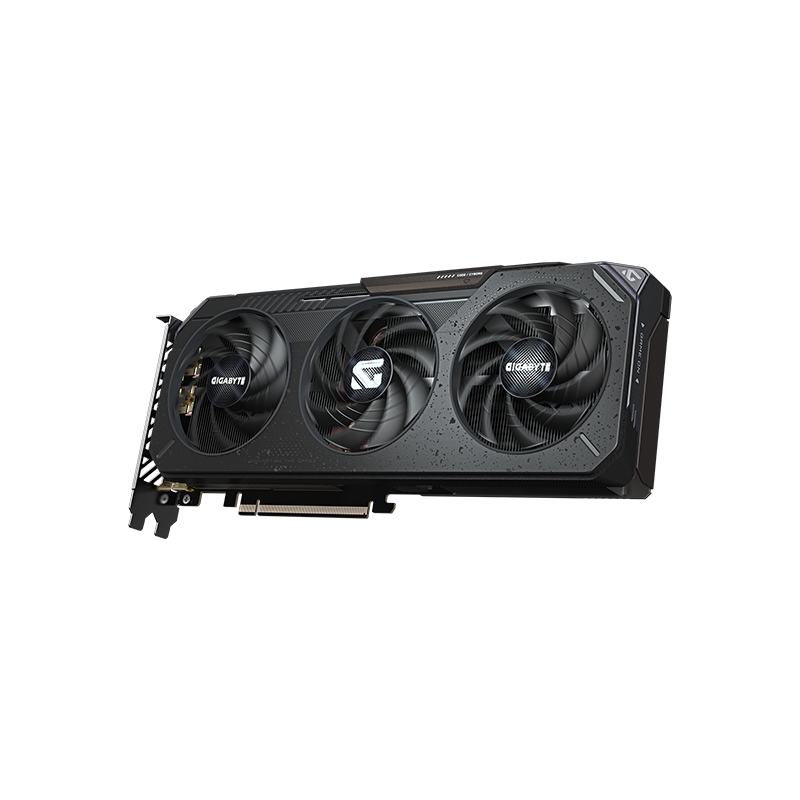

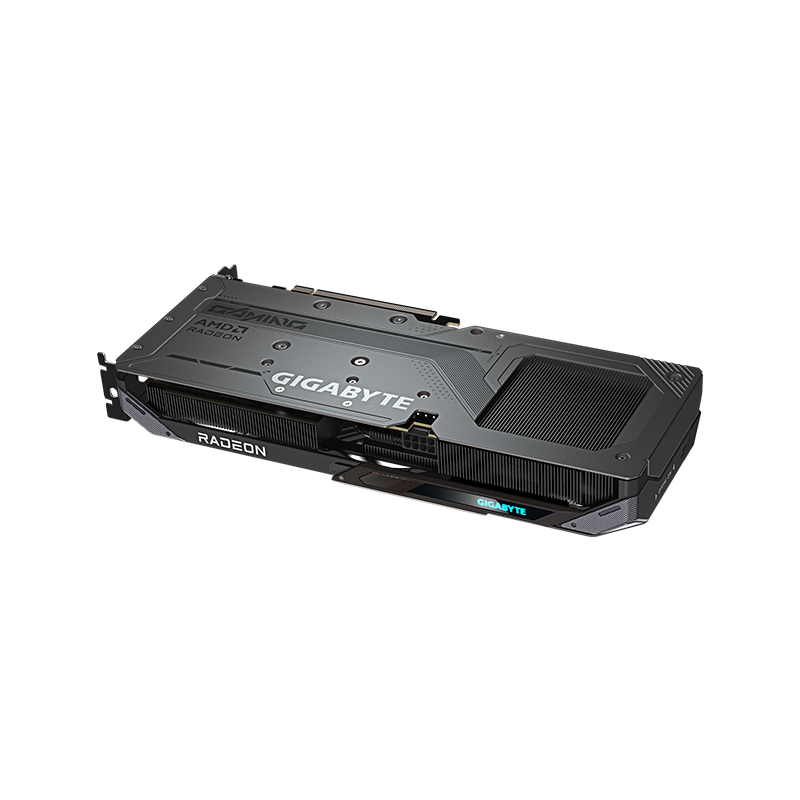

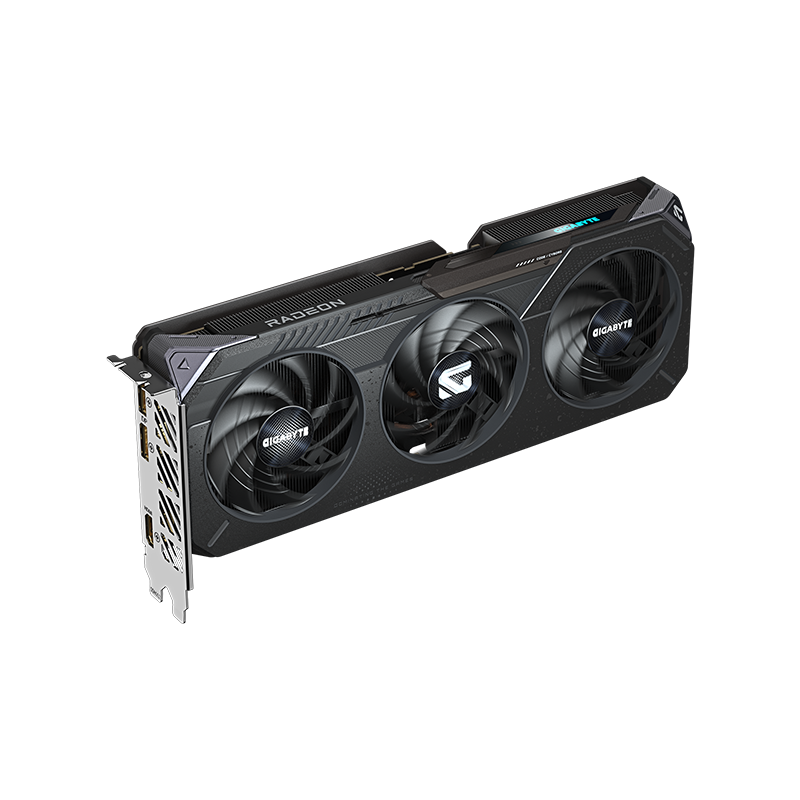

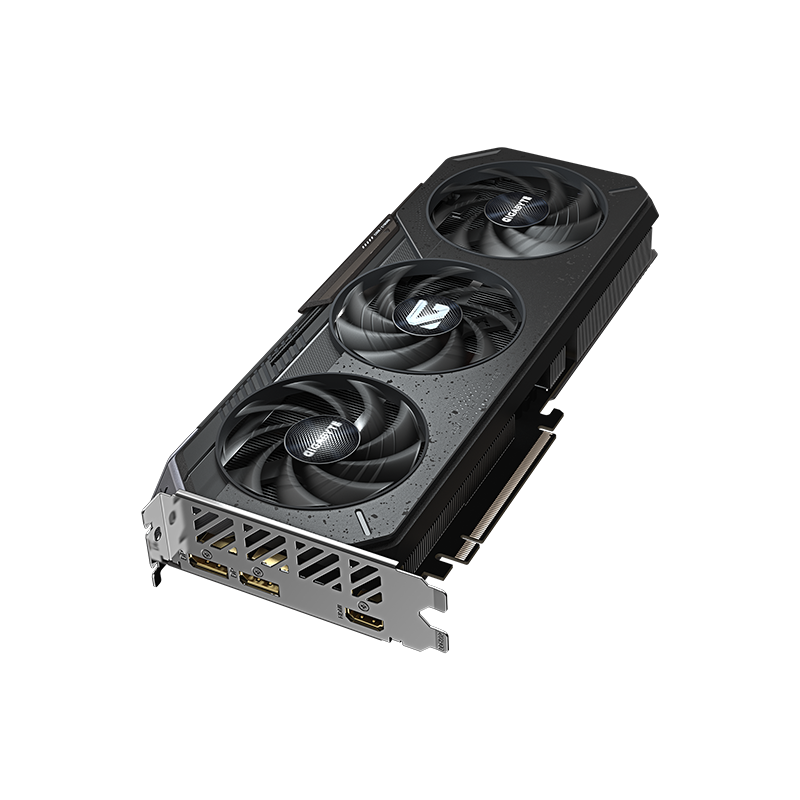

GIGABYTE Radeon™ RX 9060 XT GAMING 16GB WINDFORCE Graphics Card
Call for Price
- Powered by AMD Radeon™ RX 9060 XT with 2048 stream processors – factory overclocked boost clock up to 3230 MHz, game clock up to 2620 MHz, and 16GB GDDR6 128-bit memory at 20 Gbps
- WINDFORCE cooling system with Hawk fans, alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling for exceptional thermal performance
- Server-grade thermal conductive gel and reinforced metal backplate secured to the I/O bracket – ensures long-term durability and structural integrity
- 16.7M customizable RGB lighting via GIGABYTE CONTROL CENTER with multiple effects; sleek mech-inspired exterior design with sliding side plate
- Dual DisplayPort 2.1a and single HDMI 2.1b outputs; supports up to 3 displays at 7680×4320 max resolution; PCI-E 5.0 interface; recommended 450W PSU with single 8-pin connector
FEATURES
- ▸ Powered by Radeon™ RX 9060 XT
- ▸ 16GB GDDR6 128-bit memory
- ▸ WINDFORCE cooling system
- • Hawk fan technology
- • Server-grade thermal gel
- ▸ RGB Lighting
- ▸ Reinforced structure
CORE CLOCK
3230 MHz Boost Clock*
Reference card: 3130 MHz
2620 MHz Game Clock*
Reference card: 2530 MHz
DESIGNED FOR 1440P
RDNA™ 4 architecture with unified compute units, advanced raytracing and AI accelerators. AMD FidelityFX™ Super Resolution 4 and HYPR-RX support.
AI ENHANCED VISUALS
Next-gen raytracing, ML-powered upscaling, and enhanced media engine for elevated streaming clarity.
EASY PERFORMANCE
Intuitive software with real-time AI assistance and one-click optimization for higher frame rates and lower lag.
FUTURE-READY
PCIe® 5.0, DisplayPort™ 2.1a, HDMI® 2.1b. Up to 16GB VRAM for ultra-high refresh displays.

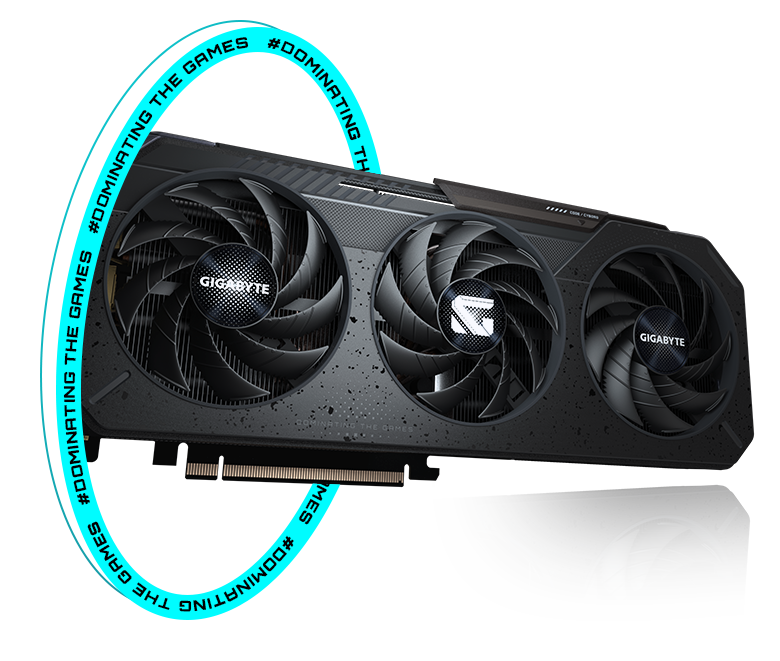

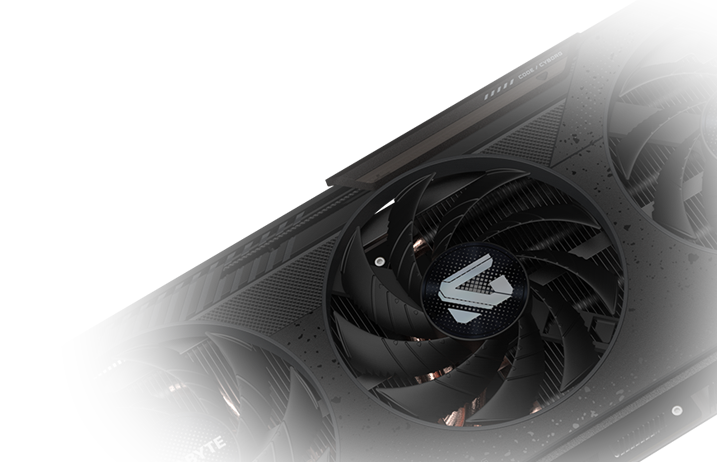

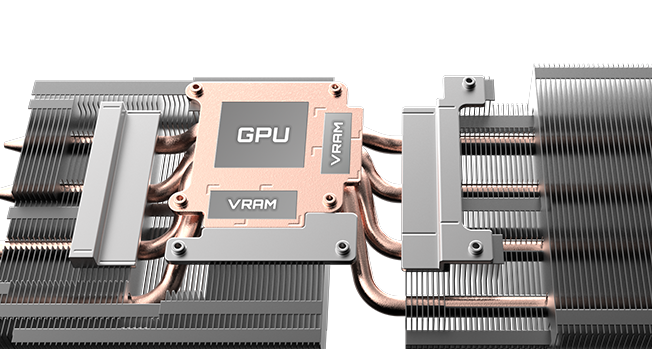

WINDFORCE COOLING
Server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
EXTERIOR DESIGN
Drawing from mech warrior concepts, the design blends futuristic armor with mechanical aesthetics for exceptional protection and powerful durability.

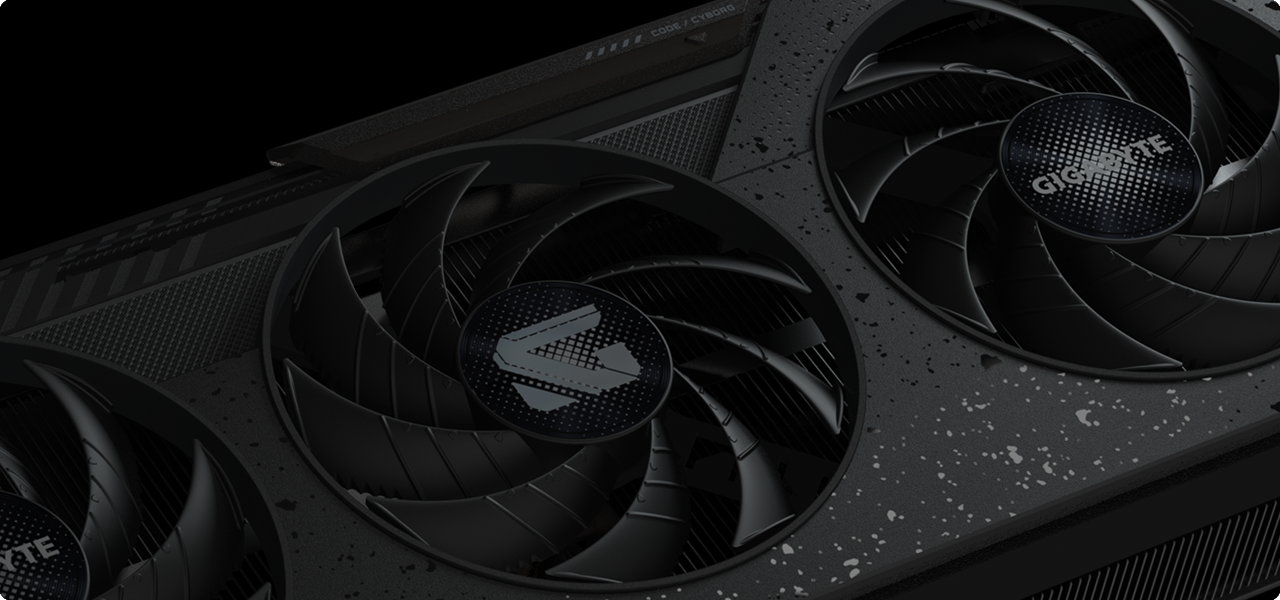

MULTI-LAYERED VISUAL
Multi-layered exterior structure with varied surface finishes creates visual depth like futuristic armor plating.
UNIQUE TEXTURE
Custom textures cover curved surfaces, paired with layered elements for a strong armor-like identity. Every detail accentuates mechanical aesthetics.
EXCELLENCE IN ESSENTIAL

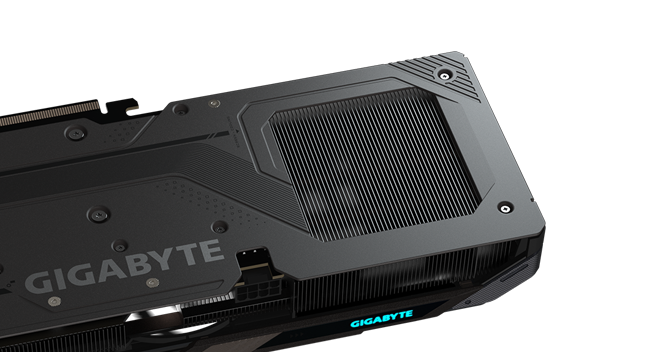

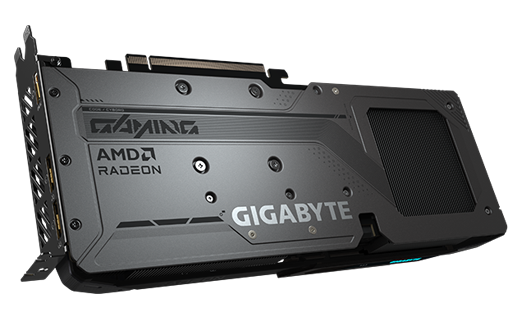

REINFORCED STRUCTURE

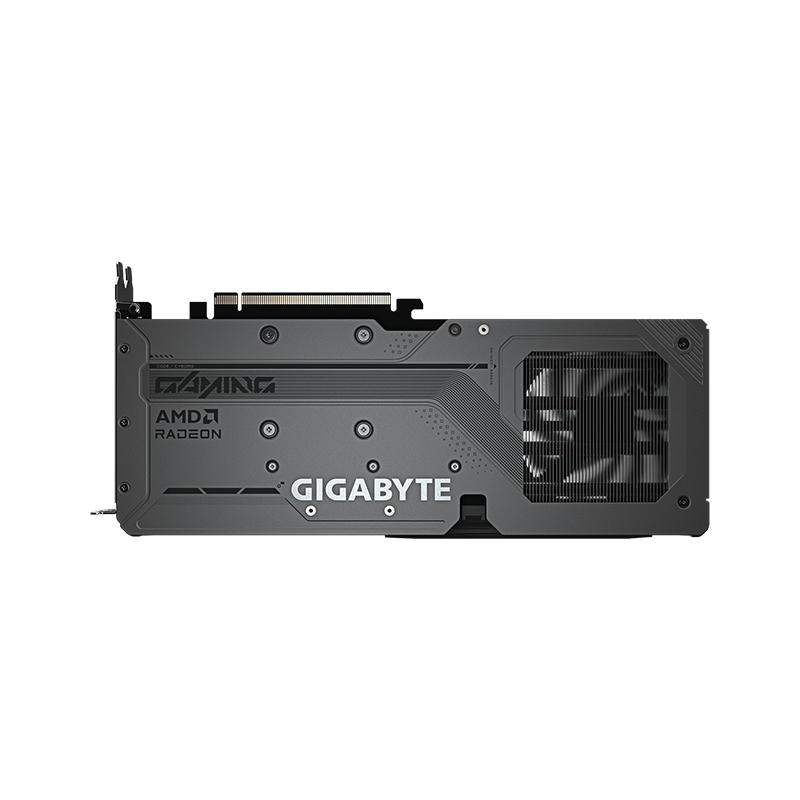

Metal backplate securely fastened to the I/O bracket provides exceptional structural integrity.

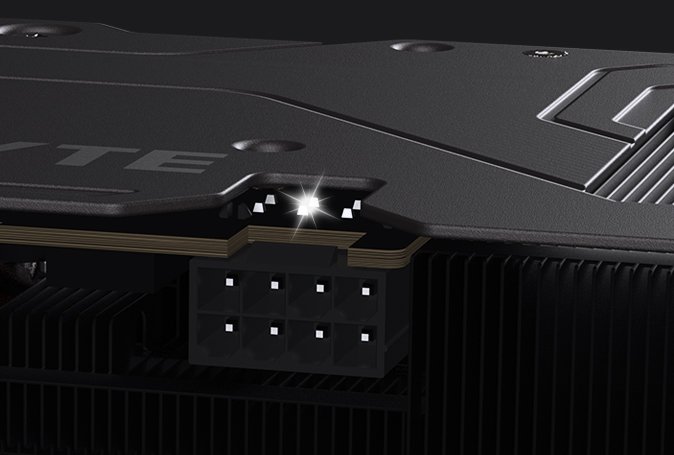

POWER INDICATOR
Onboard LED alerts users to power supply abnormalities by flashing.
ULTRA DURABLE
Lower RDS(on) MOSFETs, metal chokes, and solid capacitors for better conductivity and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production ensures quality boards with smooth solder joints — no sharp protrusions.
SPECIFICATIONS
| Overview | |
| Product Name | GIGABYTE Radeon™ RX 9060 XT GAMING 16GB WINDFORCE Graphics Card |
| Brand | GIGABYTE |
| Model | RX 9060 XT GAMING 16GB |
| Condition | New |
| GPU Series | GIGABYTE GAMING |
| Graphics Processing | |
| GPU | Radeon™ RX 9060 XT |
| Stream Processors | 2048 |
| Boost Clock | Up to 3230 MHz (Reference: 3130 MHz) |
| Game Clock | Up to 2620 MHz (Reference: 2530 MHz) |
| Memory | |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 bit |
| Memory Clock | 20 Gbps |
| Interface & Output | |
| Card Bus | PCI-E 5.0 |
| Digital Max Resolution | 7680 x 4320 |
| Multi-View | 3 Displays |

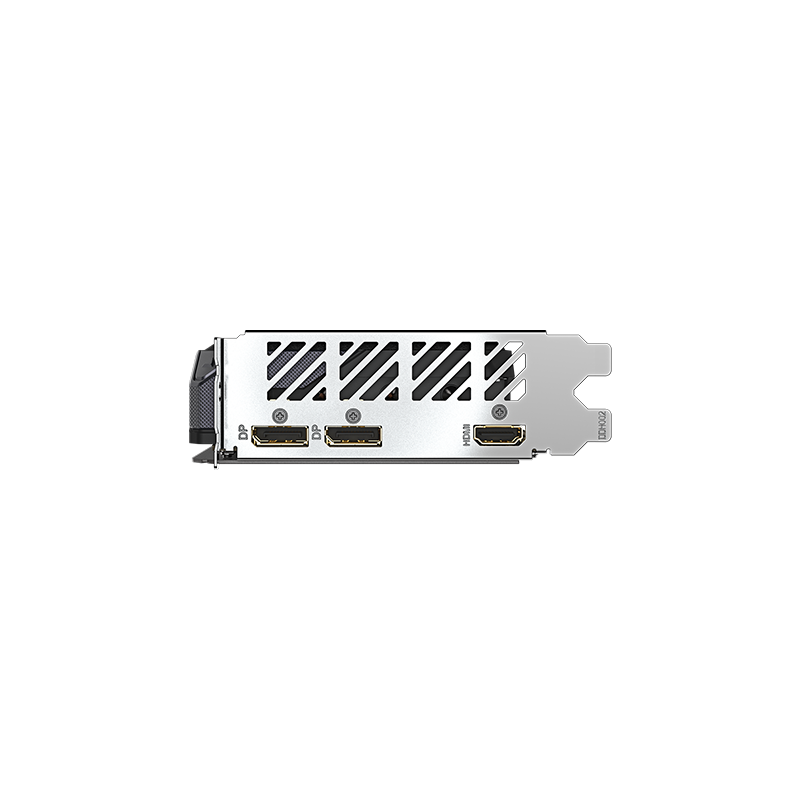

| Outputs | 2 x DisplayPort 2.1a 1 x HDMI 2.1b |
| DirectX Support | DirectX 12 API |
| OpenGL Support | OpenGL 4.6 |
| Cooling & Design | |
| Cooling System | WINDFORCE – Hawk Fans, Composite Copper Heat Pipes, Copper Plate, 3D Active Fans, Screen Cooling |
| Fan Type | Hawk Fan with Alternate Spinning |
| Thermal Material | Server-grade Thermal Conductive Gel |
| RGB Lighting | 16.7M Customisable Colours with Multiple Effects (GIGABYTE CONTROL CENTER) |
| Structure | Reinforced Metal Backplate – secured to I/O bracket |
| Power & Physical | |
| Recommended PSU | 450 W |
| Power Connectors | 1 x 8-pin |
| Dimensions (L x W x H) | 281 x 118 x 40 mm |
| PCB Form | ATX |
| In The Box | |

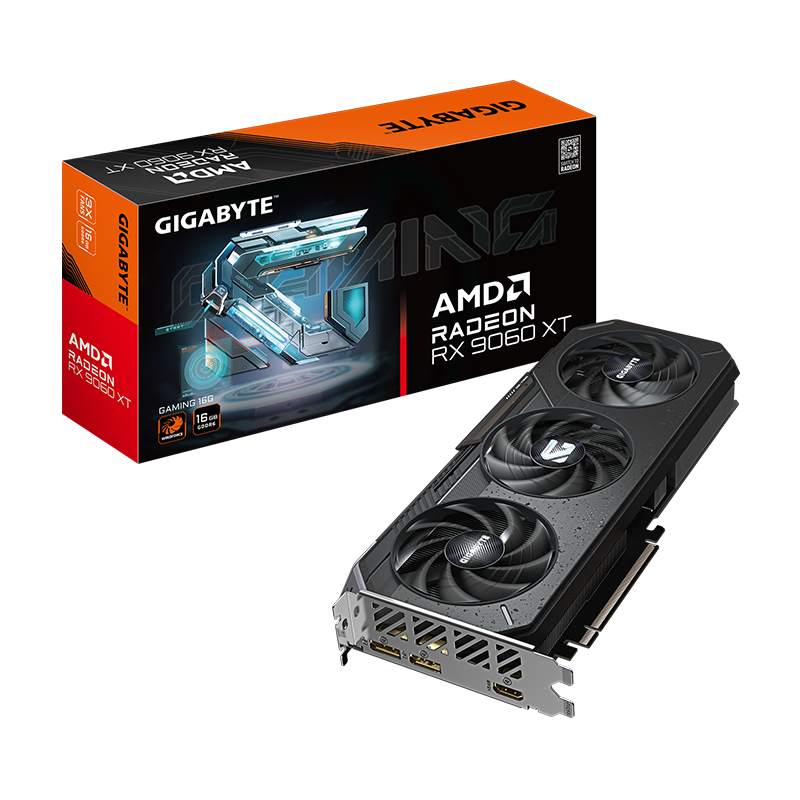

| Package Contents | GIGABYTE Radeon™ RX 9060 XT GAMING 16GB WINDFORCE Graphics Card | VGA Manual |

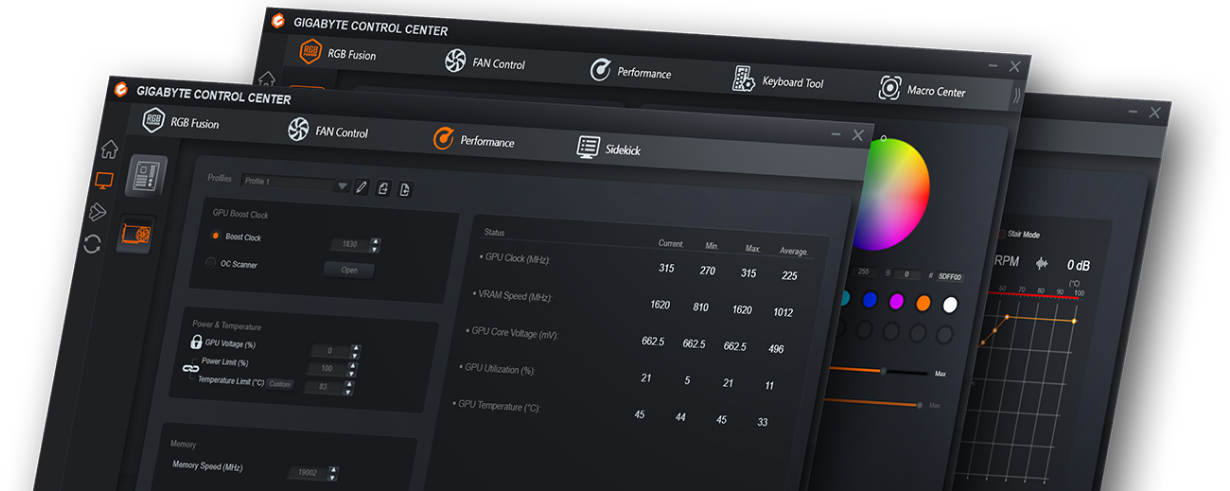

GIGABYTE CONTROL CENTER
Unified software for all supported products. Adjust clock speed, voltage, fan mode, and power target in real-time from one intuitive interface.
Notes:
* Boost Clock and Game Clock may vary based on system configuration. Specifications subject to change.
AMD, Radeon, Ryzen, FidelityFX are trademarks of Advanced Micro Devices, Inc.
Product images are for illustration purposes. Actual product appearance may vary.
