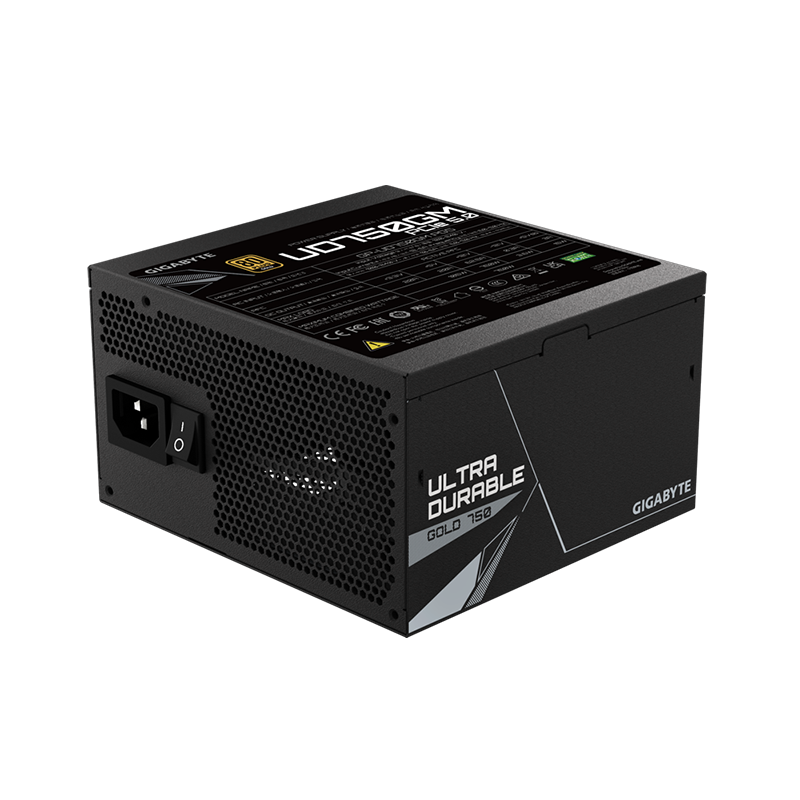

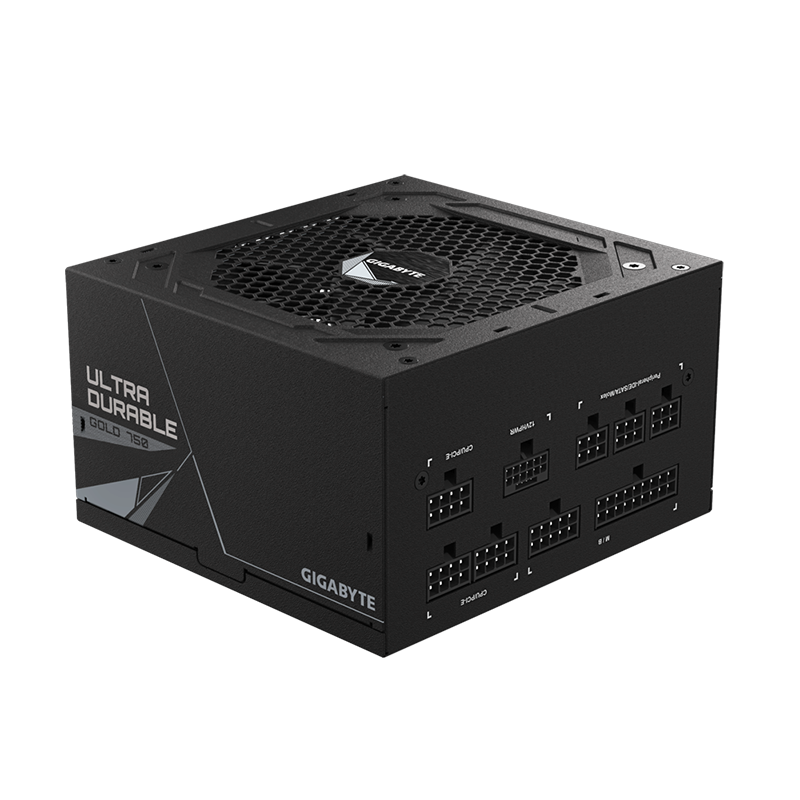

GIGABYTE UD750GM PG5 750W 80 Plus GOLD Full Modular Power Supply
₨ 28,499
- 750W 80 PLUS Gold certified – delivers up to 90% efficiency at typical load; fully modular flat black cables for reduced clutter and improved airflow

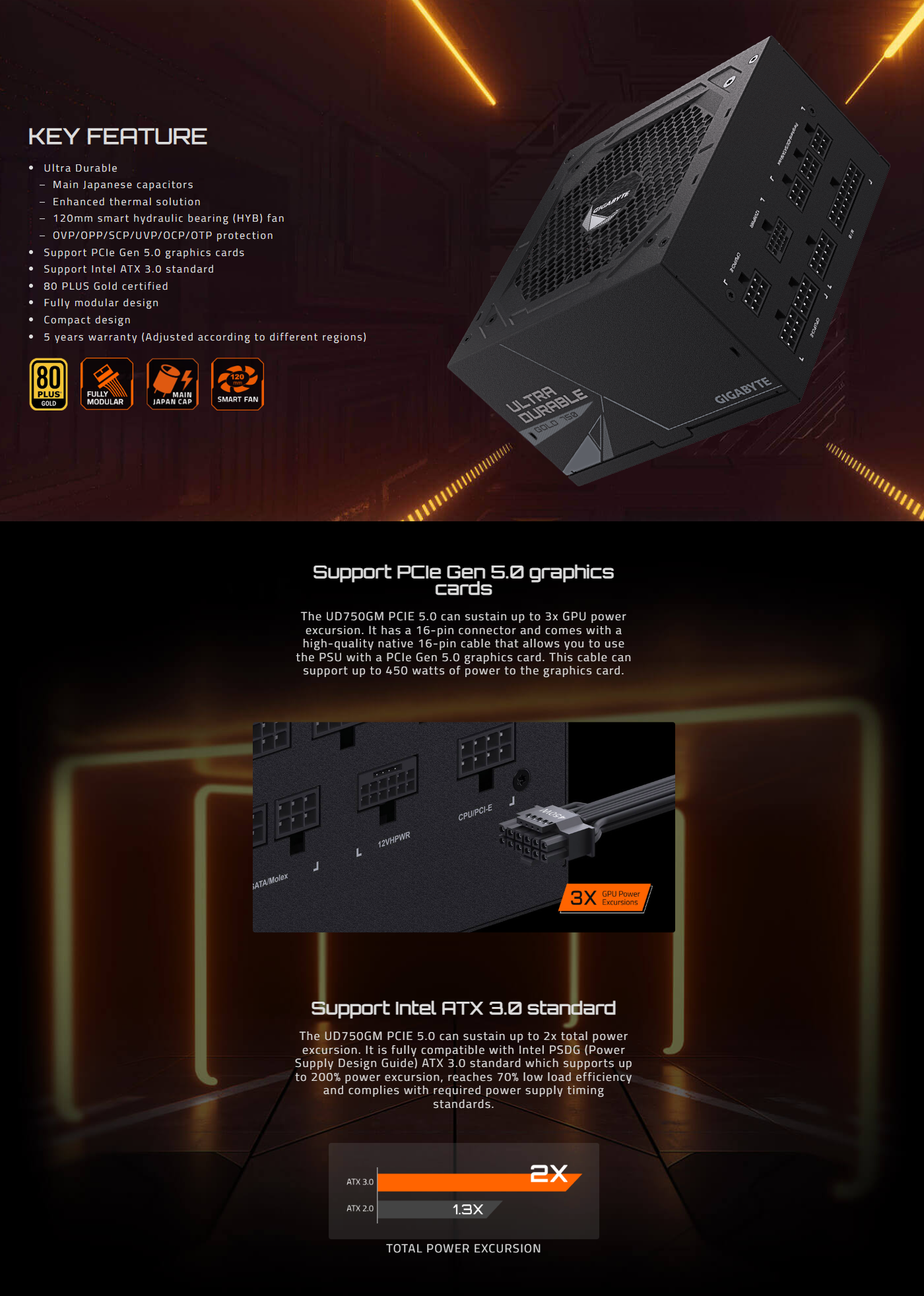

- PCIe Gen 5.0 ready with native 16-pin (12VHPWR) cable – supports up to 450W to graphics cards and sustains up to 3x GPU power excursion
- Intel ATX 3.0 compliant – supports up to 2x total power excursion, 200% power excursion, and 70% low load efficiency with proper timing standards
- Ultra Durable build with main Japanese capacitors, enlarged heatsink (200%+ larger), and 120mm smart HYB fan that stops at low load for silent operation
- Compact 140mm length fits any chassis; full protections (OVP/OPP/SCP/UVP/OCP/OTP); 2x CPU/EPS, 4x PCIe 6+2 Pin, 8x SATA connectors
| Overview | |
| Product Name | GIGABYTE UD750GM PG5 750W 80 Plus Gold Full Modular Power Supply |
| Brand | GIGABYTE |
| Model | GP-UD750GM PG5 |
| Condition | New |
| Type | Intel Form Factor ATX 12V v3.0 |

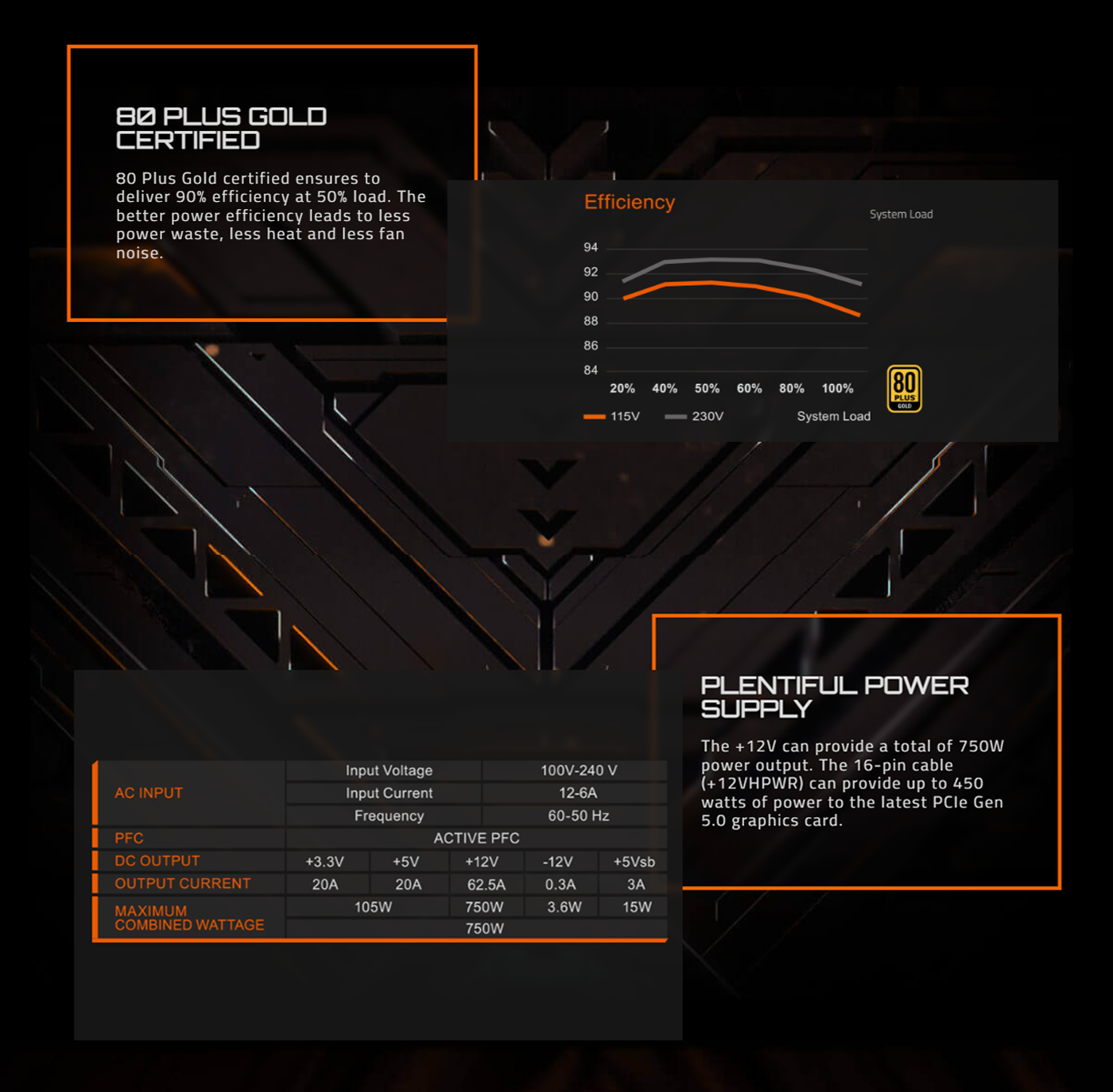

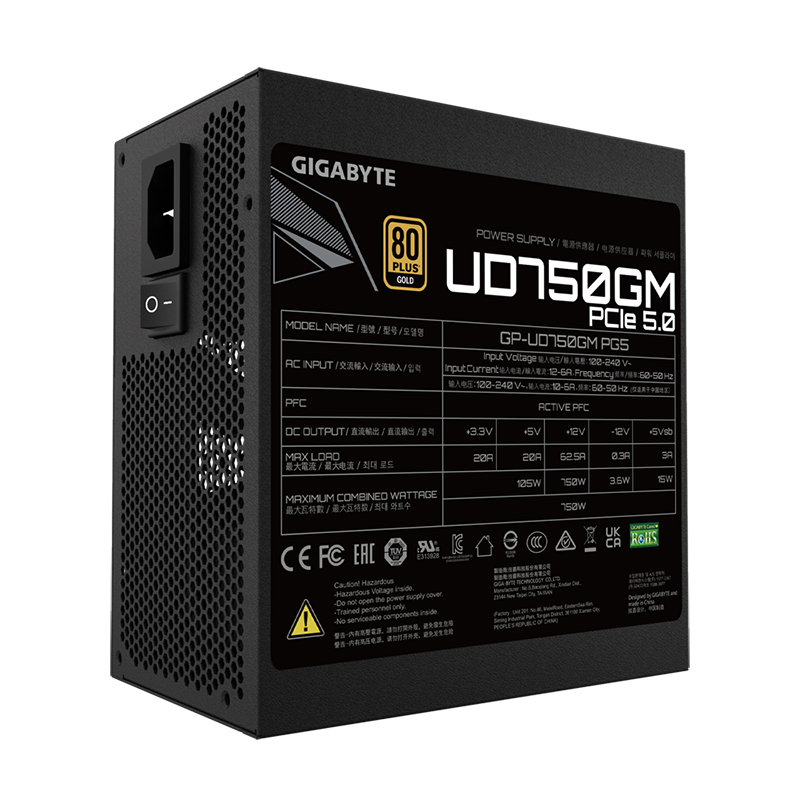

| Electrical Specifications | |
| Output Capacity | 750 W |
| 80 PLUS Certification | Gold |
| Efficiency | 90% at typical load |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100 – 240 V AC (Full Range) |
| Input Current | 12 – 6 A |
| Input Frequency | 60 – 50 Hz |
| +12V Rail Output | 750 W Total |
| Power Excursion (Total) | Up to 2x / 200% |
| Power Excursion (GPU) | Up to 3x |
| Low Load Efficiency | 70% |
| Power Good Signal | 100 – 150 ms |
| Hold Up Time | >16 ms |
| Protection | |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP |
| Build & Cooling | |
| Main Capacitors | Japanese Capacitors |
| Thermal Solution | Enhanced – Heatsink enlarged by ~200% or more |

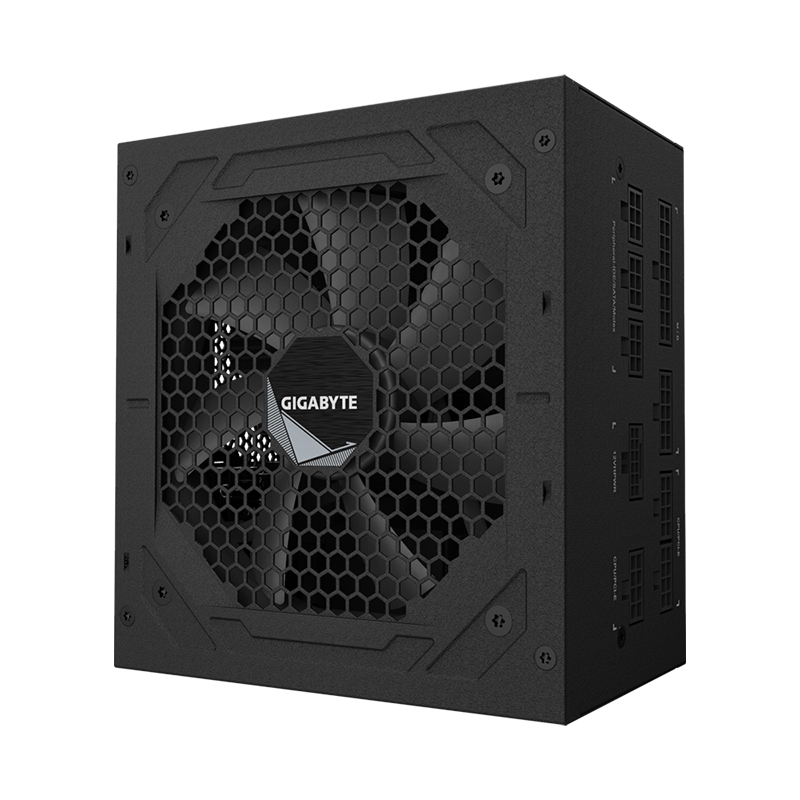

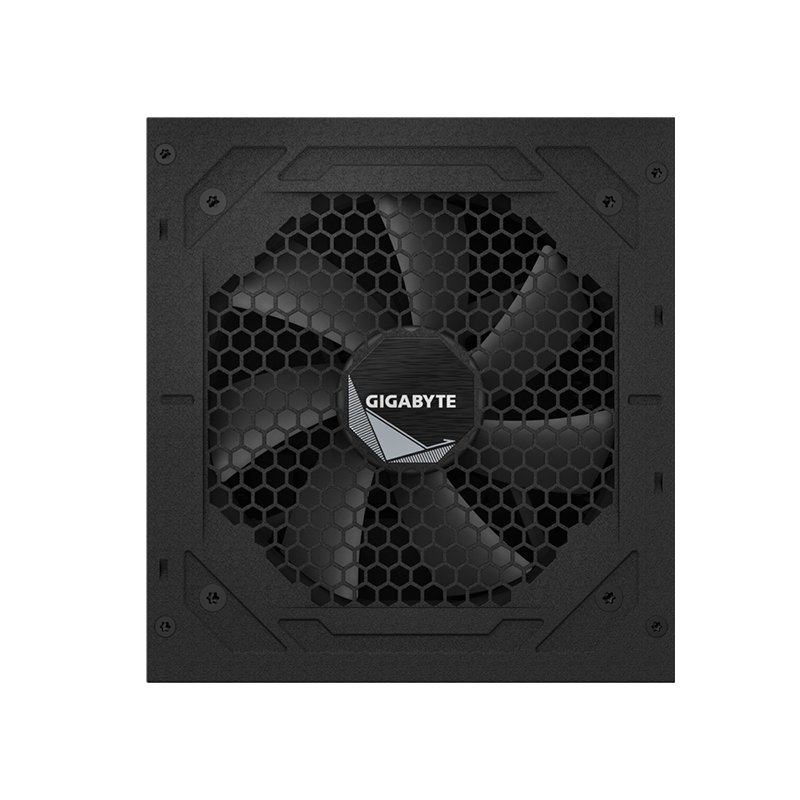

| Fan Type | 120 mm Smart Hydraulic Bearing (HYB) Fan |
| Fan Control | Automatic – stops at <20% load (0dB mode) |

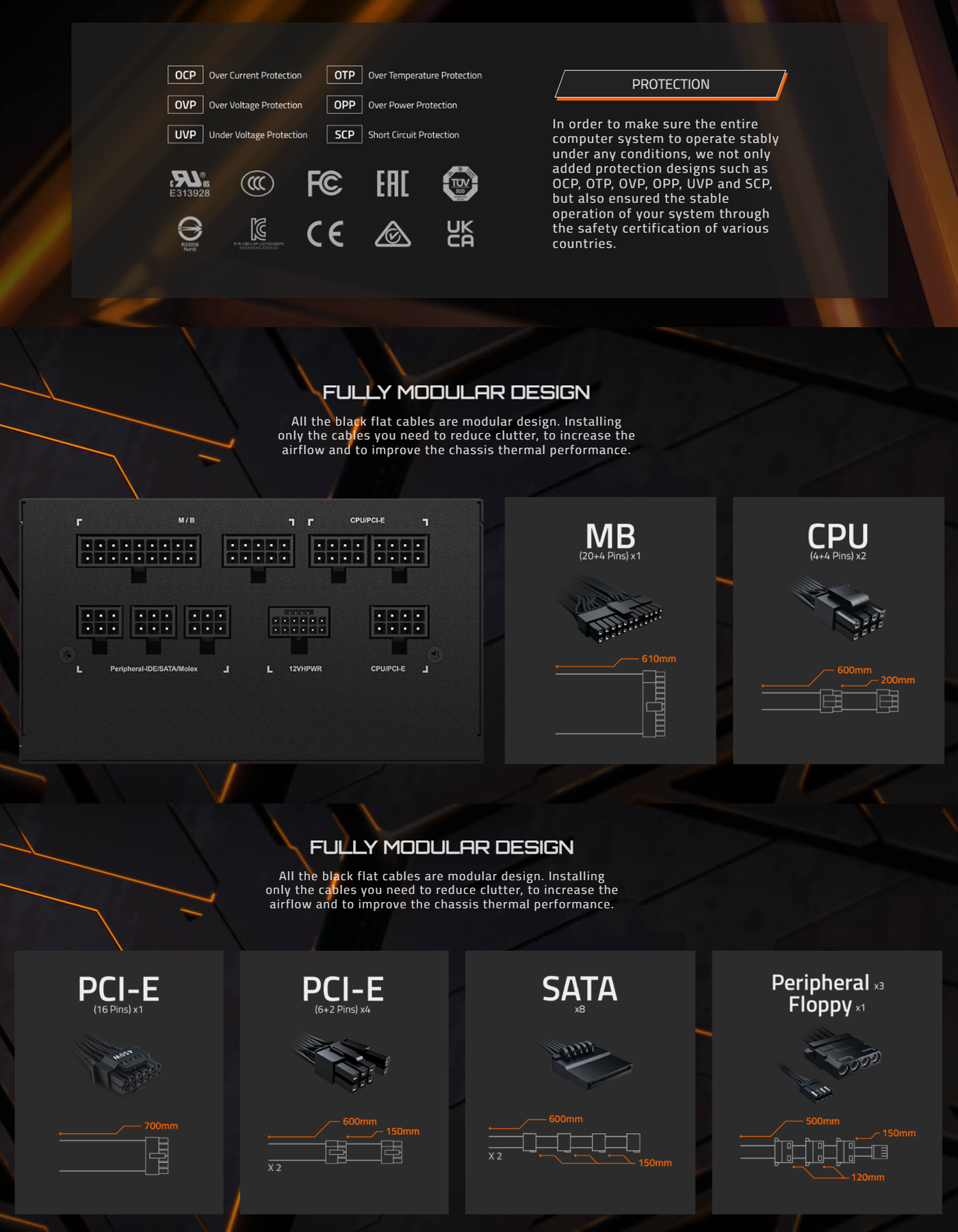

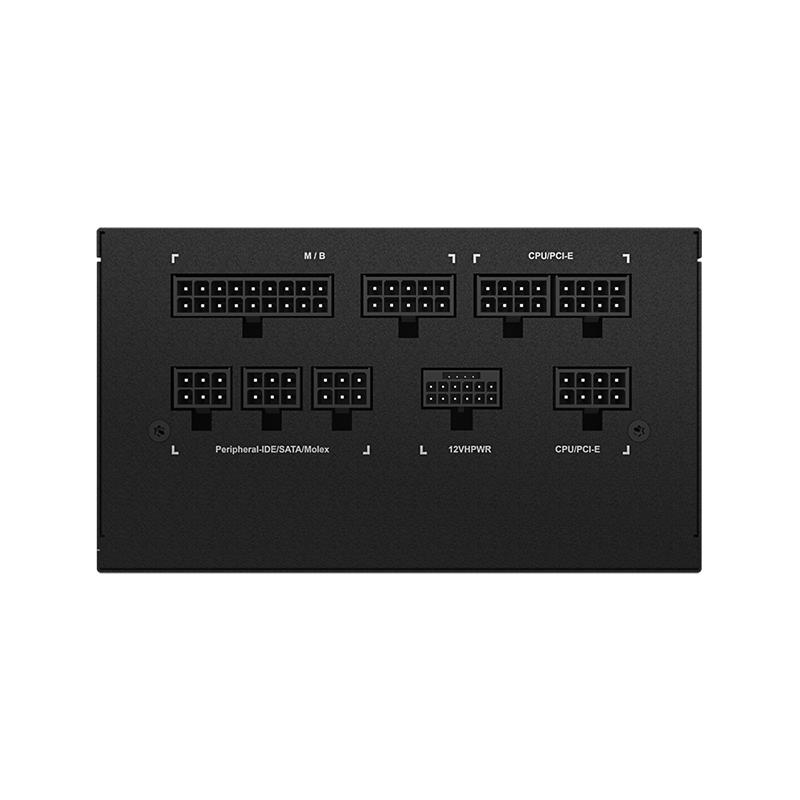

| Cables & Connectors | |
| Cable Type | Fully Modular, Flat, All Black |
| ATX / MB | 20+4 Pin x 1 (610 mm) |
| CPU / EPS | 4+4 Pin x 2 (600 mm + 200 mm) |
| PCIe 16-Pin (12VHPWR) | x 1 (700 mm) – Up to 450 W |
| PCIe 6+2 Pin | x 4 (600 mm + 150 mm x 2 cables) |
| SATA | x 8 (600 mm + 150 mm + 150 mm + 150 mm x 2 cables) |
| 4-Pin Peripheral + Floppy | x 3 + x 1 (500 mm + 120 mm + 120 mm + 150 mm) |
| Physical & Reliability | |

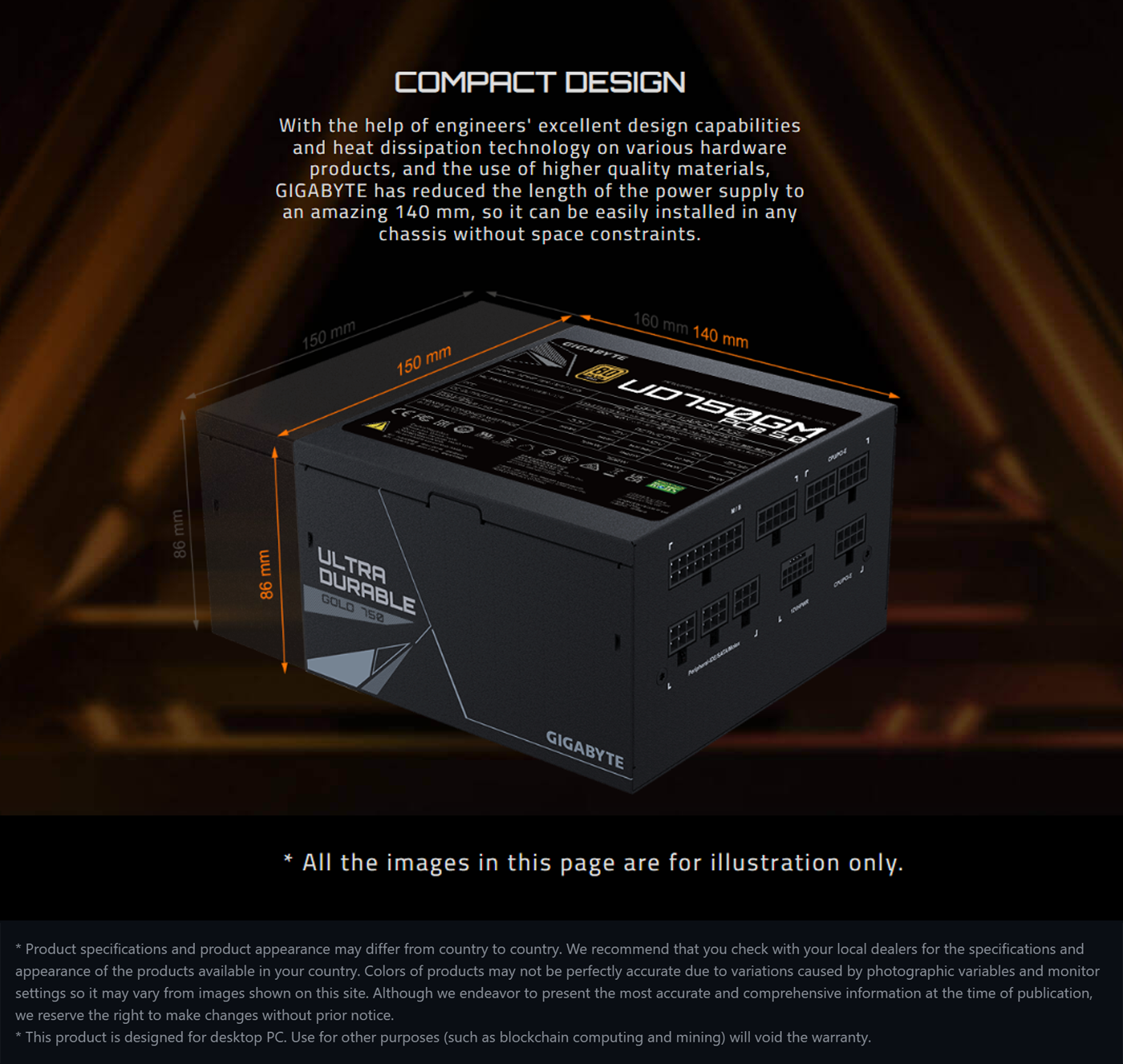

| Dimensions (W x D x H) | 150 x 140 x 86 mm |
| MTBF | >100,000 hours |
| In The Box | |

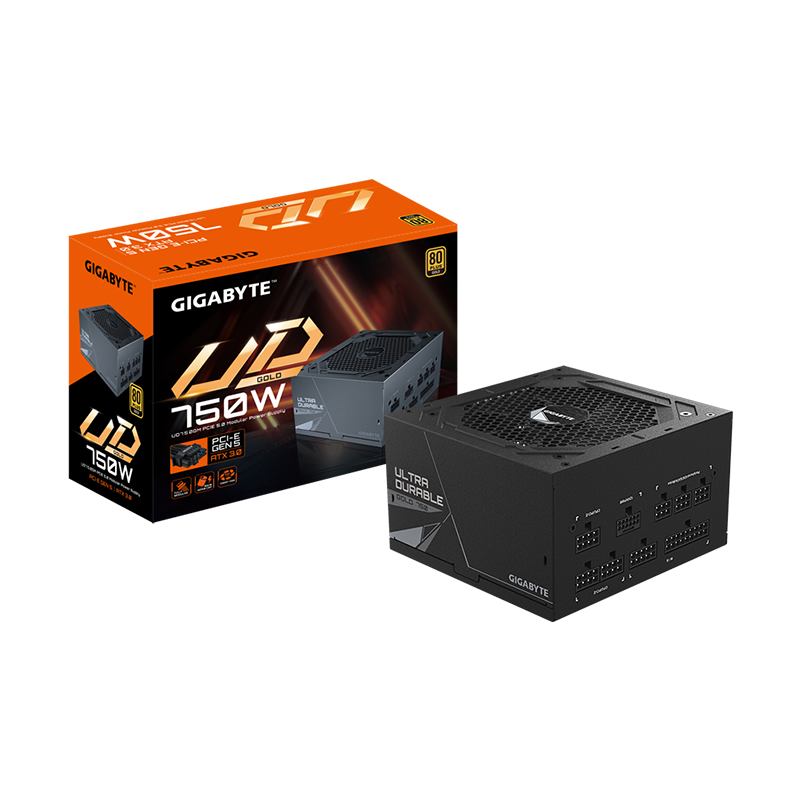

| Package Contents | GIGABYTE UD750GM PG5 750W 80 Plus Gold Full Modular PSU | Modular Cable Set | 16-Pin PCIe Cable | Power Cord | User Manual |
