Kingston DDR4 8GB RAM 3200MHz KVR32N22S8/8

₨ 13,499

8GB DDR4-3200 (PC4-3200) memory module – CL22 latency, 288-pin DIMM, 1.2V, single‑rank x8 configuration for reliable desktop performance
JEDEC standard timing of 22-22-22 at 1.2V; gold contact fingers for enhanced conductivity and durability
On‑die termination, low‑power auto self refresh and data bus inversion for improved power efficiency and signal integrity
16 internal banks with fly‑by topology and terminated command/address bus for stable high‑speed operation
RoHS compliant, halogen‑free, UL 94 V‑0 rated; 1.23‑inch PCB height for easy installation in most desktop cases

Chat with us to Confirm Availability & Updated Price

Category: Rams Tags: 8GB DDR4 3200MHz CL22 DIMM, Buy Kingston 8GB DDR4 3200MHz RAM Pakistan, Kingston 288-pin RAM, Kingston 8GB 3200MHz Price Karachi Lahore Islamabad, Kingston DDR4 Desktop RAM, Kingston KVR32N22S8/8 8GB DDR4, Kingston KVR32N22S8/8 Price in Pakistan, Kingston Single Rank DDR4, Kingston ValueRAM 8GB DDR4, PC4-3200 8GB RAM, Woocommerce RAM Product Tags SEO

Description

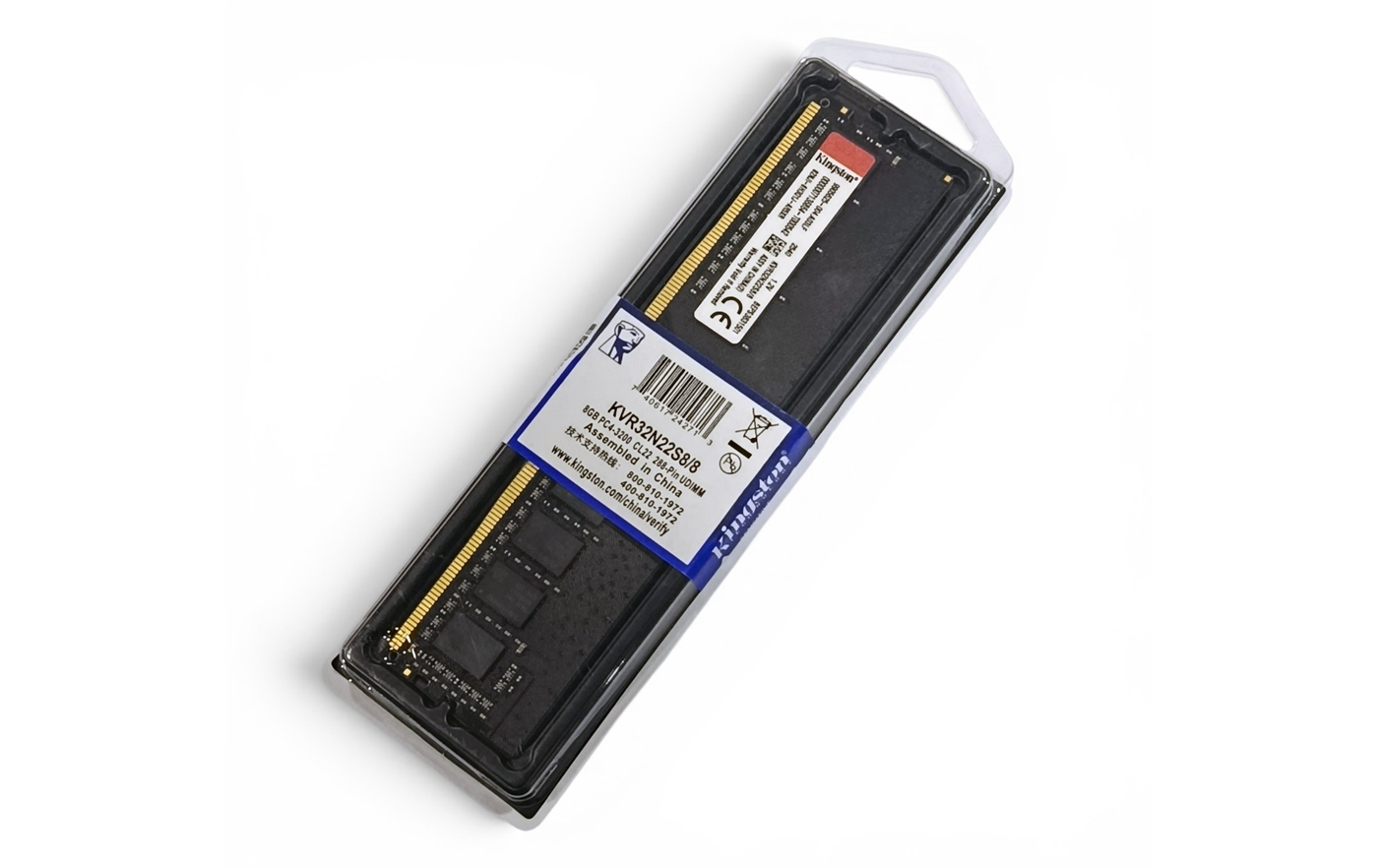

Kingston DDR4 3200Mhz RAM 8 GB KVR32N22S8

Overview
Product Name	Kingston DDR4 8GB RAM 3200MHz KVR32N22S8/8
Brand	Kingston
Model	KVR32N22S8/8
Condition	New
Memory Type	DDR4 Unbuffered DIMM
Memory Specifications
Capacity	8GB
Speed	3200MHz (PC4-3200)
CAS Latency	CL22 (22-22-22)
DIMM Pin Count	288-pin
Rank	Single Rank x8 (1Rx8)
Voltage (VDD / VDDQ)	1.2V Typical
Component Configuration	Eight 1G x 8-bit FBGA
Contact Material	Gold Contact Fingers
PCB Height	1.23″ (31.25mm)
Timing Parameters
tCL (CAS Latency)	22 cycles
tRCD (RAS to CAS Delay)	22 cycles
tRP (Row Precharge Time)	22 cycles
tRASmin (Row Active Time)	32 ns (min.)
tRCmin (Row Cycle Time)	45.75 ns (min.)
tRFCmin (Refresh Cycle Time)	350 ns (min.)
Features & Technologies
On‑Die Termination (ODT)	Yes – Nominal & dynamic for data, strobe, mask
Low‑Power Auto Self Refresh (LPASR)	Yes
Data Bus Inversion (DBI)	Yes – For data bus
On‑die VREFDQ	Yes – Generation & calibration
SPD EEPROM	On‑board I²C serial presence‑detect
Internal Banks	16 banks (4 groups of 4 banks each)
Burst Options	Fixed BC4 & BL8, selectable on‑the‑fly (OTF)
Topology	Fly‑by topology with terminated command/address bus
Electrical Characteristics
VDD (Supply Voltage)	1.2V Typical
VDDQ (I/O Voltage)	1.2V Typical
VPP (Programming Voltage)	2.5V Typical
VDDSPD (SPD Voltage)	2.2V to 3.6V
Environmental & Certifications
Operating Temperature	0°C to +85°C
Storage Temperature	-55°C to +100°C
UL Rating	94 V‑0
RoHS Compliant	Yes
Halogen-Free	Yes
In The Box
Package Contents	Kingston KVR32N22S8/8 8GB DDR4 3200MHz DIMM RAM Module
