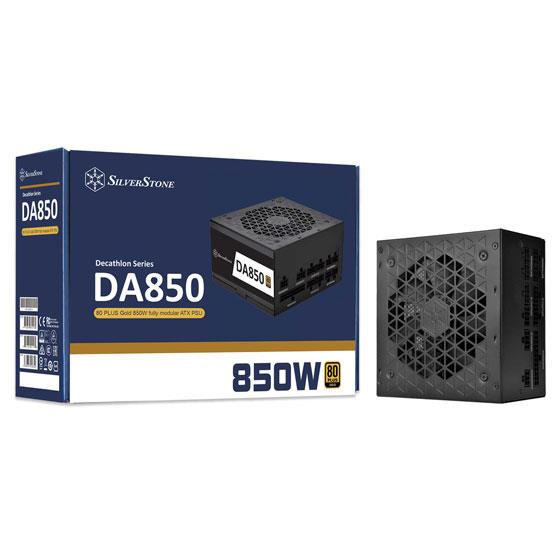

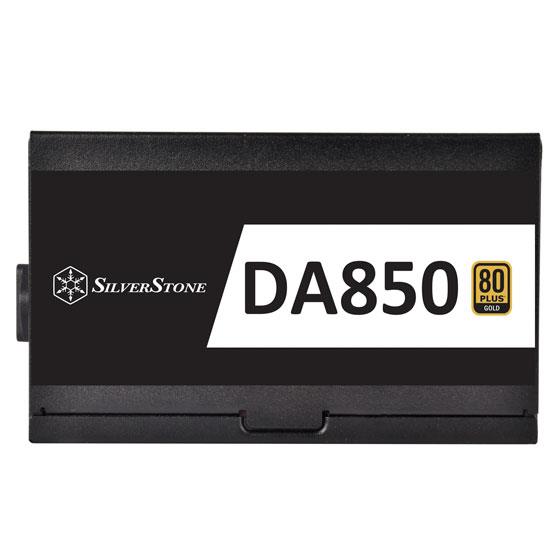

SilverStone DA850 Gold 850W Fully Modular Power Supply

37,900.00

  • High efficiency with 80 PLUS Gold certification
  • 24/7 continuous power output with 40℃ operating temperature
  • Class-leading single +12V rail
  • Silent running 120mm FDB fan with 18 dBA minimum
  • Japanese electrolytic capacitors
  • Specially designed cover designed to effectively dissipate the residual heat
  • Compact design with a 140mm depth for easy integration
  • Strict ±3% voltage regulation and low ripple & noise
Category:
Description

SilverStone DA850 Gold 850W Fully Modular Power Supply Price in Pakistan

Feature Details
Model SilverStone DA850 (SST-DA850-G)
Power Output 850 Watts Continuous
Efficiency Certification 80 PLUS Gold (Up to 90% efficiency at typical load)
Modular Design Fully Modular with Flat Cables
Form Factor ATX (140mm depth – compact for easier installation)
Cooling System 120mm Fluid Dynamic Bearing (FDB) Fan
Minimum Fan Noise 18 dBA
Operating Temperature Up to 40°C at full load (24/7 continuous power output)
Voltage Regulation Strict ±3% across all rails
Ripple & Noise Suppression 50mV for +3.3V & +5V, 120mV for +12V & -12V
Main Capacitors Japanese Electrolytic Capacitors
Rail Design Single +12V Rail
+12V Rail Capacity 54A (648W)
Load Range See full table below
Dimensions (L x W x H) 140mm x 150mm x 86mm
Protection Features OVP, UVP, OCP, OPP, SCP, OTP
Connectors 1 × 24-pin ATX
2 × 4+4-pin EPS/CPU
4 × 6+2-pin PCI-E
8 × SATA
3 × Molex
Cable Management Fully modular with flat cables for easier routing
Compliance RoHS, CE, FCC, ErP Ready
Warranty 3-Year Manufacturer Warranty

🔌 Output Specifications

Output +3.3V +5V +12V -12V +5VSB
Max. Current 20A 20A 54A 0.3A 3.0A
Min. Current 2.05A 2.05A 9.2A 0.05A 0.41A
Voltage Range (%) ±5% ±5% ±5% ±10% ±5%
Line Regulation (%) ±1% ±1% ±1% ±1% ±1%
Ripple (mVp-p) 50mV 50mV 120mV 120mV 50mV
