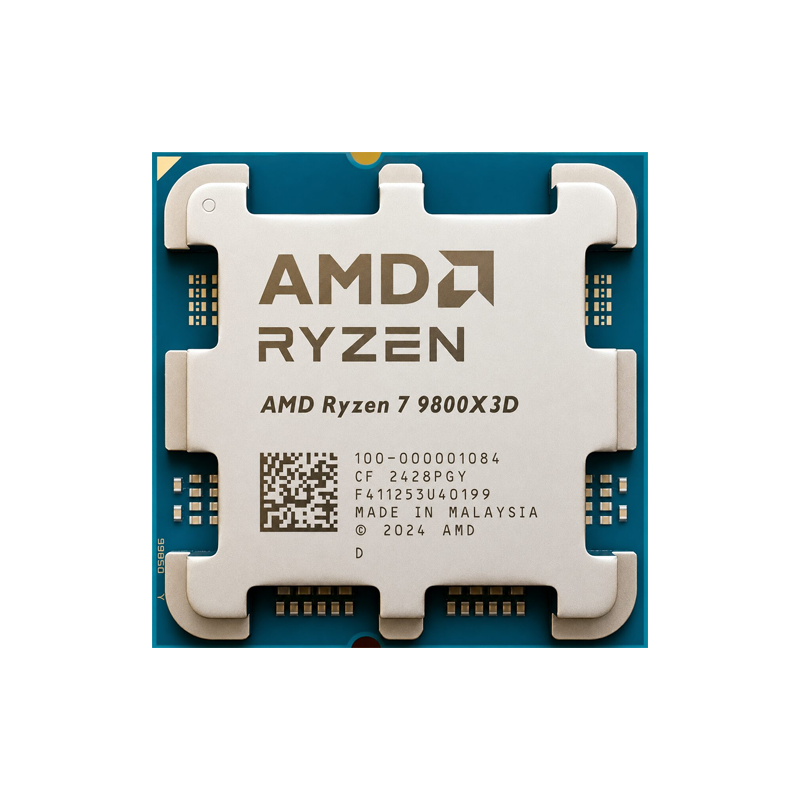

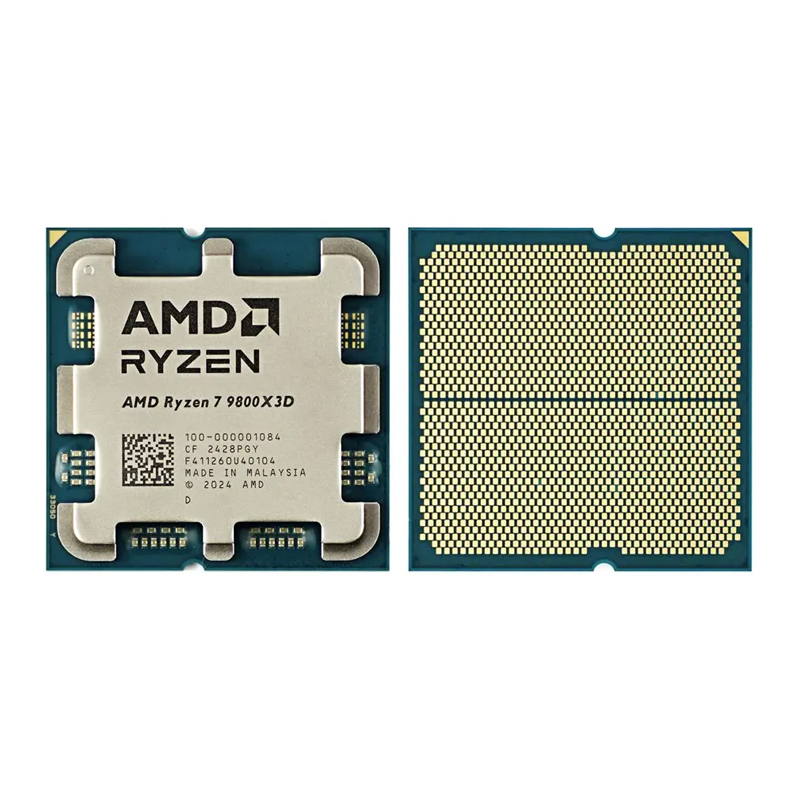

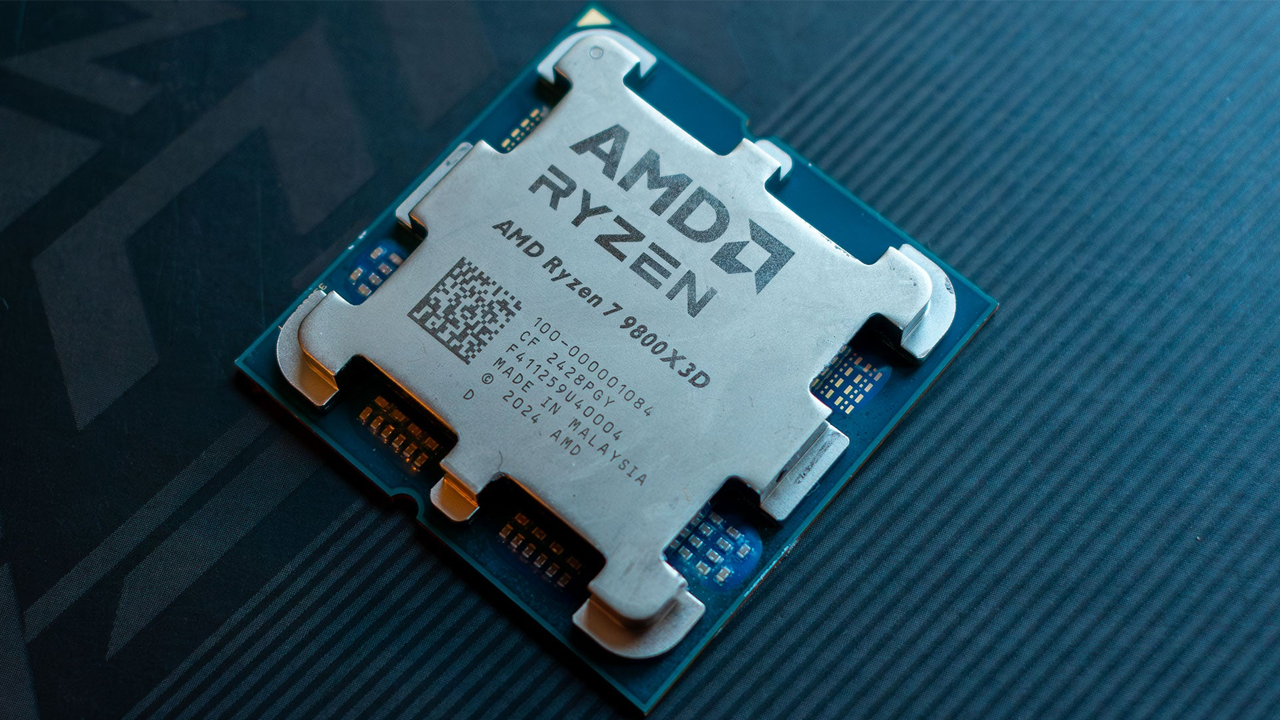

AMD Ryzen™ 7 9800X3D Desktop Processor

Harness the Ultimate Gaming Edge

The AMD Ryzen 7 9800X3D is engineered to deliver the ultimate gaming advantage with 2nd generation AMD 3D V-Cache technology. By stacking an additional 64MB of L3 cache directly on top of the processor die, the 9800X3D achieves dramatically lower memory latency, translating into higher frame rates, smoother gameplay, and a tangible competitive edge in cache-sensitive titles. Combined with the revolutionary Zen 5 architecture on TSMC 4nm FinFET process, this processor redefines enthusiast desktop gaming performance.

8 Cores / 16 Threads – Zen 5 with 3D V-Cache

Built on the Granite Ridge AM5 platform, the 9800X3D features 8 high-performance cores and 16 threads with simultaneous multithreading (SMT). The processor runs at a 4.7 GHz base clock with boost speeds reaching up to 5.2 GHz via Precision Boost 2. The massive 96MB of L3 cache (32MB on-die + 64MB 3D V-Cache stack) combined with 8MB L2 cache and 640KB L1 cache provides an enormous buffer for gaming workloads, dramatically reducing cache misses and improving frame time consistency.

Fully Unlocked – Overclock and Tune to Perfection

The 9800X3D is fully unlocked for overclocking, giving enthusiasts complete control over their system’s performance. Fine-tune memory speeds with AMD EXPO profiles, dial in per-core voltage offsets with the Curve Optimizer, push boost behavior with Precision Boost Overdrive, and manage it all through AMD Ryzen Master software. A liquid cooler is recommended to extract maximum performance, with the processor rated for operation up to 95°C Tjmax at a 120W default TDP.

AM5 Platform – Modern Connectivity

The 9800X3D uses the AM5 socket with broad chipset compatibility across A620, B650, B650E, X670, X670E, X870, X870E, B840, and B850 motherboards. The platform supports cutting-edge DDR5 memory and PCIe 5.0 for next-generation graphics cards and NVMe storage. Integrated AMD Radeon Graphics with 2 compute units at 2200 MHz provides basic display output with USB Type-C DisplayPort Alternate Mode support for modern monitors.

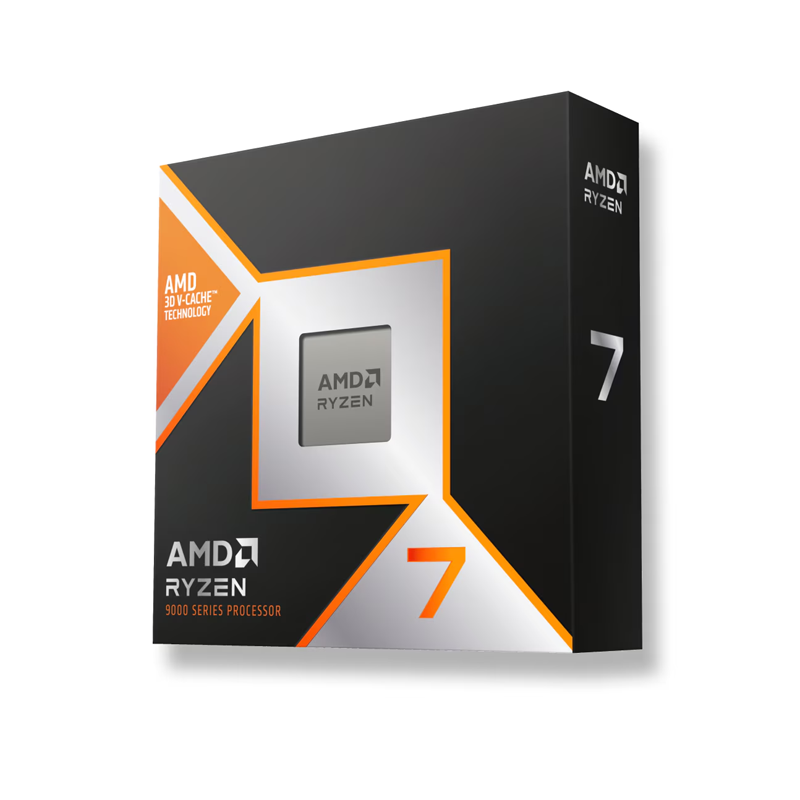

Boxed Processor – Global Availability

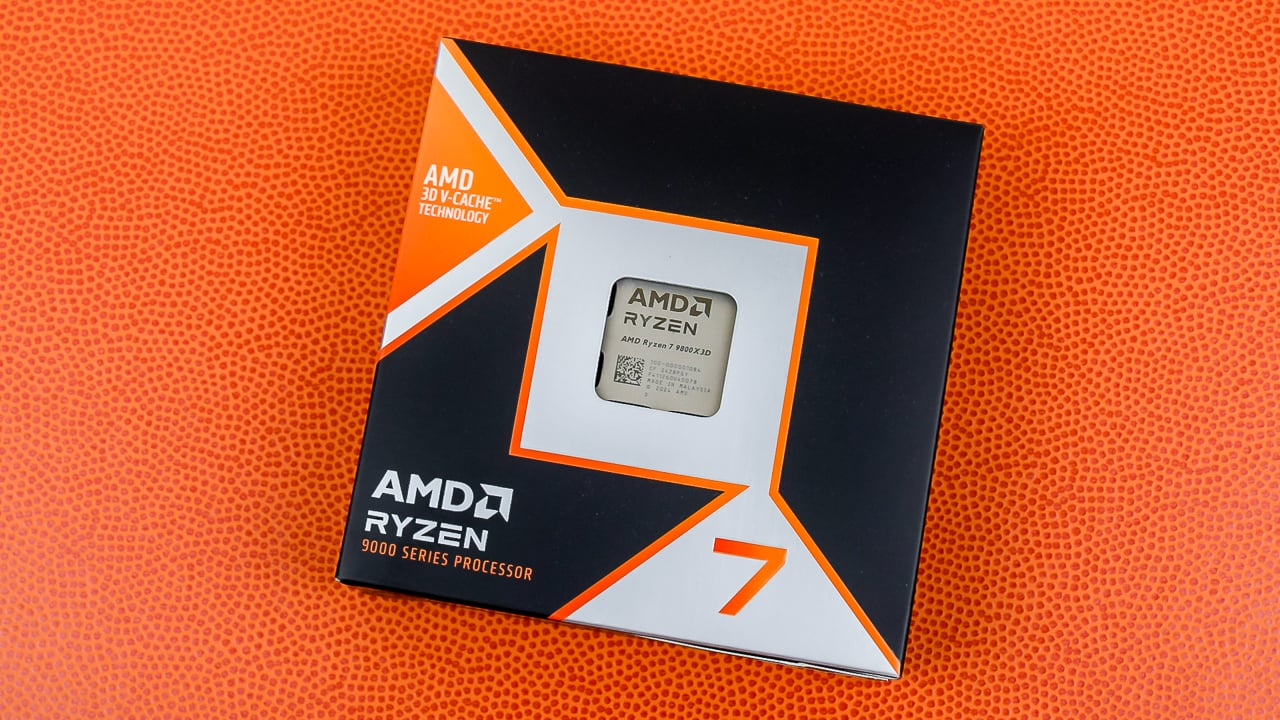

The AMD Ryzen 7 9800X3D is available as a boxed desktop processor (PIB) with global availability. Note that a thermal solution is not included in the box — AMD recommends a liquid cooler for optimal thermal performance. The processor launched on November 7, 2024 and supports Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, and Ubuntu x86 64-bit operating systems.
