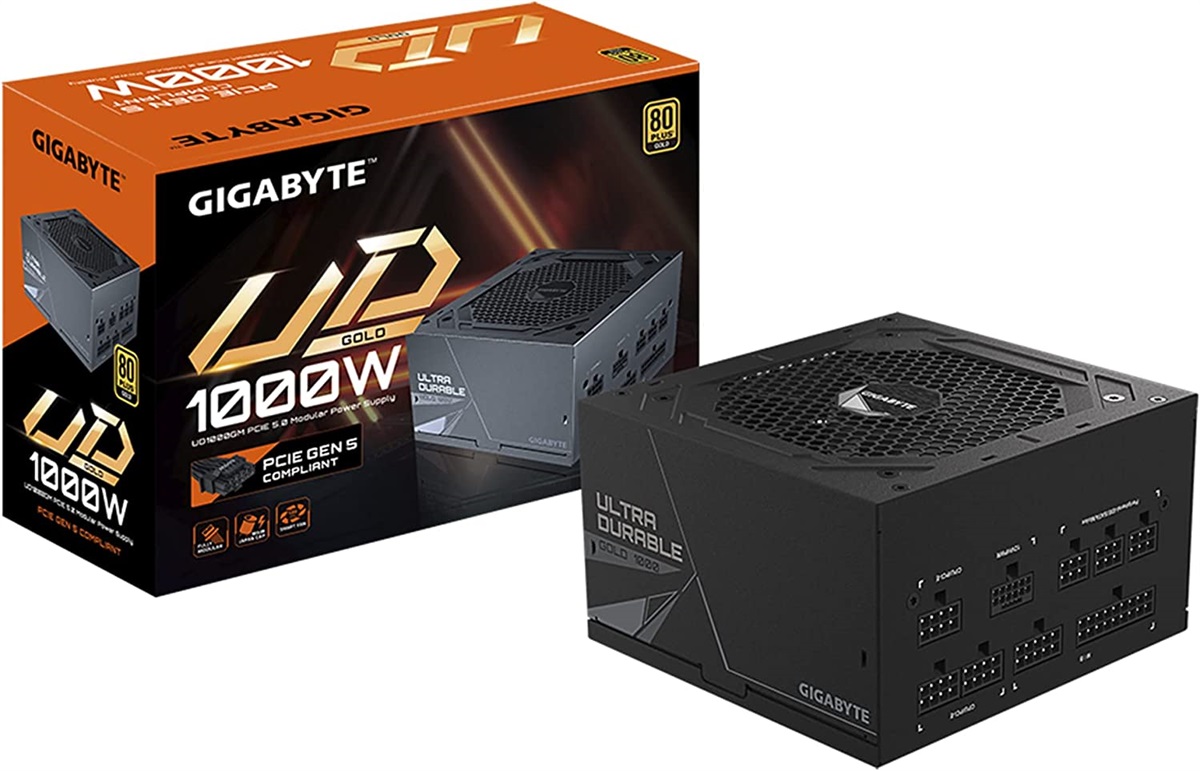

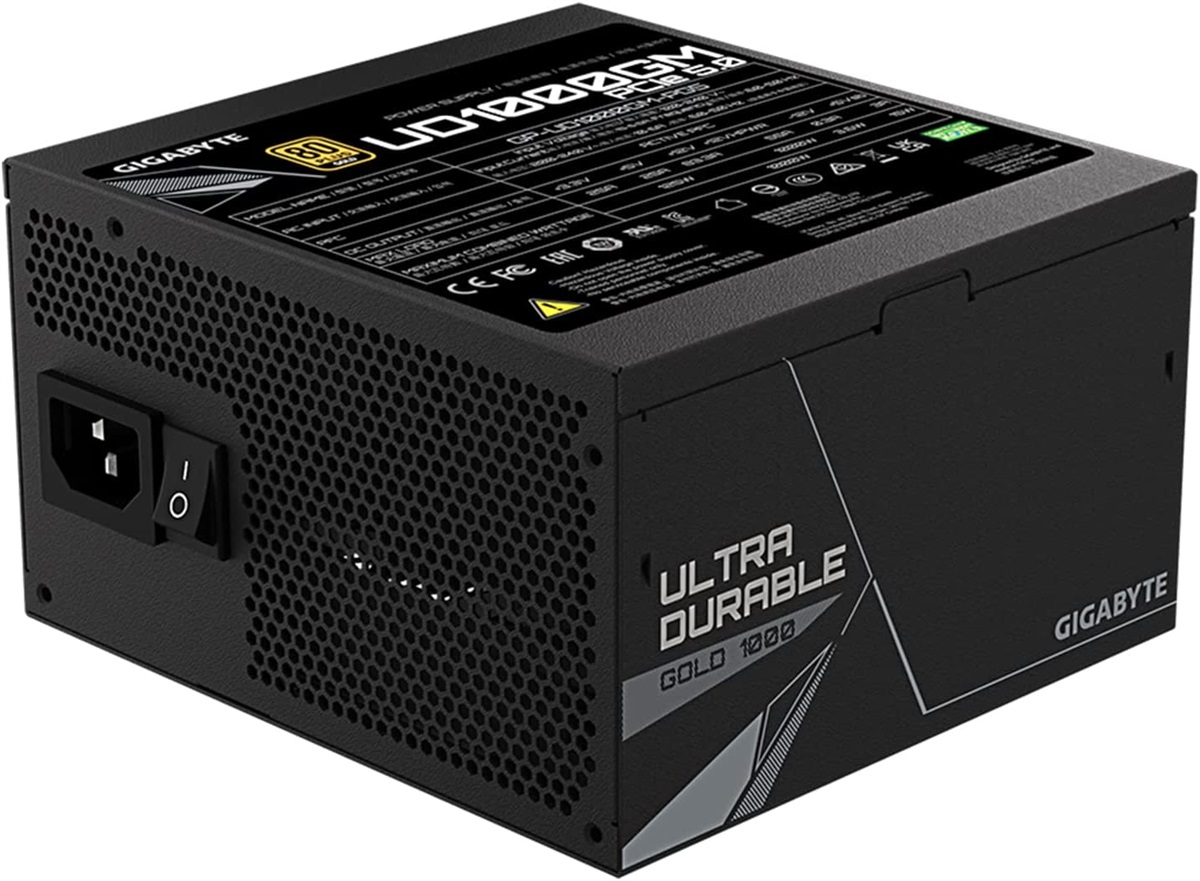

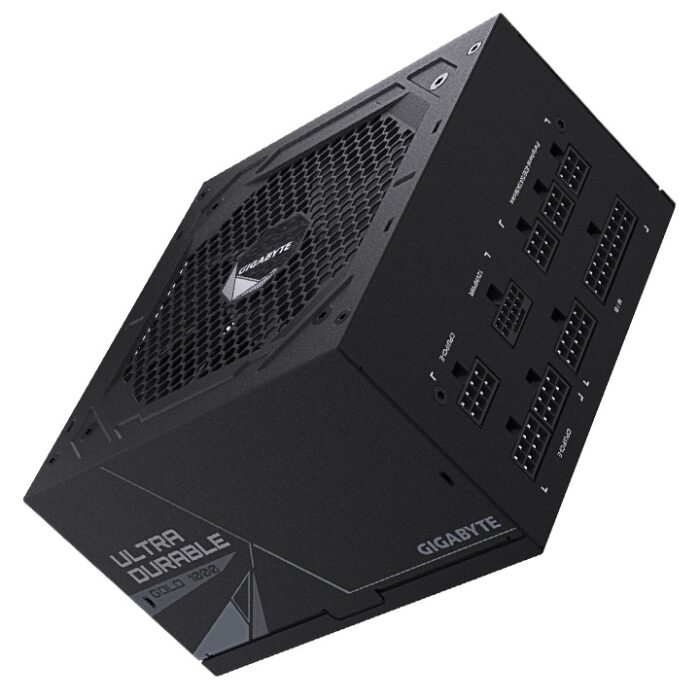

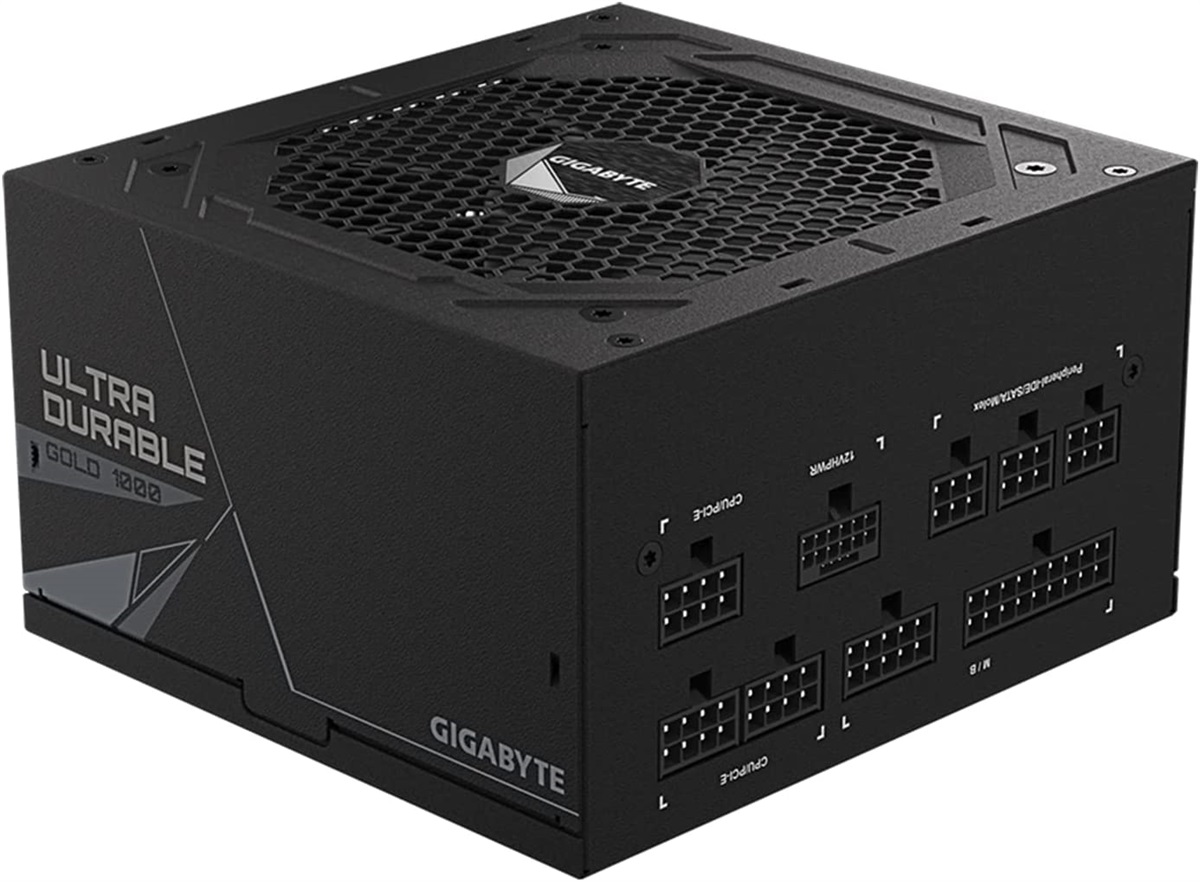

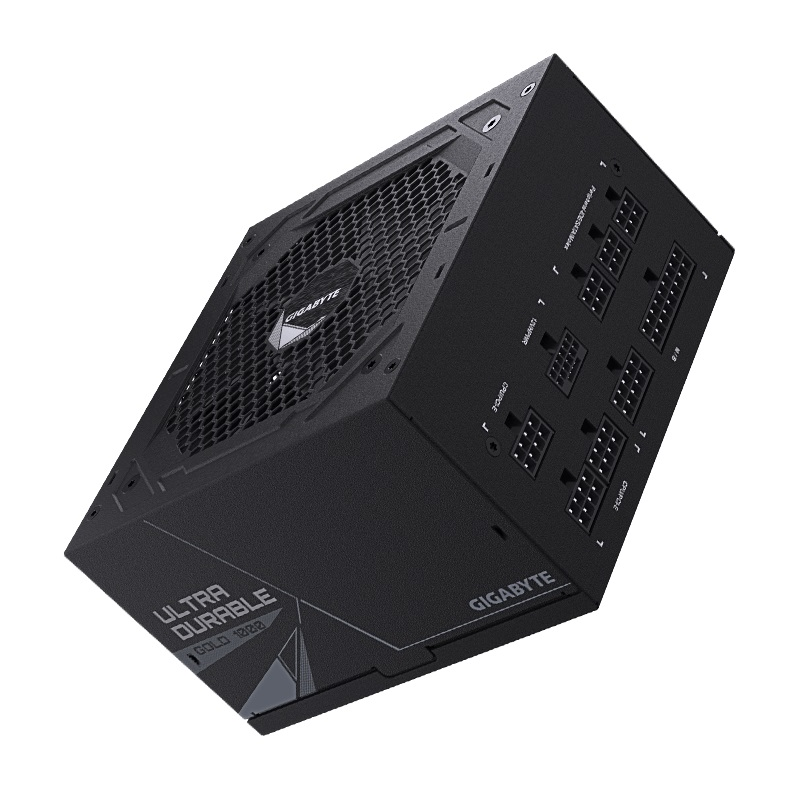

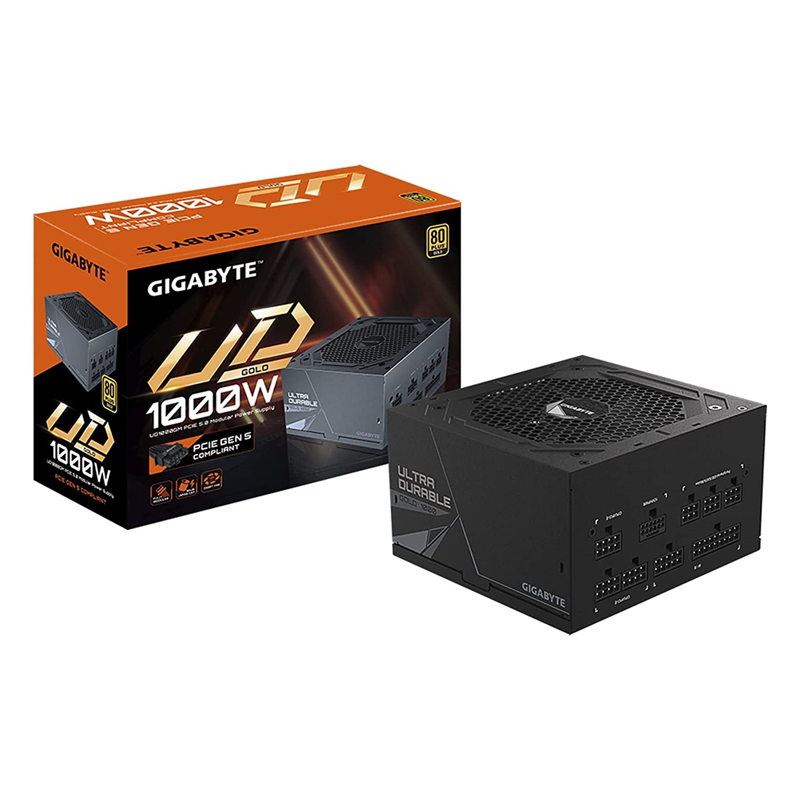

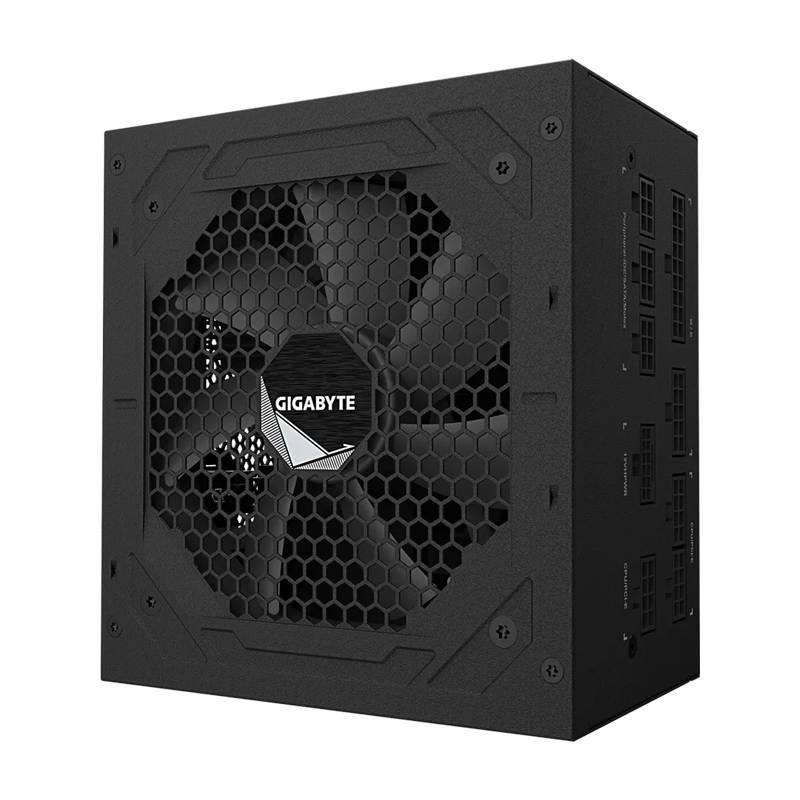

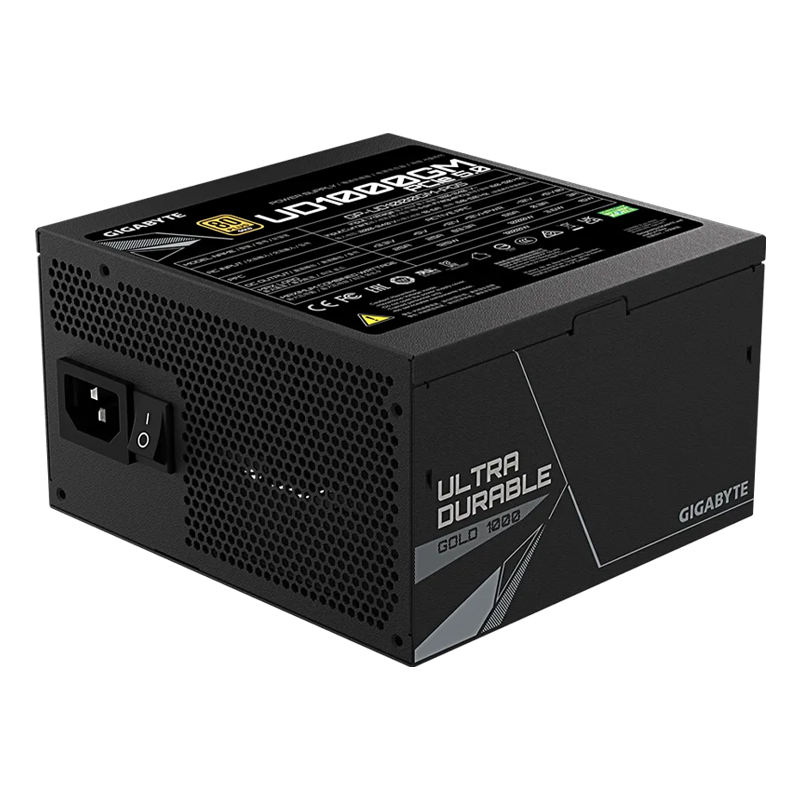

Gigabyte UD1000GM PG5 – 1000W 80 Plus Gold Fully Modular Power Supply
₨ 45,999
- 1000W 80 PLUS Gold PSU with ATX 3.1 (Intel Form Factor v3.1) and native PCIe 12+4 pin connector for next-gen GPUs
- 120mm hydraulic bearing (HYB) fan with Active PFC (>0.9) delivers up to 90% efficiency at typical load for quiet, reliable power
- Comprehensive protections: OVP/OPP/SCP/UVP/OCP/OTP with >100,000 hours MTBF and >16ms hold-up time for rock-solid stability
- Fully modular embossed all-black cables including 4x PCIe 6+2 pin, 8x SATA, and 4-pin peripheral with floppy connector
| Overview | |
| Brand | GIGABYTE |
| Model | GP-UD1000GM PG5 V2 |
| Continuous Power | 1000 Watts |
| 80 PLUS Efficiency | Gold (90% at Typical Load) |
| Intel Form Factor | ATX 12V v3.1 |
| PFC Type | Active PFC (>0.9 typical) |
| Modular | Fully Modular |
| Cable Type | Embossed, All Black |

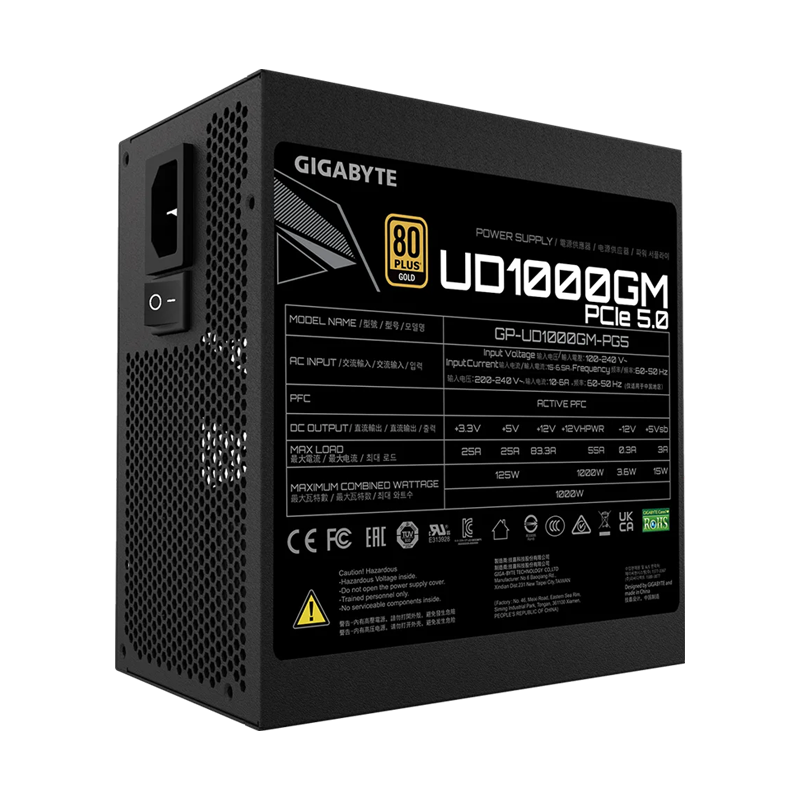

| Electrical | |
| Input Voltage | 100-240 Vac (Full Range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cooling & Reliability | |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| MTBF | >100,000 hours |
| Protections | OVP, OPP, SCP, UVP, OCP, OTP |
| Connectors | |
| ATX/MB 20+4 Pin | 1 x (610mm) |
| CPU/EPS 4+4 Pin | 2 x (650mm+200mm) |

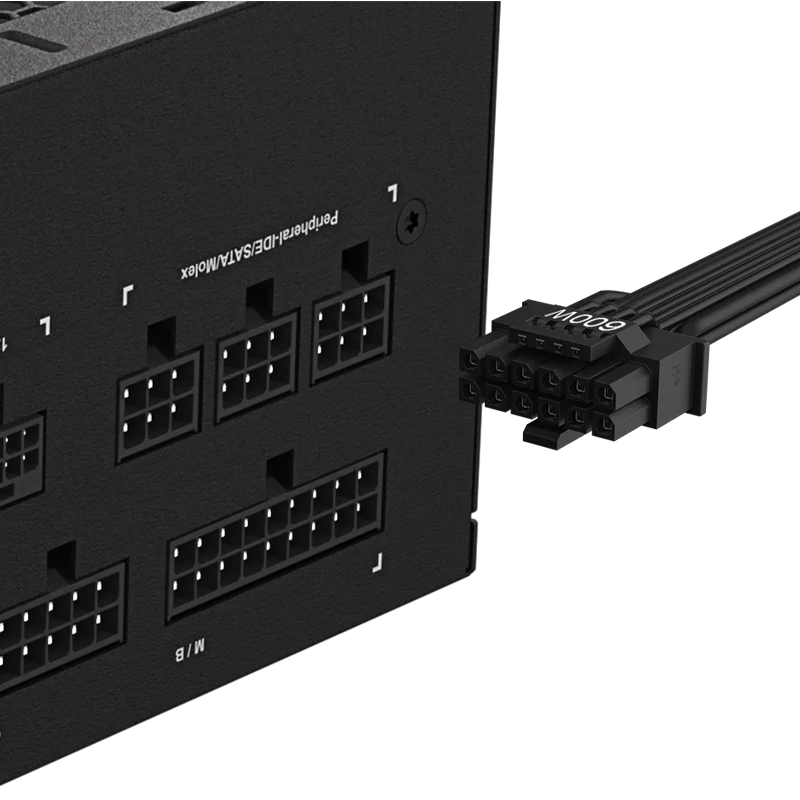

| PCIe 12+4 Pin (12V-2×6) | 1 x (700mm) |
| PCIe 6+2 Pin | 4 x (600mm+150mm x2) |
| SATA | 8 x (600mm+150mm+150mm+150mm x2) |
| 4-Pin Peripheral + Floppy | 3 x Peripheral + 1 x Floppy (500mm+150mm+150mm+150mm) |
| Physical | |
| Dimensions (L x W x H) | 150 x 140 x 86 mm |
Brand
Gigabyte
