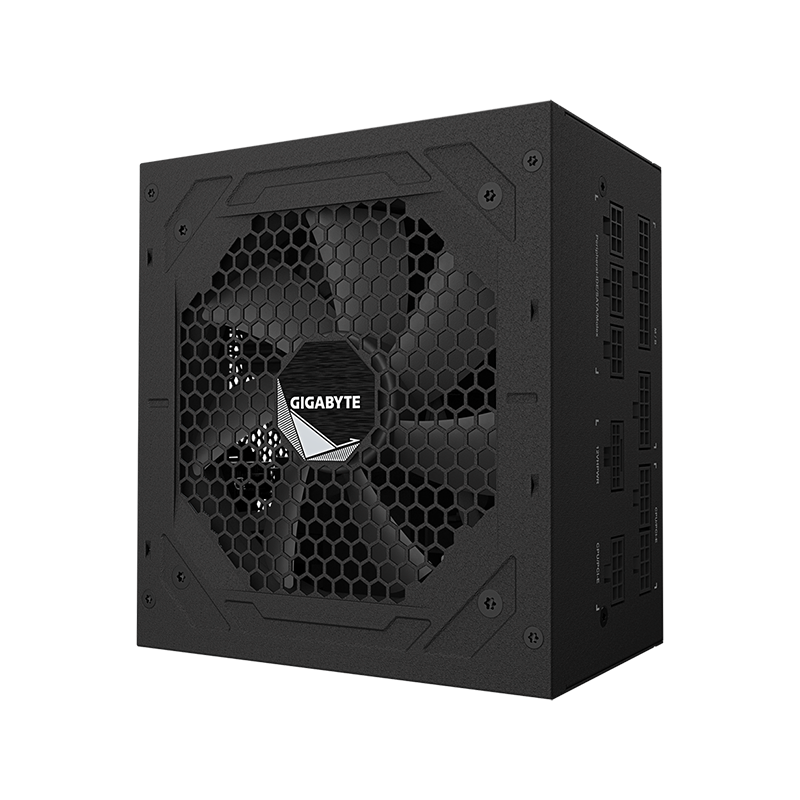

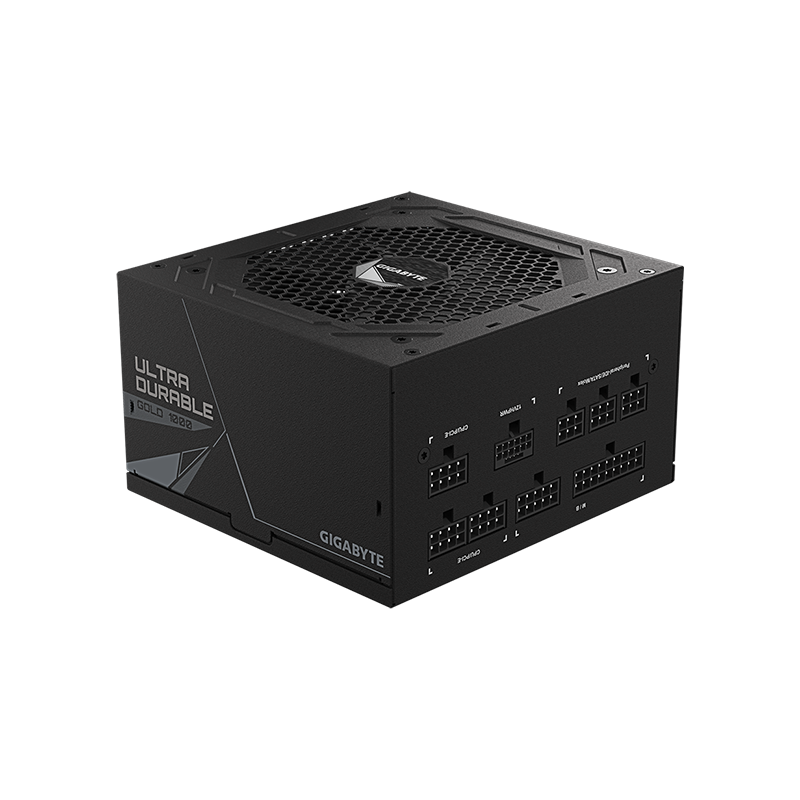

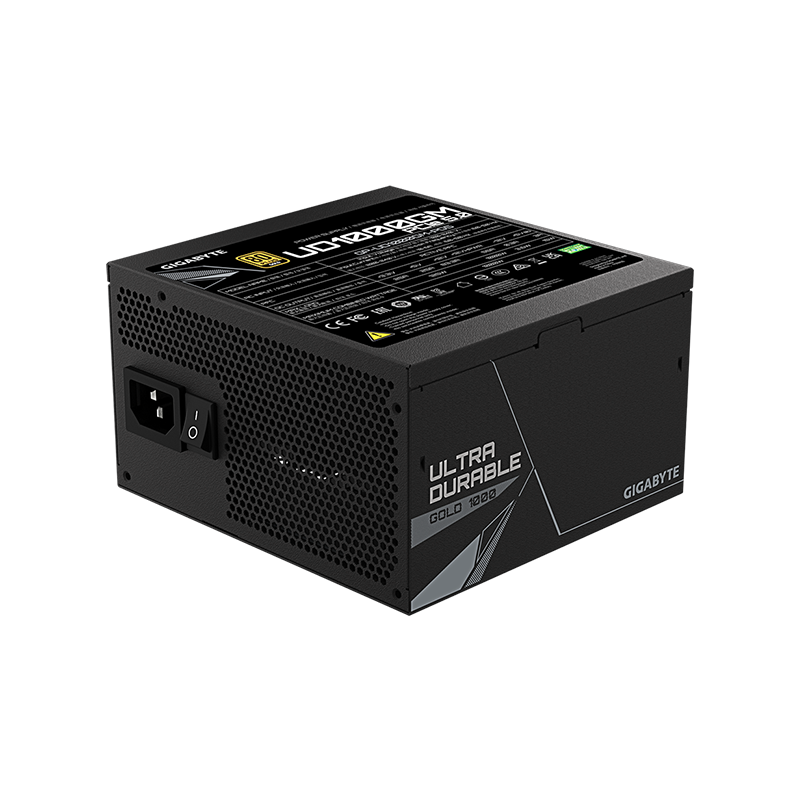

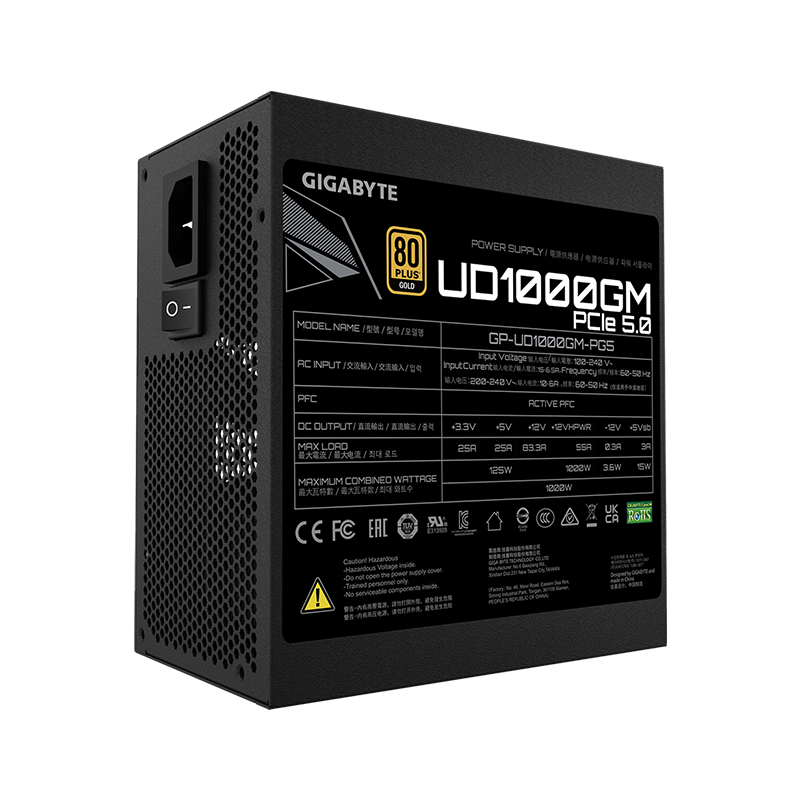

GIGABYTE UD1000GM PG5 1000W 80 Plus GOLD Full Modular Power Supply
₨ 44,999
- 1000W 80 PLUS Gold certified – delivers up to 90% efficiency at typical load; fully modular flat black cables for minimal clutter and optimal chassis airflow
- PCIe Gen 5.0 ready with high-quality native 16-pin (12VHPWR) cable – supports up to 600W power delivery to next-gen graphics cards
- Ultra Durable build with main Japanese capacitors and enhanced thermal solution – heatsink enlarged by ~200% for 10%+ better heat dissipation and prolonged component life

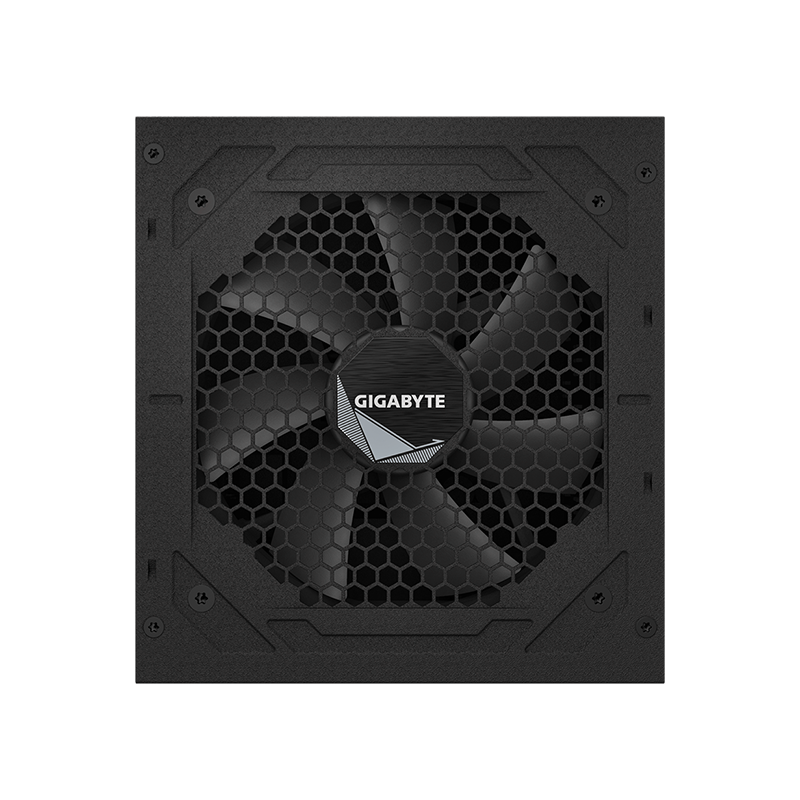

- 120mm smart hydraulic bearing (HYB) fan – automatically adjusts speed based on power detection for silent, efficient cooling and extended fan lifespan
- Compact 140mm length fits any chassis; comprehensive protections (OVP/OPP/SCP/UVP/OCP/OTP); 2x CPU/EPS, 4x PCIe 6+2 Pin, 8x SATA connectors
| Overview | |
| Product Name | GIGABYTE UD1000GM PG5 1000W 80 Plus Gold Full Modular Power Supply |
| Brand | GIGABYTE |
| Model | GP-UD1000GM PG5 |
| Condition | New |
| Type | Intel Form Factor ATX 12V |

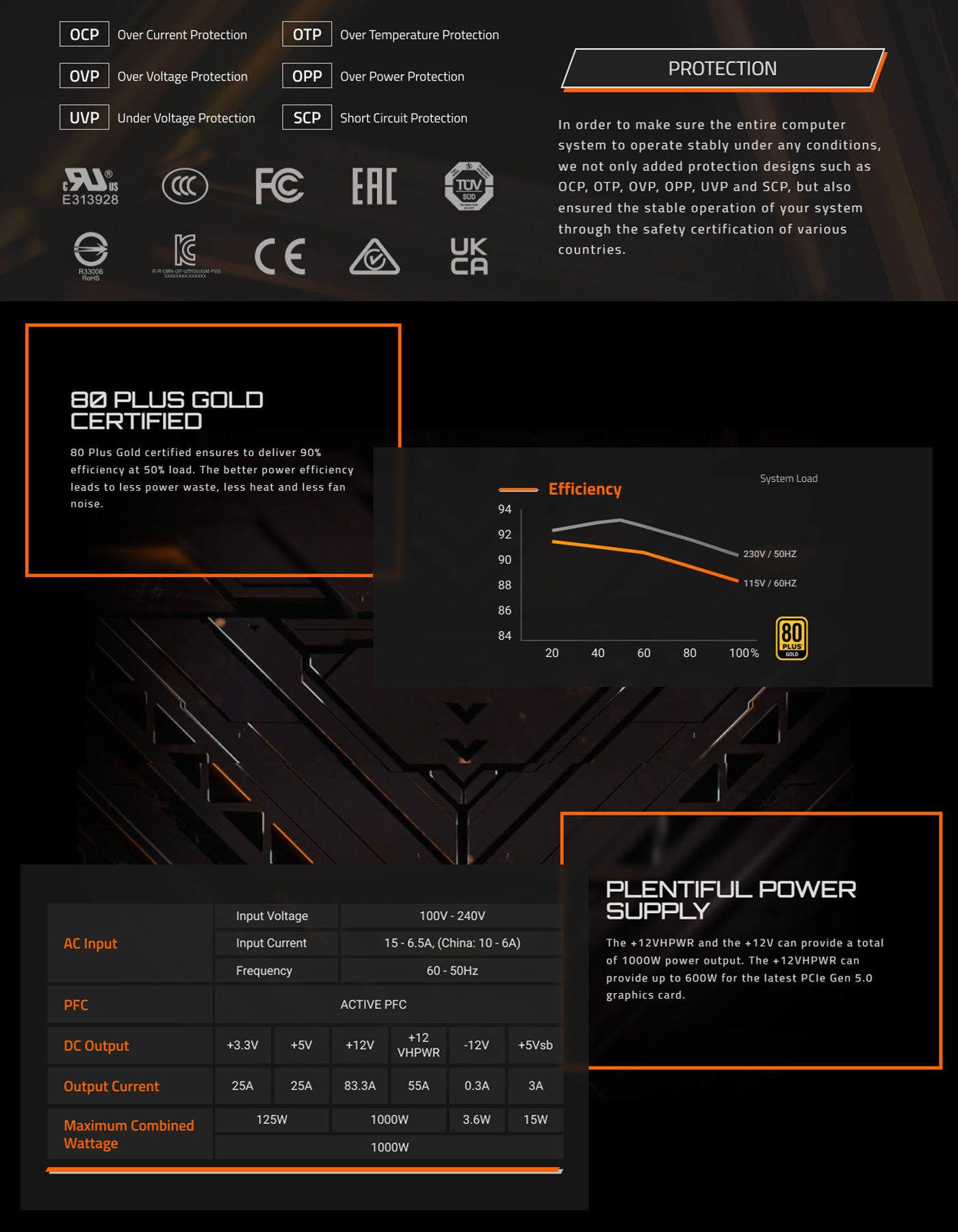

| Electrical Specifications | |
| Output Capacity | 1000 W |
| 80 PLUS Certification | Gold |
| Efficiency | 90% at typical load |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100 – 240 V AC (Full Range) |
| Input Current | 15 – 6.5 A |
| Input Frequency | 60 – 50 Hz |
| +12V Total Output | 1000 W |
| +12VHPWR Output | Up to 600 W |
| Power Good Signal | 100 – 150 ms |
| Hold Up Time | >16 ms |
| Protection | |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP |
| Build & Cooling | |
| Main Capacitors | Japanese Capacitors |
| Thermal Solution | Enhanced – Heatsink enlarged by ~200% or more |
| Heat Dissipation Improvement | >10% |
| Fan Type | 120 mm Smart Hydraulic Bearing (HYB) Fan |
| Fan Control | Automatic Power Detection |

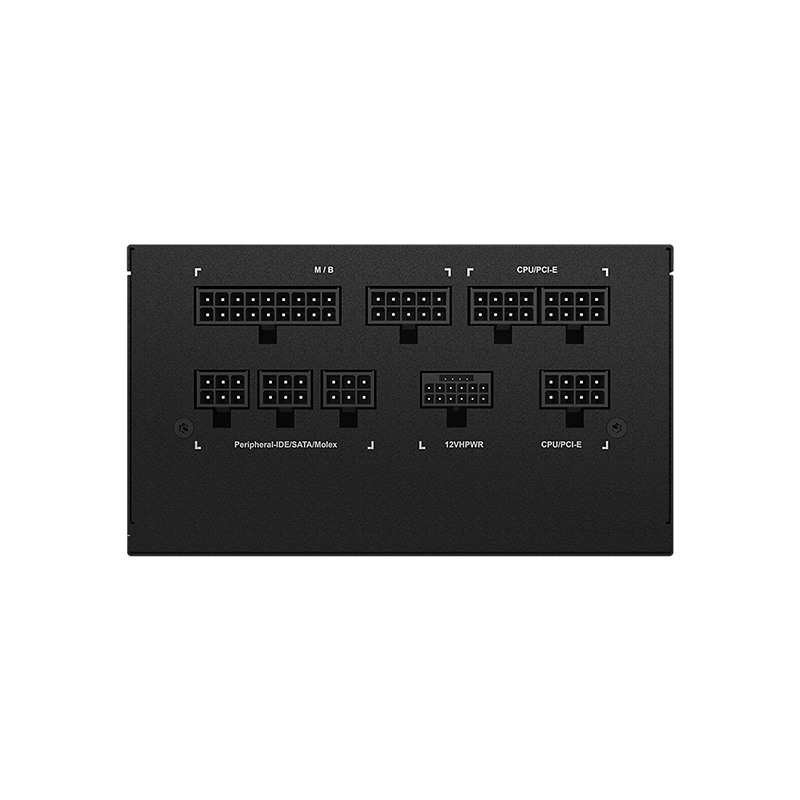

| Cables & Connectors | |
| Cable Type | Fully Modular, Flat, All Black |
| ATX / MB | 20+4 Pin x 1 (610 mm) |
| CPU / EPS | 4+4 Pin x 2 (600 mm + 200 mm) |
| PCIe 16-Pin (12VHPWR) | x 1 (700 mm) – Up to 600 W |
| PCIe 6+2 Pin | x 4 (600 mm + 150 mm x 2 cables) |
| SATA | x 8 (600 mm + 150 mm + 150 mm + 150 mm x 2 cables) |
| 4-Pin Peripheral + Floppy | x 3 + x 1 (500 mm + 120 mm + 120 mm + 150 mm) |
| Physical & Reliability | |

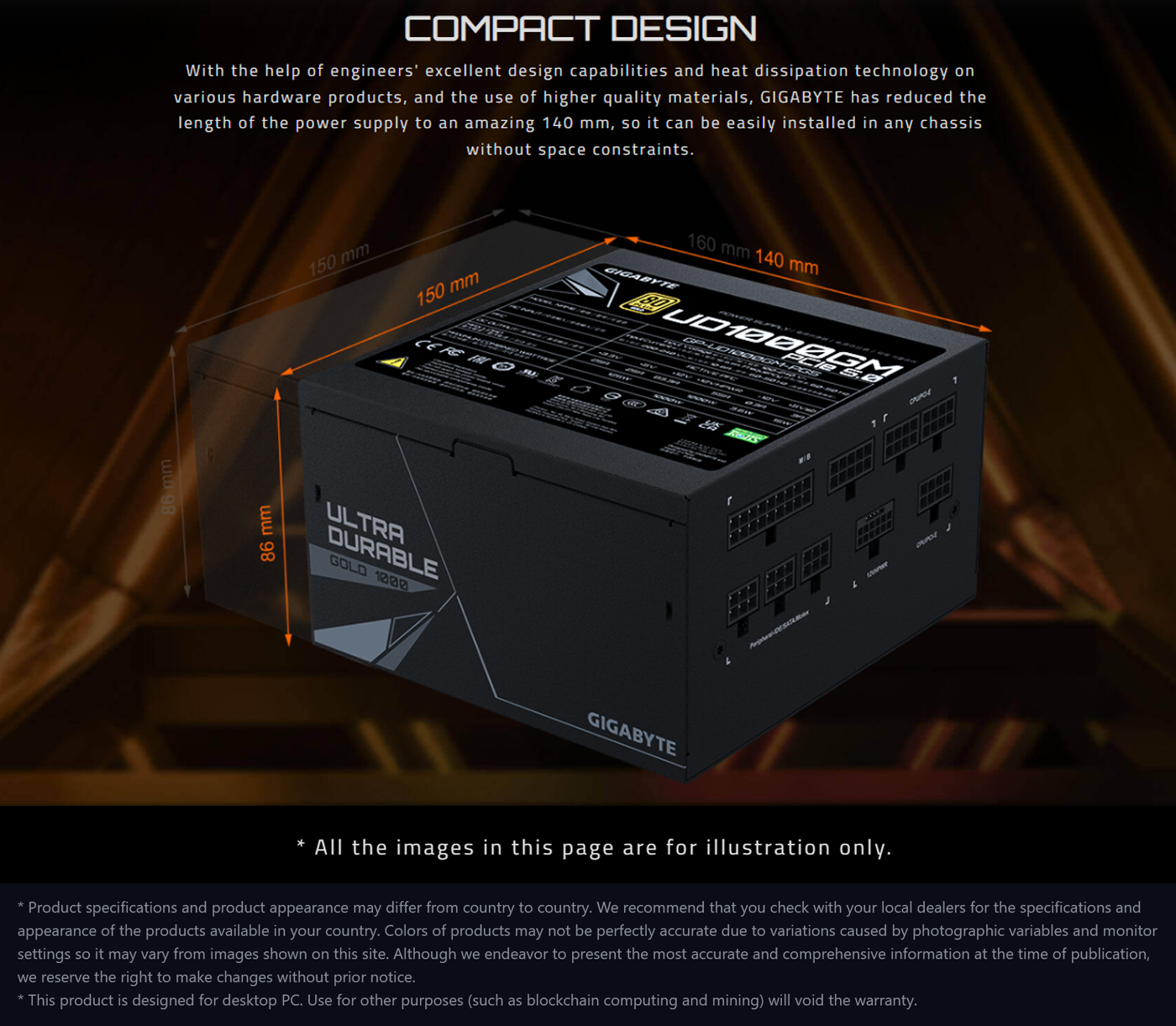

| Dimensions (W x D x H) | 150 x 140 x 86 mm |
| MTBF | >100,000 hours |
| In The Box | |
| Package Contents | GIGABYTE UD1000GM PG5 1000W 80 Plus Gold Full Modular PSU | Modular Cable Set | 16-Pin PCIe Cable | Power Cord | User Manual |
