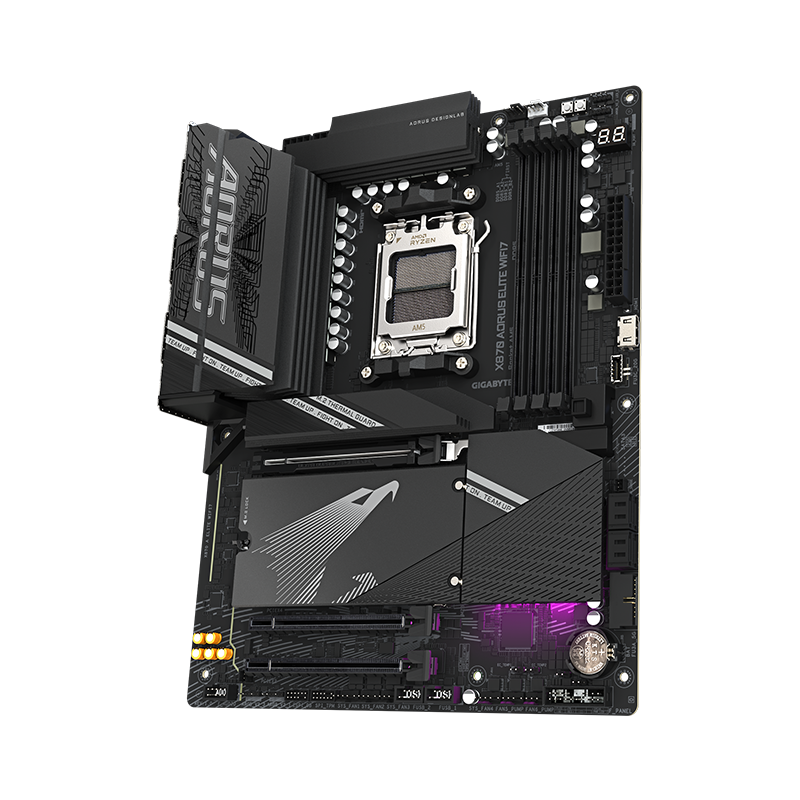

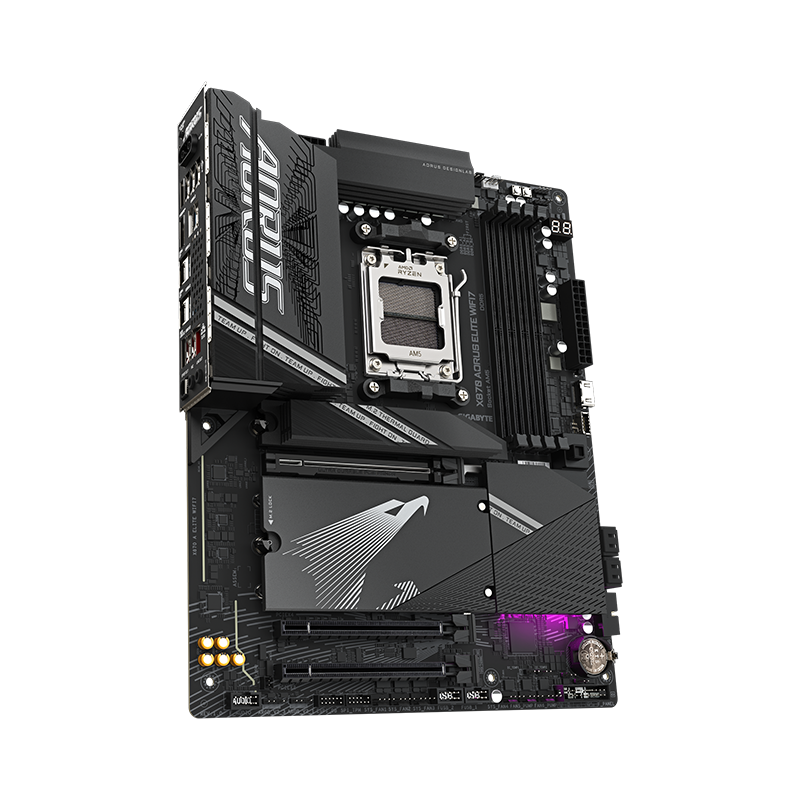

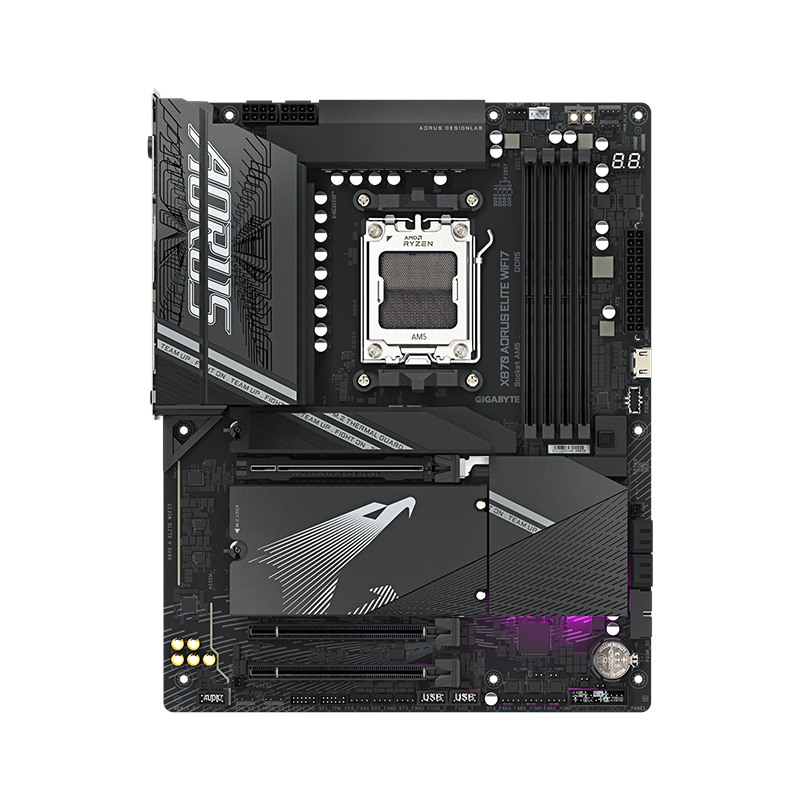

GIGABYTE X870 AORUS ELITE WIFI7 AM5 ATX Motherboard
Original price was: ₨ 94,999.₨ 93,000Current price is: ₨ 93,000.

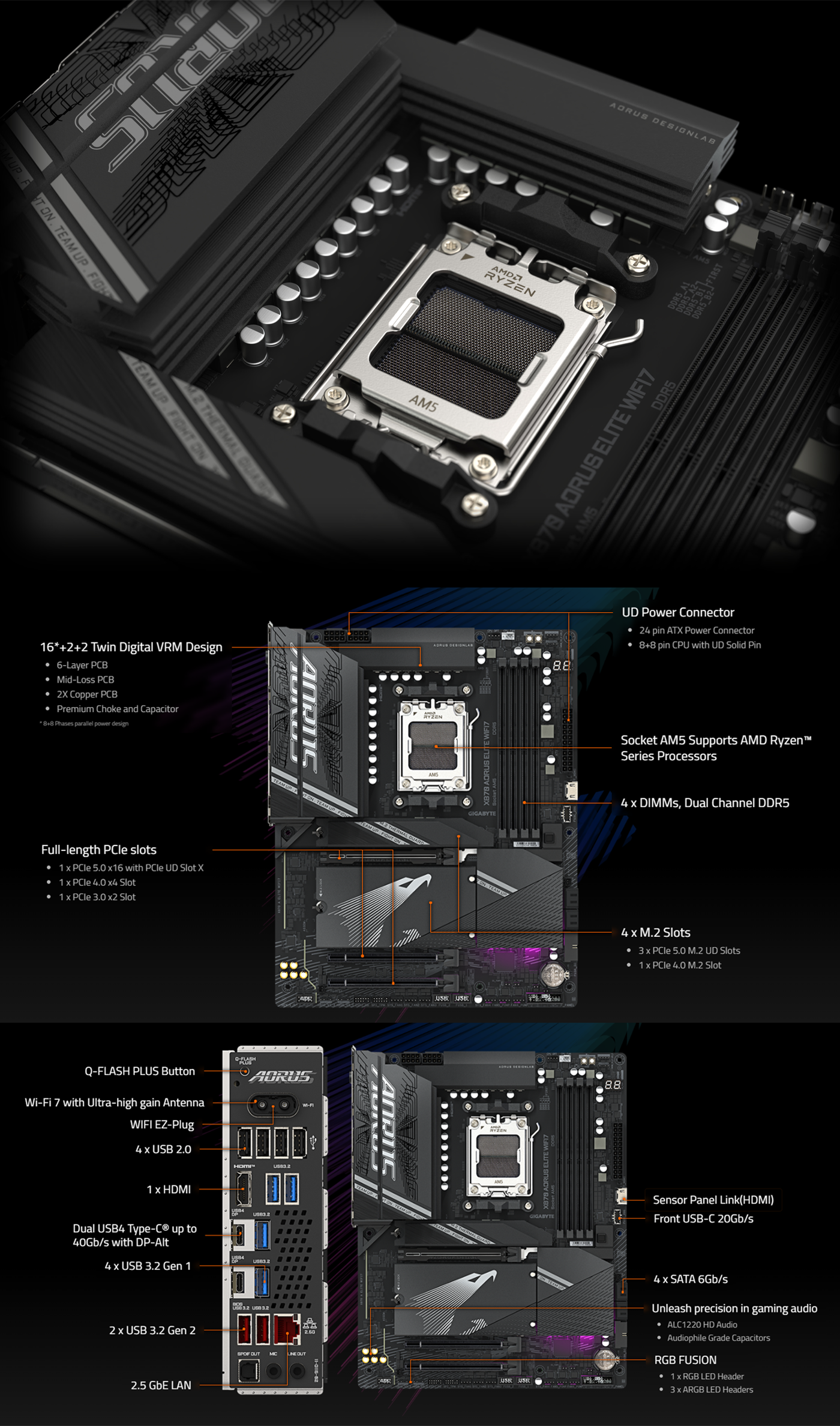

- AMD AM5 Socket – Ryzen 9000/8000/7000 Series – Digital twin 16+2+2 phases VRM (DrMOS 60A) with 6-layer server-grade PCB and 2X copper enhancement for ultimate power delivery
- DDR5 Dual-Channel – Up to 256GB, 8200+ MT/s (OC) – 4 DIMMs with AMD EXPO/XMP support, daisy-chained shielded memory routing, and AORUS AI SNATCH one-click memory boost
- Ultra-Fast Storage – 4x M.2 Slots (3x PCIe 5.0 x4) – EZ-Latch Plus screwless M.2 design with M.2 Thermal Guard L and backplate; 4x SATA 6Gb/s with RAID support
- Dual USB4 Type-C with DP-Alt + Wi-Fi 7 + 2.5GbE LAN – Next-gen connectivity with Bluetooth 5.4, ultra-high gain directional antenna, and HDMI 2.1 (4K 60Hz)
- EZ-Latch Plus & Click – Screwless PCIe & M.2 Design – PCIe UD Slot X (10X strength), Sensor Panel Link, UC BIOS with multi-theme, and Realtek ALC1220 HD Audio with audiophile capacitors
| Overview | |
| Product Name | GIGABYTE X870 AORUS ELITE WIFI7 |
| Brand | GIGABYTE |
| Series | AORUS ELITE Series |
| Form Factor | ATX (30.5 x 24.4 cm) |
| Operating System | Windows 11 64-bit |
| Condition | New |
| CPU & Chipset | |
| Socket | AMD Socket AM5 |
| Chipset | AMD X870 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Processors |
| Memory | |
| Memory Slots | 4 x DDR5 DIMM (Dual-Channel) |
| Max Capacity | 256 GB (64 GB Single DIMM) |
| Max OC Speed | DDR5 8200+ MT/s (OC) |
| Memory Technology | AMD EXPO | Intel XMP | AORUS AI SNATCH One-Click Boost |
| Power & PCB | |
| VRM Design | Digital Twin 16+2+2 Phases (DrMOS 60A) |
| PCB | 6-Layer Server-Grade with 2X Copper Enhancement |
| Thermal | VRM Thermal Armor Advanced (4X Surface Area) | M.2 Thermal Guard L with Backplate |
| Expansion Slots | |
| PCIe x16 (PCIEX16) | PCIe 5.0 x16 (CPU) – PCIe UD Slot X (10X Strength) |
| PCIe x16 (PCIEX4) | PCIe 4.0 x4 (Chipset) |
| PCIe x16 (PCIEX2) | PCIe 3.0 x2 (Chipset) |
| Storage | |
| M.2 Slots | 4x M.2 (3x PCIe 5.0 x4 + 1x PCIe 4.0 x4) – EZ-Latch Plus & Click |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID | NVMe: RAID 0, 1, 5, 10 | SATA: RAID 0, 1, 10 |
| Networking & Wireless | |
| LAN | Realtek 2.5GbE LAN |
| Wi-Fi | Wi-Fi 7 (MediaTek MT7925 / Realtek RTL8922AE) – 2.4/5/6 GHz, 160 MHz |
| Bluetooth | Bluetooth 5.4 |

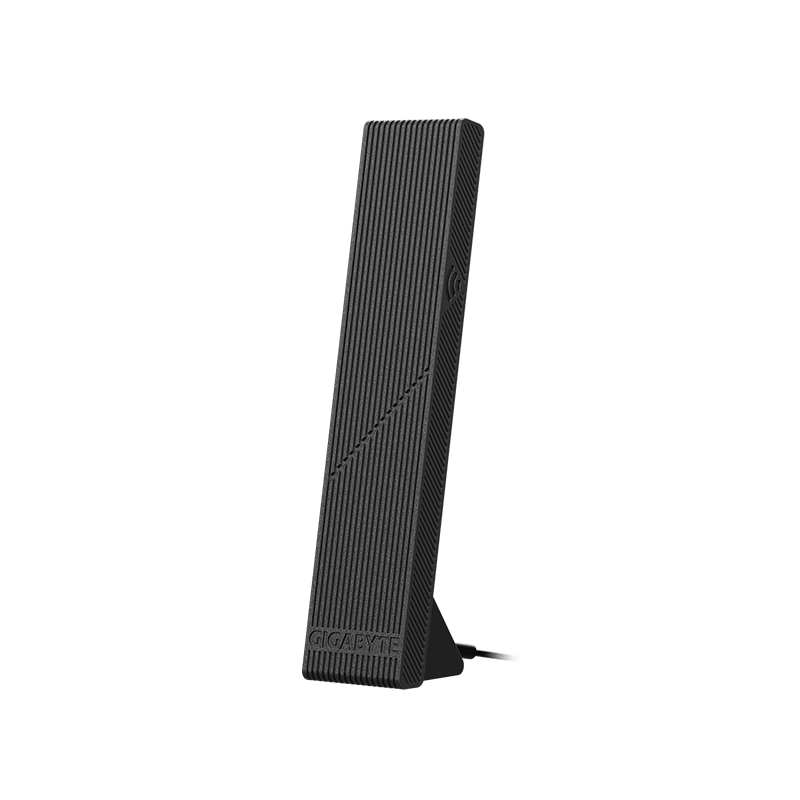

| Antenna | WIFI EZ-Plug – Ultra-High Gain Directional Antenna (2T2R) |

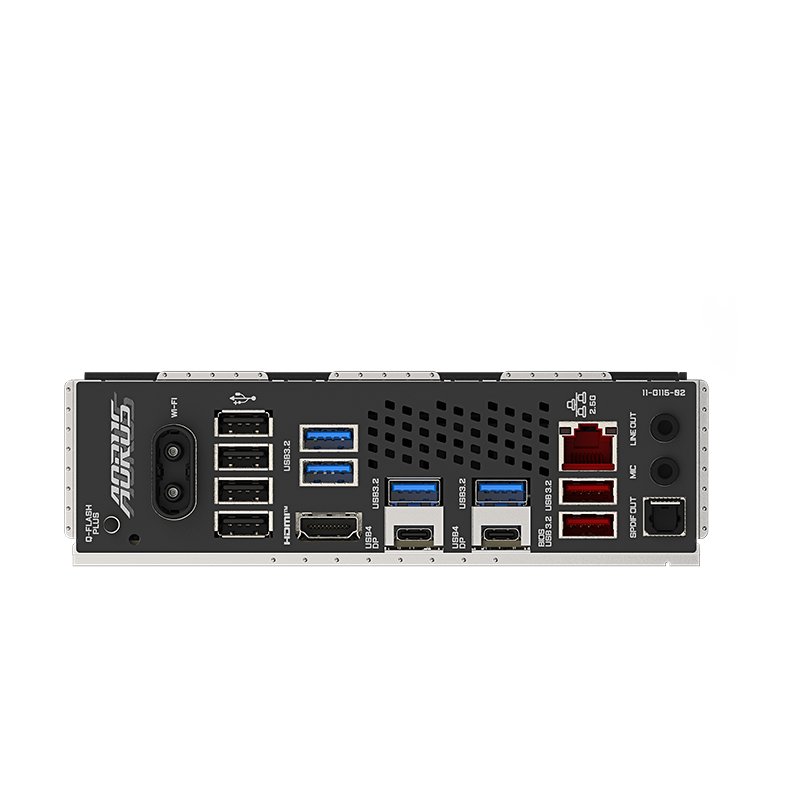

| Back Panel USB | |
| USB4 Type-C | 2 x USB4 Type-C with DisplayPort Alt Mode (Up to 3840×2160 @ 240Hz) |
| USB 3.2 Gen 2 Type-A | 2 x (Red) |
| USB 3.2 Gen 1 Type-A | 4 x |
| USB 2.0 | 4 x |
| Audio | |
| Audio Codec | Realtek ALC1220 HD Audio |
| Audio Channels | 2/4/5.1/7.1-Channel | S/PDIF Out | DSD Audio Support |
| Audio Capacitors | Audiophile Grade Capacitors |
| Special Features | |
| BIOS | UC BIOS – Multi-Theme, AIO Fan Control | Q-Flash Plus |
| EZ-Latch | EZ-Latch Plus (PCIe + M.2 Screwless) | EZ-Latch Click (M.2 Heatsink Screwless) |
| Sensor Panel Link | Onboard HDMI Port for In-Chassis Panel Setup |
| Software | GIGABYTE Control Center (GCC) | Norton Internet Security (OEM) |
| In The Box | |

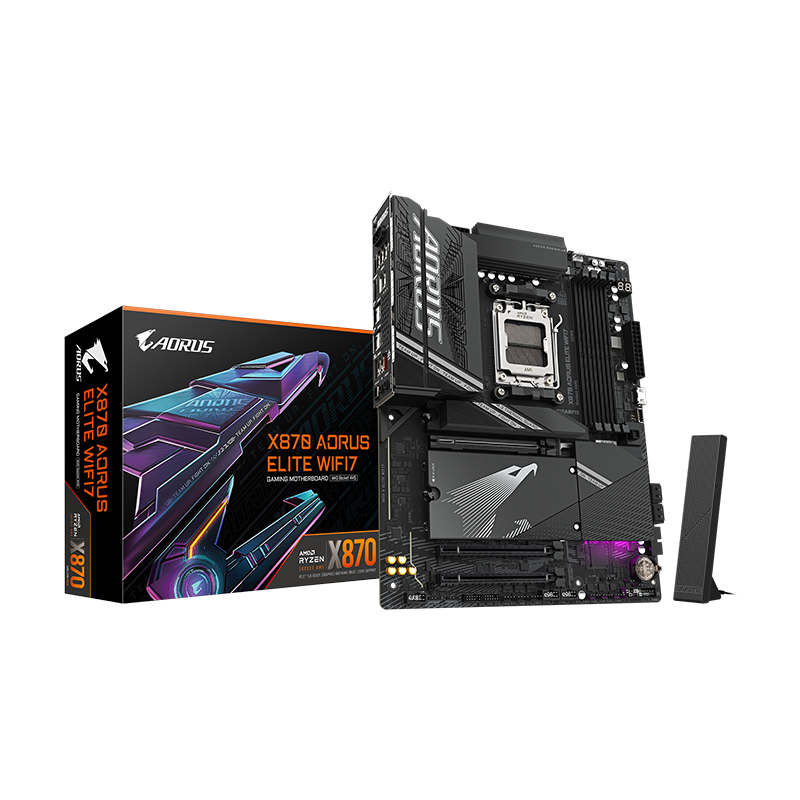

| Package Contents | GIGABYTE X870 AORUS ELITE WIFI7 Motherboard | Wi-Fi Antenna | SATA Cables | I/O Shield | M.2 Screws | User Documentation |
