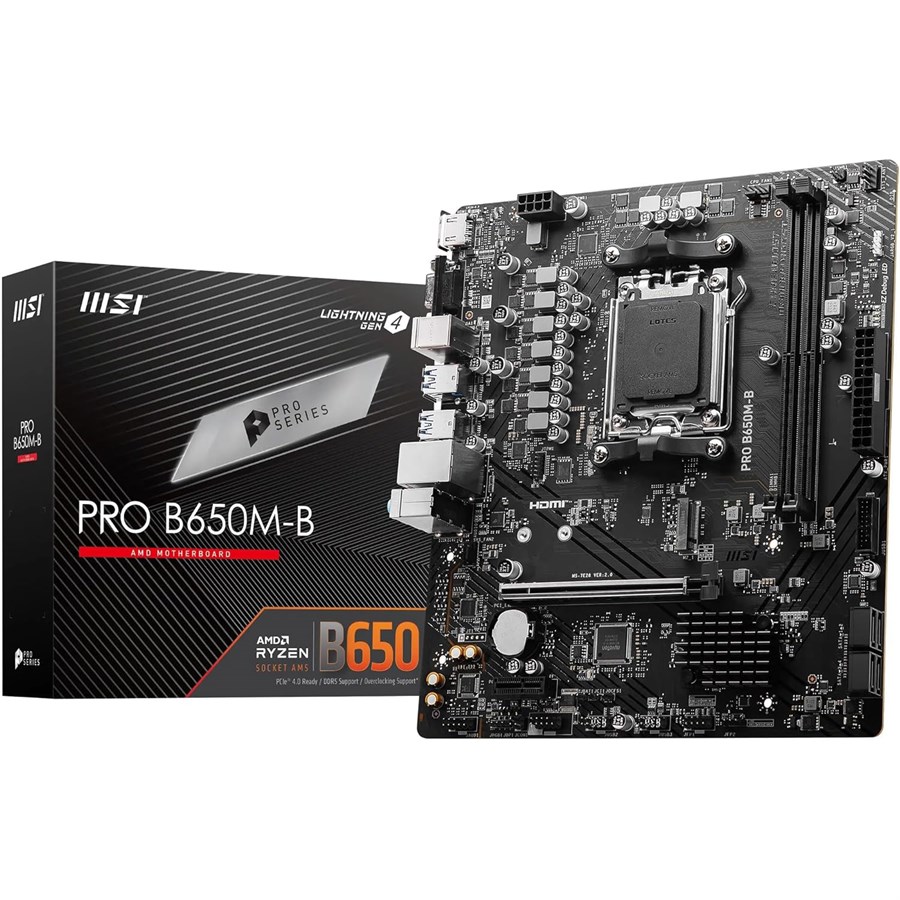

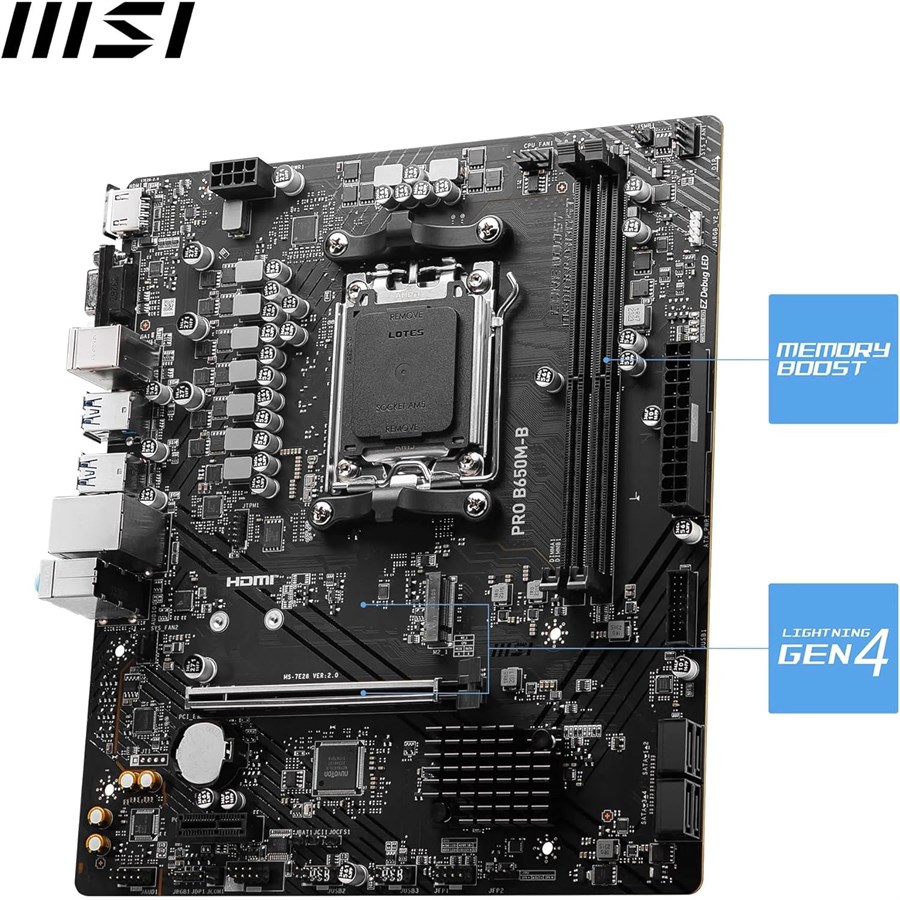

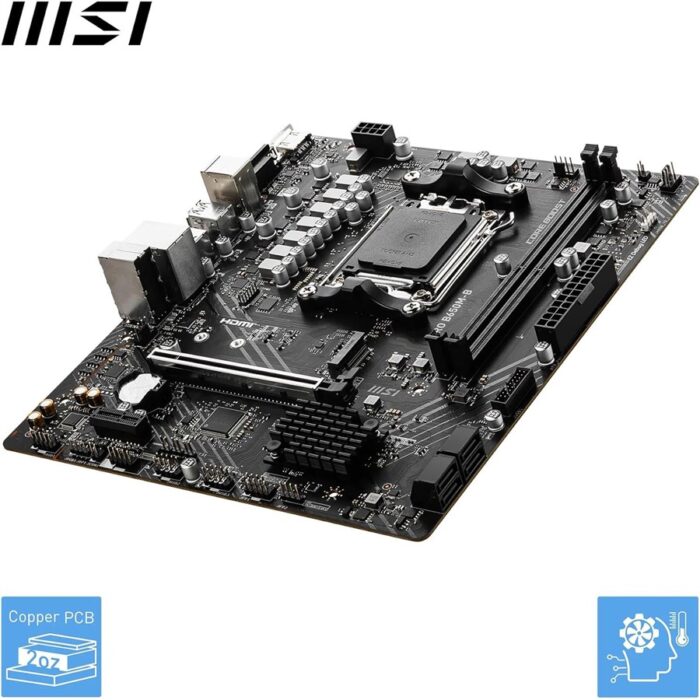

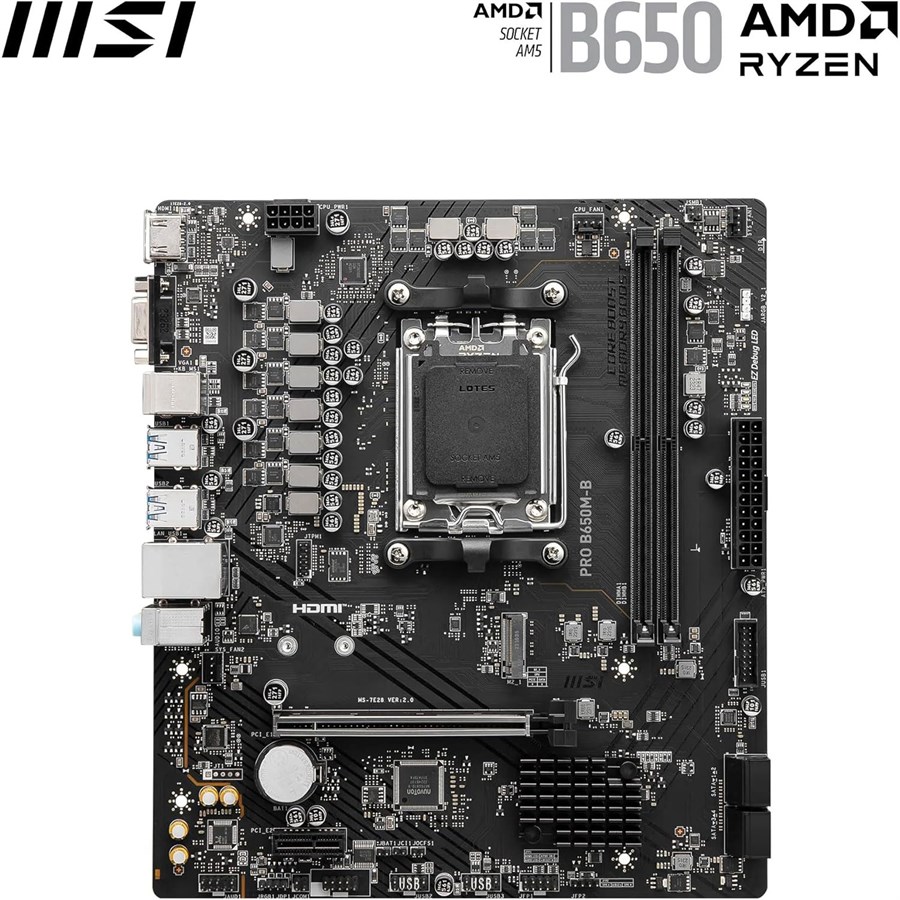

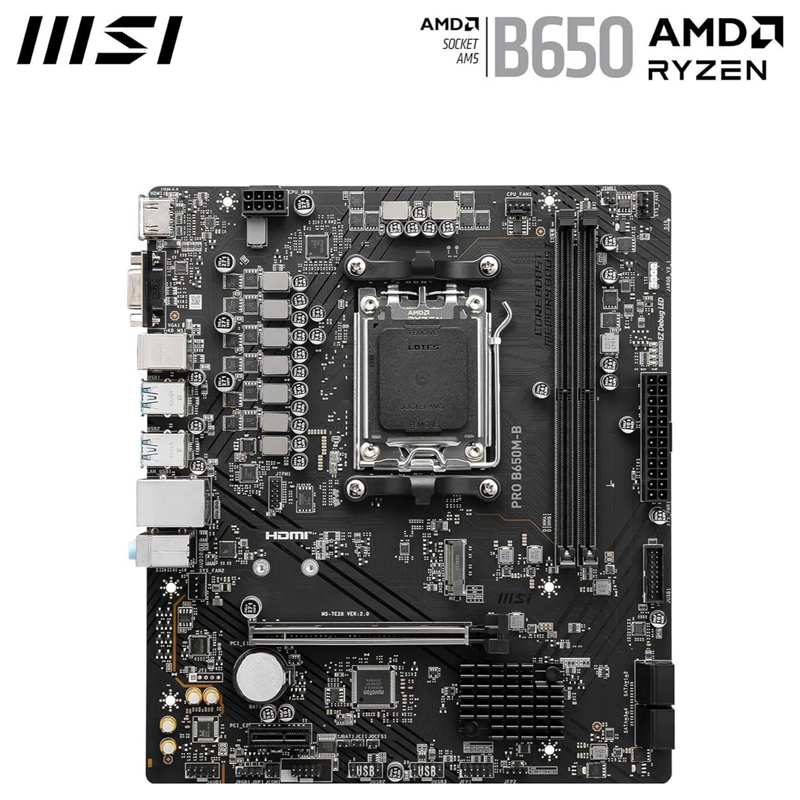

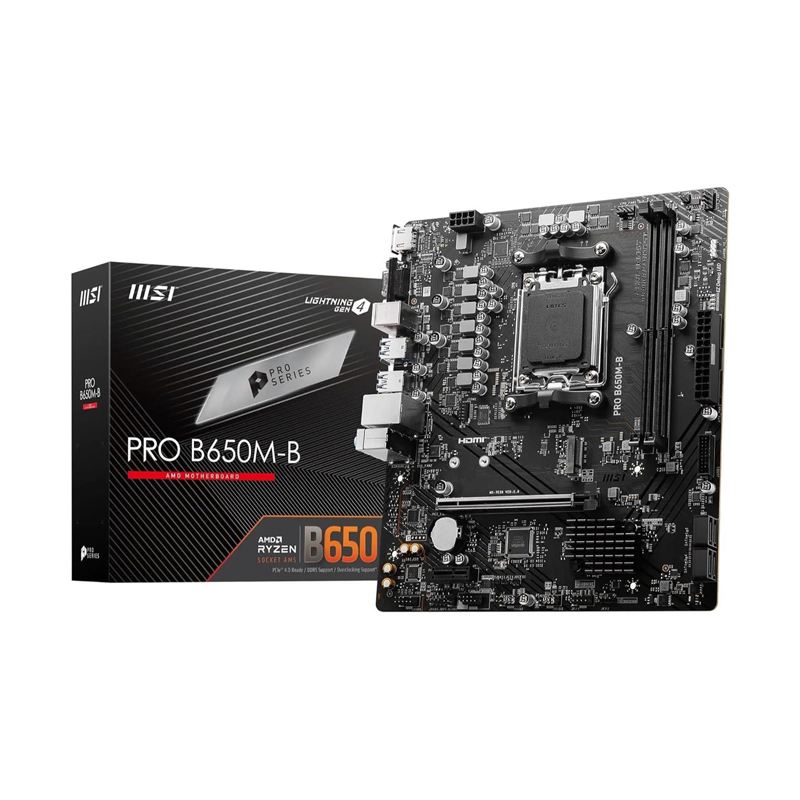

MSI PRO B650M-B DDR5 AM5 Micro-ATX Motherboard
₨ 31,000
Supports Ryzen 7000/8000/9000 Series – AMD AM5 socket with the B650 chipset and Core Boost technology ensures wide compatibility and stable power for the latest processors .
High-Performance DDR5 Memory – Two DIMM slots support dual-channel DDR5 RAM with overclocked speeds up to 6800+ MHz and AMD EXPO profiles for a quick performance boost .
Lightning Gen4 M.2 & PCIe 4.0 – Equipped with one PCIe 4.0 x16 slot (with protective Steel Armor) and a dedicated Gen4 x4 M.2 connector for high-bandwidth graphics and next-gen storage .
2.5Gbps LAN & Reliable Connectivity – The Realtek 2.5G LAN provides a high-speed, stable wired network connection, ready for professional and multimedia use .
Studio-Grade 7.1 Audio – Features the Realtek ALC897 codec with Audio Boost, delivering immersive, high-definition sound for an enhanced listening experience
| Overview | |
| Chipset | AMD B650 |
| CPU Support | AMD Ryzen 9000/8000/7000 Series Desktop Processors |
| Socket | AM5 |
| Form Factor | mATX (215 mm x 243.84 mm) |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Memory | |
| Memory | 2x DDR5, Max Capacity 128 GB |
| Memory Support | DDR5 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz |
| Overclocking Frequencies | 1DPC 1R: Max 6800+ MHz, 1DPC 2R: Max 6000+ MHz |
| Dual-Channel Mode | Yes |
| Non-ECC Memory Support | Yes |
| AMD EXPO Support | Yes |
| Onboard Graphics | |
| Video Outputs | 1x HDMI (4K @ 60Hz), 1x VGA (Up to 2048×1536 @ 50Hz / 2048×1280 @ 60Hz / 1920×1200 @ 60Hz) |
| Expansion Slots | |
| PCI-E Slots | 1x PCI-E x16 (Ryzen 9000/7000: x16, Ryzen 8700/8600/8400: x8, Ryzen 8500/8300: x4) |
| Storage | |
| Storage | 1x M.2 (PCIe 4.0 x4 from CPU), 4x SATA 6G |
| RAID Support | RAID 0, RAID 1, RAID 10 for SATA |
| Audio | |
| Audio | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
| USB | |
| USB Ports | 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 5Gbps Type-A (Rear), 2x USB 5Gbps Type-A (Front) |
| Networking | |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Internal I/O & LED | |
| Internal I/O | CPU Fan, System Fan, Front Panel, RGB Connectors, USB, TPM Pin Header, etc. |
| LED Features | 4x EZ Debug LED |
| Back Panel Ports | |
| Back Panel Ports | HDMI, VGA, Keyboard/Mouse, USB 3.2 Gen 1 5Gbps (Type-A), LAN, Audio Connectors, USB 2.0 |
| Box Content | |
| In the Box | mATX Motherboard, Documentation |
| Brand | MSI |
|---|
Brand
MSI
