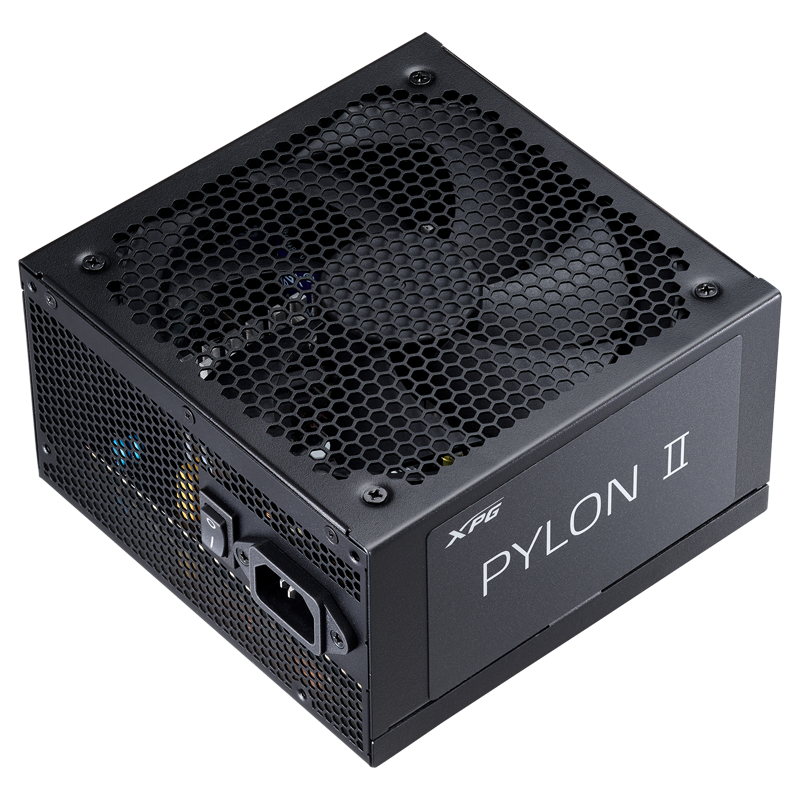

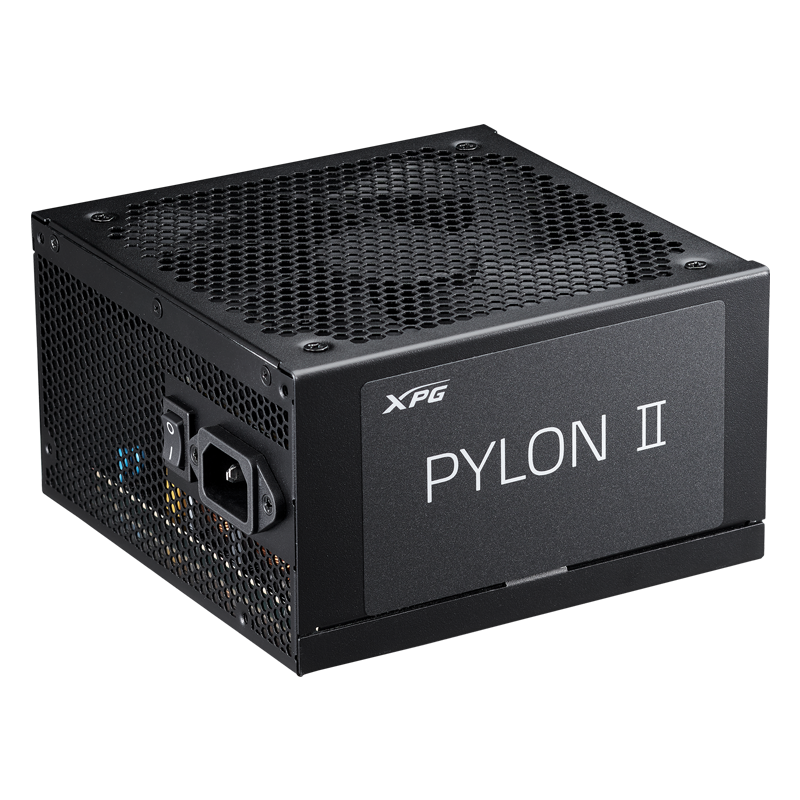

XPG Pylon II 650W ATX 3.1 80Plus Bronze Power Supply

₨ 15,499

650W 80 PLUS Bronze & Cybenetics Silver Certified

Dual efficiency certifications reduce energy waste and heat. Intel ATX v3.1 compliant with 12V-2×6 connector for next-gen components.

Up to 235% Power Excursion – 1527W Peak

Handles transient power spikes up to 235% of rated capacity for 100µs, ensuring stability with high-demand GPUs.

135mm FDB Fan – Quiet & Durable Cooling

Fluid Dynamic Bearing fan delivers efficient cooling with reduced noise. 50°C operating temperature rating for stable performance.

8 Industrial-Grade Protections

OVP, OPP, SCP, OCP, UVP, OTP, NLO, and SIP safeguards. Compact 150 x 150 x 86mm design weighing 1.8kg.

XPG
Description

XPG PYLON II

PYLON II

UNLEASH THE SURGE

The PYLON II Bronze PSU delivers 80 PLUS Bronze and CYBENETICS Silver efficiency, cutting energy costs without sacrificing performance. Designed to meet Intel ATX 3.1 standards, it offers a future-ready solution for high-demand components. Equipped with a quiet and durable FDB fan, it ensures efficient cooling for a stable and noise-free experience. Backed by 8 industrial-grade protections and a 5-year warranty, the PYLON II guarantees long-term reliability and peace of mind for your build.

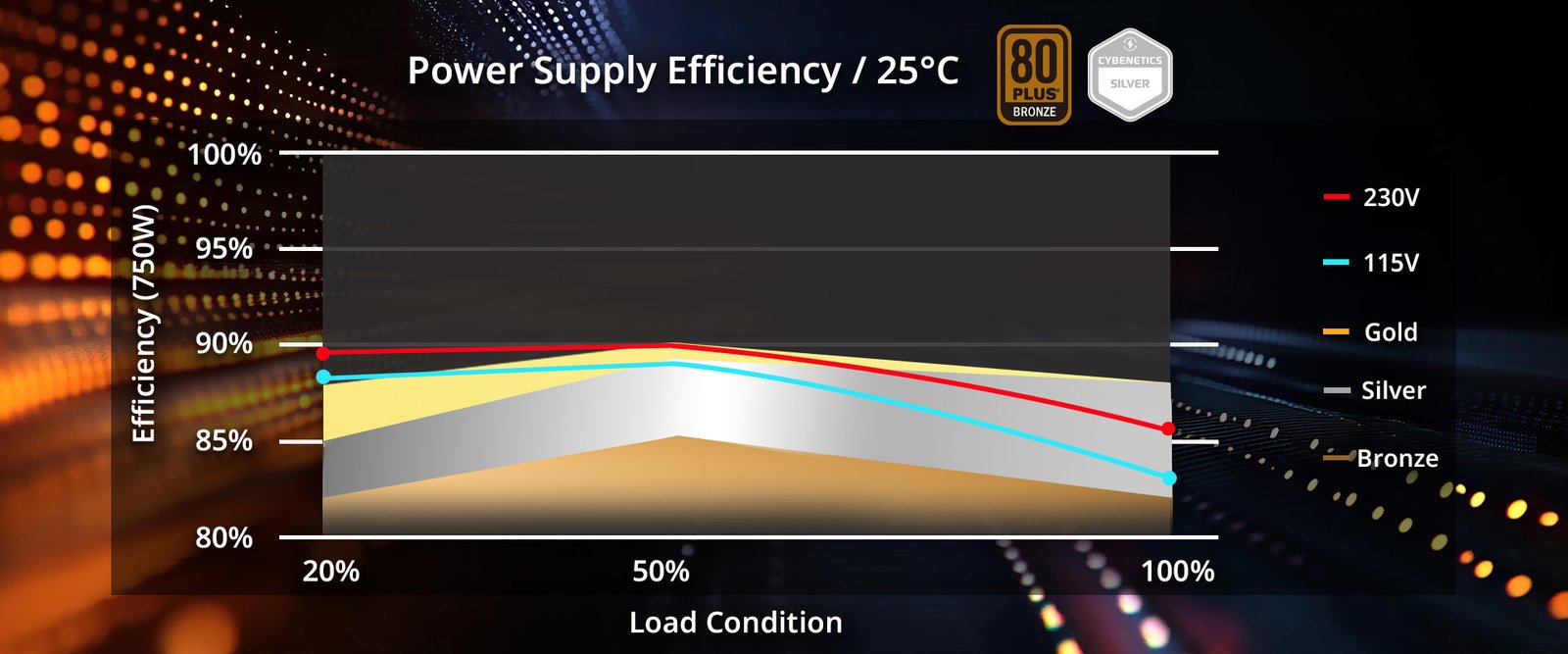

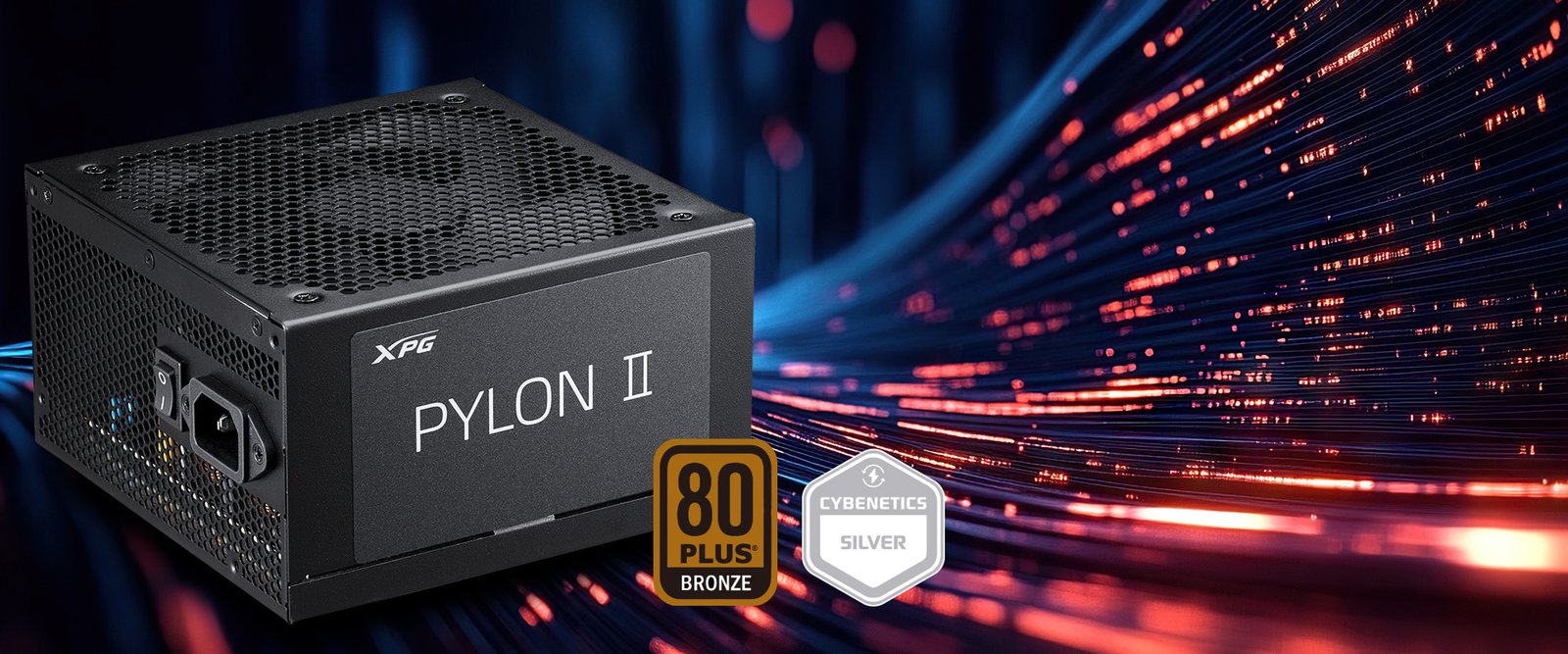

Reliable Power, Certified Efficiency

Reliable Power, Certified Efficiency

The PYLON II Power Supply offers 80 PLUS Bronze and CYBENETICS Silver certification, providing optimal energy efficiency to reduce waste and cut electricity costs. Whether you’re building a new system or upgrading, you can trust its stable and reliable performance.

PYLON II

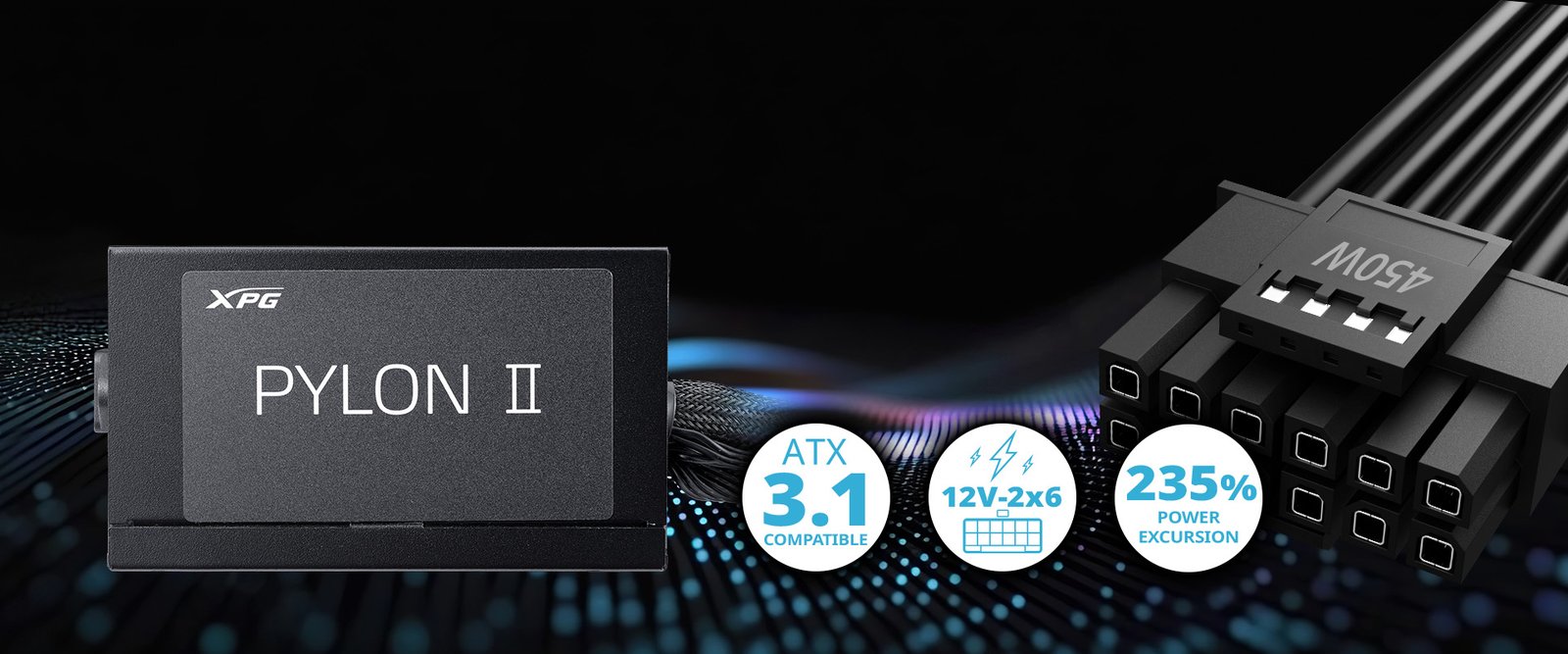

Intel ATX 3.1 Compliant

Intel ATX 3.1 Compliant,
Future-Ready Design

Designed with the latest Intel ATX 3.1 standards, the PYLON II is equipped with 12V-2×6 connector*, ensuring compatibility with high-performance components. It’s engineered to meet the evolving needs of modern systems.

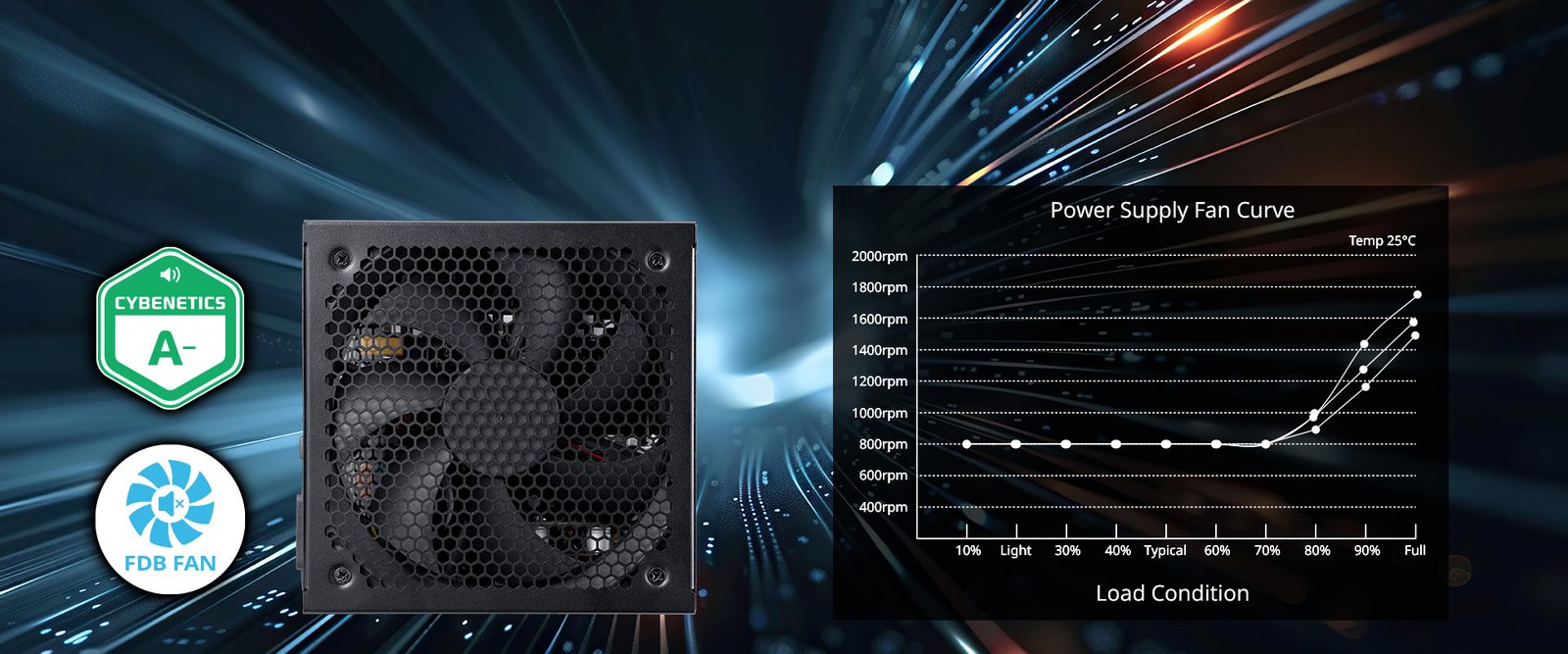

Quiet, Efficient Cooling

Quiet, Efficient Cooling
with FDB Fan

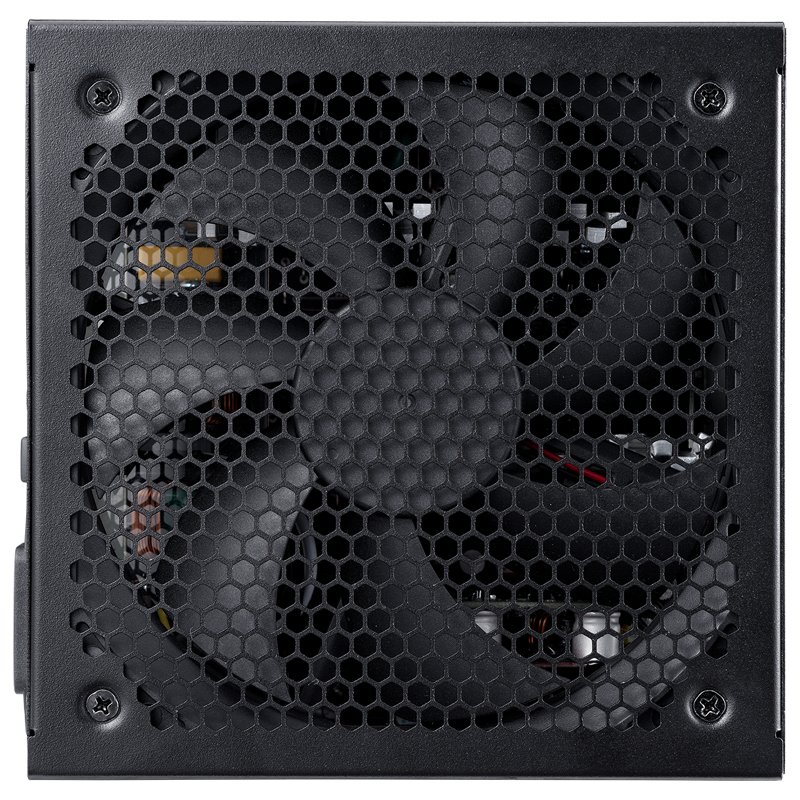

Equipped with a 135mm FDB fan, the PYLON II ensures quiet operation and long-lasting durability. It keeps your system cool even under demanding workloads, delivering optimal cooling without compromising on noise levels.

Comprehensive Protection

Comprehensive Protection
for Peace of Mind

With 8 industrial-grade protections, the PYLON II shields your system from power surges, short circuits, and other potential risks. This protection offers long-term peace of mind.

Specifications

Dimensions150 x 150 x 86 mm
Cybenetics RatingSILVER
80 Plus RatingBRONZE
ATX VersionIntel ATX v3.1
ProtectionsOVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP
PFC0.99
Input Voltage100-240V
Input Current650W: 10A
Input Frequency50-60Hz
DC Output Voltage+5V | +3.3V | +12V | -12V | +5Vsb
Total Output650W: +5V/+3.3V: 20A, +12V: 54A, -12V: 0.3A, +5Vsb: 3A
Power Excursion650W: 1527W (*up to 235% for 100µs)
Operating Temperature50°C
Fan Size135 mm
Fan BearingFDB (Fluid Dynamic Bearing)
Fan Speed2300 ± 10 RPM
MTBF100K Hours at 25°C
ATX 24 Pin Connector1
EPS 8 Pin Connector2
Molex 4 Pin Connector2
12V-2×6 (12+4) Connector (450W)650W: 1
12V-2×6 Connector (300W)550W: 1
Weight1.8 kg

*12V-2×6 Connector (450W): PYLONII750BRONZE / PYLONII650BRONZE

*12V-2×6 Connector (300W): PYLONII550BRONZE
