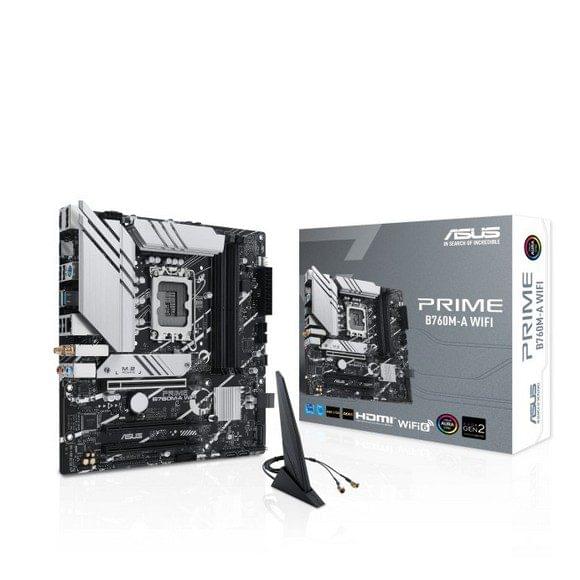

ASUS PRIME B760M-A WIFI LGA 1700 Micro-ATX Motherboard
₨ 48,000
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Available on backorder
| Model | PRIME B760M-A WIFI |
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 | |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem II | |
| Graphics | 1 x DisplayPort |
| 2 x HDMITM ports | |
| Expansion Slots | Intel® 13th & 12th Gen Processors |
| 1 x PCIe 4.0 x16 slot | |
| Intel® B760 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0 x16 slot (supports x1 mode) | |
| Storage | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* |
| Intel® 13th & 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| Intel® B760 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 |
| 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5GHz frequency band | |
| Bluetooth v5.2 | |
| USB | Rear USB (Total 6 ports) |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A ) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 10 ports) | |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| 1 x USB 2.0 header supports 1 additional USB 2.0 port | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| – Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| – Audio Shielding | |
| – Premium audio capacitors | |
| – Dedicated audio PCB layers | |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 2 x HDMITM ports | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 2 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| 1 x USB 2.0 header supports 1 additional USB 2.0 port | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x LPT header | |
| 1 x S/PDIF Out header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| Special Features | ASUS 5X PROTECTION III |
| – DIGI+ VRM | |
| – LANGuard | |
| – Overvoltage Protection | |
| – SafeSlot Core+ | |
| – Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| – Q-DIMM | |
| – Q-LED Core | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – M.2 heatsink | |
| – VRM heatsink design | |
| ASUS EZ DIY | |
| – ProCool | |
| Aura Sync | |
| – Aura RGB header | |
| – Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| – Aura Creator | |
| – Aura Sync | |
| – Fan Xpert 2+ | |
| – Power Saving | |
| AI Suite 3 | |
| – Digi+ VRM | |
| – PC Cleaner | |
| ASUS CPU-Z | |
| MyAsus | |
| Norton Deluxe (60 Days Free Trial) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| – ASUS CrashFree BIOS 3 | |
| – ASUS EZ Flash 3 | |
| – ASUS UEFI BIOS EZ Mode | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x I/O Shield | |
| 1 x M.2 Rubber Package | |
| 1 x Screw package for M.2 SSD | |
| Documentation | |
| 1 x User guide | |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | mATX Form Factor |
| 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
Brand
Asus
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery
At Amir Traders, we aim to provide a smooth and hassle-free shopping experience to our valued customers. We offer fast, secure, and nationwide delivery services across Pakistan.
All orders are typically processed and dispatched within 1 to 2 working days after confirmation. Once shipped, delivery timelines vary depending on your location, usually taking between 2 to 5 business days. For customers in major cities, delivery is often quicker.
We currently offer Cash on Delivery (COD) for your convenience, allowing you to pay when the product arrives at your doorstep. Our packaging is done with care to ensure your products reach you safely and in perfect condition.
If you have any questions regarding your delivery or would like to track your order, feel free to contact our support team anytime.
Related products
Gigabyte B550M AORUS ELITE AMD AM4 DDR4 Micro-ATX Motherboard
AMD B550 with PCIe 4.0 Ready: Features a PCIe 4.0 x16 slot for next-gen graphics cards and dual PCIe 4.0/3.0 M.2 connectors for ultra-fast NVMe SSDs .
5+3 Phases Pure Digital VRM: Delivers precise and stable power delivery to support high-performance Ryzen™ 5000 Series processors .
Dual Channel DDR4, 4 DIMMs: Supports up to 128GB of DDR4 memory with speeds up to 4733MHz (OC) for smooth multitasking and gaming .
Smart Fan 5 with FAN STOP: Multiple temperature sensors and hybrid fan headers can stop fans completely under light loads for silent operation .
RGB Fusion 2.0: Customize your build's aesthetics with multiple addressable LED and RGB LED strip headers, controlled via Gigabyte's RGB Fusion software
Gigabyte Z790 EAGLE DDR5 ATX Gaming Motherboard
Twin 12+1+1 Phases Digital VRM: Robust power delivery with 6+6 phases parallel power design and 6-layer 2X Copper PCB for stable CPU performance under load
DDR5 Memory with XMP 3.0: 4 DIMM slots supporting up to 256GB of dual-channel DDR5 memory with speeds up to 7600MHz (OC), optimized for high-speed XMP memory kits
PCIe 5.0 Ready with EZ-Latch: Features one SMD PCIe 5.0 x16 slot with Ultra Durable Armor and a quick-release design for easy graphics card installation
Triple PCIe 4.0 M.2 Storage: Three PCIe 4.0 x4 M.2 connectors with Thermal Guard heatsinks to prevent SSD throttling, plus 4 SATA 6Gb/s ports
2.5GbE LAN & Advanced Connectivity: High-speed Realtek 2.5Gbps Ethernet, rear USB-C 10Gb/s, DisplayPort, HDMI, and Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP
MSI A520M-A PRO AMD AM4 Micro-ATX Motherboard
Supports AMD Ryzen 5000 Series: Compatible with a wide range of AMD AM4 processors, including Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000 Series CPUs .
Turbo M.2 PCIe Gen3 x4: One M.2 slot running at PCIe 3.0 x4 maximizes performance for NVMe SSDs, ensuring rapid boot and application load times .
Core Boost Technology: Features a premium layout and digital power design to support multi-core processors with stable and reliable power delivery .
DDR4 Memory Boost: Supports dual-channel DDR4 memory up to 4600 MHz (OC) with fully isolated DDR circuits for pure data signals and enhanced stability .
2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and long-term performance reliability, ensuring durability for 24/7 operation

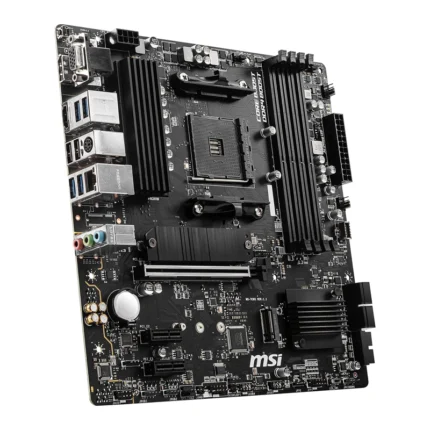

MSI B550M PRO-VDH AMD AM4 Micro-ATX Motherboard
Supports AMD Ryzen 5000 Series: Compatible with Ryzen 5000, 4000 G-Series, and 3000 Series desktop processors (not compatible with Ryzen 5 3400G & Ryzen 3 3200G)
Dual M.2 Slots with PCIe 4.0: One Lightning Gen4 x4 M.2 slot with M.2 Shield Frozr thermal protection, plus a second Gen3 x4 M.2 slot for dual NVMe SSD storage
DDR4 Memory Boost: 4 DIMM slots supporting up to 128GB dual-channel DDR4 with overclocked speeds up to 4400 MHz via A-XMP
Core Boost & 2oz Copper PCB: Optimized digital power design with a 2oz thickened copper PCB for stable multi-core CPU performance and improved heat dissipation
Comprehensive Display & Audio: HDMI and DisplayPort outputs with studio-grade Audio Boost for immersive sound and flexible display connectivity
MSI B650 GAMING PLUS WIFI AMD AM5 ATX DDR5 Gaming Motherboard
12+2+1 Duet Rail Power System: Features dual 8-pin CPU power connectors, Core Boost, and Memory Boost technology for stable and reliable power delivery to high-performance Ryzen processors .
DDR5 Memory up to 7200+ MHz (OC): 4 DIMM slots supporting up to 256GB dual-channel DDR5 with AMD EXPO compatibility for effortless high-speed memory overclocking .
Lightning Gen 4 PCIe & M.2: Two PCIe 4.0 x16 slots and two Gen 4 x4 M.2 slots with M.2 Shield Frozr provide high-speed connectivity for graphics cards and NVMe SSDs .
Wi-Fi 6E & 2.5G LAN: Integrated AMD Wi-Fi 6E module with Bluetooth 5.3 and Realtek 2.5Gbps Ethernet deliver secure, stable, and ultra-fast wired and wireless networking .
Premium Thermal Solution: Extended heatsinks, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr ensure optimal cooling for sustained performance under heavy loads
MSI B760M GAMING PLUS WIFI DDR5 Intel LGA 1700 Micro-ATX Motherboard
Support for Intel 14th/13th/12th Gen CPUs: The LGA 1700 socket combined with a 12+1 VRM and 8-pin + 4-pin power connectors provides solid and stable power for the latest Intel processors .
High-Speed DDR5 Memory: Features 4 DIMM slots supporting up to 256GB of dual-channel DDR5 memory, with overclocked speeds reaching over 6800MHz via Intel XMP 3.0 .
Lightning Gen 4 M.2 with Shield Frozr: Equipped with dual PCIe 4.0 M.2 slots, including one with an advanced thermal heatsink to maintain peak NVMe SSD performance without throttling .
Intel Wi-Fi 6E & 2.5G LAN: A top-tier networking combo featuring a 2.5Gbps LAN port and the latest Intel Wi-Fi 6E module with Bluetooth 5.3 for ultra-fast, low-latency wireless connectivity .
Studio-Grade Audio & Premium Design: Experience immersive 7.1-Channel HD Audio powered by Audio Boost, all built on a durable 6-layer PCB with 2oz thickened copper for long-term reliability .

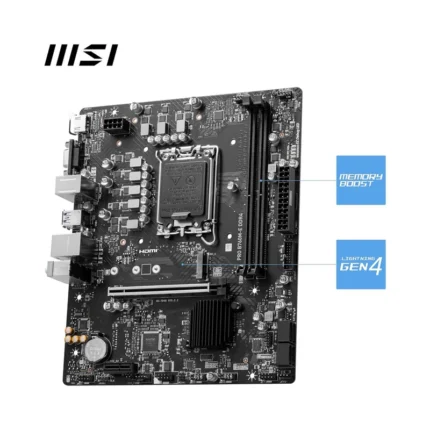

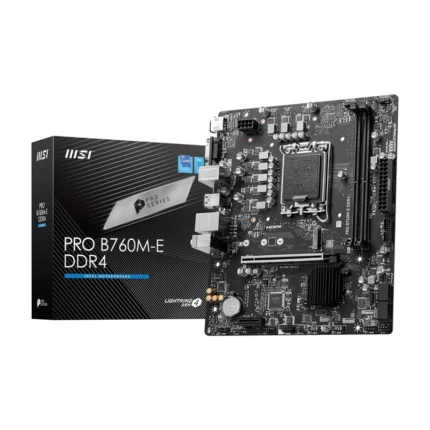

MSI PRO B760M-E DDR4 Intel LGA 1700 Micro-ATX Motherboard
