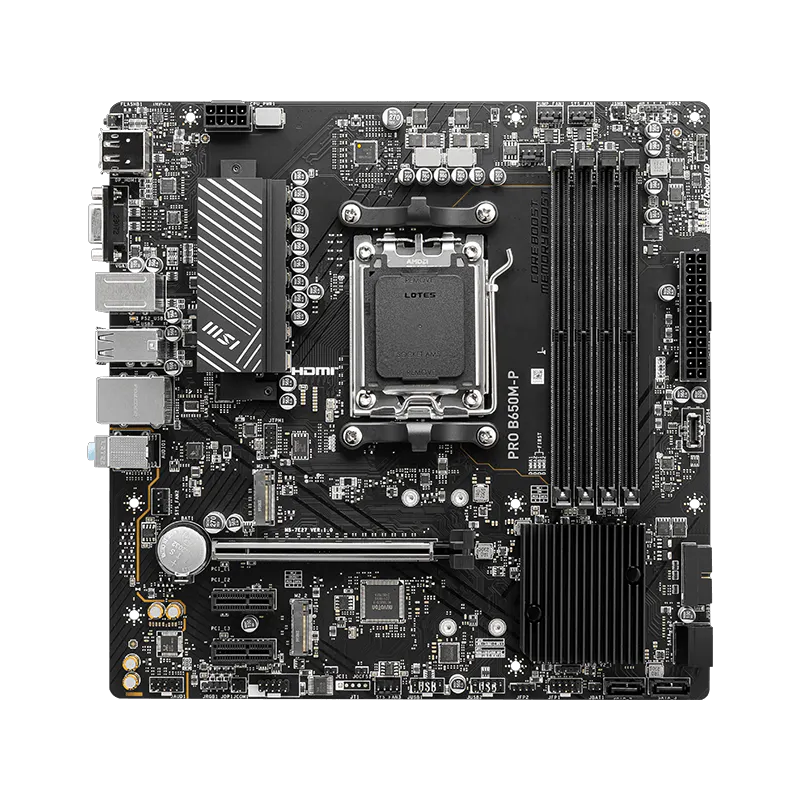

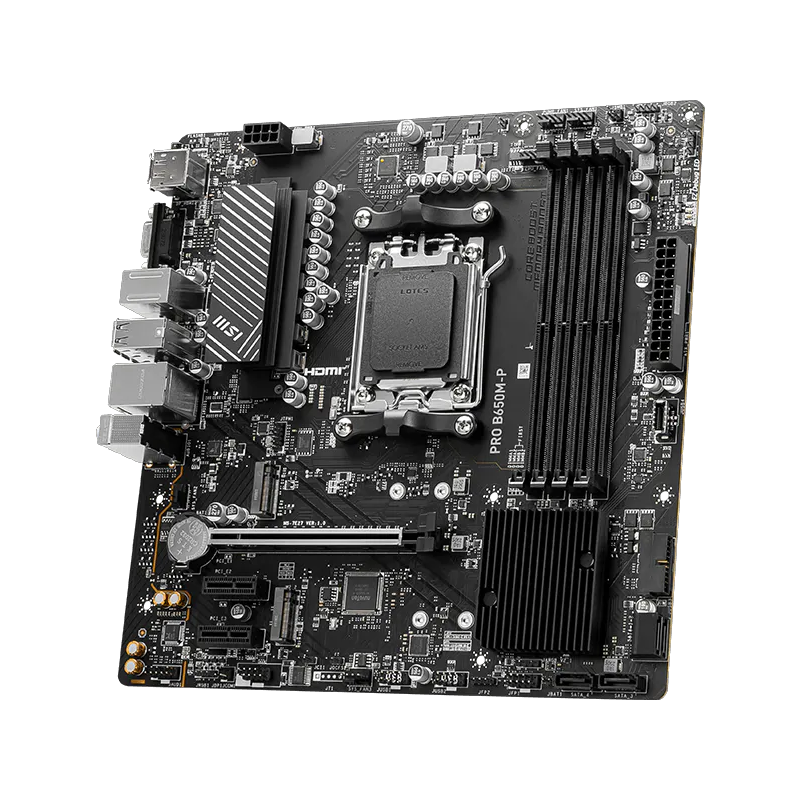

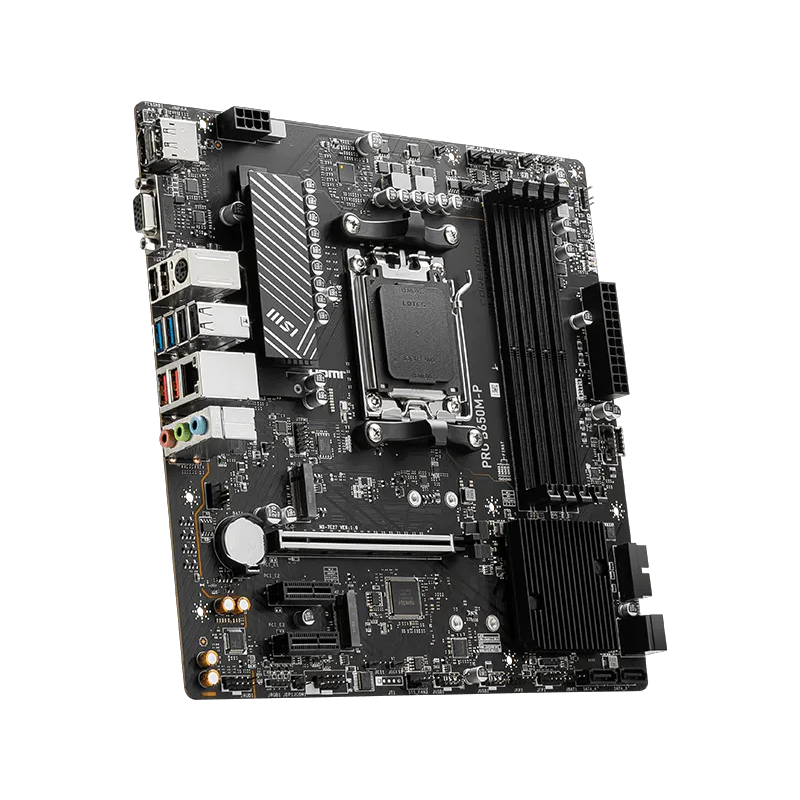

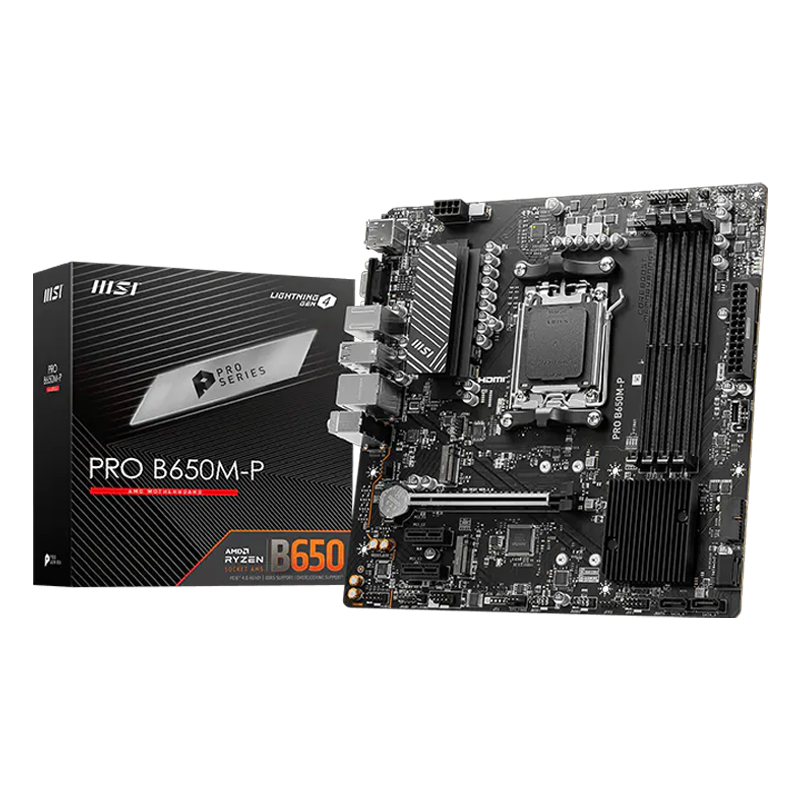

MSI PRO B650M-P AM5 mATX Motherboard

AMD AM5 Platform – Ryzen 9000 / 8000 / 7000 Series Ready

The MSI PRO B650M-P is powered by the AMD B650 chipset with an AM5 socket, delivering full support for AMD Ryzen 9000, 8000, and 7000 series desktop processors. Core Boost technology combines a premium layout and digital power design to support more cores and provide better overall performance, making this motherboard a reliable foundation for gaming, content creation, and productivity builds.

DDR5 Memory – Up to 256GB at 7200+ MHz with Memory Boost

Equipped with 4x DDR5 DIMM slots supporting up to 256GB of dual-channel memory, the B650M-P reaches overclocking speeds of 7200+ MHz (1DPC 1R). Memory Boost technology uses advanced circuit design to deliver pure data signals for the best performance, stability, and compatibility. Full AMD EXPO support is included for easy memory profile tuning.

Lightning Fast Game Experience – PCIe 4.0 and Dual M.2

The B650M-P delivers a lightning fast gaming experience with 1x PCIe 4.0 x16 slot reinforced with Steel Armor to protect graphics cards against bending and EMI. Storage options include 2x M.2 slots supporting PCIe 4.0 x4 NVMe speeds (up to 2280 form factor) and 4x SATA 6G ports. RAID 0, RAID 1, and RAID 10 are supported for SATA devices, with RAID 0 and RAID 1 available for M.2 NVMe storage.

High Quality PCB – 6-Layer with 2oz Thickened Copper

Built on a 6-layer PCB with 2oz thickened copper, the B650M-P ensures enhanced durability, improved signal integrity, and stable power delivery even under demanding conditions. This server-grade construction contributes to long-term reliability and consistent performance.

2.5G LAN – Secure, Stable, and Fast Networking

The Realtek 8125BG 2.5G LAN controller provides an upgraded network solution for professional and multimedia use, delivering a secure, stable, and fast connection ideal for online gaming, large file transfers, and high-quality streaming.

Audio Boost – Studio Grade Sound Quality

The onboard Realtek ALC897 codec with Audio Boost rewards your ears with studio-grade sound quality for the most immersive gaming experience. 7.1-channel high-definition audio delivers crisp, clear, and spatial sound across games, movies, and music.

Comprehensive Connectivity and mATX Flexibility

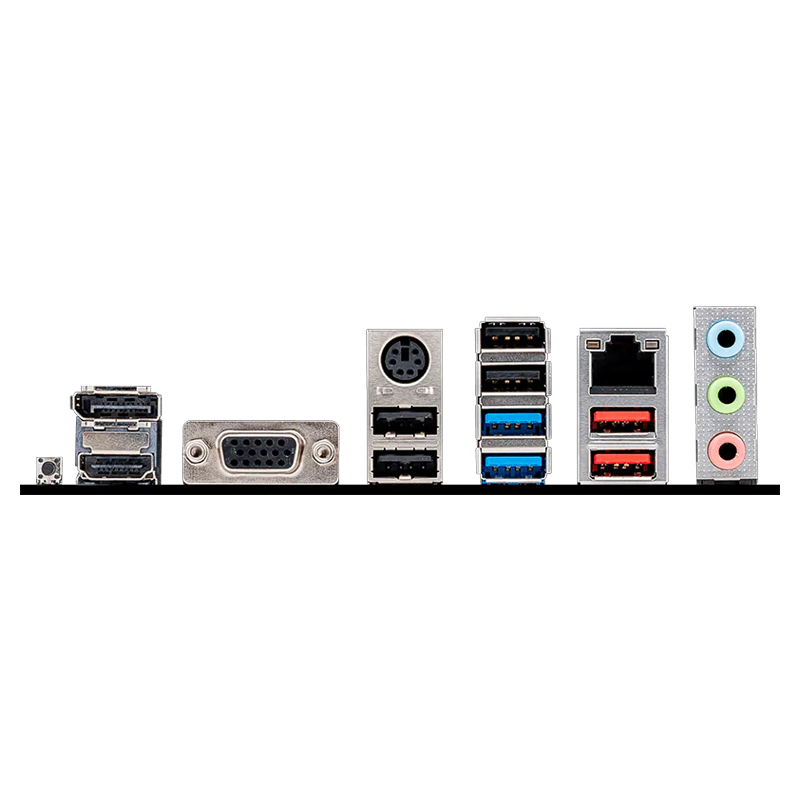

Front and rear USB options include USB 10Gbps Type-C (Front), USB 10Gbps Type-A (Rear), and multiple USB 5Gbps and USB 2.0 ports. Display outputs feature HDMI 2.1 (4K 60Hz), DisplayPort 1.4 (4K 60Hz), and VGA. With 4x EZ Debug LEDs, addressable RGB headers, and a compact mATX form factor (243.84 x 243.84 mm), the B650M-P fits comfortably in most cases while delivering a strong balance of performance and expandability.
