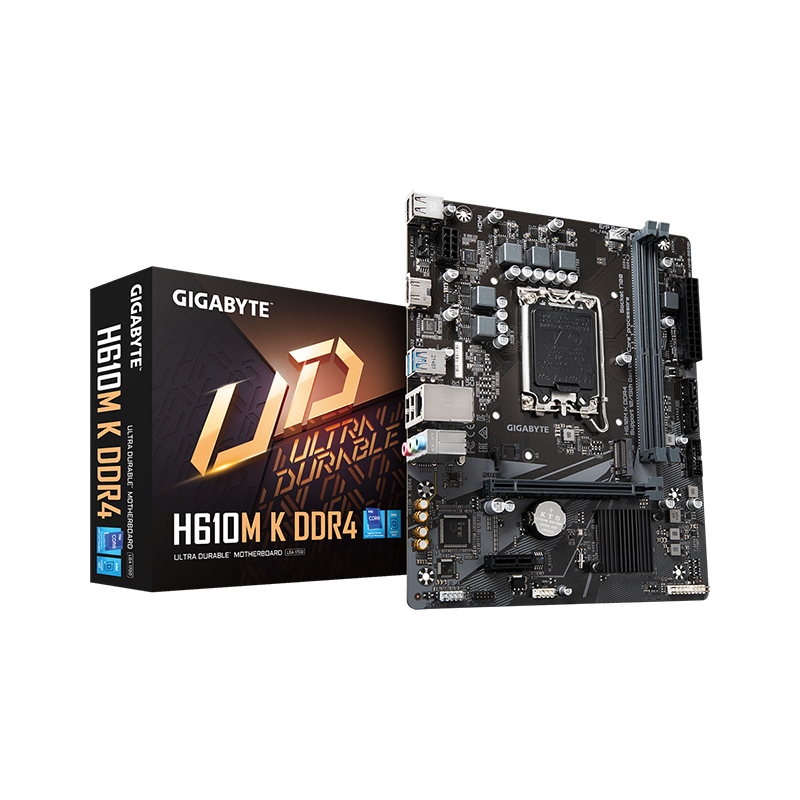

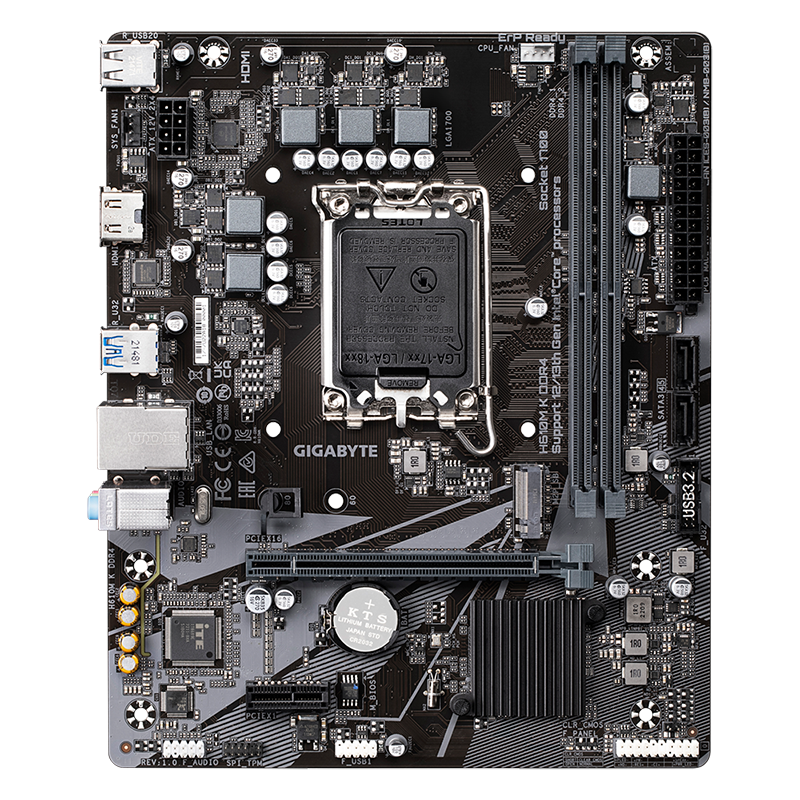

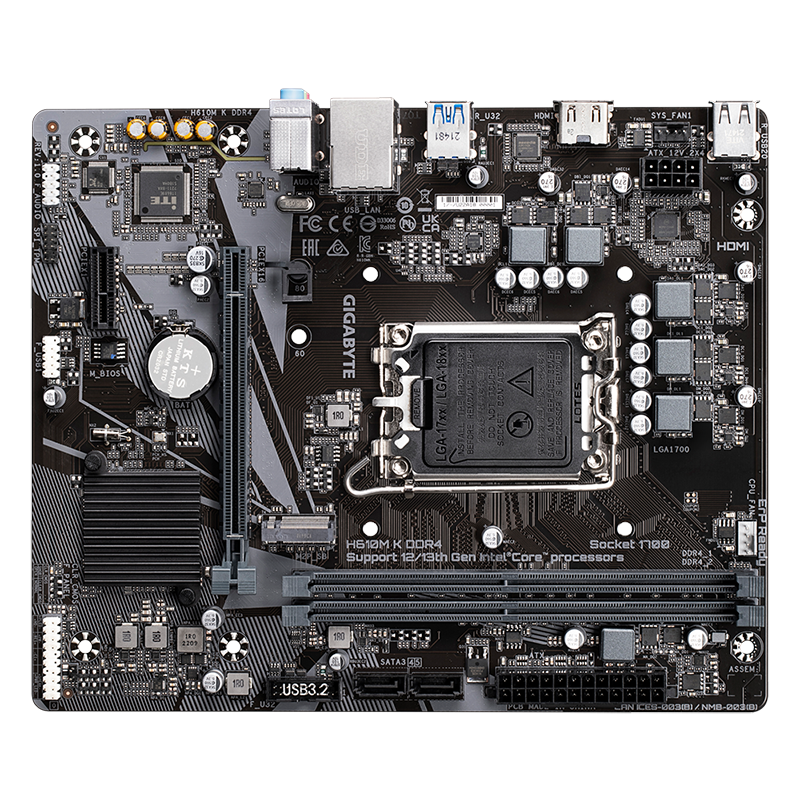

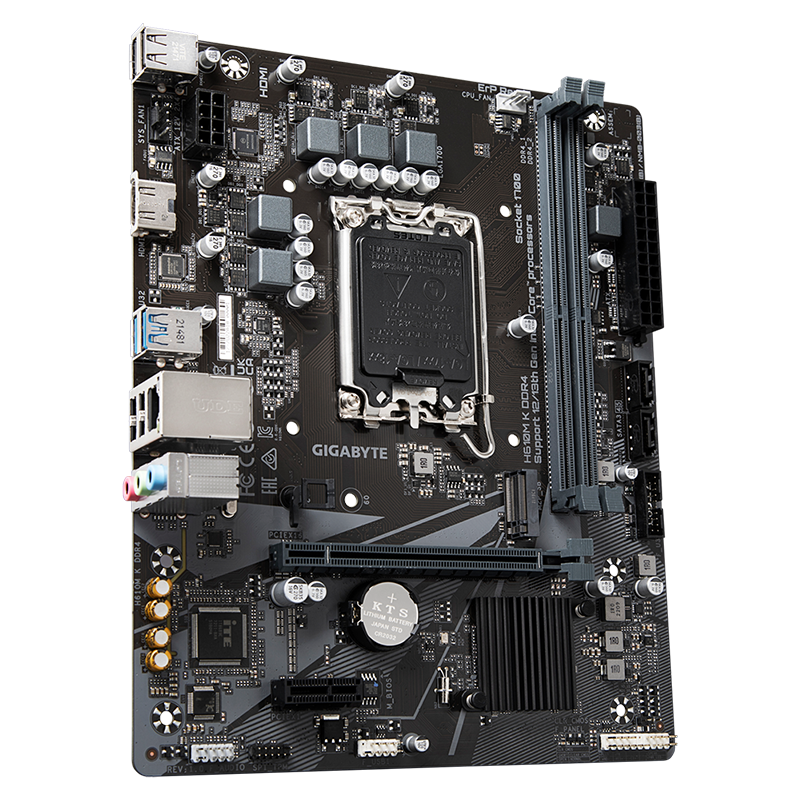

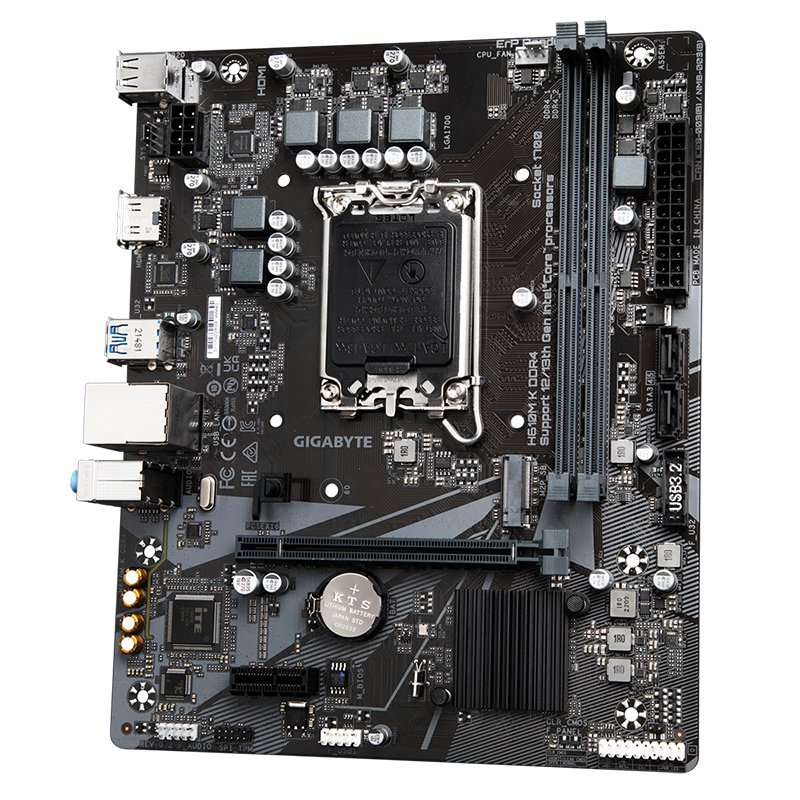

GIGABYTE INTEL H610M K DDR4 mATX Motherboard
₨ 25,999
- Supports Intel® Core™ 14th, 13th & 12th Gen processors – LGA 1700 socket, dual-channel non-ECC unbuffered DDR4, 2 DIMM slots for stable performance
- PCIe 4.0 ready with NVMe PCIe 3.0 x4 M.2 slot – delivers fast storage speeds for quick boot times and application loading
- GbE LAN with bandwidth management – ensures smooth online gaming and network traffic prioritisation
- Smart Fan 6 technology – multiple temperature sensors, hybrid fan headers with FAN STOP for silent operation under low loads
- High-quality audio capacitors and Audio Noise Guard – delivers crisp, immersive sound; Anti-Sulfur Resistors design for extended component lifespan
PCIe 4.0 Design
1 x PCIe 4.0 Slot
Reinforced PCIe 4.0 x16.
PCIe 4.0 Ready PCB
Low signal loss PCB.
Single 32GB Support
The maximum memory capacity is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Total memory capacity is 64GB, which was only available on High End Desktop platforms.

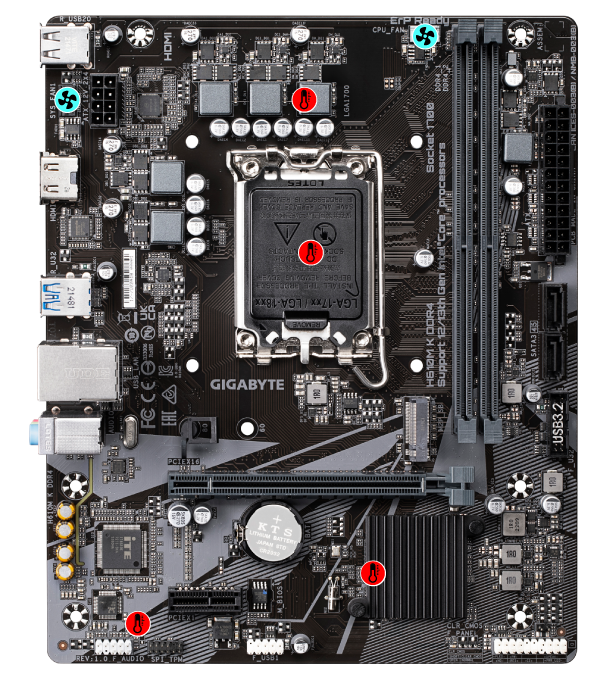

Smart Fan 6
Smart Fan 6 contains unique cooling features ensuring your PC stays cool and quiet. Multiple fan headers support PWM/DC fan and pump.
2 PWM/DC Fan Headers
4 Temperature Sensors- High Current Support: Up to 24W (12V x 2A) with Over-Current Protection
- Precision Control: Up to 7 temperature/fan speed control points
- Dual Curve Mode: Slope/Stair dual mode
- Fan Stop: Fan stops below specified temperature
Hybrid Cores Optimization
Two “CPU Upgrade” BIOS profiles adjusting P-Core and E-Core activation and voltage policy.
GAMING
- Deactivate all E-Core
- Zero compromise on gaming
- Up to 20% lower CPU package power
- Up to 5°C lower CPU temperature
MAX PERFORMANCE
- Activate all P-Core and E-Core
- Maximize multi-cores performance
GbE LAN with Bandwidth Management
Features a network bandwidth management application to improve network latency and maintain low ping times in crowded LAN environments.

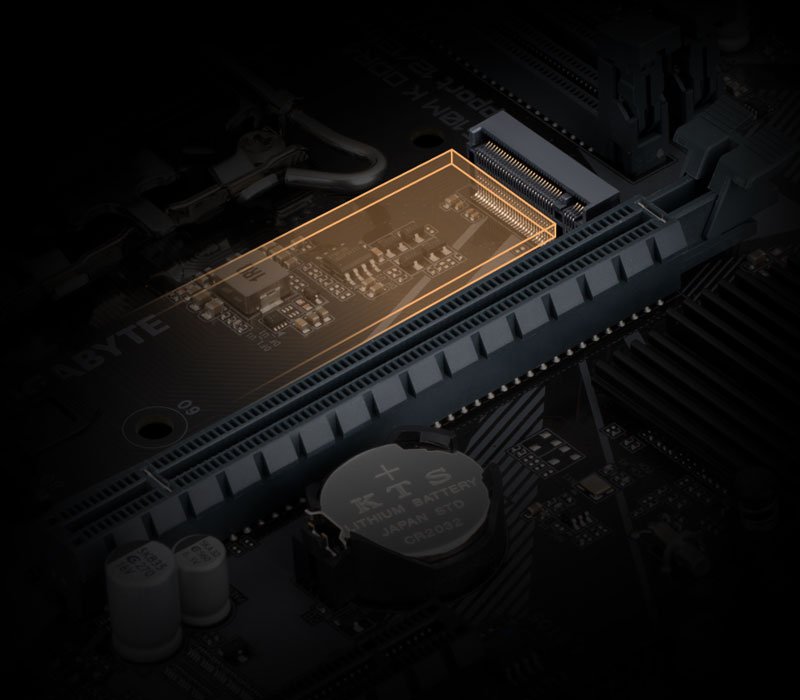

NVMe PCIe Gen3 x4 M.2 Connector
Delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
Hi-Fi Audio

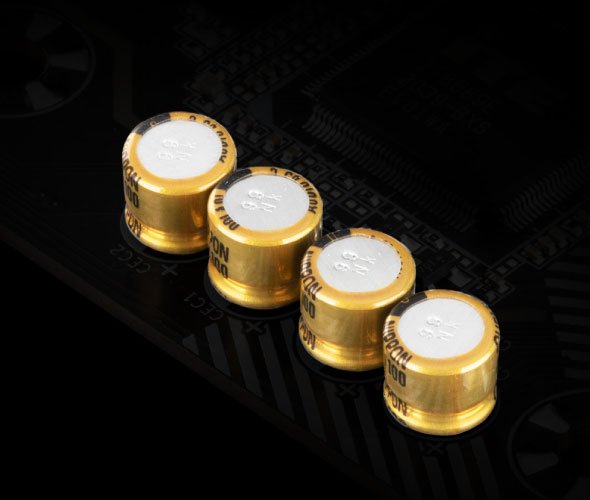

High-End Audio Capacitors
High quality capacitors deliver high resolution and high fidelity audio for realistic sound effects.
Audio Noise Guard
Separates sensitive analog audio components from potential noise pollution at the PCB level.

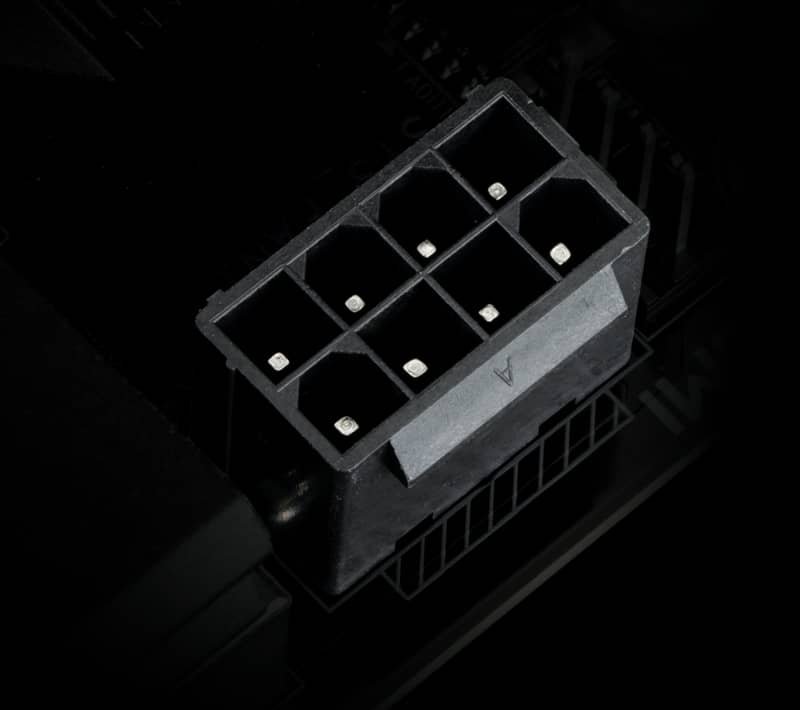

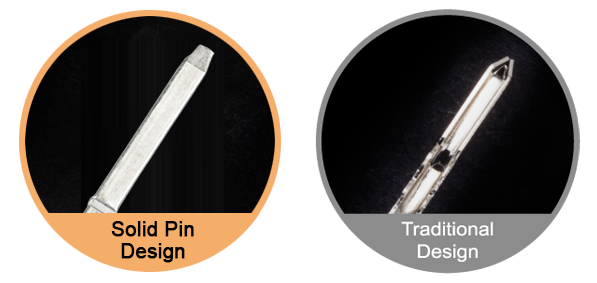

Solid Pin Power Connectors
Solid plated ATX 12V 8pin power connectors offer stable power supply during CPU overloading.
Solid Pin Advantages
- Larger contact area for electricity
- More metal to sustain higher power
- Ultra durable and longer lifespan

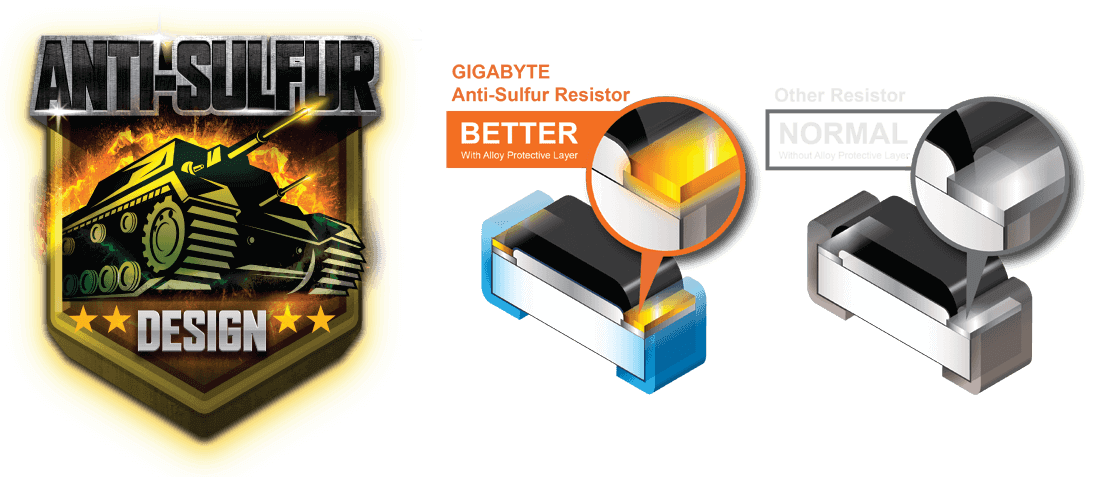

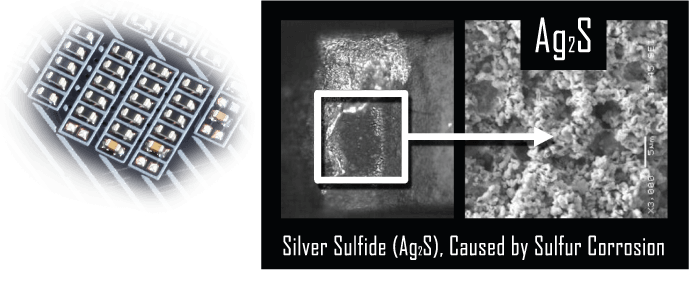

Anti-Sulfur Protection
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change causing them to open or short. Anti-Sulfur Design gives Ultra Durable Motherboards a whole new meaning.

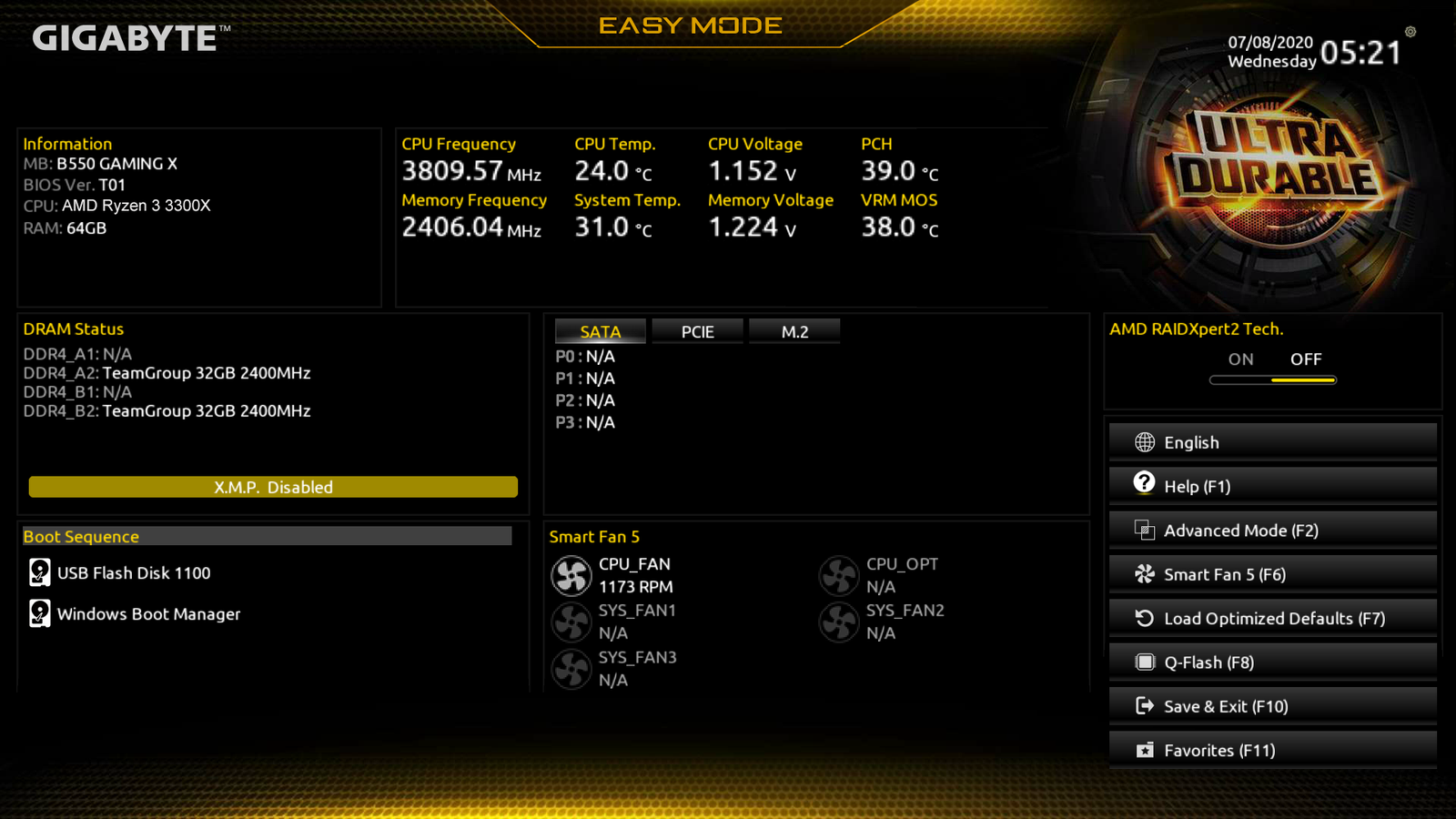

BIOS
The BIOS is essential for initial setup. With a new GUI and easier functionalities, GIGABYTE has reinvented the BIOS for a better experience.

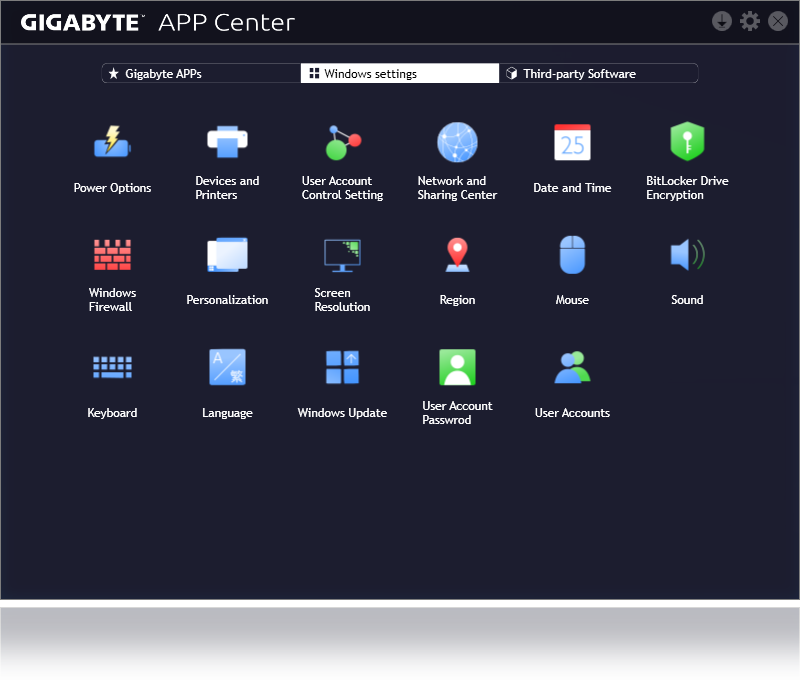

APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, keep updated with the latest versions.

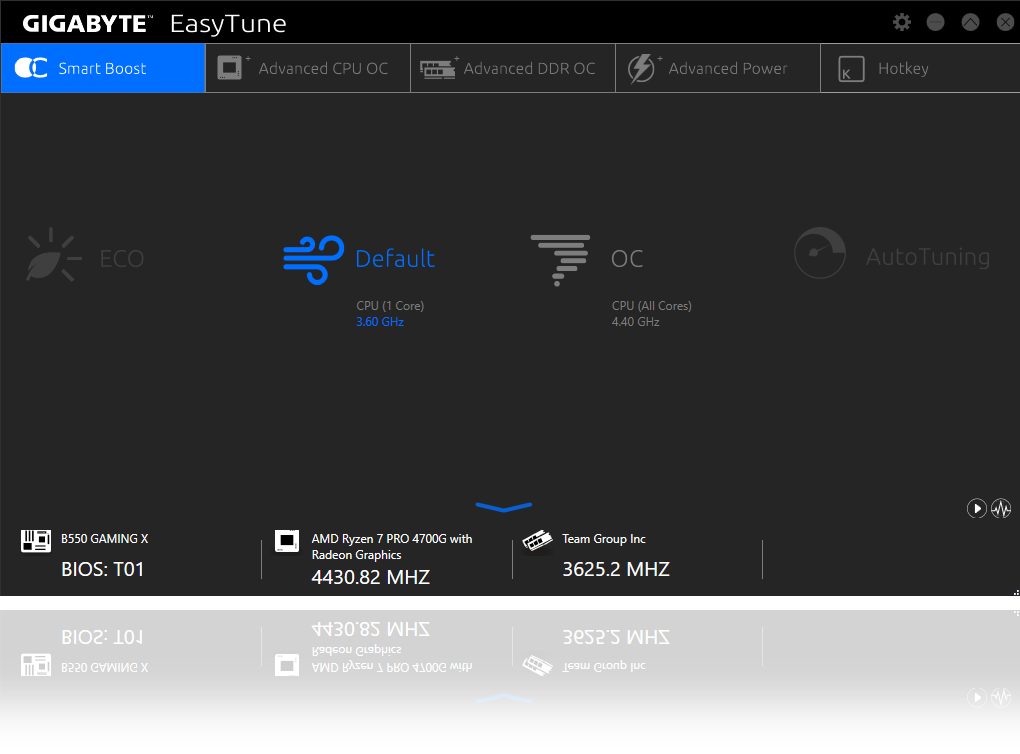

EasyTune™
Simple and easy-to-use interface to fine-tune system settings or adjust system and memory clocks and voltages in Windows.

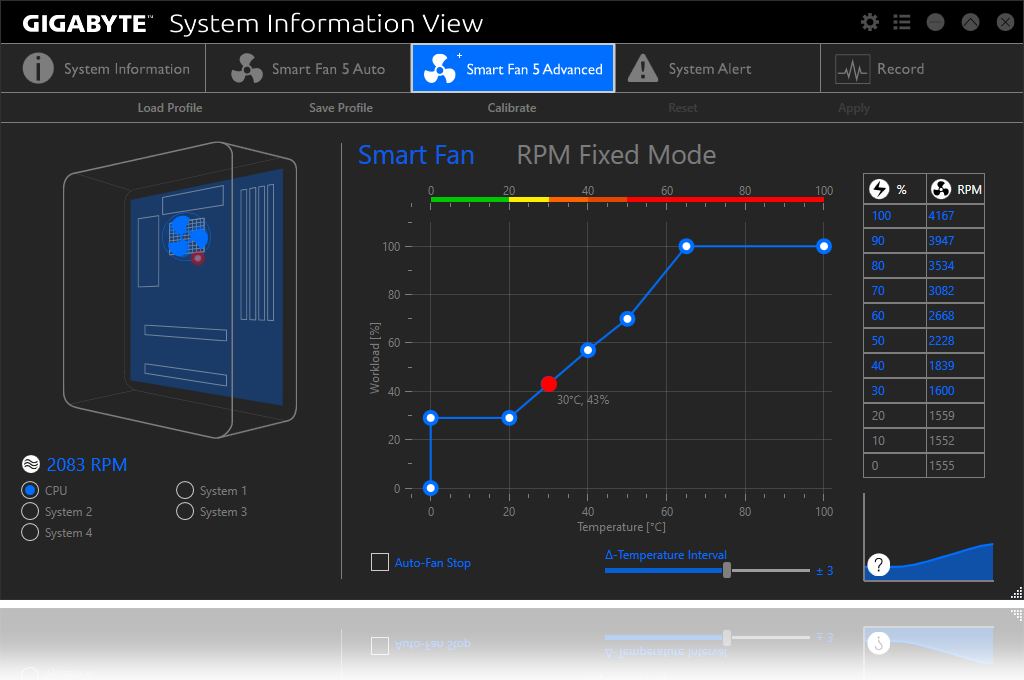

System Information Viewer
Central location to access system status. Monitor clocks and processor, set fan speed profiles, create alerts, or record system behavior.
SPECIFICATIONS
| CPU | |
| Socket | LGA1700 – 14th/13th/12th Gen Intel® Core™, Pentium® Gold, Celeron® |
| Chipset | |
| Chipset | Intel® H610 Express Chipset |
| Memory | |
| Type | DDR4 3200/3000/2933/2666/2400/2133 MT/s |
| Slots / Max | 2 x DDR4 DIMM, up to 64 GB (32 GB single DIMM) |
| Architecture | Dual Channel, XMP Support, ECC/non-ECC Un-buffered DIMM |
| Onboard Graphics | |
| Output | 1 x HDMI 2.1 (4096×2160@60 Hz, HDCP 2.3) |
| Audio & LAN | |
| Audio | Realtek® Audio CODEC, 2/4/5.1/7.1-channel, High Definition Audio |
| LAN | Realtek® GbE LAN (1 Gbps/100 Mbps) |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (Chipset) |
| M.2 / SATA | 1 x M.2 PCIe 3.0 x4/x2 (2280/2260), 2 x SATA 6Gb/s |
| USB & Back Panel | |
| USB | 4 x USB 3.2 Gen 1 (2 rear, 2 header), 6 x USB 2.0/1.1 (4 rear, 2 header) |

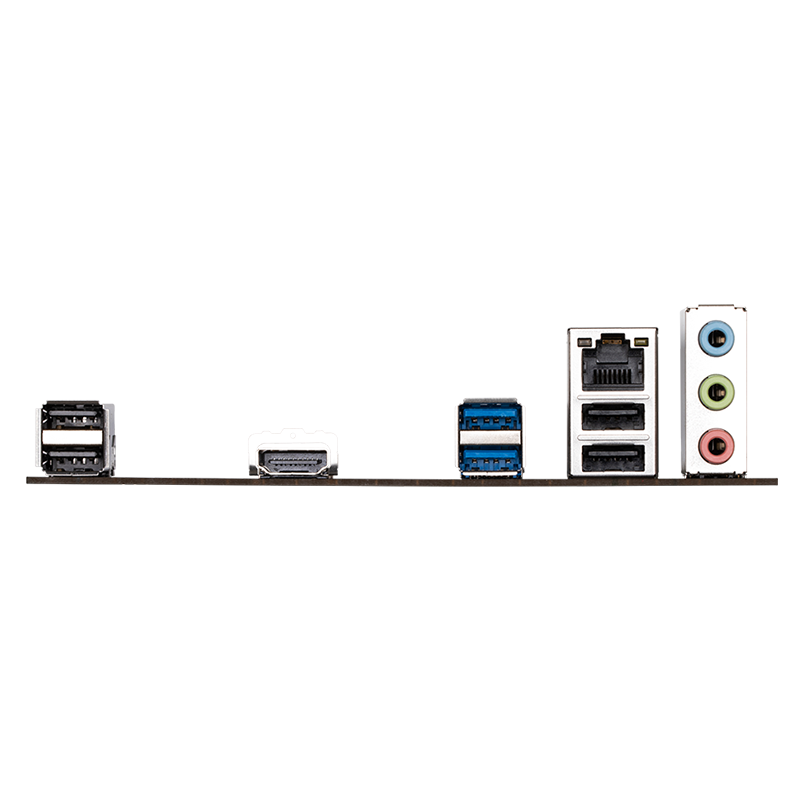

| Rear Ports | 1 x HDMI, 2 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x RJ-45, 3 x Audio Jacks |
| BIOS & Features | |
| BIOS | 128 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer, Q-Flash, Xpress Install |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| OS & Form Factor | |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX – 22.6cm x 18.5cm |
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
Brand
Gigabyte
intel
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery
At Amir Traders, we aim to provide a smooth and hassle-free shopping experience to our valued customers. We offer fast, secure, and nationwide delivery services across Pakistan.
All orders are typically processed and dispatched within 1 to 2 working days after confirmation. Once shipped, delivery timelines vary depending on your location, usually taking between 2 to 5 business days. For customers in major cities, delivery is often quicker.
We currently offer Cash on Delivery (COD) for your convenience, allowing you to pay when the product arrives at your doorstep. Our packaging is done with care to ensure your products reach you safely and in perfect condition.
If you have any questions regarding your delivery or would like to track your order, feel free to contact our support team anytime.
