MSI B650 GAMING PLUS WIFI AMD AM5 ATX DDR5 Gaming Motherboard
₨ 53,999

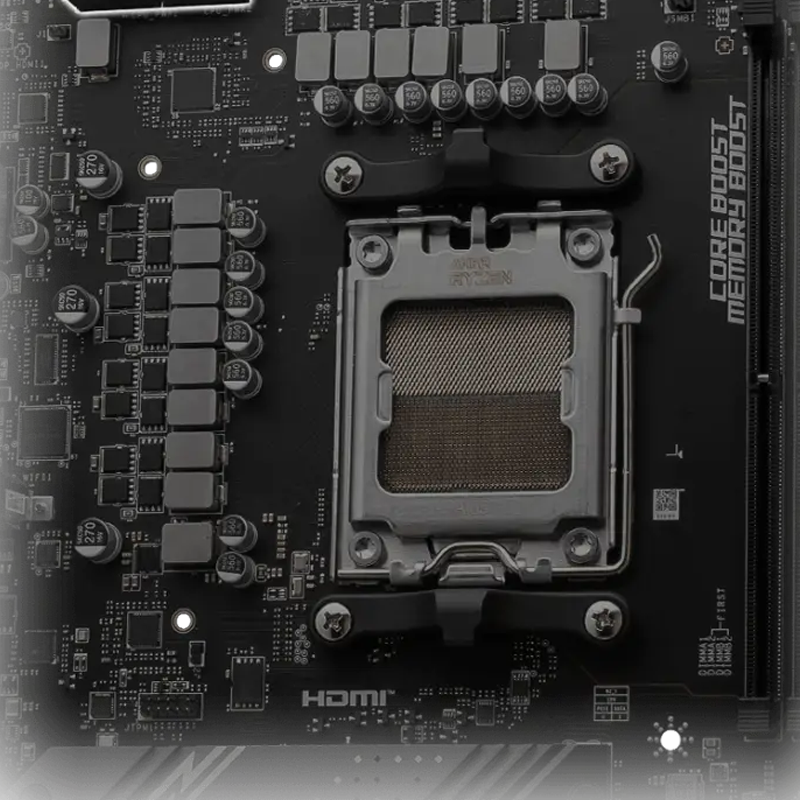

12+2+1 Duet Rail Power System: Features dual 8-pin CPU power connectors, Core Boost, and Memory Boost technology for stable and reliable power delivery to high-performance Ryzen processors .
DDR5 Memory up to 7200+ MHz (OC): 4 DIMM slots supporting up to 256GB dual-channel DDR5 with AMD EXPO compatibility for effortless high-speed memory overclocking .
Lightning Gen 4 PCIe & M.2: Two PCIe 4.0 x16 slots and two Gen 4 x4 M.2 slots with M.2 Shield Frozr provide high-speed connectivity for graphics cards and NVMe SSDs .
Wi-Fi 6E & 2.5G LAN: Integrated AMD Wi-Fi 6E module with Bluetooth 5.3 and Realtek 2.5Gbps Ethernet deliver secure, stable, and ultra-fast wired and wireless networking .
Premium Thermal Solution: Extended heatsinks, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr ensure optimal cooling for sustained performance under heavy loads
| Overview | |
| Chipset | AMD B650 |
| CPU Compatibility | AMD Ryzen 9000/8000/7000 Series Desktop Processors |
| Socket | AM5 |
| Form Factor | ATX (243.84 mm x 304.8 mm) |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Memory | |
| Memory Support | 4x DDR5, Max Capacity 256 GB |
| Memory Speed Support | DDR5 7200+(OC), 7000(OC), 6800(OC), 6600(OC), 6400(OC), 6200(OC), etc. |
| Max Overclocking Frequency | 1DPC 1R: Up to 7200+ MHz, 2DPC 2R: Up to 5400+ MHz |
| Onboard Graphics | |
| Video Outputs | 1x HDMI 2.1, 1x DisplayPort |
| Audio | |
| Audio | Realtek ALC897, 7.1-Channel High Definition Audio |
| Storage | |
| Storage | 2x M.2 (PCIe 4.0), 4x SATA 6G |
| Multi-GPU | AMD Multi-GPU Support |
| RAID Support | RAID 0, RAID 1 for SATA & M.2 NVMe |
| USB | |
| USB Ports | 4x USB 2.0 (Front), 4x USB 5Gbps (Rear), 1x USB 20Gbps Type-C (Rear) |
| Networking | |
| LAN | Realtek 8125BG 2.5G LAN |
| Wireless & Bluetooth | Wi-Fi 6E (M.2 Slot), Bluetooth 5.3 |
| LED Features | |
| LED Features | 4x EZ Debug LED |
