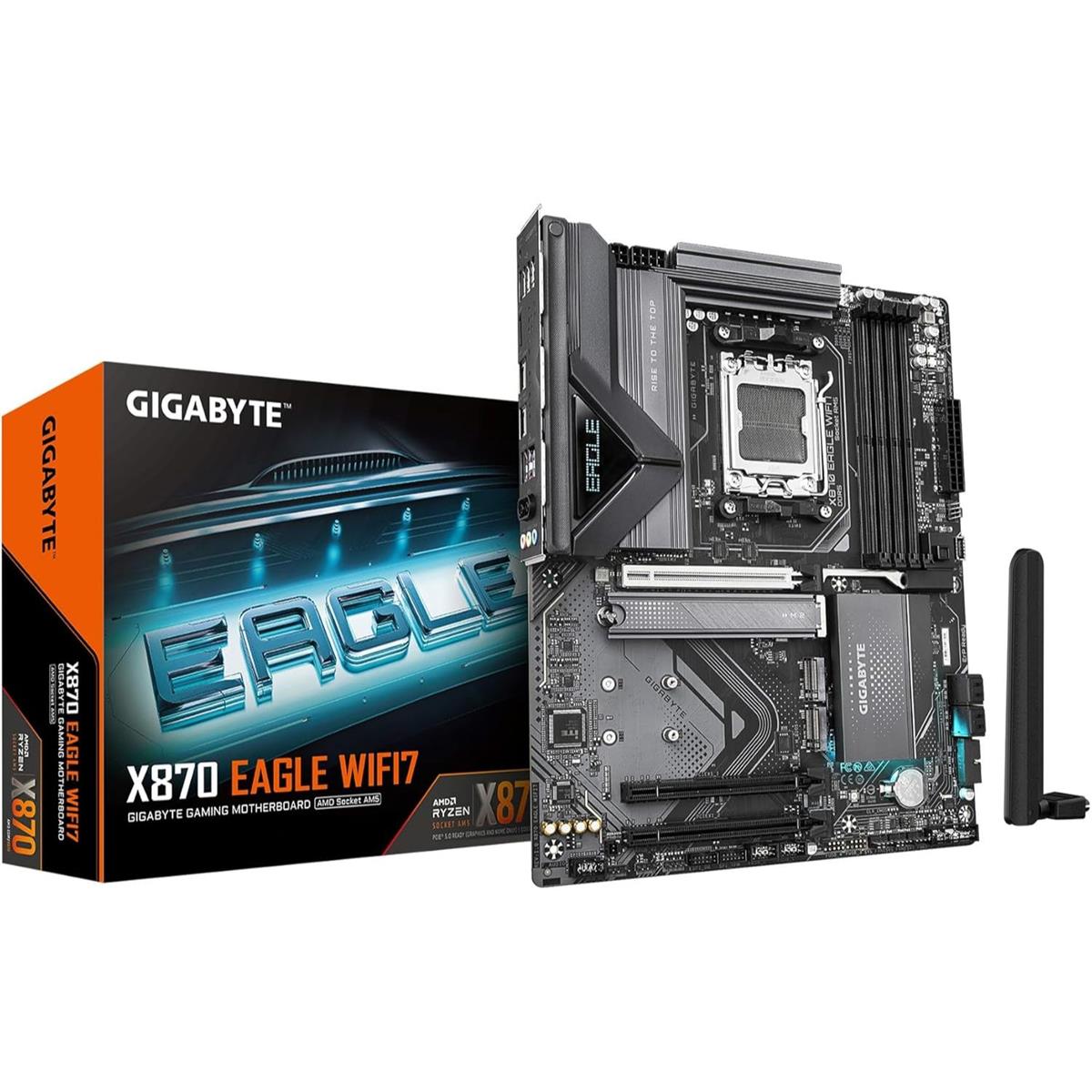

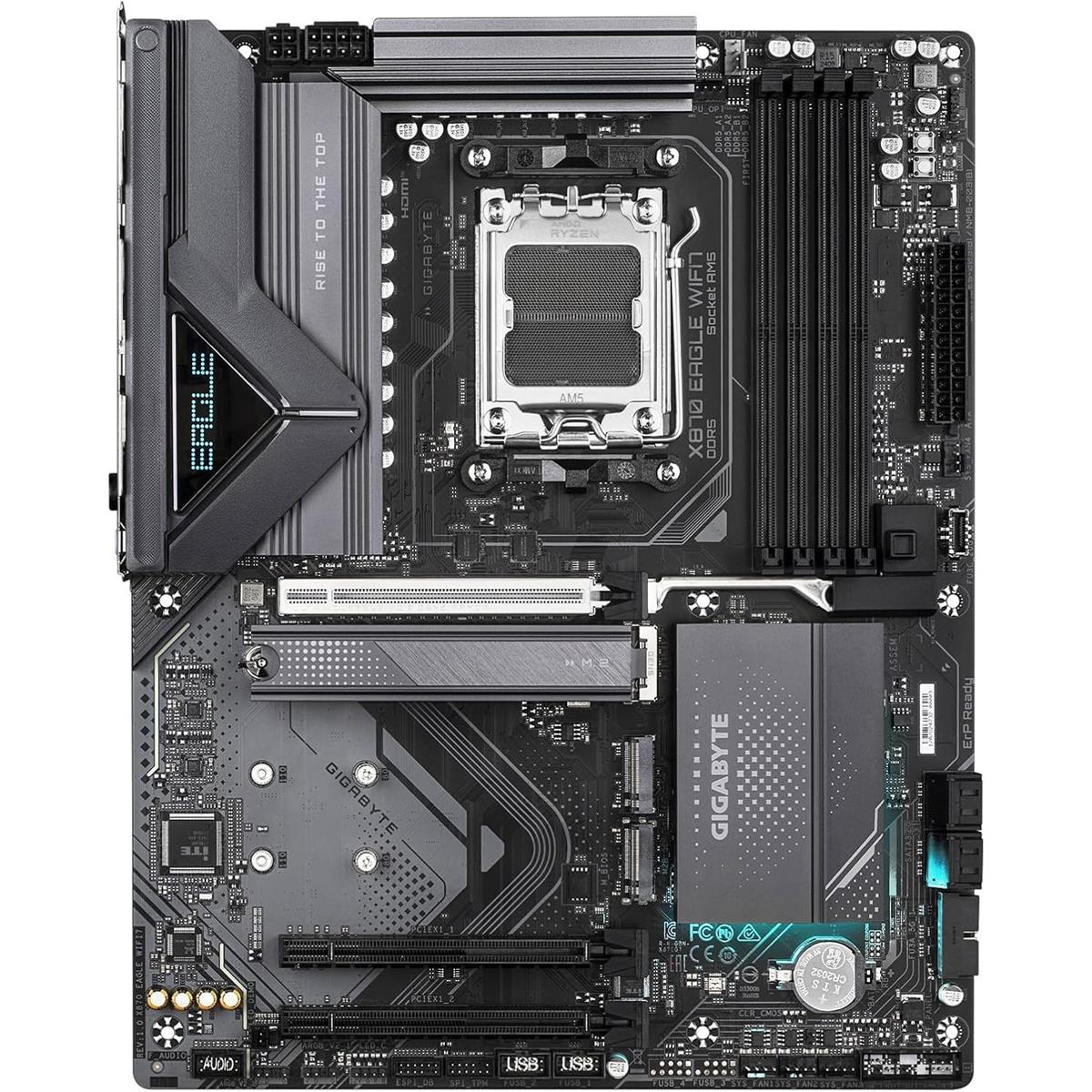

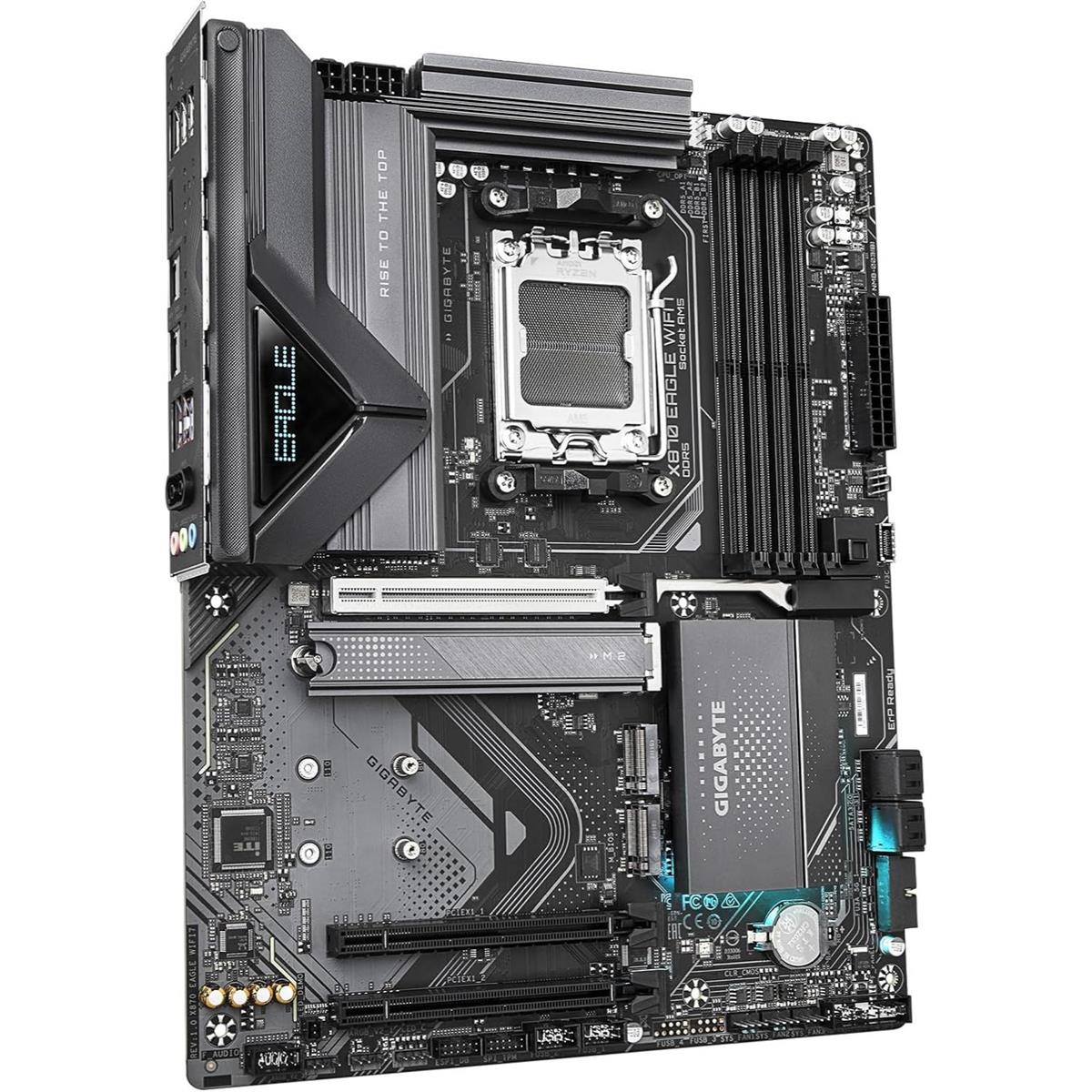

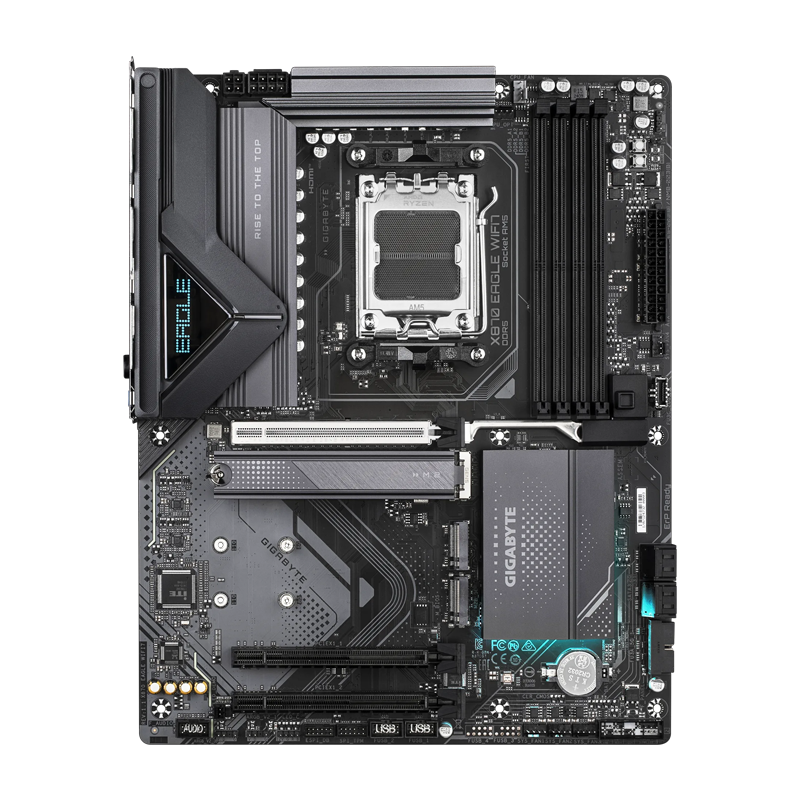

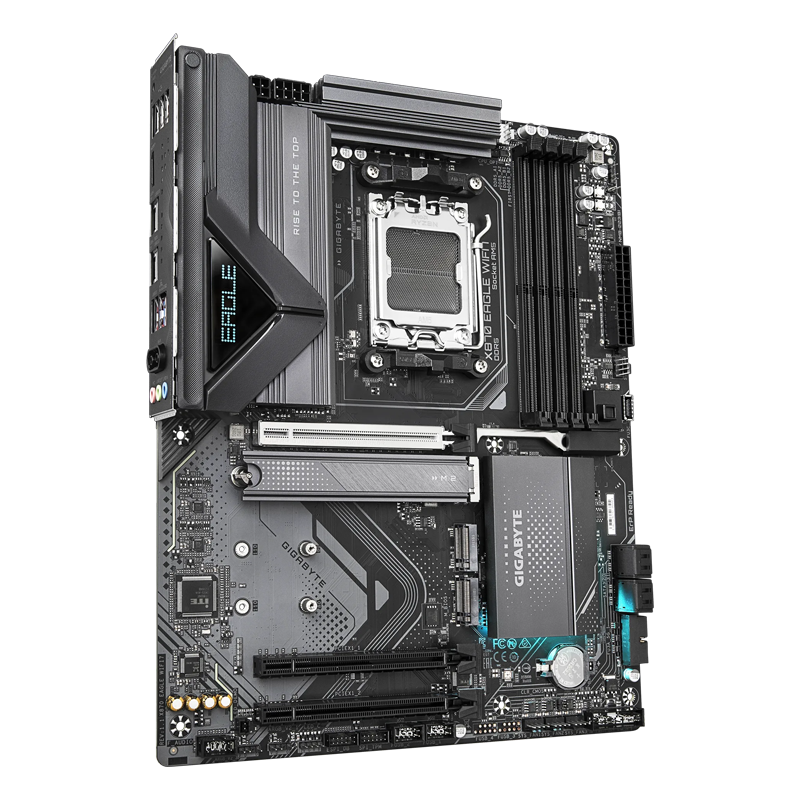

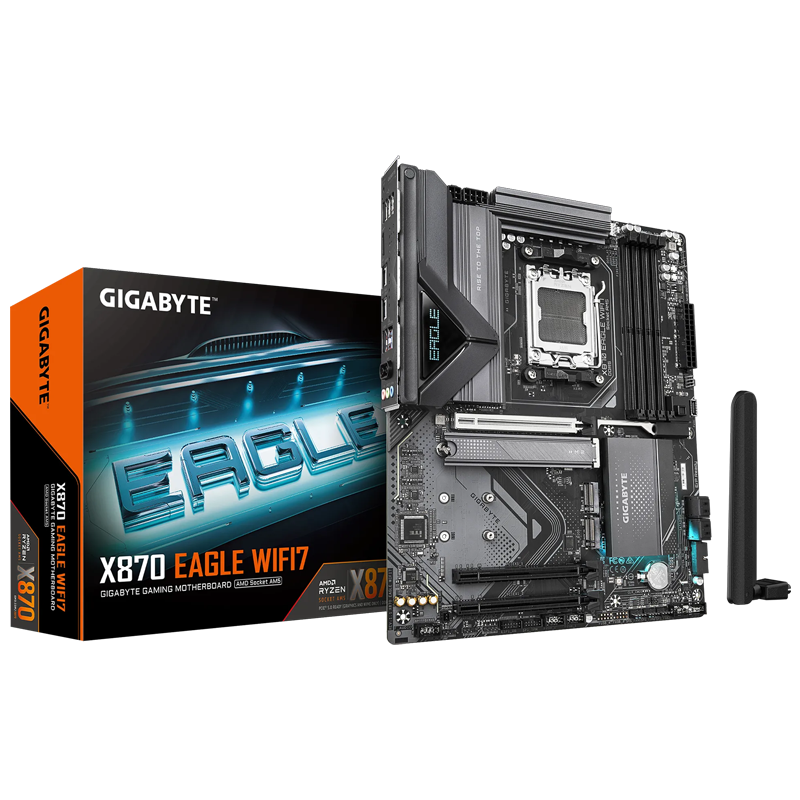

GIGABYTE X870 EAGLE WIFI7 Motherboard
₨ 82,000
- Supports AMD Ryzen 9000/8000/7000 Series processors on AM5 with DDR5 up to 8200 MT/s (OC) and up to 256 GB across 4 DIMMs
- Dual USB4 Type-C ports with DisplayPort video output (4K@240Hz), Wi-Fi 7 with Bluetooth 5.4, and Realtek 2.5GbE LAN
- PCIe 5.0 x16 slot, triple M.2 connectors (1x PCIe 5.0 + 2x PCIe 4.0), 4 SATA 6Gb/s with NVMe RAID support
- Onboard power/reset buttons, Q-Flash Plus, 3x ARGB Gen2 headers, and GIGABYTE Control Center for complete system management
Available on backorder
| Overview | |
| Brand | GIGABYTE |
| Model | X870 EAGLE WIFI7 (Rev. 1.x) |
| Chipset | AMD X870 |
| Socket | AMD AM5 |
| CPU Support | Ryzen 9000, 8000, 7000 Series |
| Memory Type | DDR5 |
| Form Factor | ATX (30.5 x 24.4 cm) |
| Memory | |
| Memory Slots | 4 x DIMM |
| Max Memory | 256 GB (64 GB single DIMM) |
| Memory Speed | DDR5 up to 8200 MT/s (OC), 5200/4800/4400 native |
| Memory Architecture | Dual Channel |
| XMP/EXPO Support | Yes (AMD EXPO & Intel XMP) |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 5.0 x16 (CPU), 2 x PCIe 3.0 x1 |
| M.2 Slots | 1 x PCIe 5.0 x4 (CPU), 1 x PCIe 4.0 x4 (B), 1 x PCIe 4.0 x2 (C, shared with M2B) |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/10) |
| NVMe RAID | RAID 0/1/5/10 (RAID 5: Ryzen 9000 only) |
| Graphics & Audio | |
| Display Outputs | 1 x HDMI 2.1 (4K@60Hz), 2 x USB4 DP Alt Mode (4K@240Hz) |
| Audio | Realtek Audio CODEC, 7.1-Channel HD Audio |
| Networking | |
| Ethernet | 1 x Realtek 2.5GbE LAN |
| Wireless | Wi-Fi 7 (802.11be, 2.4/5/6 GHz, 160 MHz) |
| Bluetooth | Bluetooth 5.4 |
| Rear I/O | |

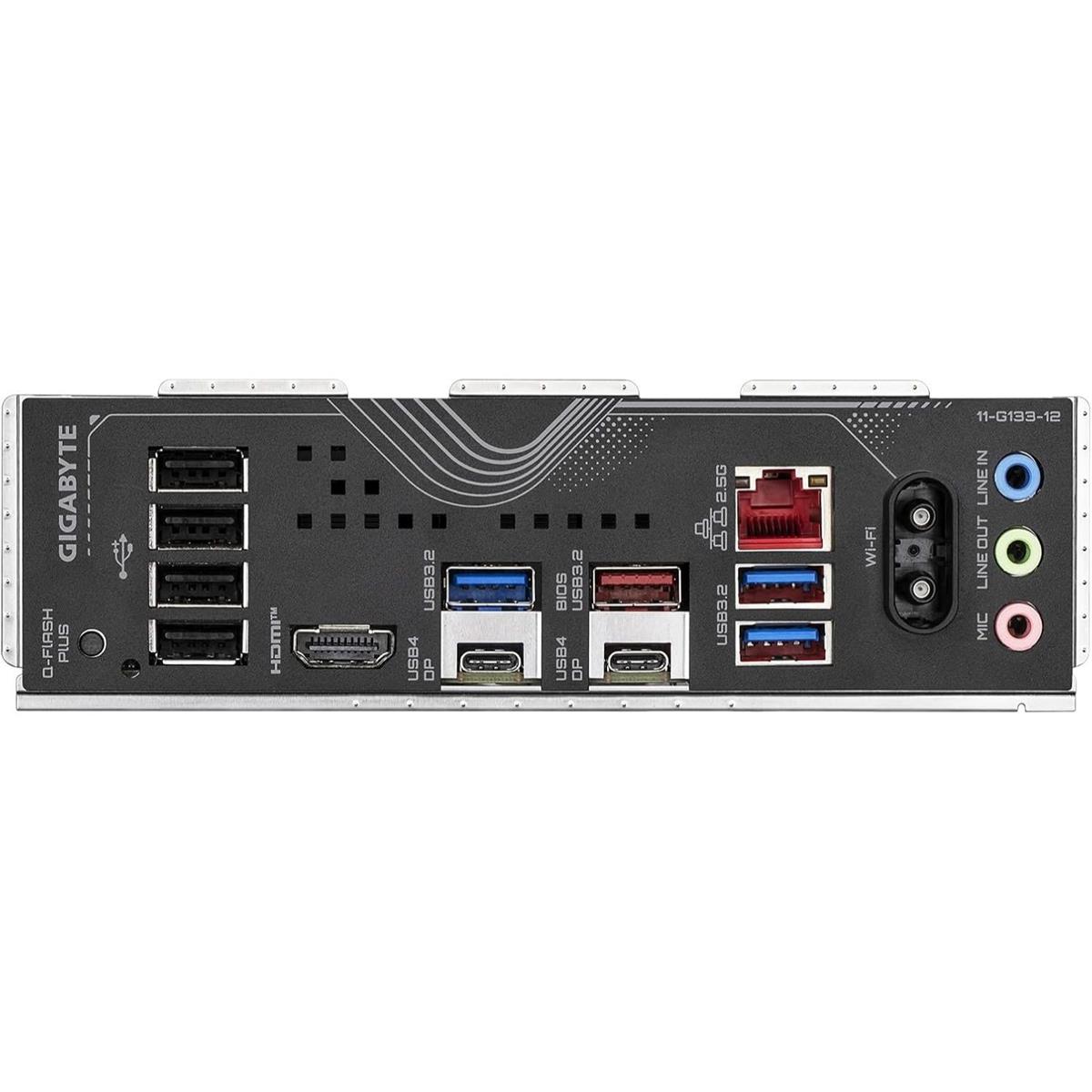

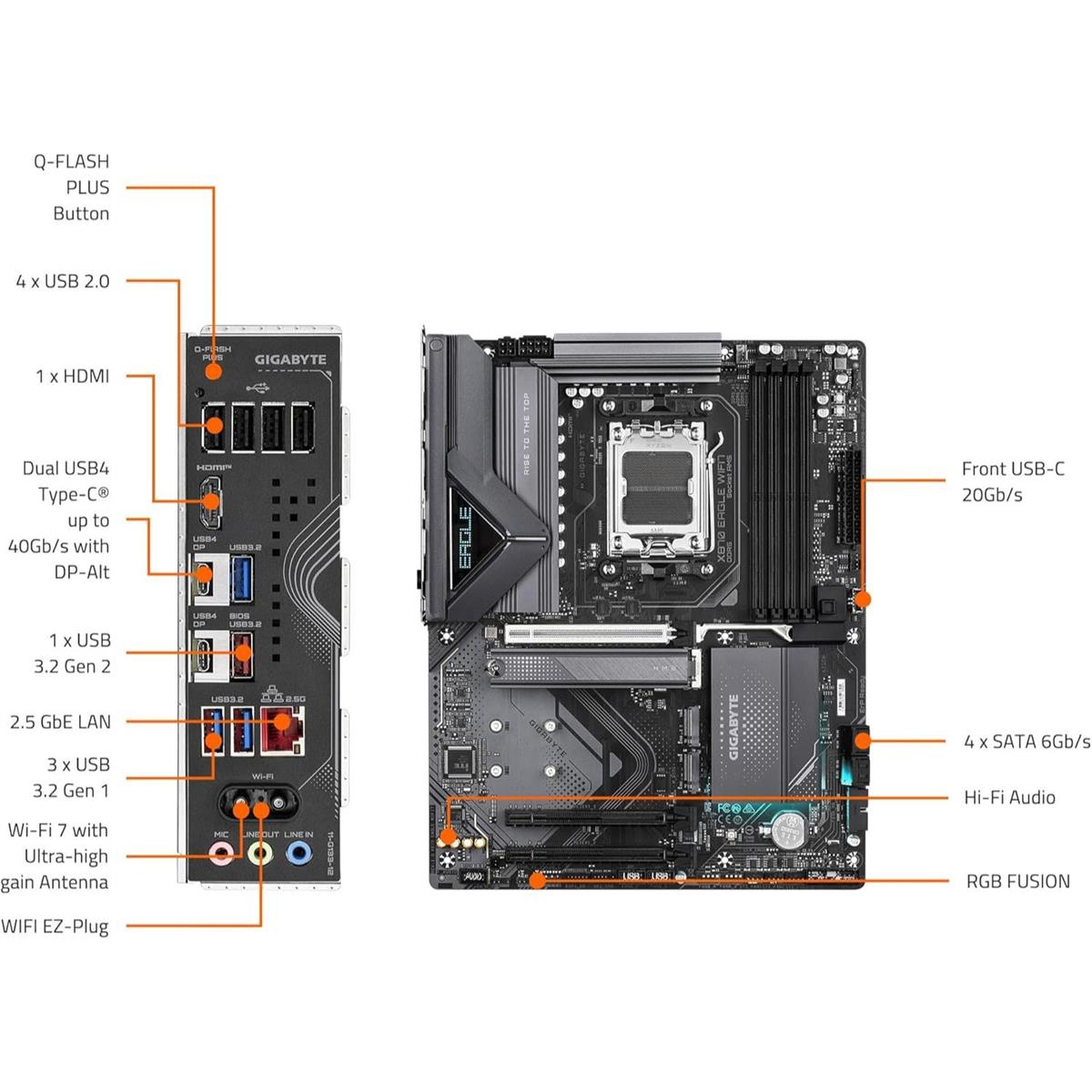

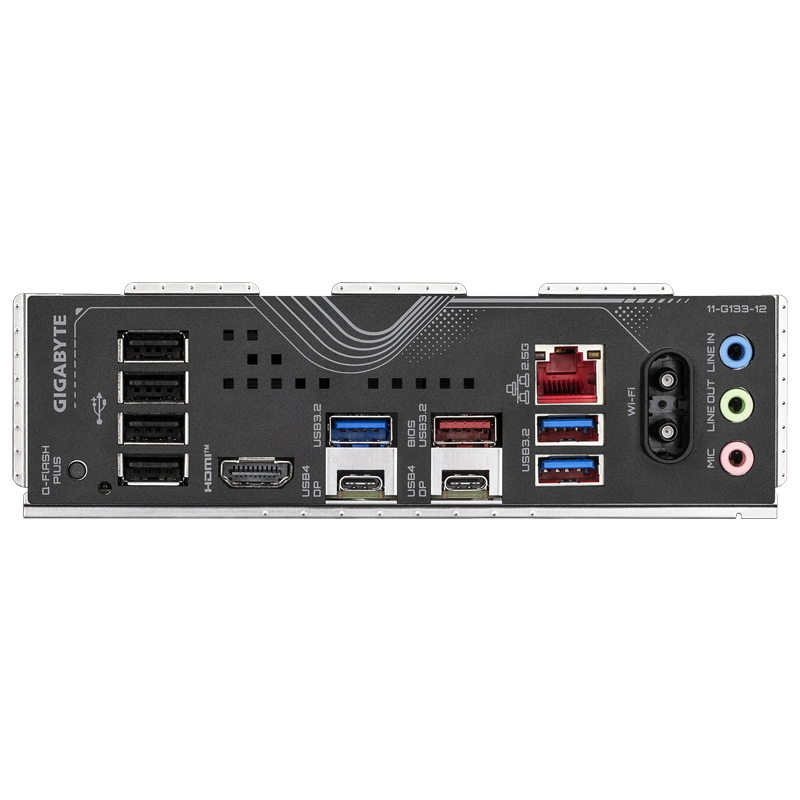

| USB Ports | 2 x USB4 Type-C, 1 x USB 3.2 Gen 2 Type-A (red), 3 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Other Ports | 1 x HDMI, 2 x Antenna, 1 x RJ-45, 3 x Audio Jacks, Q-Flash Plus Button |
| Internal I/O | |
| USB Headers | 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 1 (2 ports), 2 x USB 2.0 (4 ports) |
| Fan Headers | 1 x CPU Fan, 1 x CPU Fan/W_Pump, 4 x System Fan |
| RGB Headers | 3 x ARGB Gen 2, 1 x RGB LED Strip |
| Power Connectors | 1 x 24-pin ATX, 1 x 8-pin +12V, 1 x 4-pin +12V |
| Special Features | Onboard Power Button, Reset Button, Q-Flash Plus, Clear CMOS, TPM Header |
| Features | |
| BIOS | 256 Mbit UEFI AMI BIOS |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Operating System | Windows 11 64-bit |
| Brand | Gigabyte |
|---|
