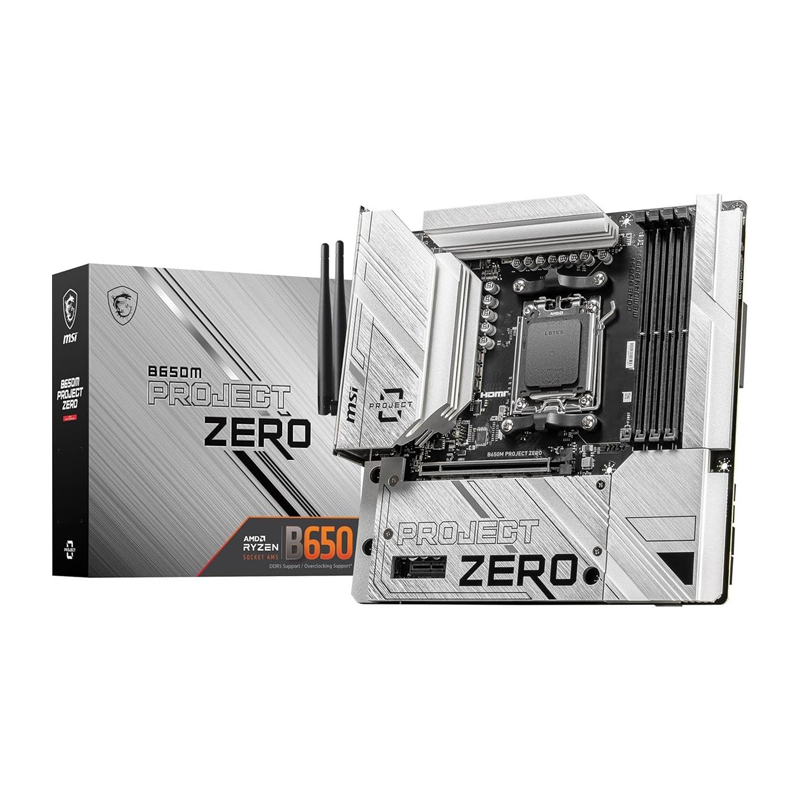

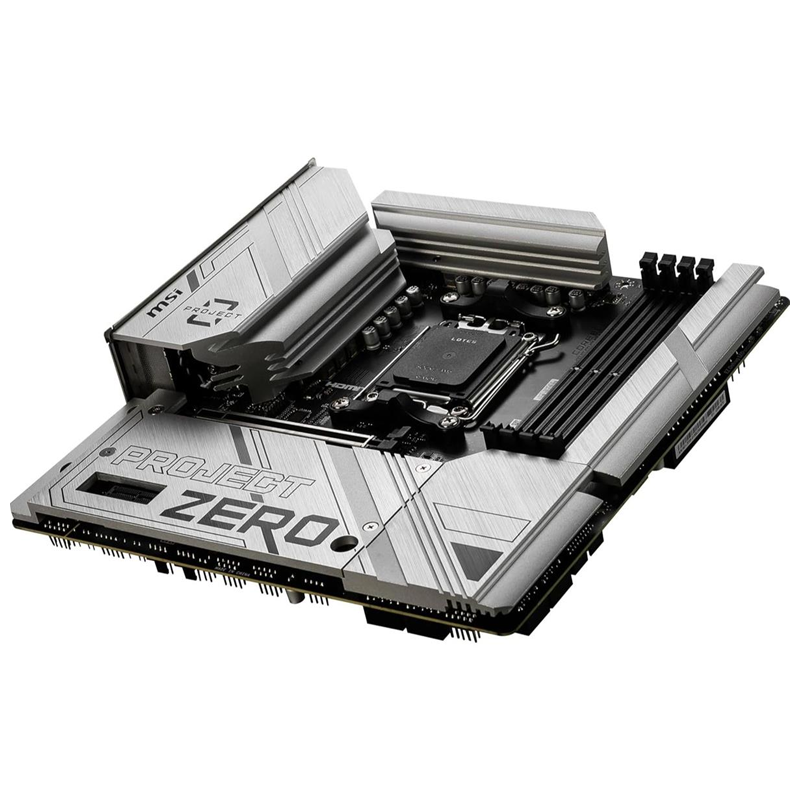

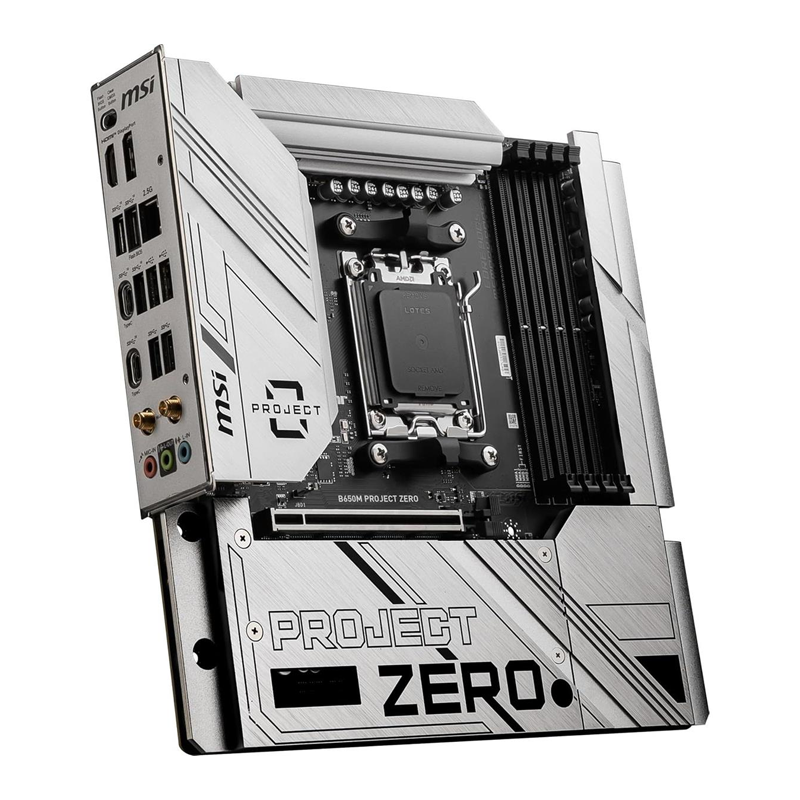

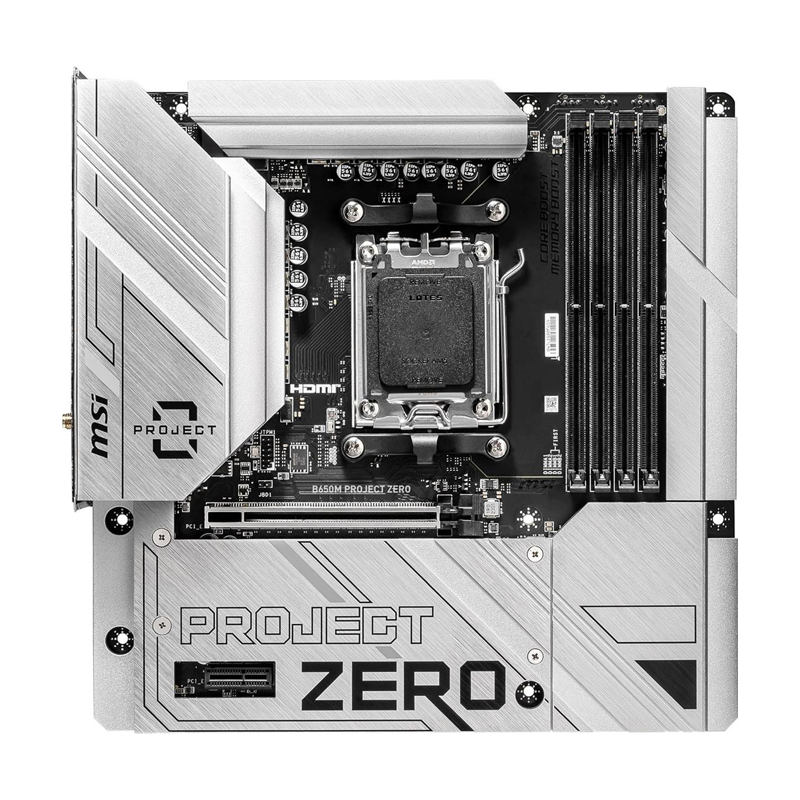

MSI B650M Project Zero AM5 Back-Connect Micro-ATX Gaming Motherboard
Original price was: ₨ 65,000.₨ 58,499Current price is: ₨ 58,499.
Patented Back-Connect Design: All essential power, fan, and SATA connectors are relocated to the back of the PCB, offering a revolutionary clean front view and simplifying cable management for a professional build .
Robust 10+2 Phase VRM: A powerful direct power design with 80A power stages and 7W/mK thermal pads ensures stable and reliable performance for high-core-count Ryzen 9000 series processors .
DDR5 Memory up to 7600+ MHz (OC): Four DIMM slots with MSI’s isolated Memory Boost technology support high-speed overclocking up to 7600 MHz and beyond, maximizing next-gen DDR5 bandwidth .
Lightning Gen4 M.2 & Shield Frozr: Two PCIe 4.0 M.2 slots offer 64 GB/s transfer speeds, with an integrated M.2 Shield Frozr heatsink to prevent thermal throttling under sustained loads .
Wi-Fi 6E & 2.5G LAN: Integrated AMD Wi-Fi 6E with Bluetooth 5.3 and a 2.5Gbps Ethernet port provide a secure, stable, and high-speed network connection for competitive gaming
| Overview | |
| Chipset | AMD B650 |
| CPU Support | AMD Ryzen 9000/8000/7000 Series Desktop Processors (Socket AM5) |
| Form Factor | mATX (243.84 mm x 243.84 mm) |
| OS Support | Windows 10 64-bit, Windows 11 64-bit |
| Memory | |
| Memory Support | 4x DDR5, Max Capacity 256 GB, Up to 7600 MHz (OC) |
| Onboard Graphics | |
| Video Outputs | 1x HDMI (4K @ 60Hz), 1x DisplayPort (4K @ 60Hz) |
| Note | Available Only with Integrated Graphics |
| Expansion Slots | |
| PCIe Slots | 1x PCI-E x16, 1x PCI-E x1 |
| Audio | |
| Audio | Realtek ALC897, 7.1-Channel HD Audio, 32-Bit/384 kHz Playback on Front Panel |
| Storage | |
| Storage | 2x M.2 PCIe 4.0, 4x SATA 6Gb/s, RAID 0/1/10 Support |
| USB | |
| USB Ports | 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps (Type-A, Rear/Front), 3x USB 10Gbps (Type-A, Rear), 1x USB 10Gbps (Type-C, Rear), 1x USB 20Gbps (Type-C, Rear) |
| Networking | |
| LAN | Realtek RTL8125BG 2.5Gbps LAN |
| Wireless & Bluetooth | AMD Wi-Fi 6E (2.4/5/6GHz), Bluetooth 5.3 |
| LED & Back Panel | |
| LED Features | 4x EZ Debug LED |

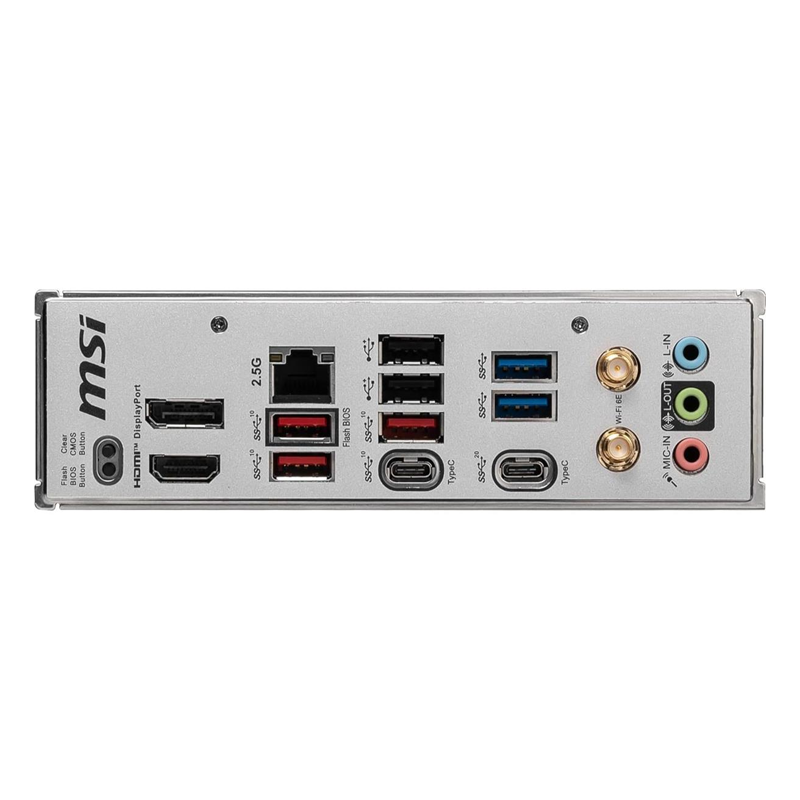

| Back Panel Ports | DisplayPort, HDMI, USB 2.0, USB 5Gbps (Type-A), USB 10Gbps (Type-A, Type-C), USB 20Gbps (Type-C), 2.5G LAN, Audio, Flash BIOS Button, Clear CMOS Button |
| Warranty | |
| Warranty | 1 Years Manufacturer Warranty |
Brand
MSI
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery
At Amir Traders, we aim to provide a smooth and hassle-free shopping experience to our valued customers. We offer fast, secure, and nationwide delivery services across Pakistan.
All orders are typically processed and dispatched within 1 to 2 working days after confirmation. Once shipped, delivery timelines vary depending on your location, usually taking between 2 to 5 business days. For customers in major cities, delivery is often quicker.
We currently offer Cash on Delivery (COD) for your convenience, allowing you to pay when the product arrives at your doorstep. Our packaging is done with care to ensure your products reach you safely and in perfect condition.
If you have any questions regarding your delivery or would like to track your order, feel free to contact our support team anytime.
