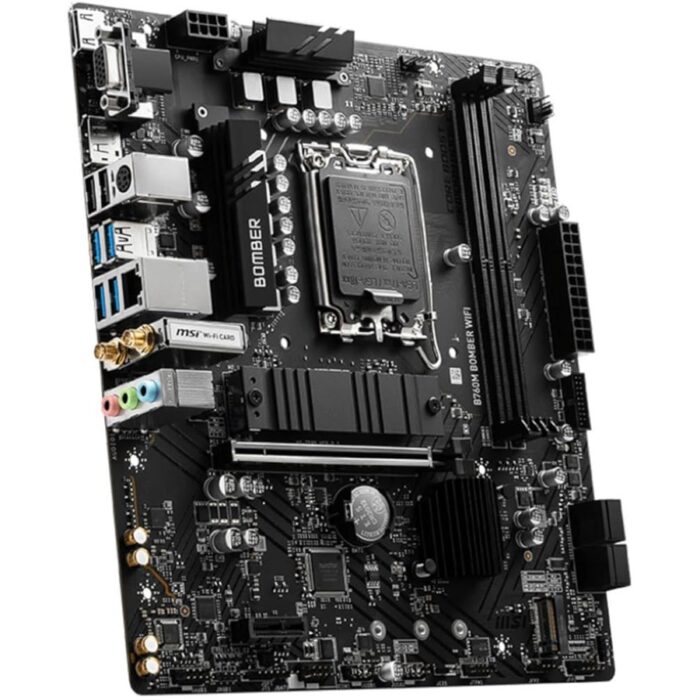

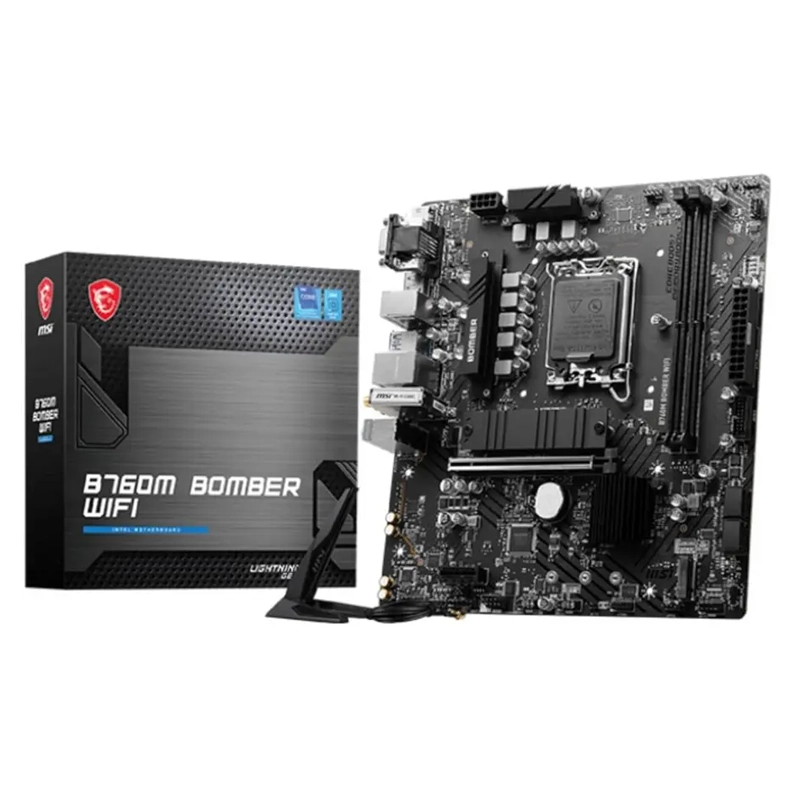

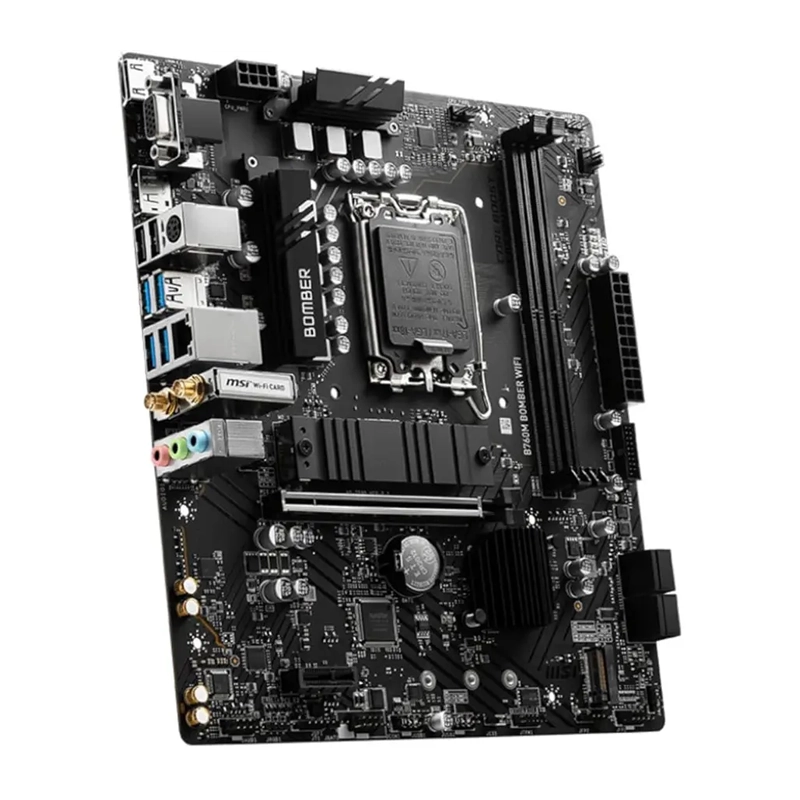

MSI B760M BOMBER WIFI DDR5 Intel LGA 1700 Micro-ATX Motherboard
₨ 40,500
Supports Intel 12th/13th/14th Gen: The LGA 1700 socket is ready for the latest Intel Core processors with MSI’s Core Boost technology for stable power delivery .
DDR5 Memory Boost: Two DIMM slots support dual-channel DDR5 memory, with overclocking speeds up to 6400+ MHz, utilizing isolated circuitry for pure data signals .
Lightning Gen4 M.2 & PCIe 4.0: One PCIe 4.0 x16 slot for graphics cards and a dedicated Gen4 x4 M.2 slot (with M.2 Shield Frozr) provide high-bandwidth support for next-gen components .
2.5G LAN & Wi-Fi 6E: Features a Realtek 2.5Gbps Ethernet controller and an Intel Wi-Fi 6E module with Bluetooth 5.3 for a secure, stable, and fast wired or wireless network connection .
Premium Audio & Cooling: Enjoy studio-grade 7.1-Channel HD Audio with Audio Boost, while the extended heatsink design and dedicated fan headers keep the system running cool under load .
| Overview | |
| Chipset | Intel B760 |
| CPU Support | Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron (Socket LGA 1700) |
| Form Factor | mATX (220 mm x 243.84 mm) |
| OS Support | Windows 11 / 10 (64-bit) |
| Memory | |
| Memory | 2x DDR5 DIMMs, Up to 128 GB, DDR5 6400+(OC), Dual-Channel, Intel XMP 3.0 |
| Graphics Output | |
| Video Outputs | 1x HDMI 2.1 (4K@60Hz), 1x DP 1.4 (4K@60Hz), 1x VGA (Up to 2048×1536) |
| Expansion Slots | |
| PCIe Slots | 1x PCIe 4.0 x16 (CPU), 1x PCIe 4.0 x1 (Chipset) |
| Audio | |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| Storage | |
| Storage Options | 2x M.2 (PCIe 4.0 x4 / SATA), 4x SATA 6Gb/s, RAID 0/1/5/10 Support |
| USB | |
| USB Ports (Rear) | 2x USB 2.0, 4x USB 5Gbps Type-A |
| USB Ports (Front) | 4x USB 2.0, 2x USB 5Gbps Type-A |
| Networking | |
| LAN | Realtek RTL8125B 2.5Gbps Ethernet |
| Wireless & Bluetooth | Intel Wi-Fi 6E, Bluetooth 5.3 (M.2 Key-E) |
| Internal Connectors & LED | |
| Internal Connectors | RGB Headers, TPM 2.0, Fan Headers, Audio, COM, USB 2.0, 5Gbps USB Headers |
| LED Diagnostics | 4x EZ Debug LED |
| Back Panel I/O | |
| Back Panel Ports | HDMI, VGA, DP, 2.5G LAN, Audio, Wi-Fi/Bluetooth, USB 2.0 & 5Gbps USB |
Brand
MSI
