MSI PRO B760M-E DDR5 Micro-ATX LGA 1700 Motherboard
Original price was: ₨ 32,000.₨ 30,000Current price is: ₨ 30,000.
MSI PRO B760M-P
₨ 35,000
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Description
MSI PRO B760M-P Price in Pakistan
🧠 Processor & Chipset Support
| Specification | Details |
|---|---|
| CPU Support | 12th & 13th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors |
| Socket | LGA 1700 |
| Chipset | Intel® B760 |
| Architecture Support | Intel Hybrid Architecture (Performance + Efficiency Cores) |
🖥️ Form Factor & Build
| Form Factor | Micro-ATX |
|---|---|
| Dimensions | 24.4 cm x 21.5 cm (Standard mATX) |
| Design Focus | Business-ready durability with minimalist professional aesthetics |
💾 Memory Support
| Memory Type | DDR4 (Dual Channel) |
|---|---|
| DIMM Slots | 4 x DDR4 DIMMs |
| Max Capacity | Up to 128GB |
| OC Support | 4800+ MHz (1DPC 1R), Intel XMP Ready |
| Memory Boost | Fully isolated memory circuitry for stable performance and overclocking |
| XMP Profiles | MSI OC LAB-tested, customizable via BIOS |
🎮 Expansion Slots
| PCIe Slots | – 1 x PCIe 4.0/3.0 x16 (Steel Armor Reinforced) – 2 x PCIe 4.0/3.0 x1 |
|---|---|
| Steel Armor | Yes – Strengthens slot for heavy GPUs and protects from EMI |
💽 Storage Options
| M.2 Slots | 2 x M.2 Gen4 x4 (64Gbps) |
|---|---|
| M.2 Cooling | M.2 Shield Frozr – Premium SSD heatsink to prevent thermal throttling |
| SATA Ports | 4 x SATA III 6Gb/s |
🌐 Networking & Internet
| LAN | Realtek® 1Gbps Ethernet LAN Controller |
|---|---|
| Wireless Support | Not included (M.2 Key-E slot optional for Wi-Fi modules) |

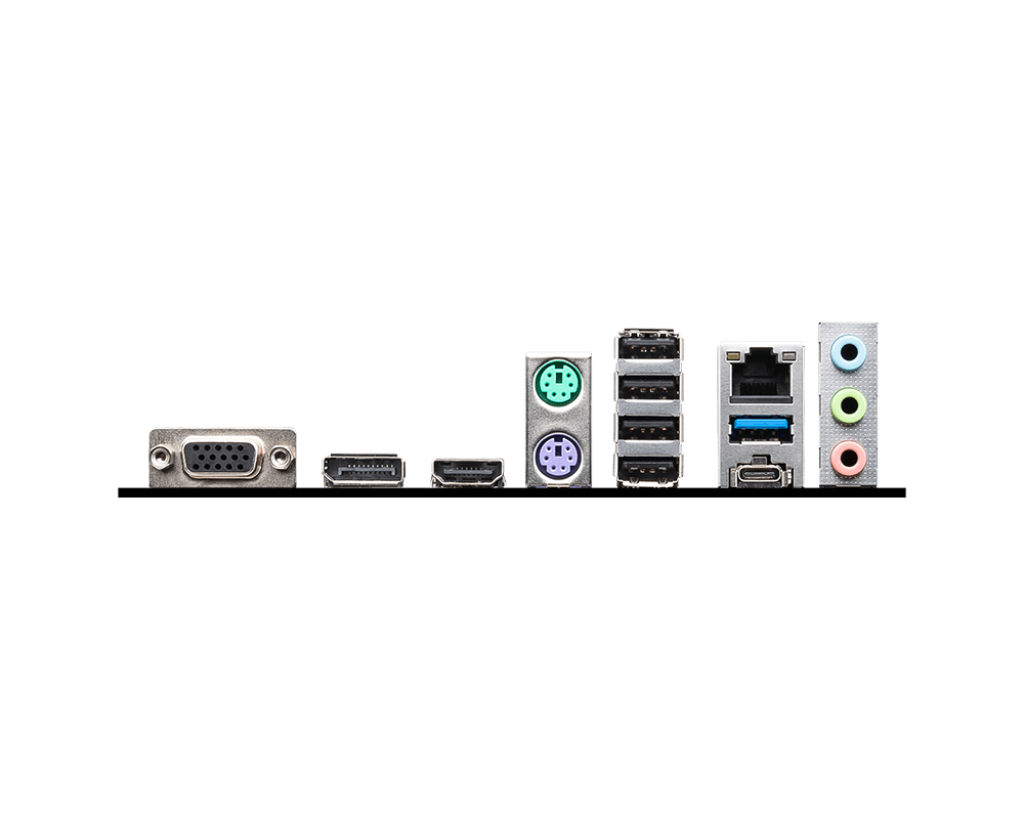

🔌 Rear I/O Ports
| USB Ports | – 1 x USB 3.2 Gen 2 Type-C (10Gbps) – 2 x USB 3.2 Gen 1 – 4 x USB 2.0 |
|---|---|
| Video Outputs | – 1 x HDMI 1.4 (4K@30Hz) – 1 x DisplayPort 1.4 (4K@60Hz) – 1 x VGA |
| LAN Port | 1 x RJ45 Gigabit Ethernet |
| Audio Jacks | 3 x Audio Jacks (7.1-Channel HD Audio) |
| Legacy Ports | 1 x PS/2 Keyboard/Mouse Combo Port |
🎧 Audio Features
| Audio Codec | Realtek ALC897 |
|---|---|
| Channels | 7.1-Channel High Definition Audio |
| Audio Boost | Enhanced audio capacitors and layout separation for clearer sound |
❄️ Cooling & Thermal Management
| Chipset Cooling | Passive Heatsink on B760 Chipset |
|---|---|
| SSD Cooling | M.2 Shield Frozr for optimal NVMe performance |
| Frozr AI Cooling | Auto-adjusts system fans based on CPU/GPU temps |
| Fan Headers | Multiple hybrid fan headers with PWM control |
💡 Additional Features
| BIOS | Click BIOS 5 (UEFI), EZ Mode & Advanced Mode available |
|---|---|
| EZ Debug LEDs | Yes – For quick troubleshooting |
| TPM Support | TPM 2.0 header (for Windows 11 readiness) |
| Trusted Platform | Yes – Ideal for secure enterprise environments |
📦 Package Contents
| Included Accessories | – MSI PRO B760M-P DDR4 Motherboard – 2 x SATA Cables – I/O Shield – User Manual |
|---|
✅ Operating System Support
| OS Compatibility | – Windows 10 64-bit – Windows 11 64-bit |
