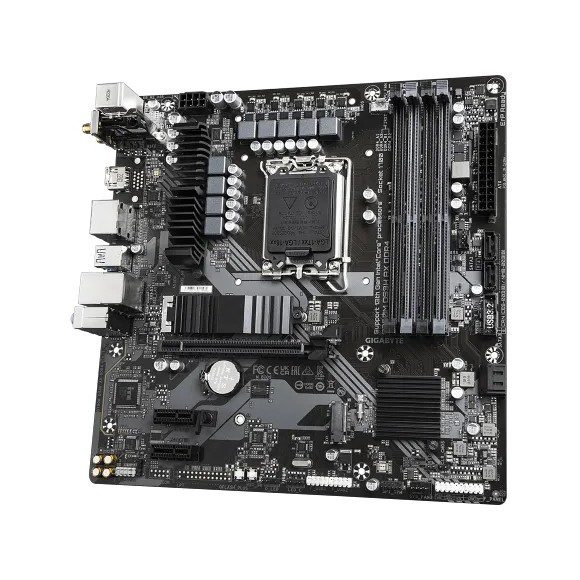

GIGABYTE B760M DS3H AX DDR4 LGA 1700 Micro-ATX Motherboard
₨ 43,999
Supports 13th & 12th Gen Intel® Core™ processors on LGA 1700 socket
Delivers stable power with 6+2+1 phases digital VRM and advanced thermal guard
Features DDR5 support, dual PCIe 4.0 M.2 slots, and PCIe 4.0×16 EZ-Latch for quick GPU installs
High-speed connectivity with 2.5GbE LAN, Wi-Fi 6E, USB-C® 10Gb/s, HDMI, and Q-Flash Plus BIOS update
| Overview | |
| Chipset | Intel B760 Express Chipset |
| CPU Socket | Intel LGA 1700 |
| Supported CPU | 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors |
| Cache | L3 Cache Varies with the Processor |
| BIOS | 1 x 128 Mbit Flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
| Memory | |
| Type | DDR4 |
| Slots | 4 x DIMM Slots |
| Supported Speeds | Up to DDR4 5333 (O.C.) down to 2133 MT/s |
| Maximum Capacity | 128 GB |
| Memory Features | Dual Channel, ECC/Non-ECC Un-buffered DIMM Support, XMP Support |
| Graphics | |
| Integrated Graphics | Intel HD Graphics |
| HDMI Output | 1x HDMI, Max Resolution 4096×2160 @ 60Hz |
| DisplayPort | 1x DP, Max Resolution 4096×2304 @ 60Hz |
| Expansion Slots | |
| PCIe Slots | 1x PCIe 4.0 x16 (x16 mode), 1x PCIe 3.0 x16 (x4 mode) |
| Storage Interfaces | |
| M.2 Connectors | 2x M.2 (Socket 3, M Key, Type 22110/2280 PCIe 4.0 x4/x2) |
| SATA Ports | 4x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 on SATA |
| Audio | |
| Audio Codec | Realtek Audio CODEC |
| Channel Support | 2/4/5.1/7.1-Channel, High Definition Audio |
| Outputs | 3x Audio Jacks, S/PDIF Out Supported |
| Networking | |
| LAN | Realtek 2.5GbE LAN Chip, 1x RJ-45 Port |
| Wireless | Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax, 2.4/5/6 GHz) |
| Bluetooth | Bluetooth 5.3 |
| Rear I/O Ports | |
| HDMI | 1x HDMI |
| DisplayPort | 1x DP |
| USB Ports | 1x USB 3.2 Gen 2 Type-C, 3x USB 3.2 Gen 1, 2x USB 2.0 |
| LAN | 1x RJ-45 2.5GbE |
| Audio | 3x Audio Jacks |
| Internal I/O Ports | |
| Power Connectors | 1x 24-pin ATX, 1x 8-pin ATX 12V |
| Fan Headers | 1x CPU Fan, 3x System Fan Headers |
| Storage | 2x M.2, 4x SATA 6Gb/s |
| USB Headers | 1x USB 3.2 Gen 1, 2x USB 2.0 |
| Miscellaneous | Front Panel Header, Front Panel Audio, S/PDIF Header, Reset & Clear CMOS Jumper, Q-Flash Plus Button |
| TPM Support | 1x TPM Header (GC-TPM2.0 SPI Module Support) |
| RGB & Lighting | |
| LED Headers | 2x Addressable LED Strip Headers, 2x RGB LED Strip Headers |
| Software Features | |
| Utilities | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus |
| Warranty | |
| Warranty | 3 Years Manufacturing Warranty |
