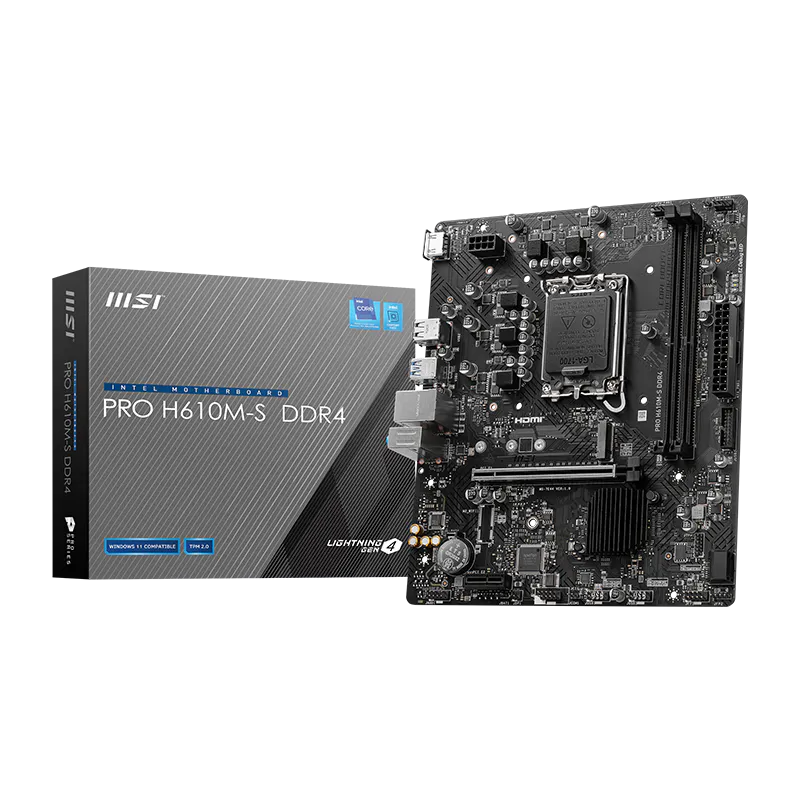

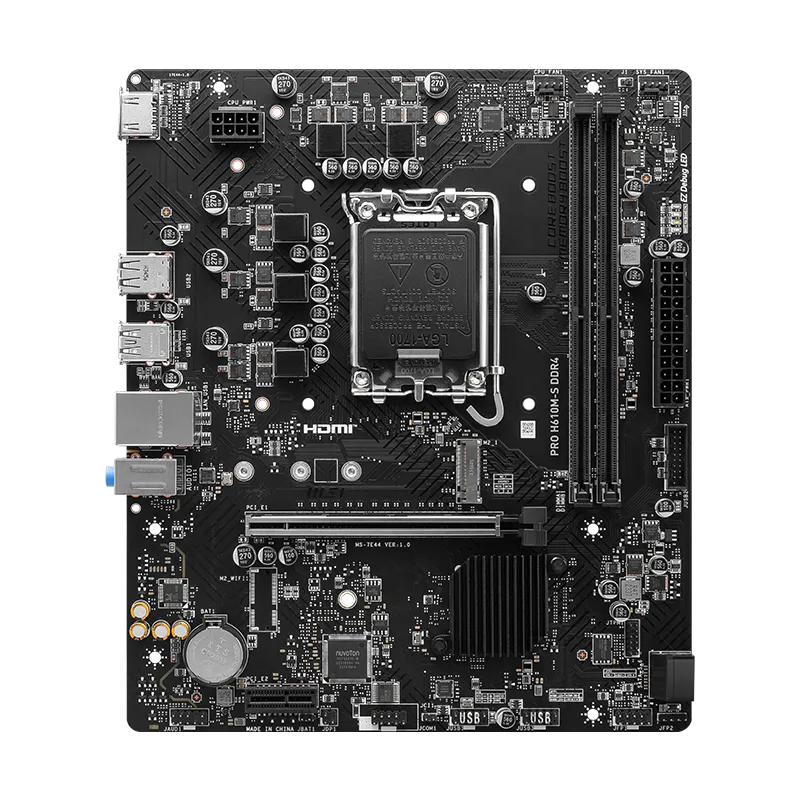

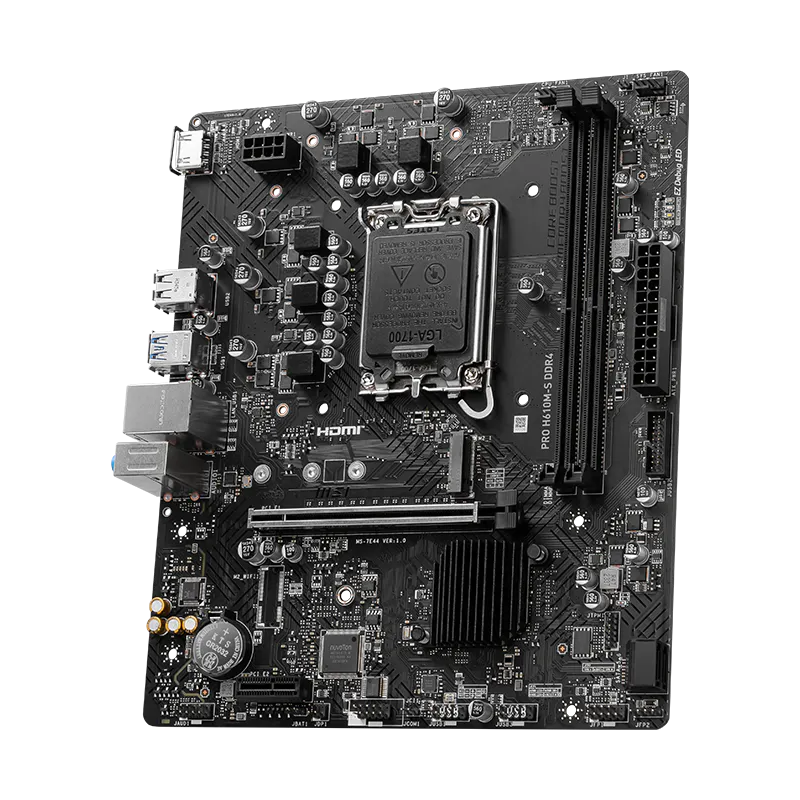

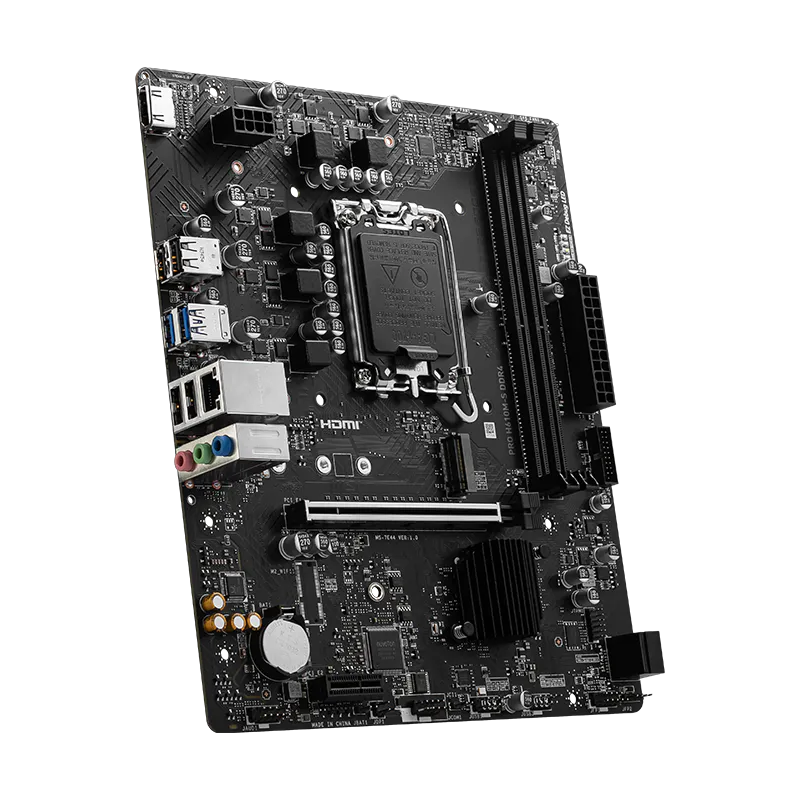

MSI PRO H610M-S DDR4 Motherboard M-ATX LGA 1700
₨ 24,499
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory up to 3200(MAX) MHz
- Core Boost: Premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for best performance, stability and compatibility

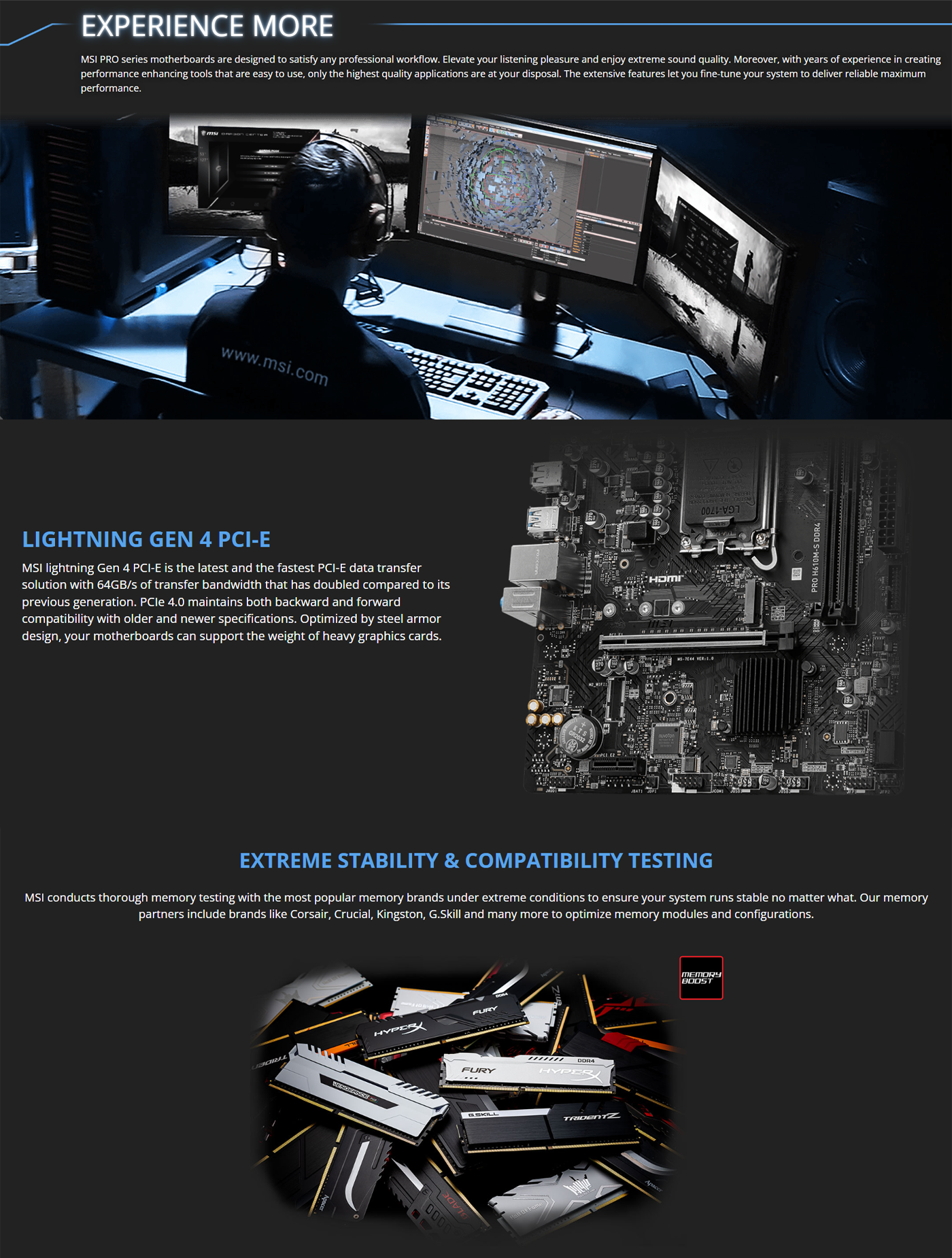

- Lightning Fast Experience: PCIe 4.0Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
| Specification | Details |
|---|---|
| Chipset | INTEL H610 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors ; LGA 1700 |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB ; Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC ; Supports Dual-Channel mode ; Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ ; Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* ; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot ; 1x PCI-E x1 slot ; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec ; 7.1-Channel High Definition Audio |

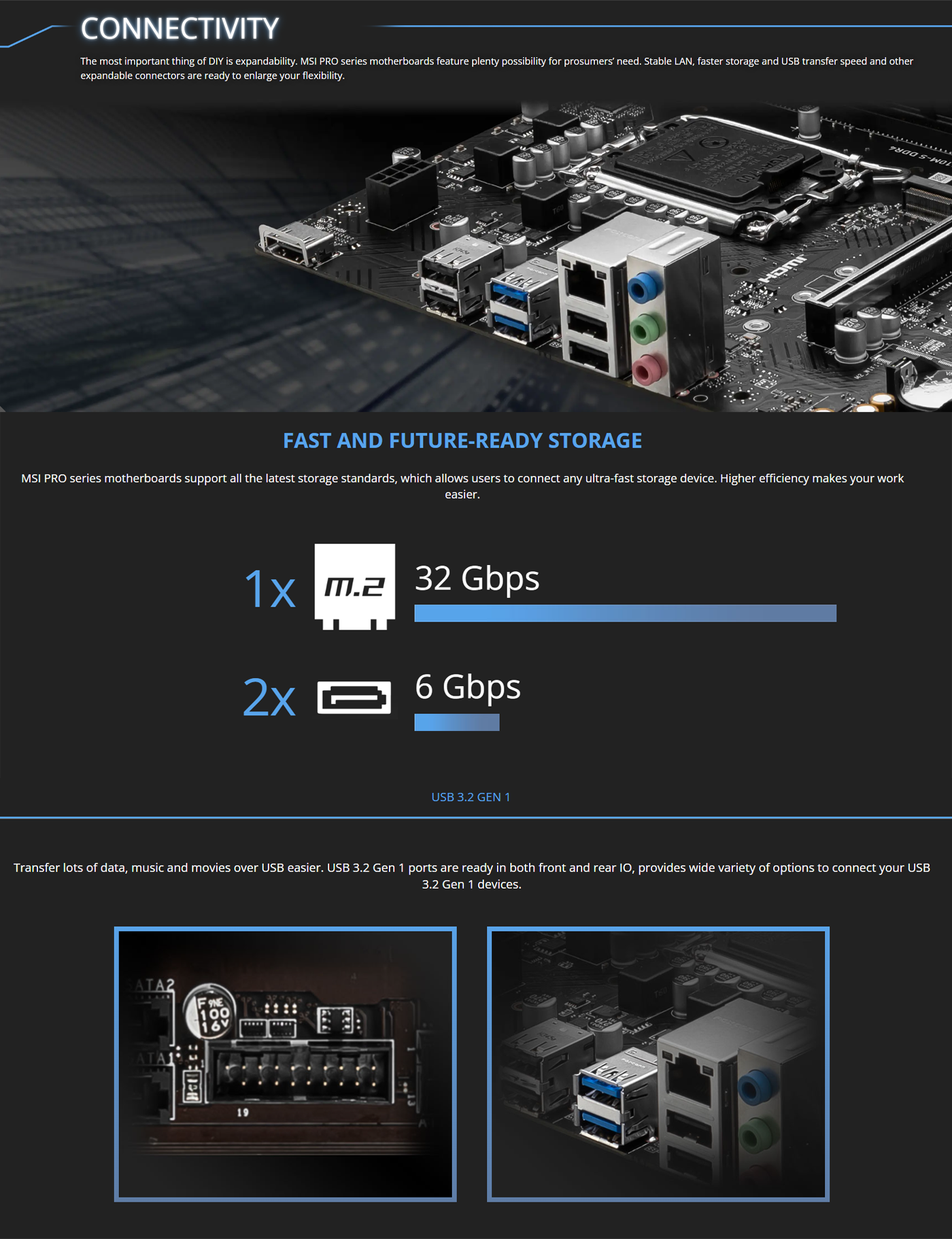

| Storage | 1x M.2 ; M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4, supports 2280/2260/2242 devices ; 2x SATA 6G |

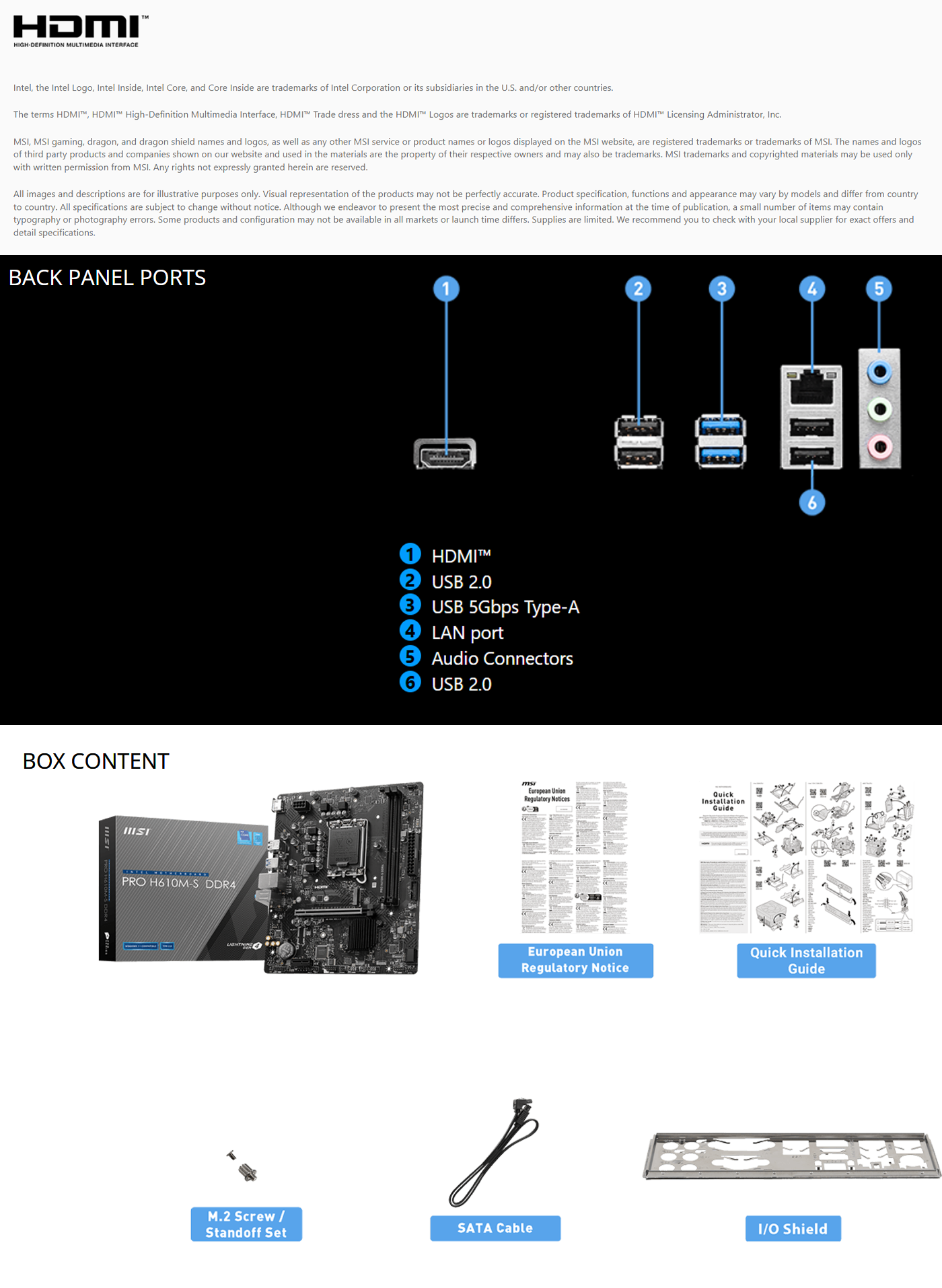

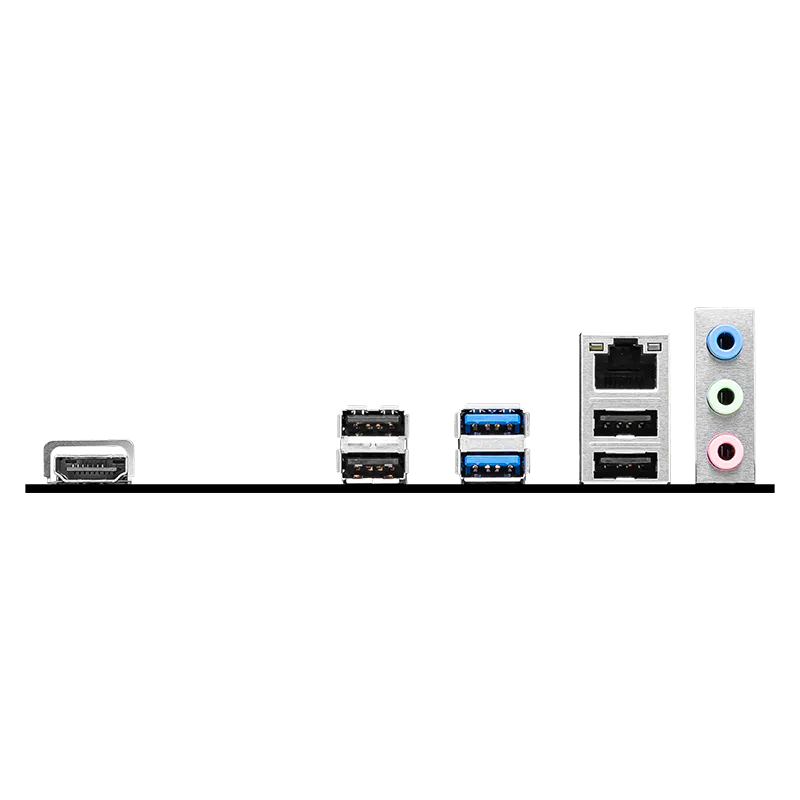

| USB | 4x USB 2.0 (Rear) ; 4x USB 2.0 (Front) ; 2x USB 5Gbps Type A (Rear) ; 2x USB 5Gbps Type A (Front) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Internal IO | 1x Power Connector(ATX_PWR) ; 1x Power Connector(CPU_PWR) ; 1x CPU Fan ; 1x System Fan ; 2x Front Panel (JFP) ; 1x Chassis Intrusion (JCI) ; 1x Front Audio (JAUD) ; 1x Com Port (JCOM) ; 1x TPM pin header(Support TPM 2.0) ; 4x USB 2.0 ports |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX ; 200mmx236.16mm |
Brand
MSI
