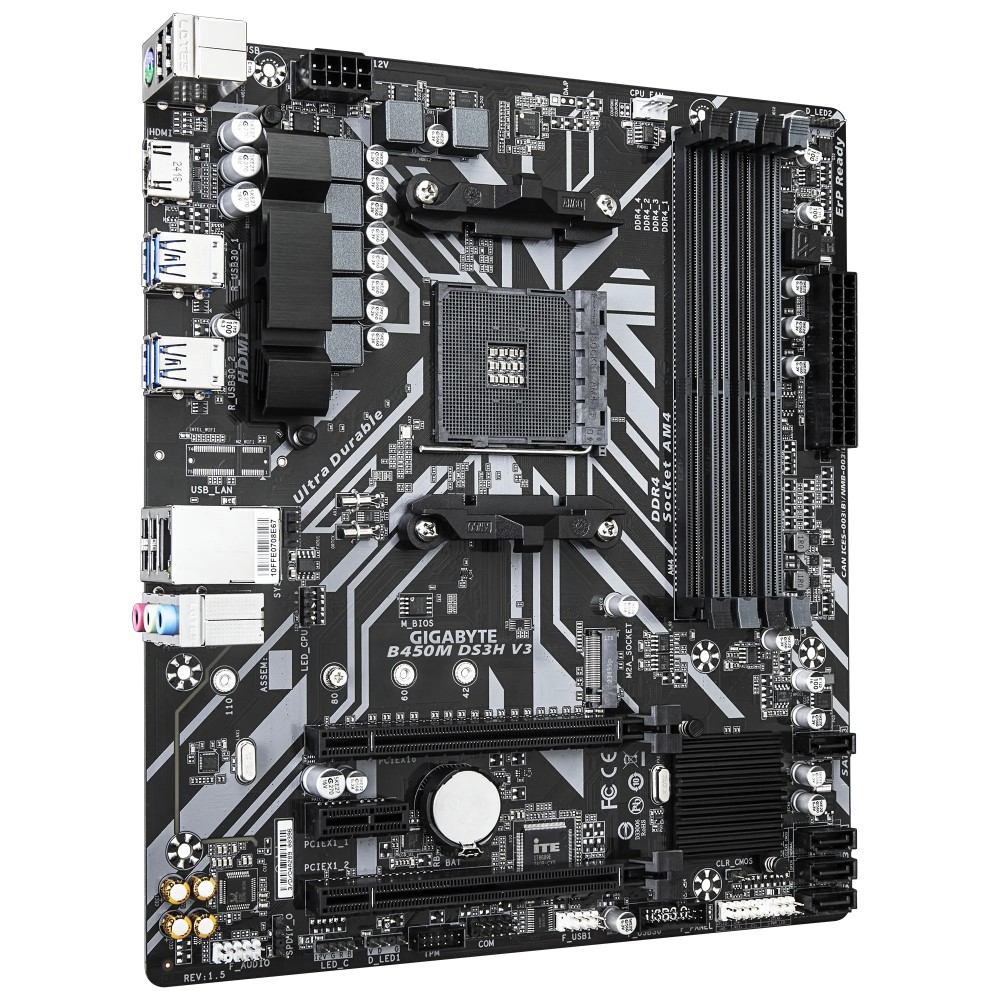

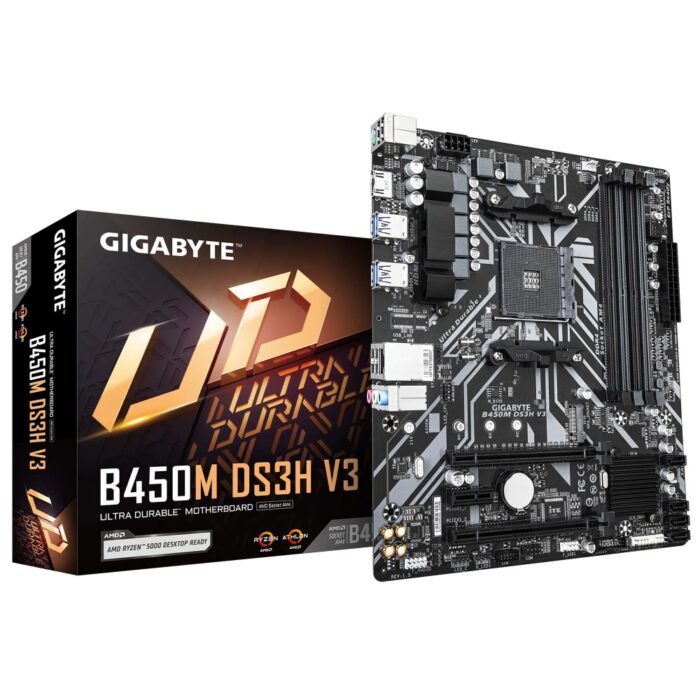

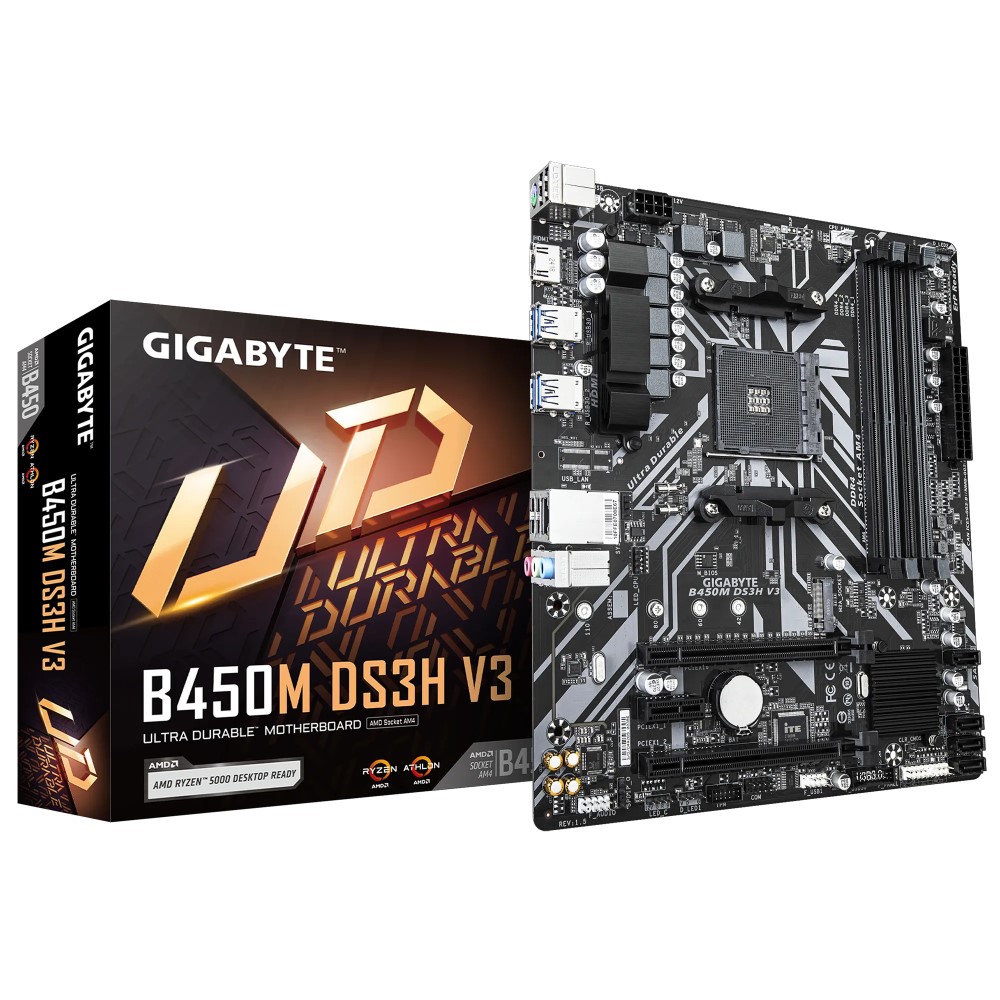

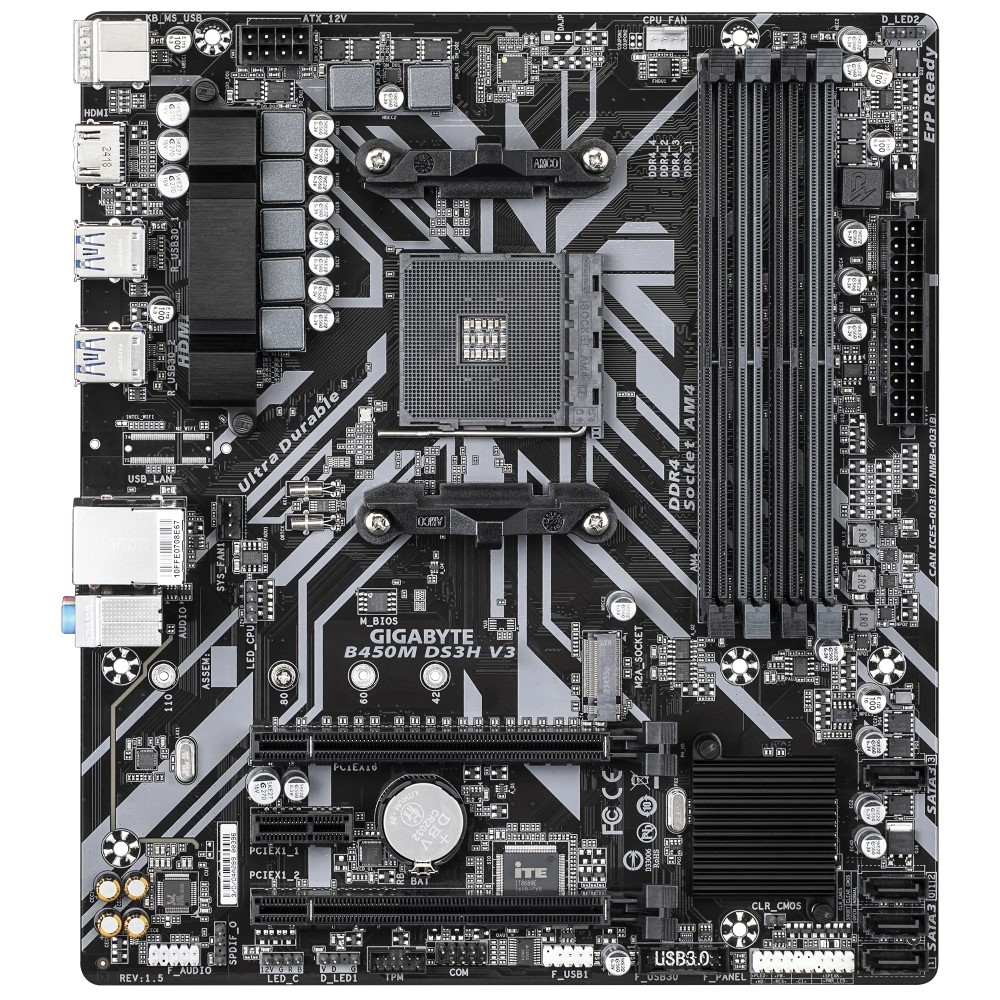

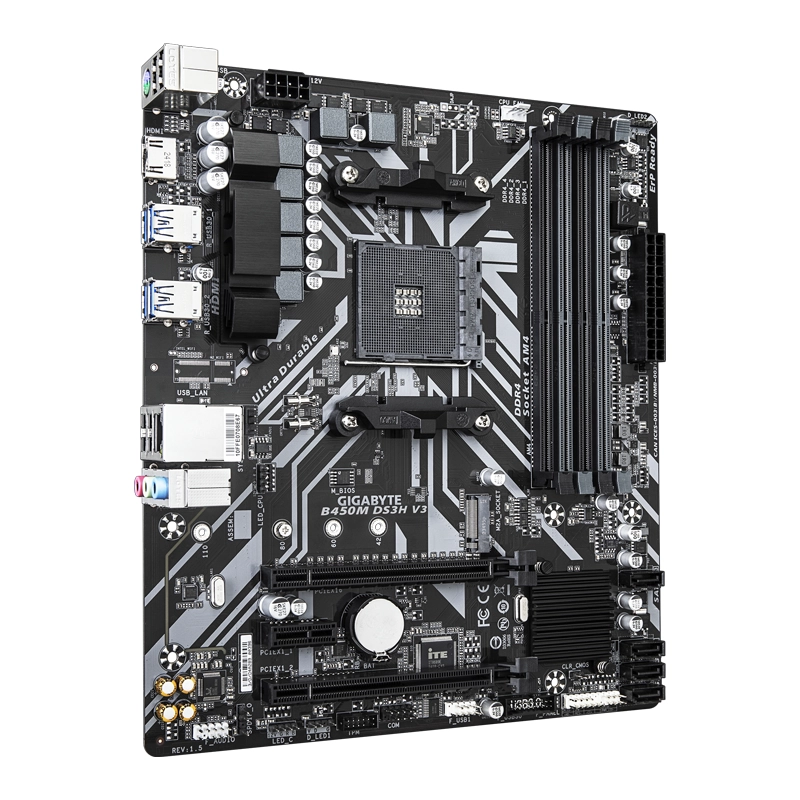

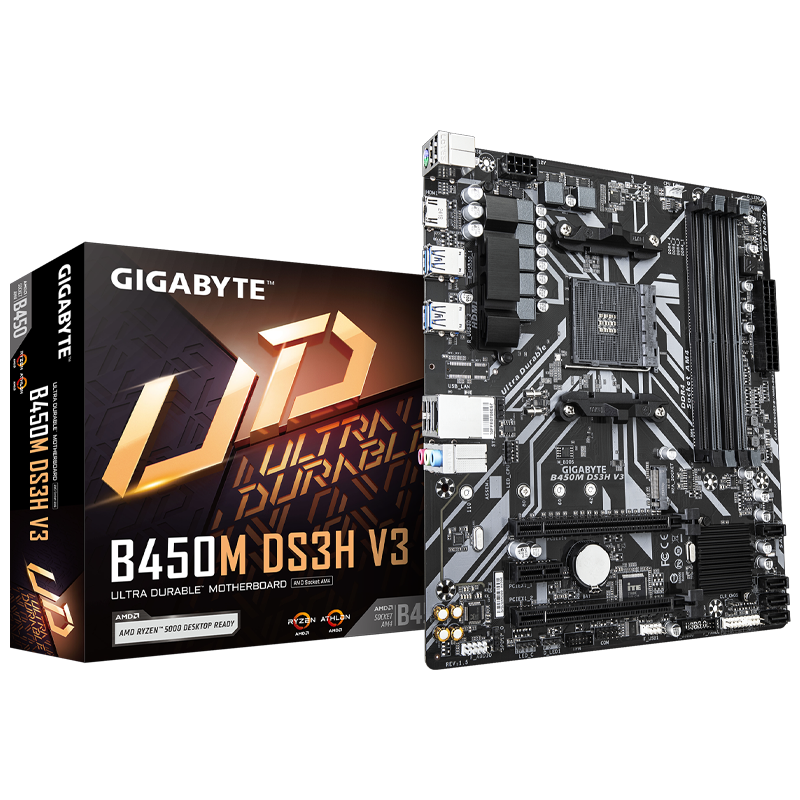

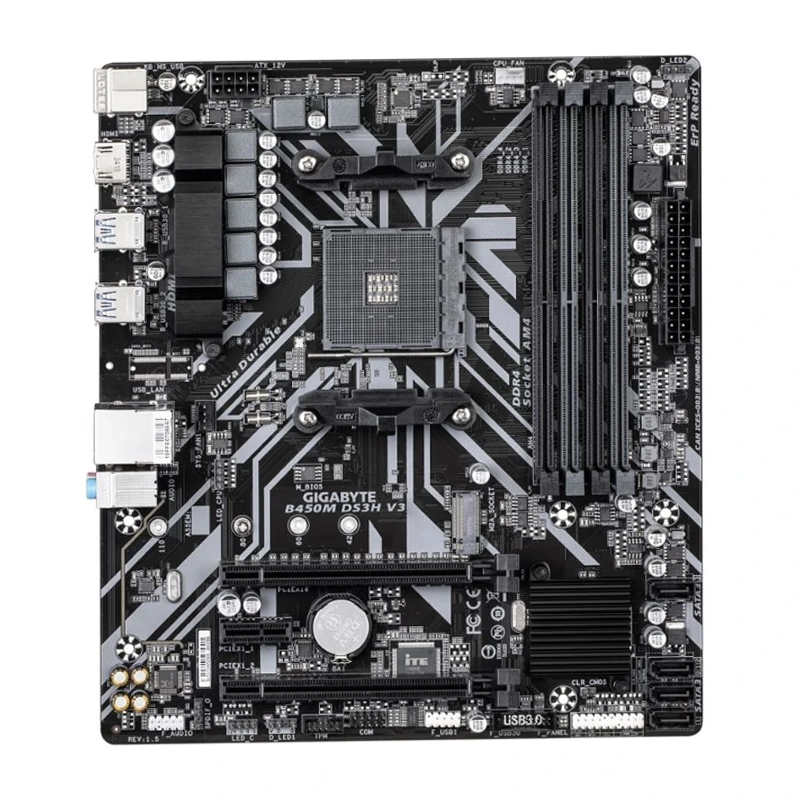

Gigabyte B450M DS3H V3 AM4 Micro-ATX Motherboard
₨ 27,500
Compatible with a wide range of AMD Ryzen™ processors including Ryzen™ 5000 Series and Athlon™ with Radeon™ Vega Graphics
Supports dual-channel DDR4 memory with 4 DIMM slots and ultra-fast PCIe Gen3 x4 M.2 for NVMe & SATA
Features high-quality audio capacitors, RGB FUSION 2.0 lighting, and Realtek® Gigabit LAN with cFosSpeed
Includes Smart Fan 6, EasyTune™, Cloud Station™, and CEC 2019 power-saving support
Out of stock
| Overview | |
| Model | B450M DS3H V3 |
| Chipset | AMD B450 |
| CPU Socket | AMD Socket AM4 |
| Form Factor | Micro ATX (24.4 cm x 21.5 cm) |
| BIOS | 1 x 128 Mbit Flash, Licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| CPU Support | |
| Supported Processors | AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, 3rd Gen Ryzen, 2nd Gen Ryzen, 1st Gen Ryzen, 2nd Gen Ryzen with Radeon Vega Graphics, 1st Gen Ryzen with Radeon Vega Graphics, Athlon with Radeon Vega Graphics Processors |
| Memory | |
| Memory Slots | 4 x DDR4 DIMM Sockets |
| Maximum Capacity | Up to 128 GB (32 GB per DIMM) |
| Channel Architecture | Dual Channel Memory Architecture |
| Supported Speeds | DDR4 2933 / 2667 / 2400 / 2133 MT/s |
| Memory Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (Non-ECC Mode), Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, XMP Support |
| Onboard Graphics | |
| HDMI Port | 1x HDMI, Supports up to 4096×2160 @ 60Hz |
| HDMI Version | HDMI 2.1, HDCP 2.2 |
| Maximum Shared Memory | 16 GB (Depending on CPU) |
| Audio | |
| Audio Codec | Realtek Audio Codec |
| Audio Features | High Definition Audio, 2/4/5.1/7.1-Channel, S/PDIF Out Support |
| LAN | |
| Ethernet | Realtek GbE LAN Chip (1 Gbps / 100 Mbps / 10 Mbps) |
| Expansion Slots | |
| PCIe x16 Slot | 1x PCI Express x16 (PCIe 3.0 x16) |
| PCIe x16 Slot (x1 Mode) | 1x PCI Express x16 (PCIe 2.0 x1) |
| PCIe x1 Slot | 1x PCI Express x1 (PCIe 2.0) |
| Storage Interface | |
| M.2 Connector | 1x M.2 (Socket 3, M Key, Supports SATA and PCIe 3.0 x4/x2 SSDs) |
| SATA Ports | 4x SATA 6Gb/s Connectors |
| RAID Support | RAID 0, RAID 1, RAID 10 |
| USB Ports | |
| Rear USB | 4x USB 3.1 Gen 1, 4x USB 2.0/1.1 |
| Internal USB | 2x USB 3.1 Gen 1 (Header), 2x USB 2.0/1.1 (Header) |
| Internal I/O Connectors | |
| Power Connectors | 1x 24-pin ATX Main Power, 1x 8-pin ATX 12V Power |
| Fan Headers | 1x CPU Fan Header, 1x System Fan Header |
| RGB Headers | 1x CPU Cooler LED Strip/RGB LED Strip Header, 1x RGB LED Strip Header, 2x Addressable LED Strip Headers |
| Other Headers | Front Panel Header, Front Panel Audio Header, S/PDIF Out Header, TPM Header (2×6 Pin), Serial Port Header, Clear CMOS Jumper |
| Back Panel Connectors | |
| Ports | 1x PS/2 Keyboard/Mouse Port, 1x HDMI Port, 4x USB 3.1 Gen 1 Ports, 4x USB 2.0/1.1 Ports, 1x RJ-45 LAN Port, 3x Audio Jacks |
| I/O Controller & Hardware Monitoring | |
| I/O Controller | iTE I/O Controller Chip |
| Hardware Monitoring | Voltage, Temperature, Fan Speed Detection, Overheating Warning, Fan Fail Warning, Fan Speed Control |
| Unique Features | |
| APP Center | @BIOS, EasyTune, Fast Boot, RGB Fusion, Smart Backup, System Information Viewer |
| Other Features | Q-Flash, Xpress Install |
| Bundled Software | |
| Software | Norton Internet Security (OEM Version), LAN Bandwidth Management Software |
| Operating System Support | |
| Supported OS | Windows 11 64-bit, Windows 10 64-bit, Windows 7 64-bit (Requires AMD Pinnacle Ridge & Summit Ridge CPU) |
