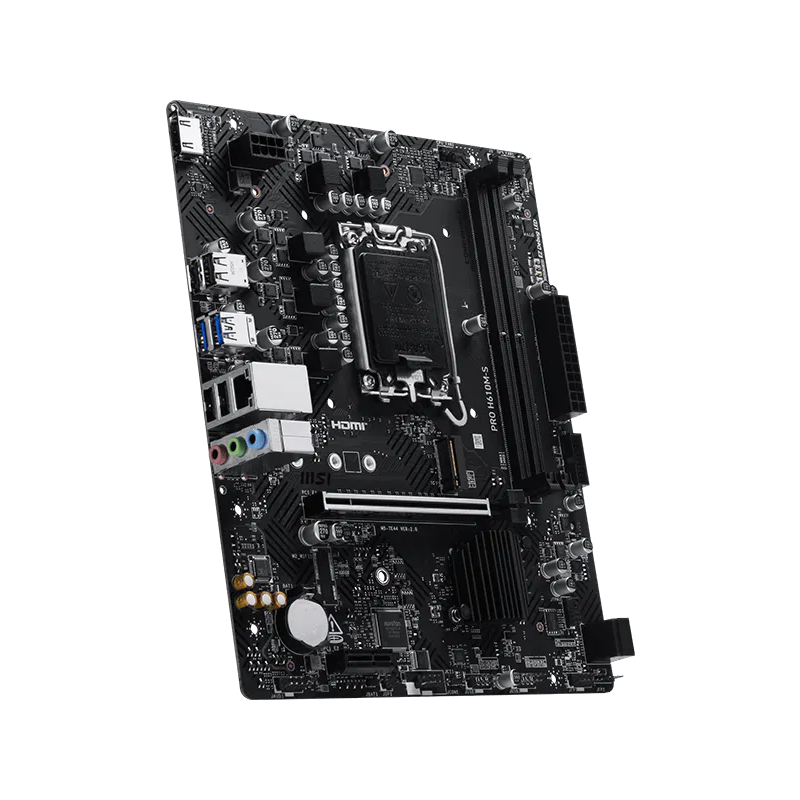

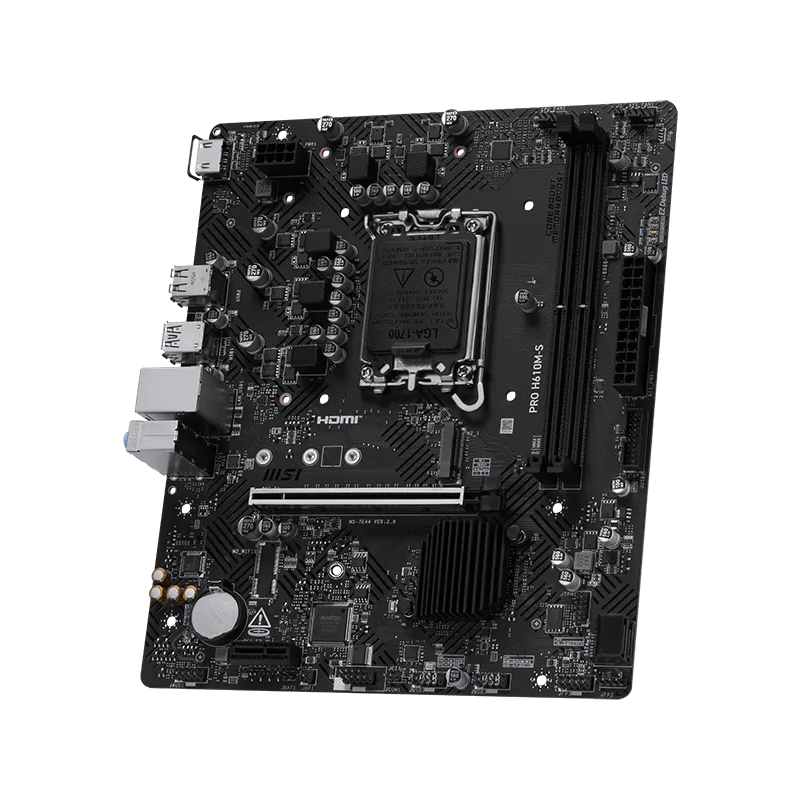

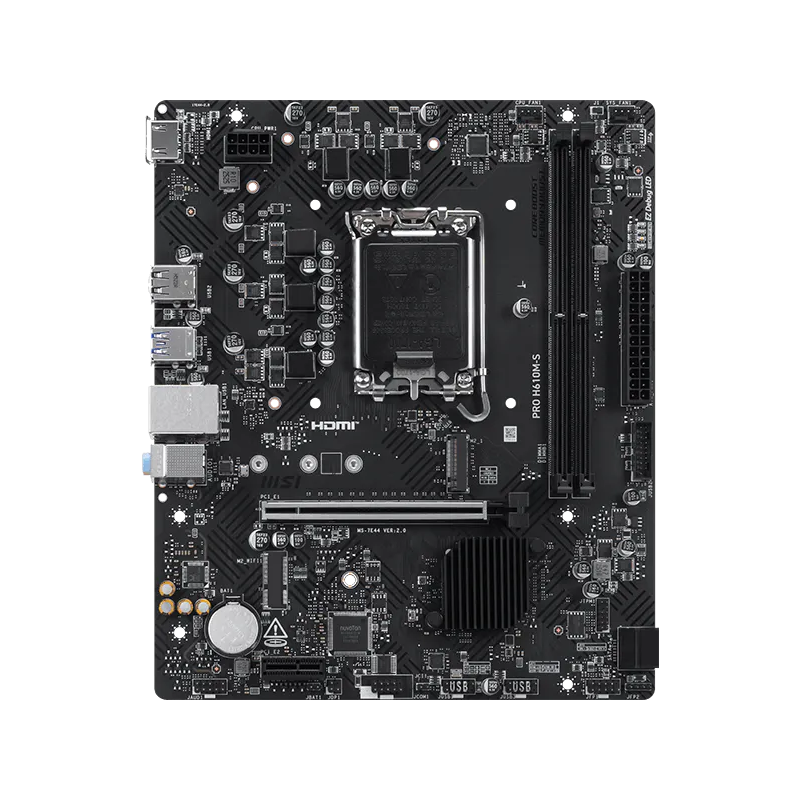

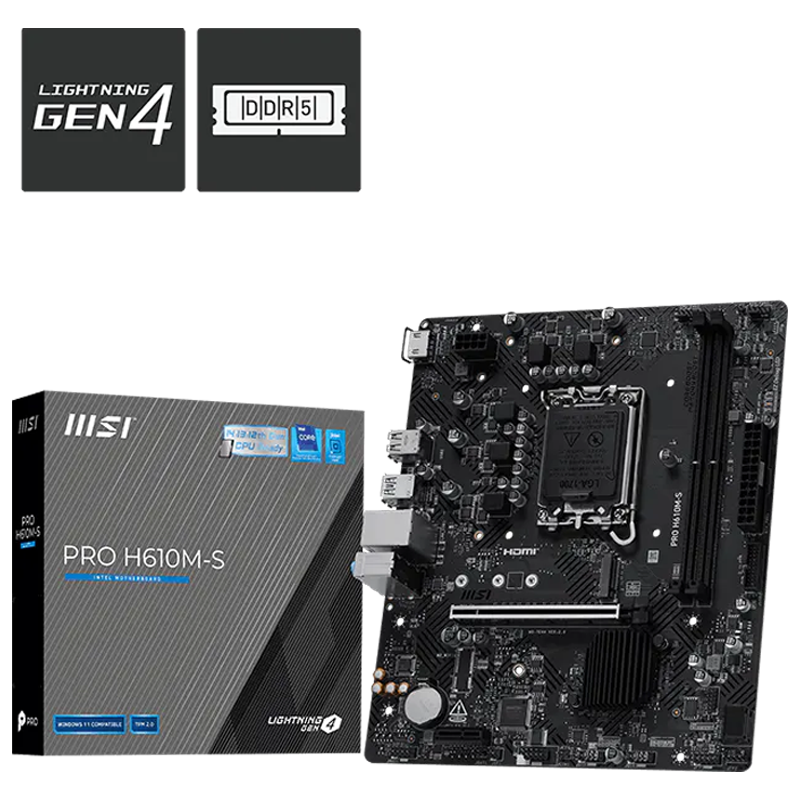

MSI PRO H610M-S DDR5 Motherboard M-ATX LGA 1700
₨ 25,499
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory up to 5600(MAX) MHz
- Core Boost: Premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
| Specification | Details |
|---|---|
| Chipset | INTEL H610 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors ; LGA 1700 |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB ; Memory Support DDR5 5600 MT/s (by JEDEC & POR) ; Supports Intel® POR Speed and JEDEC Speed ; Supports Intel® XMP 3.0 ; Supports Dual-Controller Dual-Channel mode ; Supports non-ECC, un-buffered memory ; • The DIMM slots on this motherboard only have single-sided latches. ; • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 1x HDMI™ ; Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* ; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot ; 1x PCI-E x1 slot ; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) ; PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec ; 7.1-Channel High Definition Audio |
| Storage | 1x M.2 ; M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4, supports 2280/2260/2242 devices ; 2x SATA 6G |

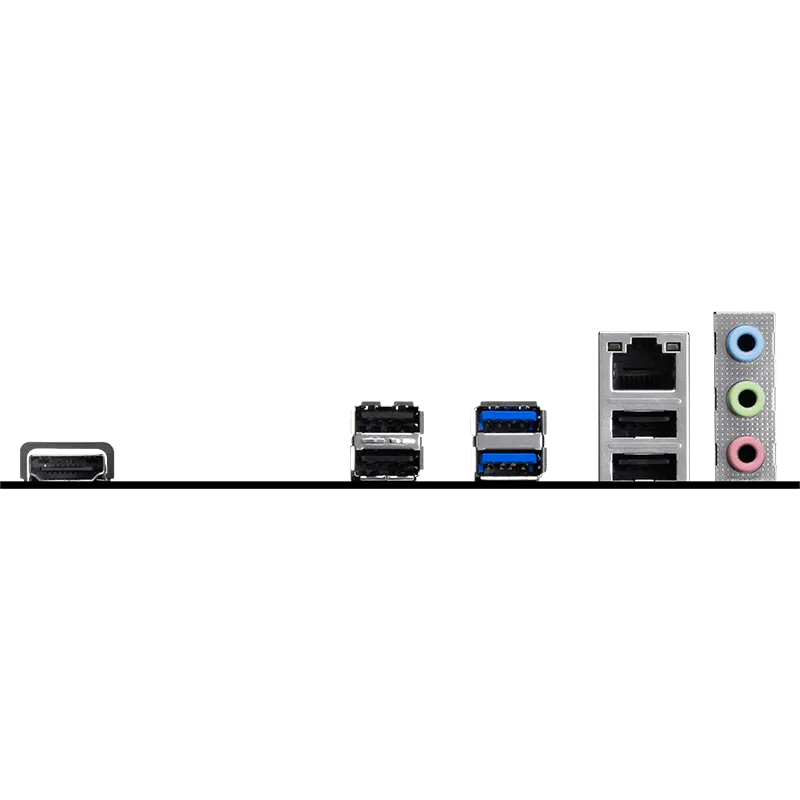

| USB | 4x USB 2.0 (Rear) ; 4x USB 2.0 (Front) ; 2x USB 5Gbps Type A (Rear) ; 2x USB 5Gbps Type A (Front) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Internal IO | 1x Power Connector(ATX_PWR) ; 1x Power Connector(CPU_PWR) ; 1x CPU Fan ; 1x System Fan ; 2x Front Panel (JFP) ; 1x Chassis Intrusion (JCI) ; 1x Front Audio (JAUD) ; 1x Com Port (JCOM) ; 1x TPM pin header(Support TPM 2.0) ; 4x USB 2.0 ports ; 2x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX ; 200mm x 236.16mm |
Brand
MSI
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery
At Amir Traders, we aim to provide a smooth and hassle-free shopping experience to our valued customers. We offer fast, secure, and nationwide delivery services across Pakistan.
All orders are typically processed and dispatched within 1 to 2 working days after confirmation. Once shipped, delivery timelines vary depending on your location, usually taking between 2 to 5 business days. For customers in major cities, delivery is often quicker.
We currently offer Cash on Delivery (COD) for your convenience, allowing you to pay when the product arrives at your doorstep. Our packaging is done with care to ensure your products reach you safely and in perfect condition.
If you have any questions regarding your delivery or would like to track your order, feel free to contact our support team anytime.
