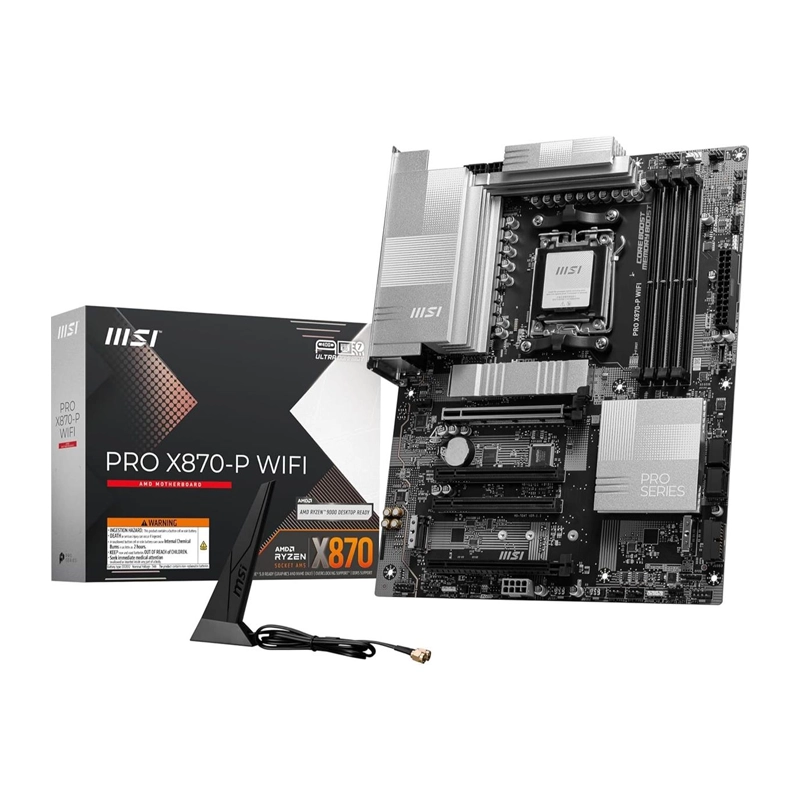

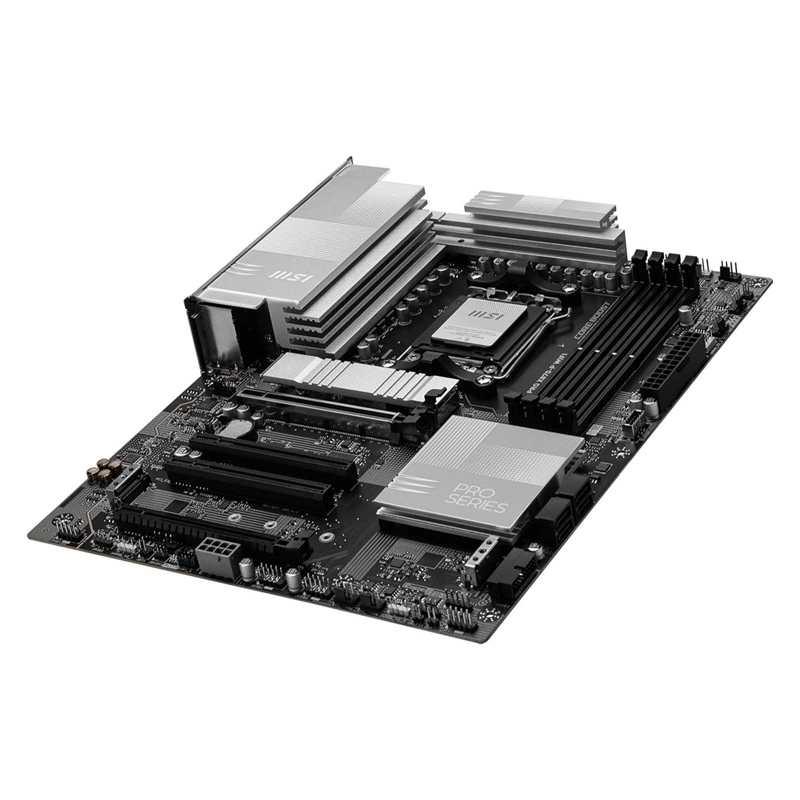

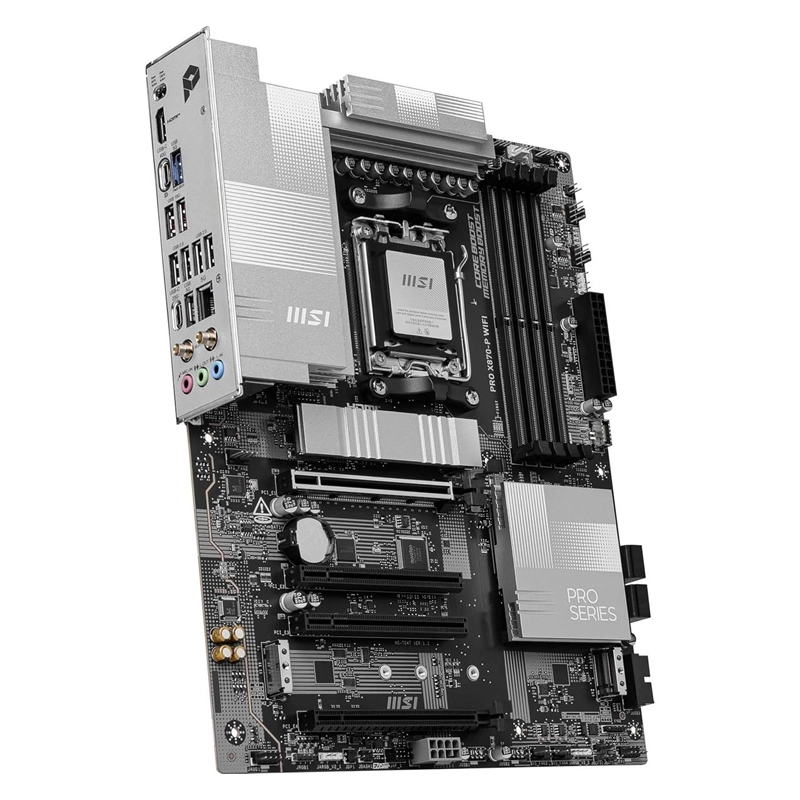

MSI PRO X870-P WiFi ProSeries AMD AM5 DDR5 ATX Motherboard
₨ 89,999
AMD X870 with 14+2+1 Duet Rail Power: Supports Ryzen™ 9000/8000/7000 Series with a 60A SPS power system and an 8-layer server-grade PCB for stable, heavy-load performance .
DDR5 Memory up to 8200+ MHz (OC): 4 DIMM slots with Memory Boost, supporting up to 256GB of dual-channel DDR5 and AMD EXPO for extreme memory performance .
Lightning Gen5 M.2 & PCIe 5.0 x16: Equipped with a PCIe 5.0 x16 slot and a Gen5 x4 M.2 slot with EZ M.2 Shield Frozr II for next-gen GPUs and ultra-fast NVMe SSDs .
Wi-Fi 7, 5G LAN & USB4 40Gbps: Features a full-speed Wi-Fi 7 solution with Bluetooth 5.4, a Realtek 5Gbps LAN port, and a rear USB4 Type-C port for uncompromised connectivity .

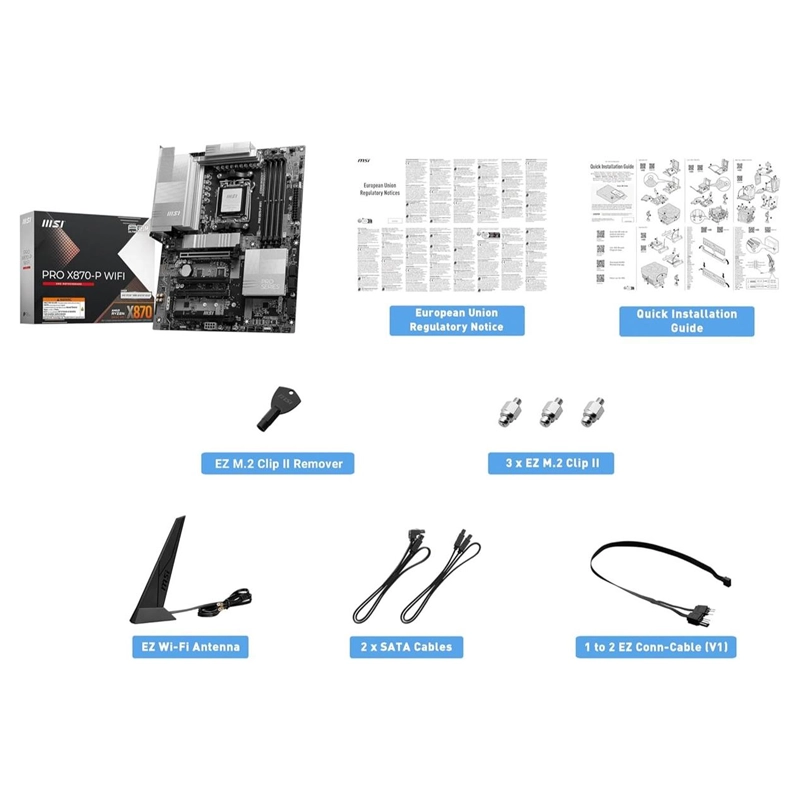

EZ DIY & ProSeries Design: Includes EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and the EZ Antenna, all wrapped in a harmonious silver design that fits white or black builds
| Overview | |
| Chipset | AMD X870 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Socket | AM5 |
| Form Factor | ATX (243.84 mm x 304.8 mm) |
| OS Support | Windows 11 64-bit |
| Memory | |
| Memory | 4x DDR5 UDIMM, Up to 256 GB |
| Memory Speeds | DDR5 8200+ (OC) / 5600 – 4800 MT/s (JEDEC) |
| Memory Features | Dual Channel, AMD EXPO, ECC/Non-ECC (Non-ECC Supported), Overclocking, CUDIMM Bypass Mode |
| Graphics Output | |
| Video Outputs | 1x HDMI 2.1 (4K@60Hz), 1x USB4 Type-C (DP 1.4, 4K@60Hz)* |
| PCIe Slots | |
| PCIe Slots | 4x PCIe x16: PCI_E1 Gen 5 (x16), PCI_E2 & E3 Gen 3 (x1), PCI_E4 Gen 4 (x4)* |
| Audio | |
| Audio | Realtek ALC897, 7.1 Channel HD Audio |
| Storage | |
| M.2 Slots | 3x M.2: M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4), M.2_3 (PCIe 4.0 x2)* |
| SATA Ports | 4x SATA 6G |
| RAID Support | RAID 0/1/5 (M.2 Only, RAID 5 for Ryzen 9000 Only) |
| USB | |
| USB Ports (Rear) | 1x USB 40Gbps Type-C, 1x USB 20Gbps Type-C, 2x USB 10Gbps A, 2x USB 5Gbps A, 4x USB 2.0 |
| USB Ports (Front) | 1x USB 10Gbps Type-C, 2x USB 5Gbps A, 4x USB 2.0 |
| Networking | |
| LAN | Realtek 8126VB 5G LAN |
| Wireless & Bluetooth | Wi-Fi 7, Bluetooth 5.4 (MLO, 4KQAM) |
| Internal I/O & LED | |
| Internal I/O | 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR, 6x SYS_FAN, 3x ARGB, 1x RGB, TPM, JAUD, etc. |
| LED Feature | 4x EZ Debug LEDs |
| Back Panel I/O | |

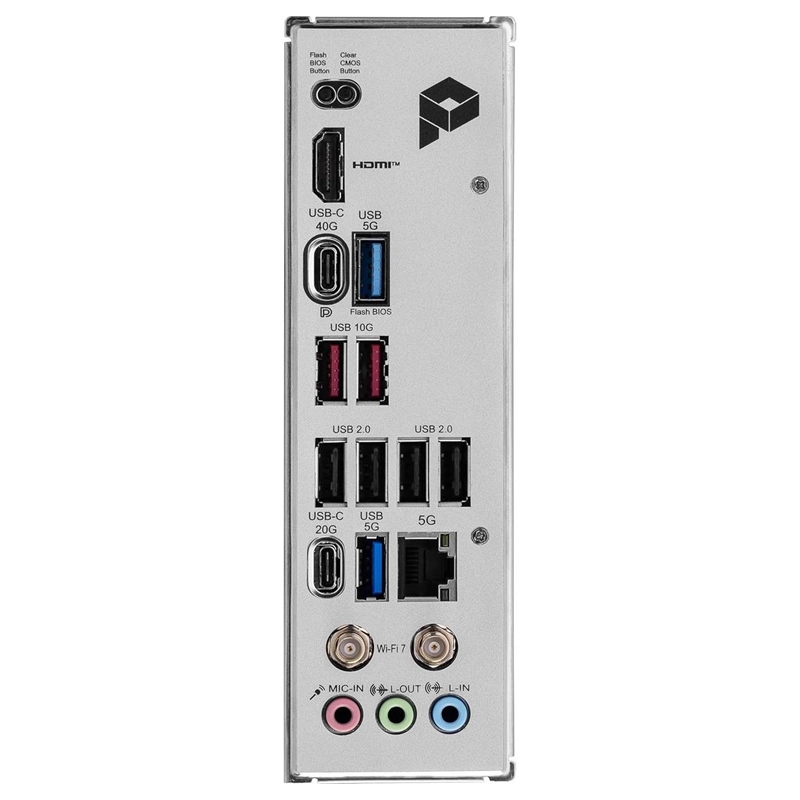

| Back Panel Ports | Clear CMOS, Flash BIOS Button, HDMI, Wi-Fi/Bluetooth Antennas, Audio Jacks, USB Ports |
| Brand | MSI |
|---|
