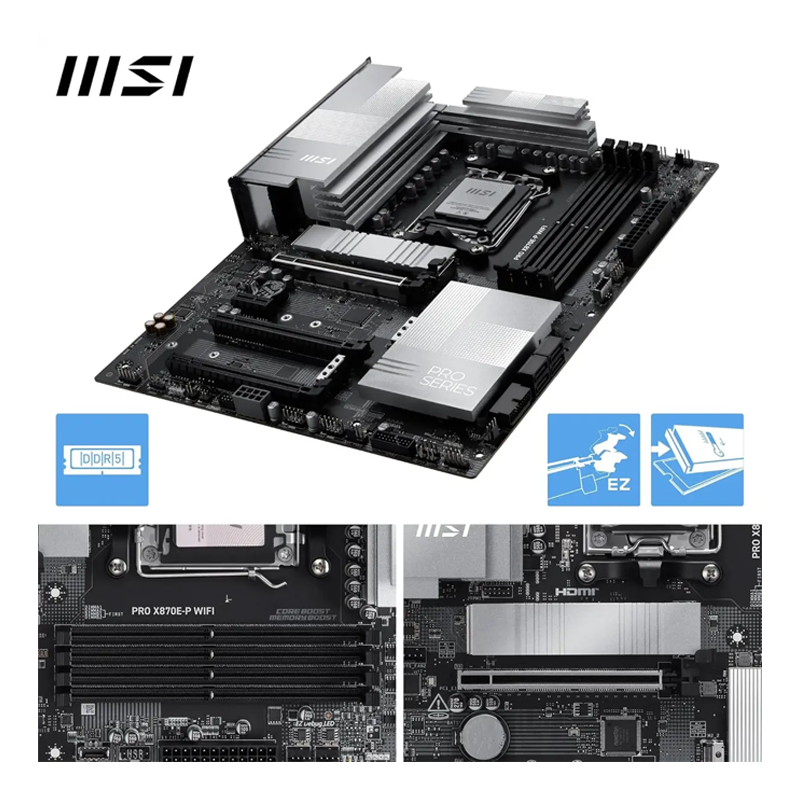

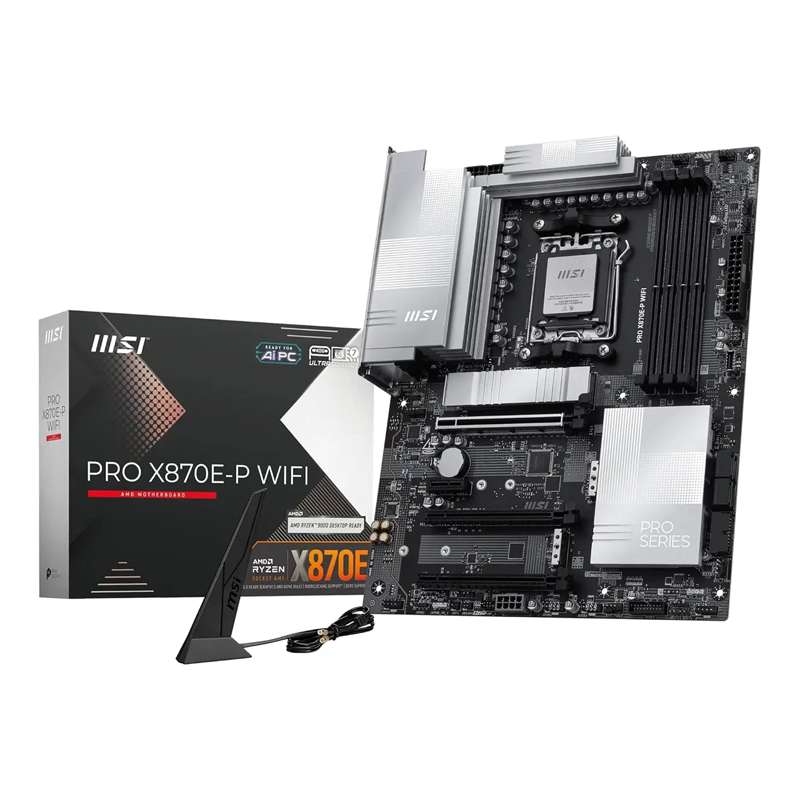

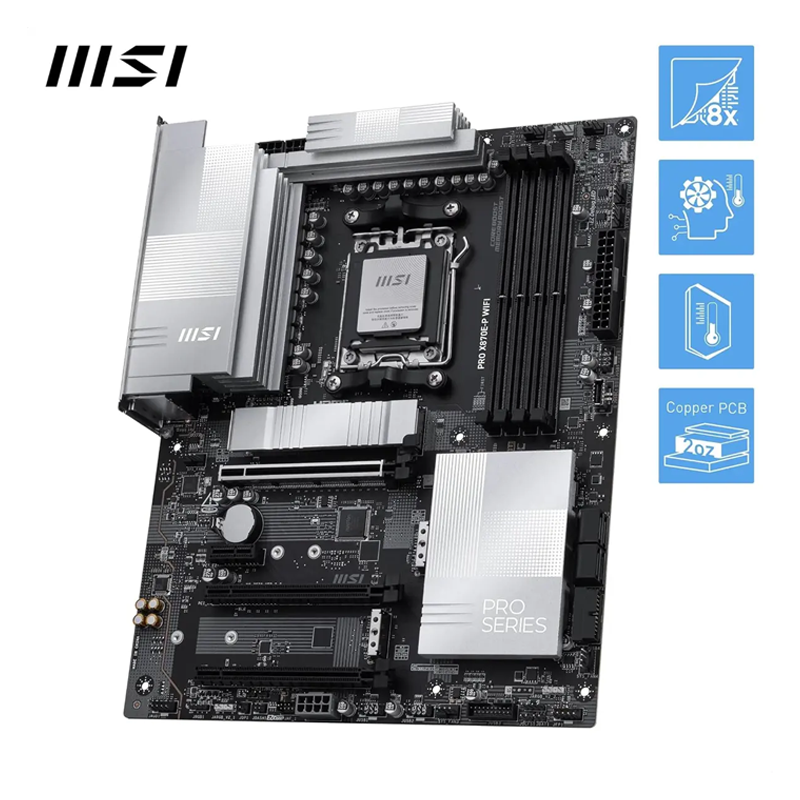

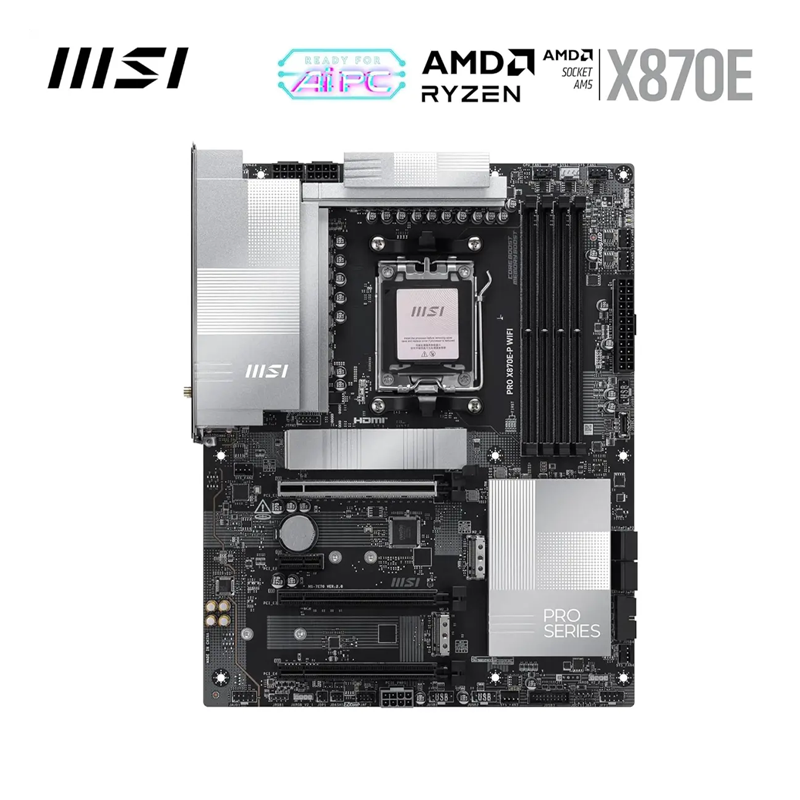

MSI PRO X870E-P WiFi DDR5 AMD AM5 ATX Motherboard
₨ 98,999
14+2+1 Phase 60A SPS VRM: Rock-solid power delivery with dual 8-pin CPU connectors and an 8-pin PCIe power connector ensures stable, reliable performance for demanding multi-core processors.
DDR5 Memory up to 8200+ MT/s (OC): Four DIMM slots (double-sided latches) supporting up to 256GB of dual-channel DDR5 with AMD EXPO and CUDIMM support for extreme memory overclocking.

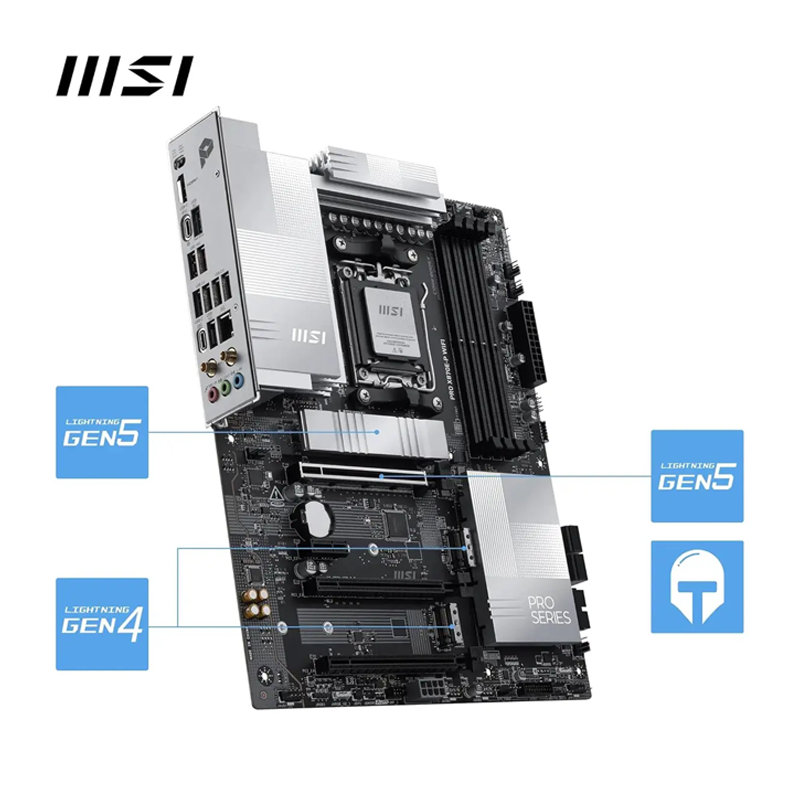

PCIe 5.0 x16 & M.2 Gen5: A Lightning Gen 5 PCIe slot for next-gen GPUs and a dedicated Gen5 x4 M.2 slot (from CPU) for ultra-fast NVMe SSDs, plus two additional Gen4 M.2 slots with RAID 5 support on Ryzen 9000.
Wi-Fi 7 & 5G LAN: Integrated next-generation Wi-Fi 7 with Bluetooth 5.4 and a Realtek 5Gbps Ethernet port for ultra-fast, low-latency wired and wireless networking.
USB4 40Gbps Type-C & Comprehensive Connectivity: Rear USB4 40Gbps Type-C with DP 1.4 HBR3, rear USB 20Gbps Type-C, front USB 10Gbps Type-C, EZ Conn-header, Clear CMOS, and Flash BIOS Button.
| Overview | |
| Brand & Model | MSI PRO X870E-P WiFi |
| Socket & Chipset | AMD AM5 / AMD X870E |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series |
| Form Factor | ATX (243.84 mm x 304.8 mm) |
| VRM Design | 14+2+1 Phase 60A SPS – Dual 8-Pin CPU + 8-Pin PCIe Power Connectors |
| Memory | |
| Memory | 4x DDR5 DIMM, Up to 256 GB, 8200+ MT/s (OC), AMD EXPO, CUDIMM Support |
| Expansion Slots | |
| Graphics Slot | 1x PCIe 5.0 x16 (CPU) – Lightning Gen 5 for Next-Gen GPUs |
| Additional Slots | 1x PCIe 4.0 x4 (Chipset), 2x PCIe 3.0 x1 (Chipset) |
| Storage | |
| M.2 Storage | 1x Gen5 x4 (CPU, 2280/2260), 2x Gen4 x4 (Chipset, 22110/2280) – RAID 5 on Ryzen 9000 |
| SATA Ports | 4x SATA 6G (Supports RAID 0/1/10) |
| Networking | |
| Wired | Realtek 8126VB 5G LAN |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| USB | |

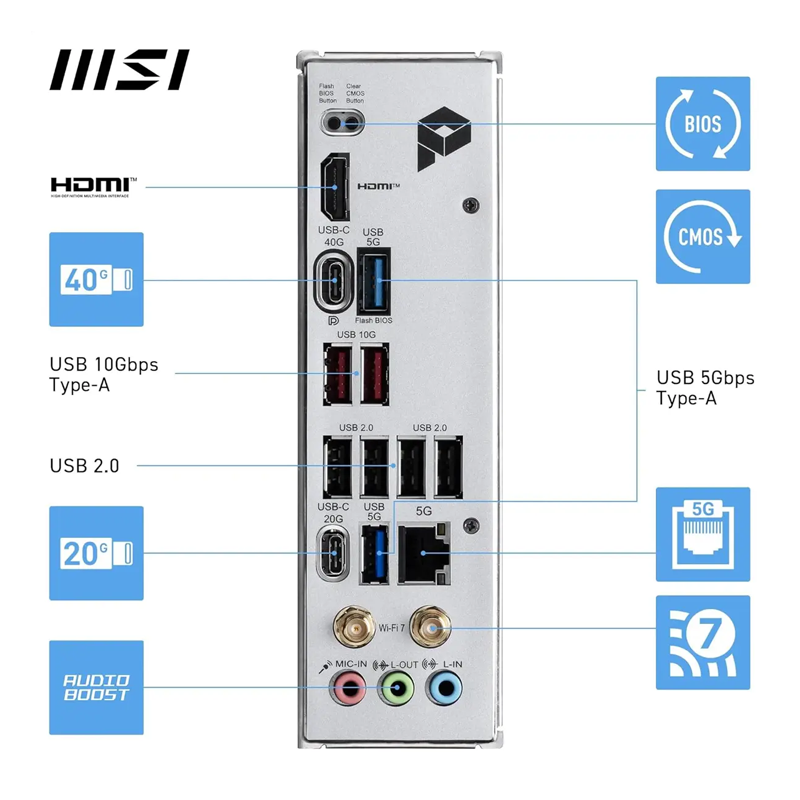

| Rear USB | 1x USB4 40Gbps Type-C, 1x USB 20Gbps Type-C, 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Front USB | 1x USB 10Gbps Type-C, 4x USB 5Gbps Type-A, 6x USB 2.0 |
| Video & Audio | |
| Video Outputs | HDMI 2.1 (4K@60Hz), USB4 DP 1.4 (4K@60Hz) |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| Special Features | |
| Special Features | EZ Debug LED, EZ Memory Detection LED, EZ Conn-Header, Clear CMOS, Flash BIOS |
| Warranty | |
| Warranty | 1 Year Local Warranty (Varies by Retailer) |
