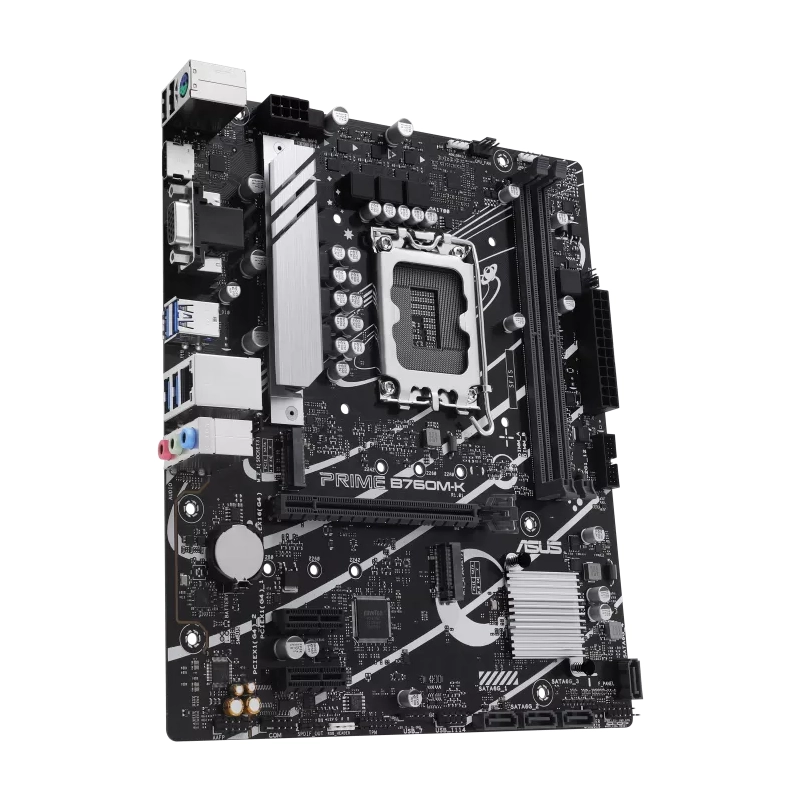

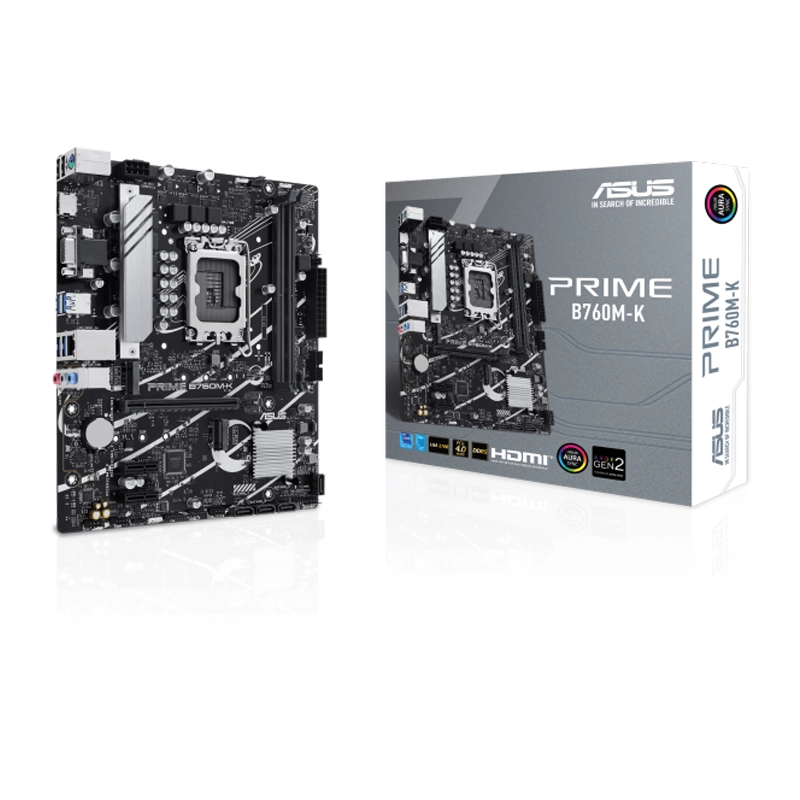

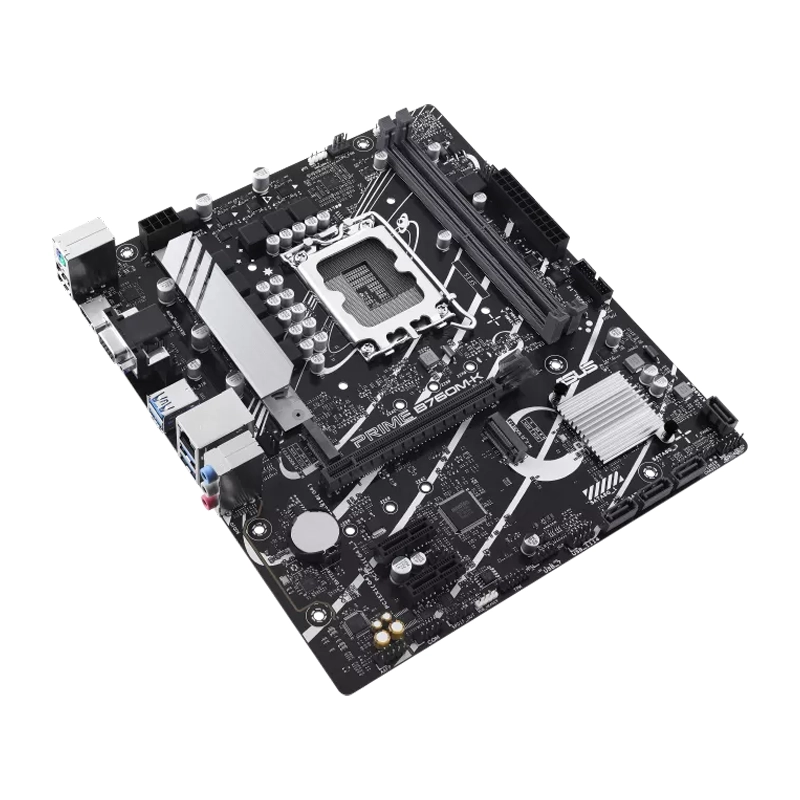

ASUS Prime B760M-K Intel mATX Motherboard
₨ 31,000
- Supports Intel 14th, 13th, and 12th Gen Core processors on LGA1700 socket with DDR5 memory up to 96GB
- Dual PCIe 4.0 M.2 slots and PCIe 4.0 x16 slot for high-speed NVMe storage and modern graphics cards
- Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 1 Type-A ports, HDMI 2.1 (4K@60Hz), and VGA for versatile display output
- Aura Sync with 2x Addressable Gen 2 headers, 1x RGB header, and Two-Way AI Noise Cancellation
| Overview | |
| Brand | ASUS |
| Model | PRIME B760M-K |
| Chipset | Intel B760 |
| Socket | LGA 1700 |
| Form Factor | mATX (24.4 x 21.1 cm) |
| CPU Support | Intel Core 14th, 13th, 12th Gen, Pentium Gold, Celeron |
| Memory Type | DDR5 |
| Memory | |
| Memory Slots | 2 x DIMM |
| Max Memory | 96 GB |
| Memory Speed | DDR5 up to 8000+ (OC) |
| Memory Architecture | Dual Channel |
| XMP Support | Yes (Intel XMP) |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1 |
| M.2 Slots | 2 x PCIe 4.0 x4 (2242/2260/2280) |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| Graphics & Audio | |
| Display Outputs | 1 x HDMI 2.1 (4K@60Hz), 1 x VGA |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC |
| Networking | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |

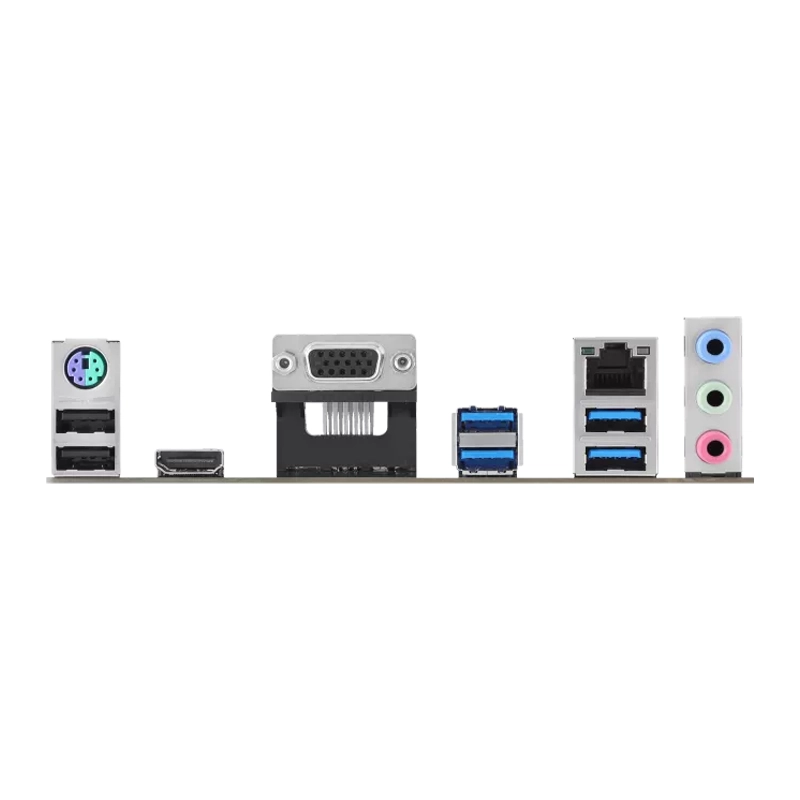

| Rear I/O | |
| USB Ports | 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| Other Ports | 1 x PS/2 Combo, 3 x Audio Jacks |
| Internal I/O | |
| USB Headers | 1 x USB 3.2 Gen 1 (2 ports), 2 x USB 2.0 (3 ports) |
| Fan Headers | 1 x CPU Fan, 2 x Chassis Fan |
| RGB Headers | 2 x Addressable Gen 2, 1 x Aura RGB |
| Special Headers | 1 x COM Port, 1 x S/PDIF Out, 1 x SPI TPM |
| Features | |
| Protection | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage, SafeSlot Core, Stainless-Steel Back I/O) |
| ASUS Q-Design | Q-DIMM, Q-LED Core, Q-Slot, ProCool |
| Thermal Solution | VRM Heatsink Design |
| Lighting Control | Aura Sync (Aura RGB + Addressable Gen 2) |
| AI Features | Two-Way AI Noise Cancellation |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11, Windows 10 64-bit |
| Included Accessories | |

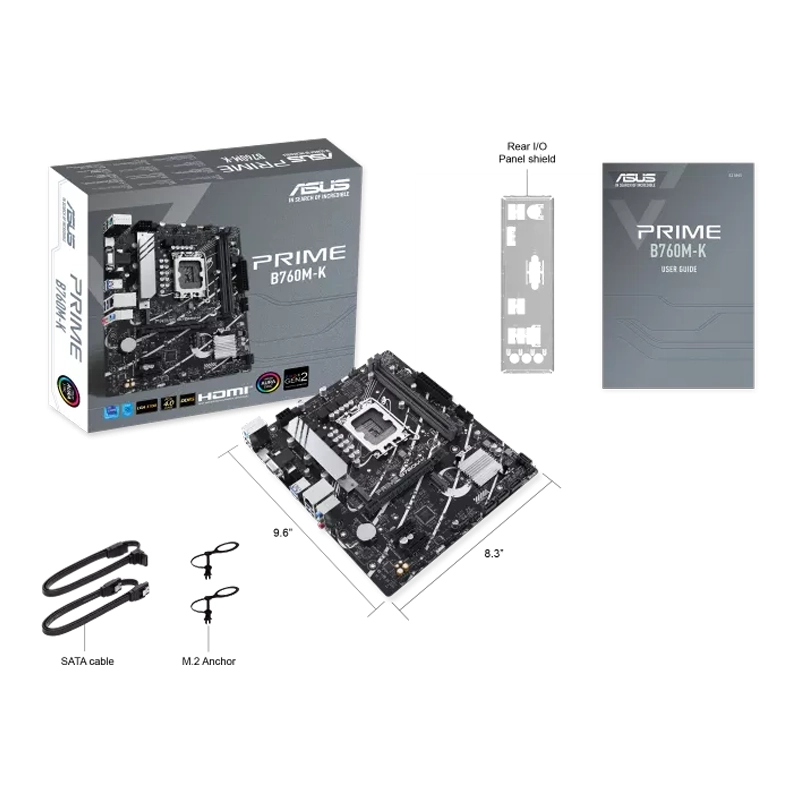

| In the Box | 2 x SATA 6Gb/s Cables, 1 x I/O Shield, 2 x M.2 Anchors, User Guide |
| Brand | Asus |
|---|
