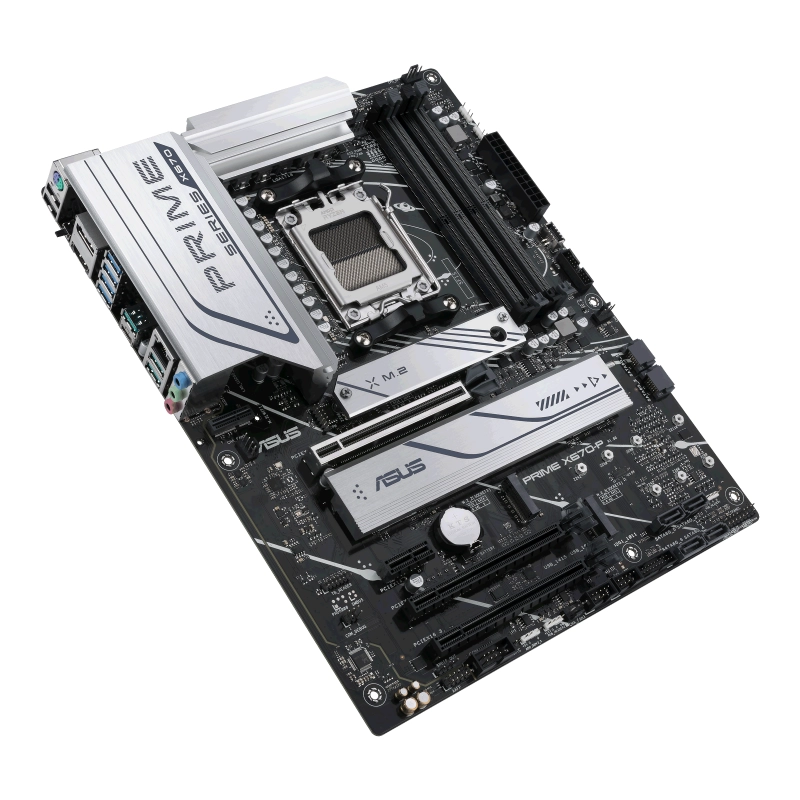

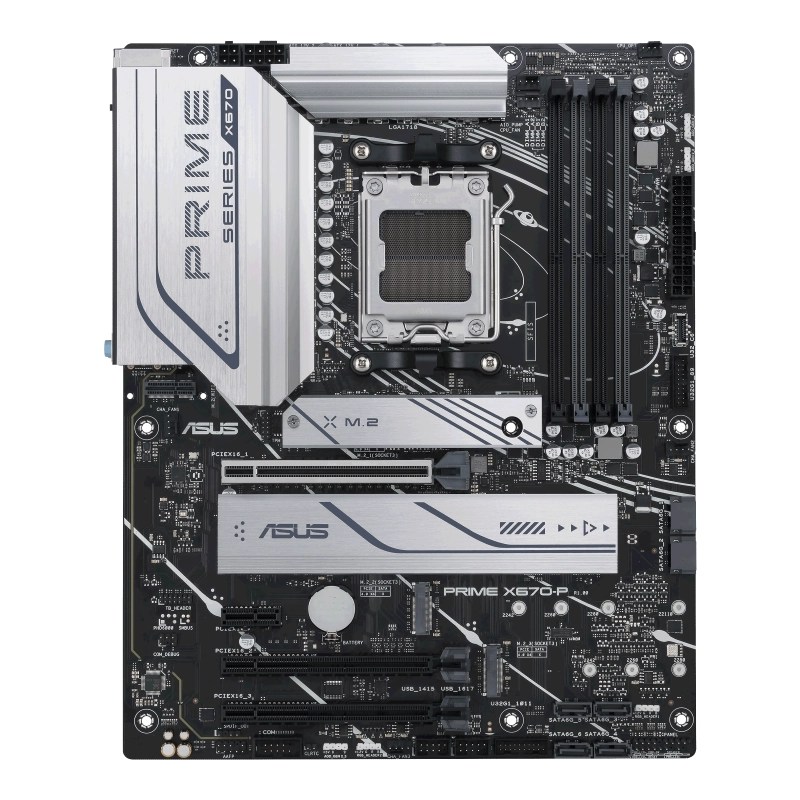

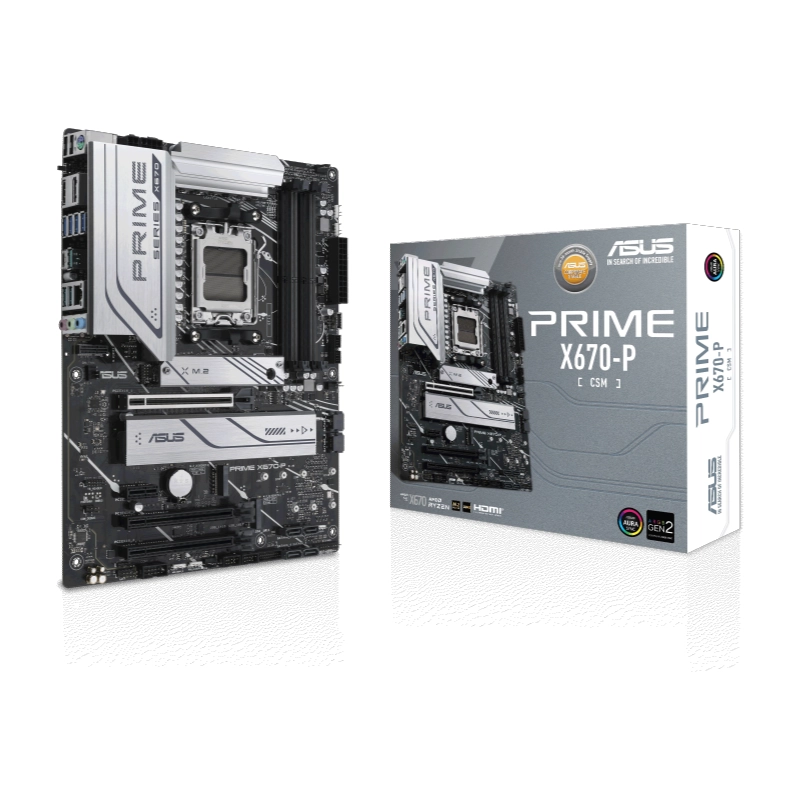

Asus Prime X670-P-CSM DDR5 AMD AM5 ATX Motherboard
₨ 85,000
12+2 DrMOS Power Stages (60A): Robust power delivery with enlarged VRM heatsinks ensures stable, reliable performance for high-core-count Ryzen 7000, 8000, and 9000 Series processors .
DDR5 Memory up to 6400+ MHz (OC): Four DIMM slots supporting up to 128GB of dual-channel DDR5 with AMD EXPO profiles and ASUS OptiMem II for enhanced memory stability and compatibility .
PCIe 5.0 M.2 Slot: One dedicated M.2 slot supports PCIe 5.0 x4 mode for ultra-fast NVMe SSDs, plus two additional PCIe 4.0 M.2 slots and six SATA 6Gb/s ports for extensive storage .
Corporate Stable Model (CSM): Designed for businesses with a guaranteed 36-month lifecycle, 6-month EOL notice, and included ASUS Control Center Express for server-grade IT management .
2.5Gb Ethernet & USB 3.2 Gen 2×2: Realtek 2.5Gb Ethernet for fast wired networking, plus front and rear USB 3.2 Gen 2×2 Type-C ports delivering up to 20Gbps transfer speeds
Available on backorder
| Overview | |
| Model | PRIME X670-P-CSM |
| CPU Support | AMD Socket AM5 – Ryzen 9000/8000/7000 Series |
| Chipset | AMD X670 |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| OS Support | Windows 11 / 10 64-bit |
| BIOS | 256 Mb UEFI AMI BIOS, EZ Flash, CrashFree BIOS |
| Memory | |
| Memory Support | 4x DIMM, DDR5 4800–7600+ (OC), Max 192 GB, ECC & Non-ECC, Dual Channel, AMD EXPO, OptiMem II |
| Graphics | |
| Graphics Output | 1x DisplayPort 1.4 (8K@60Hz), 1x HDMI 2.1 (4K@60Hz) |
| Expansion Slots | |
| PCIe Slots | 1x PCIe 4.0 x16 (CPU Dependent), 2x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1 |
| Storage | |
| Storage | 3x M.2 (PCIe 5.0/4.0), 6x SATA 6Gb/s, NVMe & SATA RAID Support |
| Networking | |
| Ethernet | Realtek 2.5Gb LAN |
| Wi-Fi Support | V-M.2 (Key E) Slot for Optional Module |
| USB | |
| Rear USB Ports | 1x USB 3.2 Gen 2×2 Type-C, 3x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 2x USB 2.0 |
| Front USB Headers | 1x USB 3.2 Gen 1 Type-C, 4x USB 3.2 Gen 1, 4x USB 2.0 |
| Audio | |
| Audio | Realtek 7.1 HD Audio, 24-bit/192kHz, Audio Shielding, Premium Capacitors |
| I/O & Cooling | |

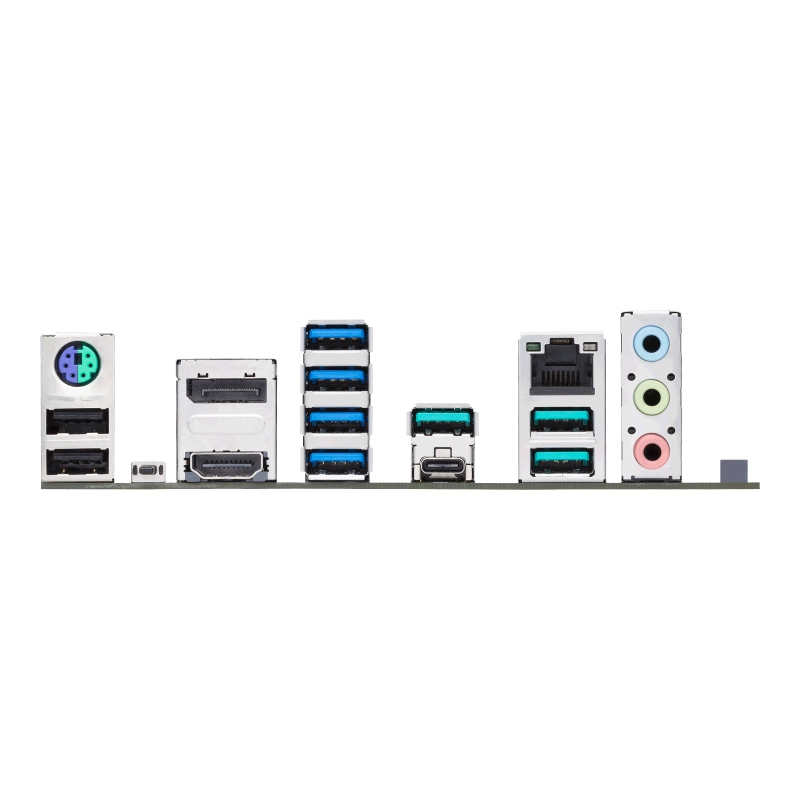

| Rear I/O Ports | DisplayPort, HDMI, USB Ports, Ethernet, Audio Jacks, PS/2, BIOS FlashBack |
| Cooling Headers | 1x CPU Fan, 1x CPU OPT, 1x AIO Pump, 3x Chassis Fan |
| Internal Connectors | |
| Internal Connectors | 3x M.2, 6x SATA, 2x RGB, 3x ARGB, USB Headers, TPM, COM, S/PDIF, Clear CMOS |
| Special Features | |
| Features | Q-Design, 5X Protection III, Aura Sync, M.2 Heatsink, BIOS FlashBack, AI Cooling II |
| Software | Armoury Crate, AI Suite 3, ASUS CPU-Z, Norton Trial, WinRAR |
| Warranty | |
| Warranty | 1 Years Manufacturer Warranty |
| Brand | Asus |
|---|
