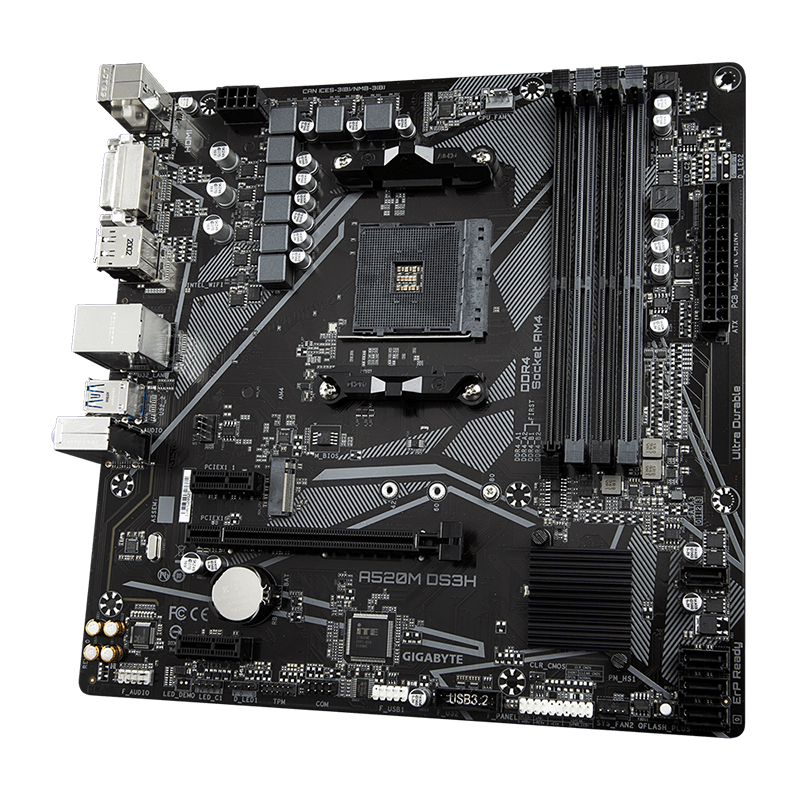

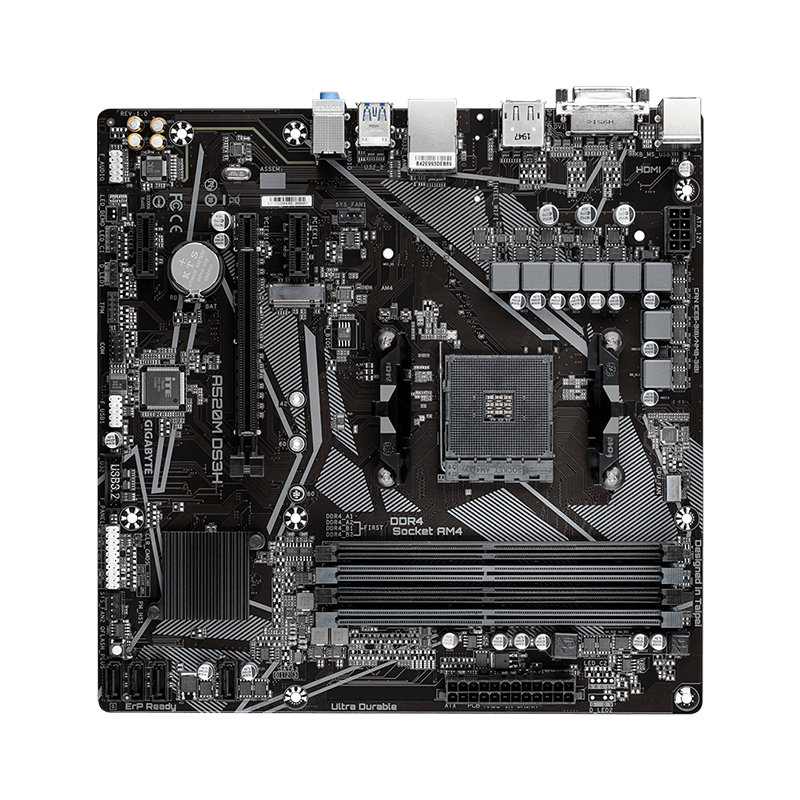

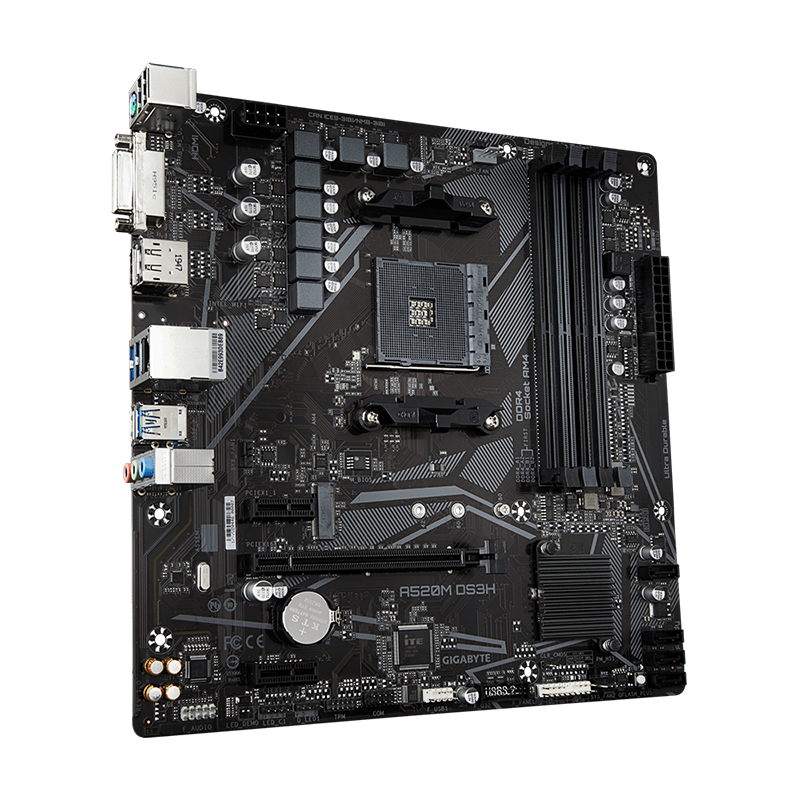

GIGABYTE A520M DS3H AM4 mATX Motherboard
₨ 26,999
- AMD A520 Chipset – AM4 Socket – Supports Ryzen 5000/5000 G/4000 G/3000 Series with dual-channel DDR4, 4 DIMMs up to 128GB, XMP support

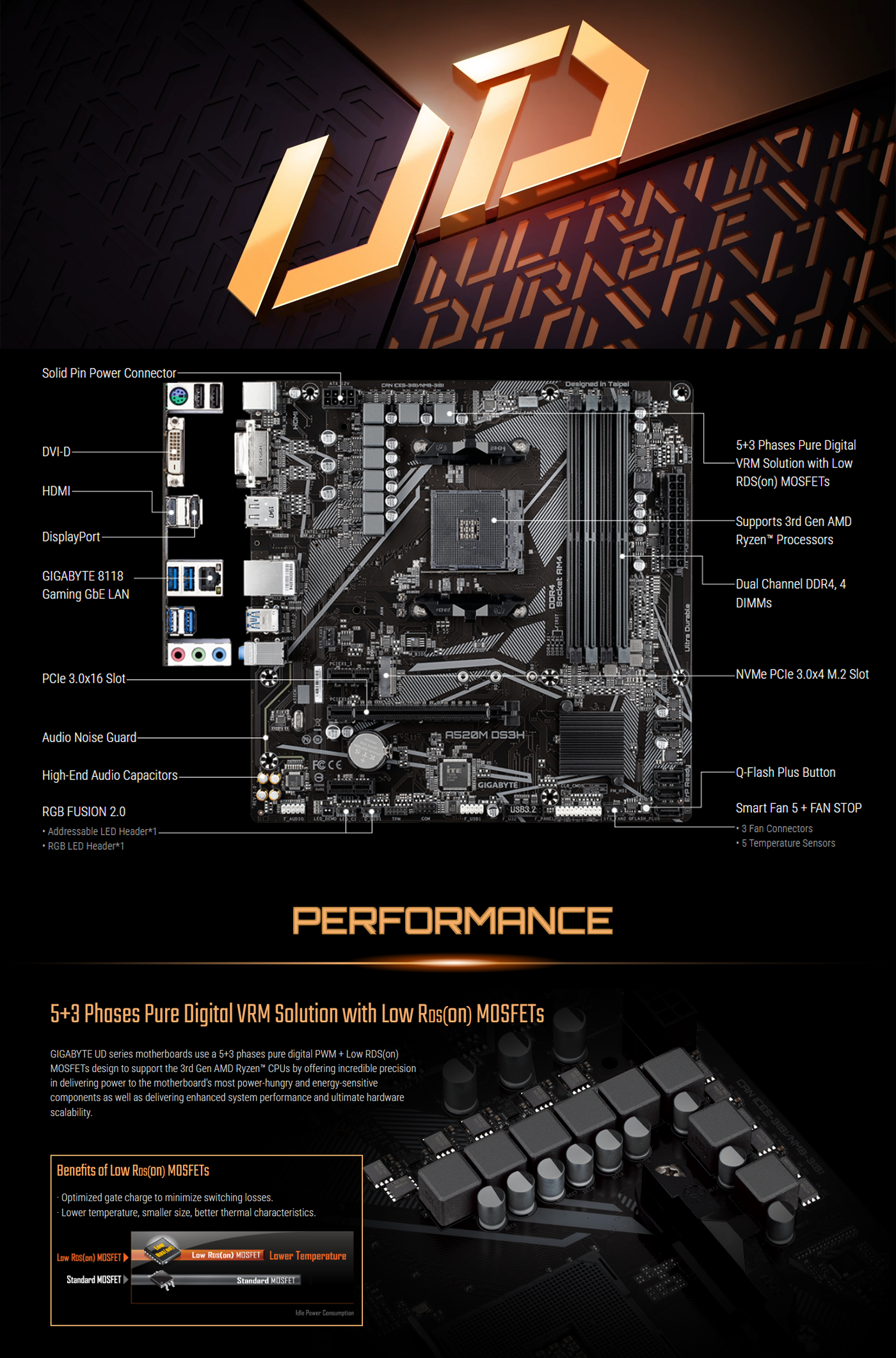

- 5+3 Phases Pure Digital VRM with Low RDS(on) MOSFETs – Precision power delivery for 3rd Gen Ryzen CPUs with enhanced system performance and hardware scalability
- PCIe 3.0 x4 M.2 Connector – NVMe PCIe Gen3 x4 M.2 (2242/2260/2280) with SATA mode plus 4x SATA 6Gb/s with RAID 0, 1, 10
- Triple Display Output – HDMI 2.1 + DisplayPort 1.4 + DVI-D – Supports up to 3 simultaneous displays with 4K 60Hz on HDMI and 5K on DisplayPort
- RGB FUSION 2.0 + Smart Fan 5 + Q-Flash Plus – Addressable LED & RGB LED strip support, hybrid fan headers with FAN STOP, BIOS update without CPU/Memory/GPU
| Overview | |
| Product Name | GIGABYTE A520M DS3H AM4 mATX Motherboard |
| Brand | GIGABYTE |
| Series | Ultra Durable Series |
| Model | A520M DS3H |
| Form Factor | Micro ATX (24.4 x 24.4 cm) |
| Operating System | Windows 11 64-bit | Windows 10 64-bit |
| Condition | New |
| CPU & Chipset | |
| Socket | AMD Socket AM4 |
| Chipset | AMD A520 |
| CPU Support | Ryzen 5000 / 5000 G / 4000 G / 3000 / 3000 G Series |
| VRM | 5+3 Phases Pure Digital VRM with Low RDS(on) MOSFETs |
| Memory | |
| Memory Slots | 4 x DDR4 DIMM (Dual-Channel) |
| Max Capacity | 128 GB (32 GB Single DIMM) |
| Memory Support | DDR4 4733(OC) – 2133 MHz | ECC/Non-ECC | XMP Support |
| Onboard Graphics | |
| HDMI | 1 x HDMI 2.1 – 4K @ 60Hz with HDCP 2.3 and HDR |
| DisplayPort | 1 x DisplayPort 1.4 – 5K @ 60Hz with HDCP 2.3 and HDR |
| DVI-D | 1 x DVI-D – 1920×1200 @ 60Hz |
| Max Simultaneous Displays | Up to 3 |
| Max Shared Memory | 16 GB |
| Expansion Slots | |
| PCIe x16 Slot | 1 x PCIe 3.0 x16 (CPU) |
| PCIe x1 Slots | 2 x PCIe 3.0 x1 (Chipset) |
| Storage | |
| M.2 Connector | 1 x M.2 (2242/2260/2280) – PCIe 3.0 x4 / SATA Mode |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 10 |
| LAN & Audio | |
| LAN | Realtek GbE LAN with Bandwidth Management |
| Audio | Realtek Audio CODEC – 8-Channel HD Audio (2/4/5.1/7.1) |
| Audio Features | High-End Audio Capacitors | Audio Noise Guard |
| USB Ports | |
| Rear USB | 4 x USB 3.2 Gen 1 | 2 x USB 2.0/1.1 |
| Internal USB | 2 x USB 3.2 Gen 1 Header | 2 x USB 2.0/1.1 Header |
| Back Panel Connectors | |

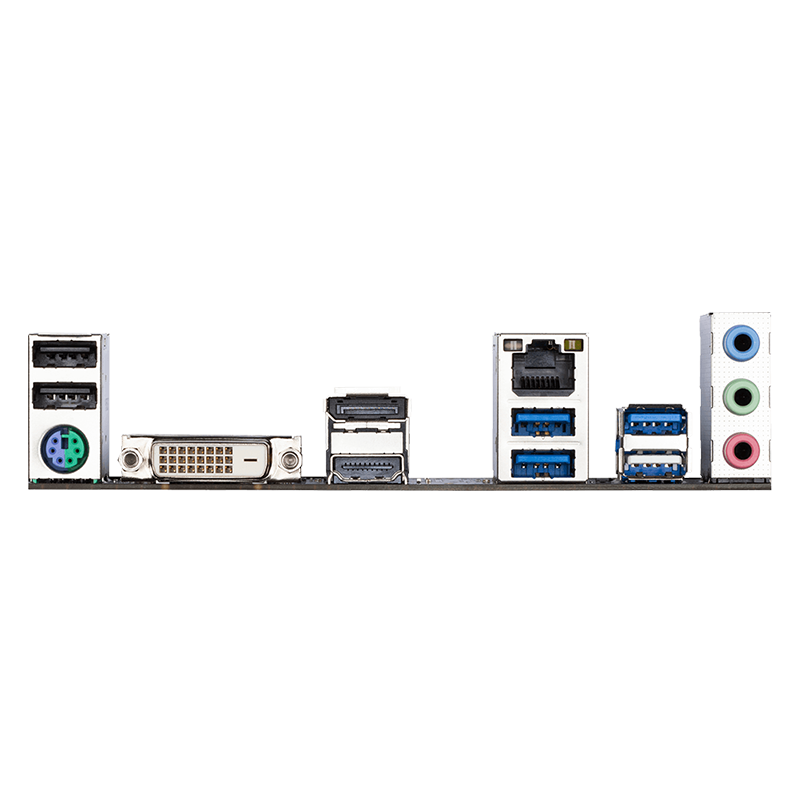

| Back Panel Ports | 1 x PS/2 KB/Mouse | 1 x DVI-D | 1 x DisplayPort | 1 x HDMI | 4 x USB 3.2 Gen 1 | 2 x USB 2.0 | 1 x RJ-45 | 3 x Audio Jacks |
| Special Features | |
| RGB | RGB FUSION 2.0 – Addressable LED & RGB LED Strip Headers |

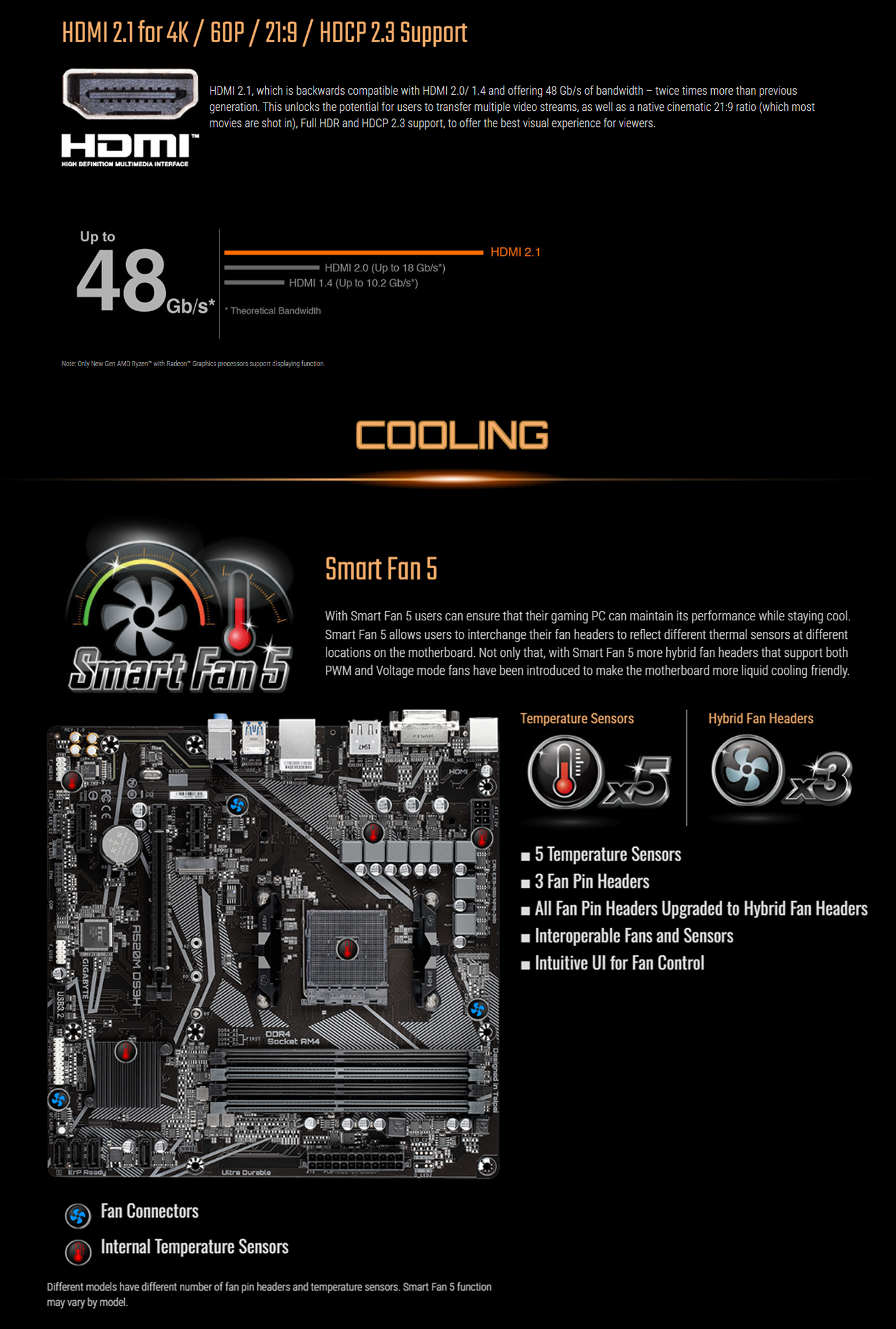

| Smart Fan 5 | Multiple Temperature Sensors | Hybrid Fan Headers (2A/12V @ 24W) | FAN STOP |
| Q-Flash Plus | Yes – Update BIOS Without CPU, Memory, and Graphics Card |
| BIOS | 128 Mbit Flash | UEFI AMI BIOS | Q-Flash |
| Software | APP Center | @BIOS | EasyTune | RGB Fusion | Smart Backup | System Information Viewer |
| In The Box | |
| Package Contents | GIGABYTE A520M DS3H Motherboard | I/O Shield | SATA Cables | User Documentation |
