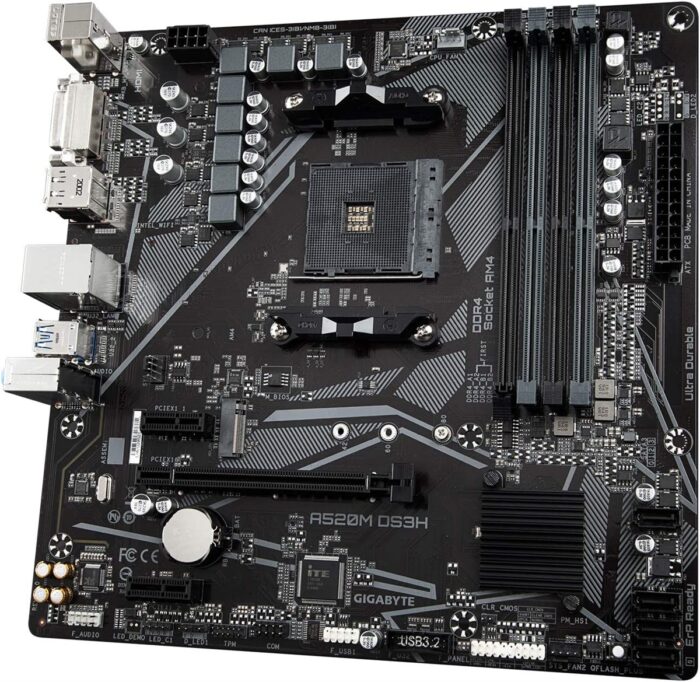

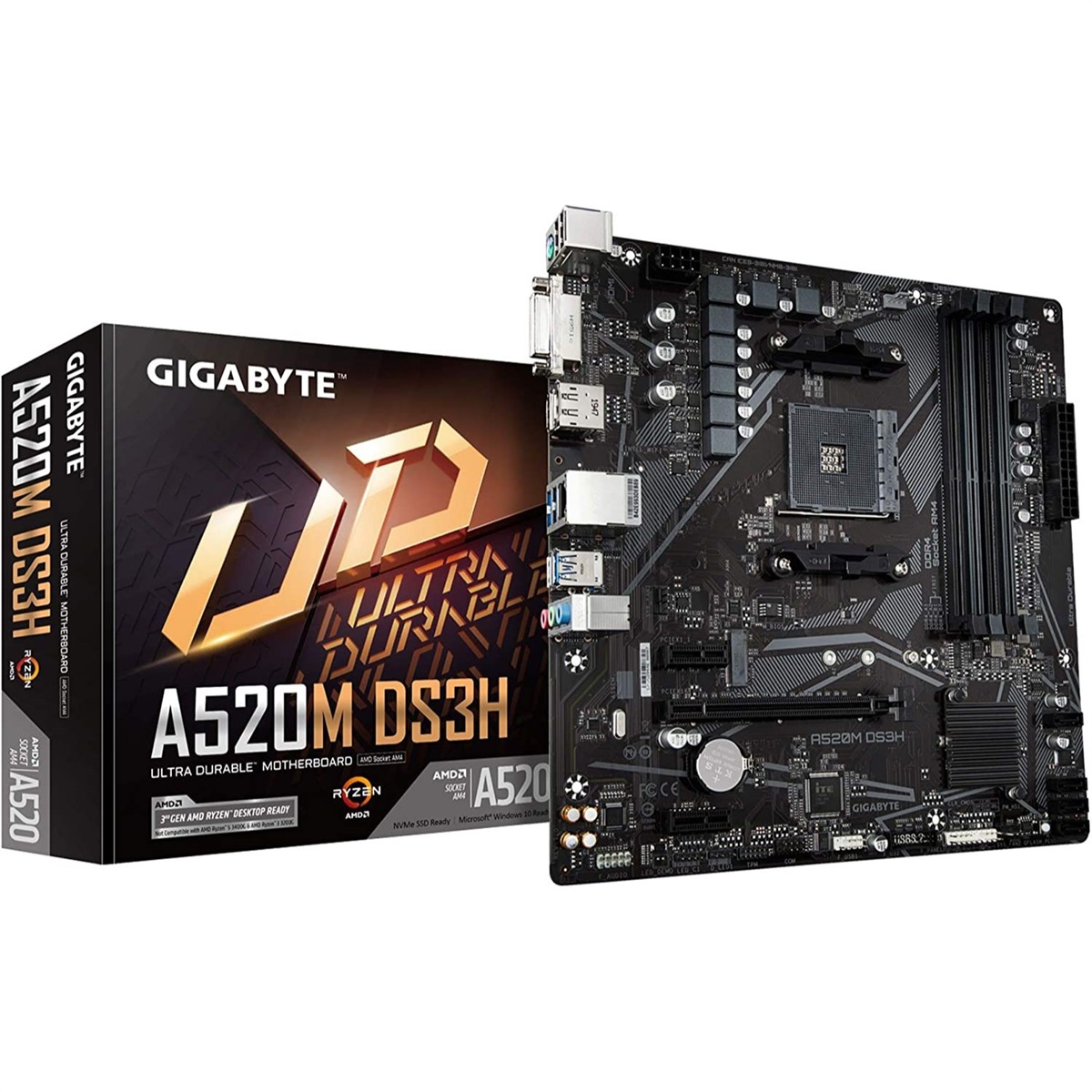

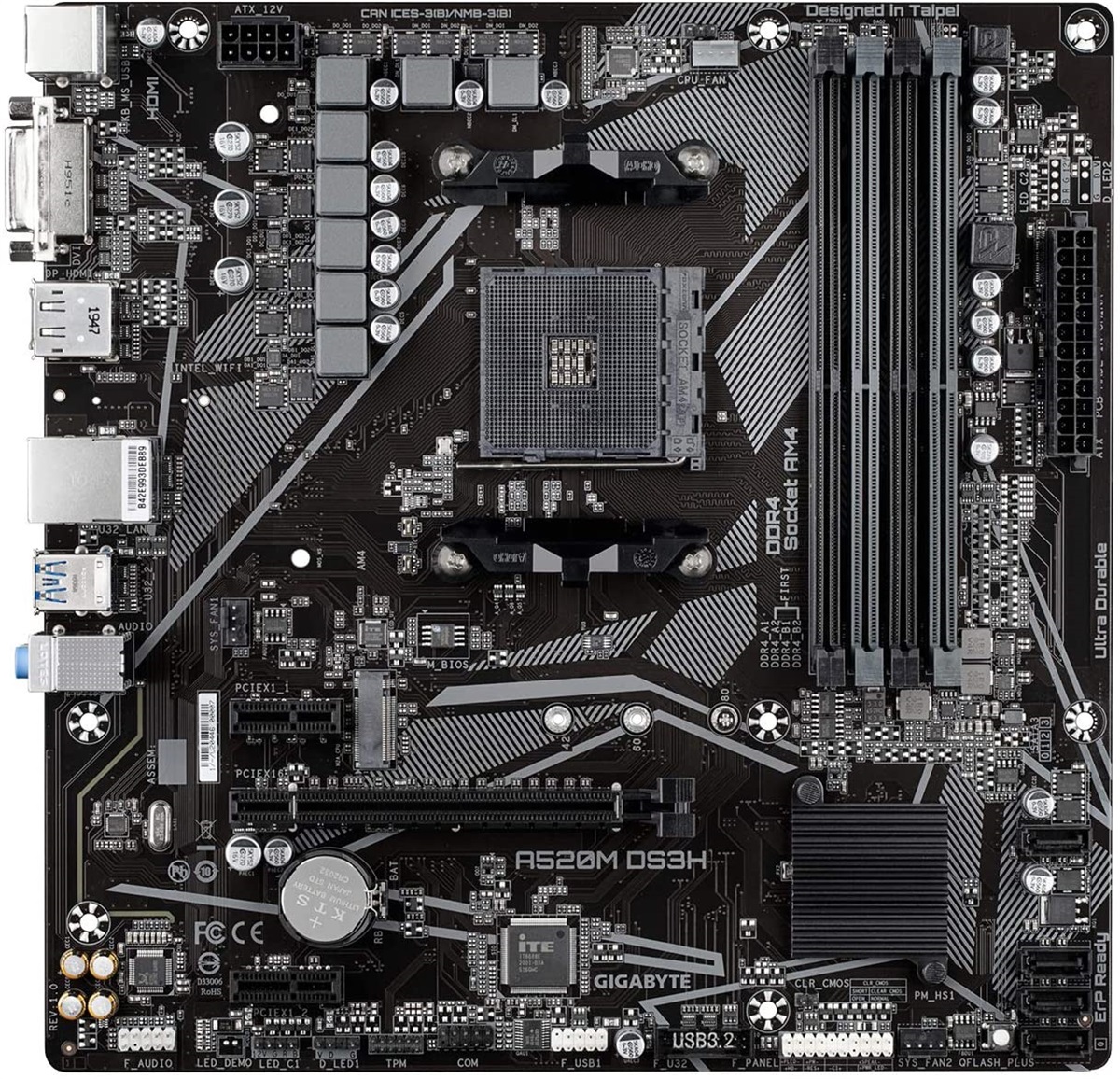

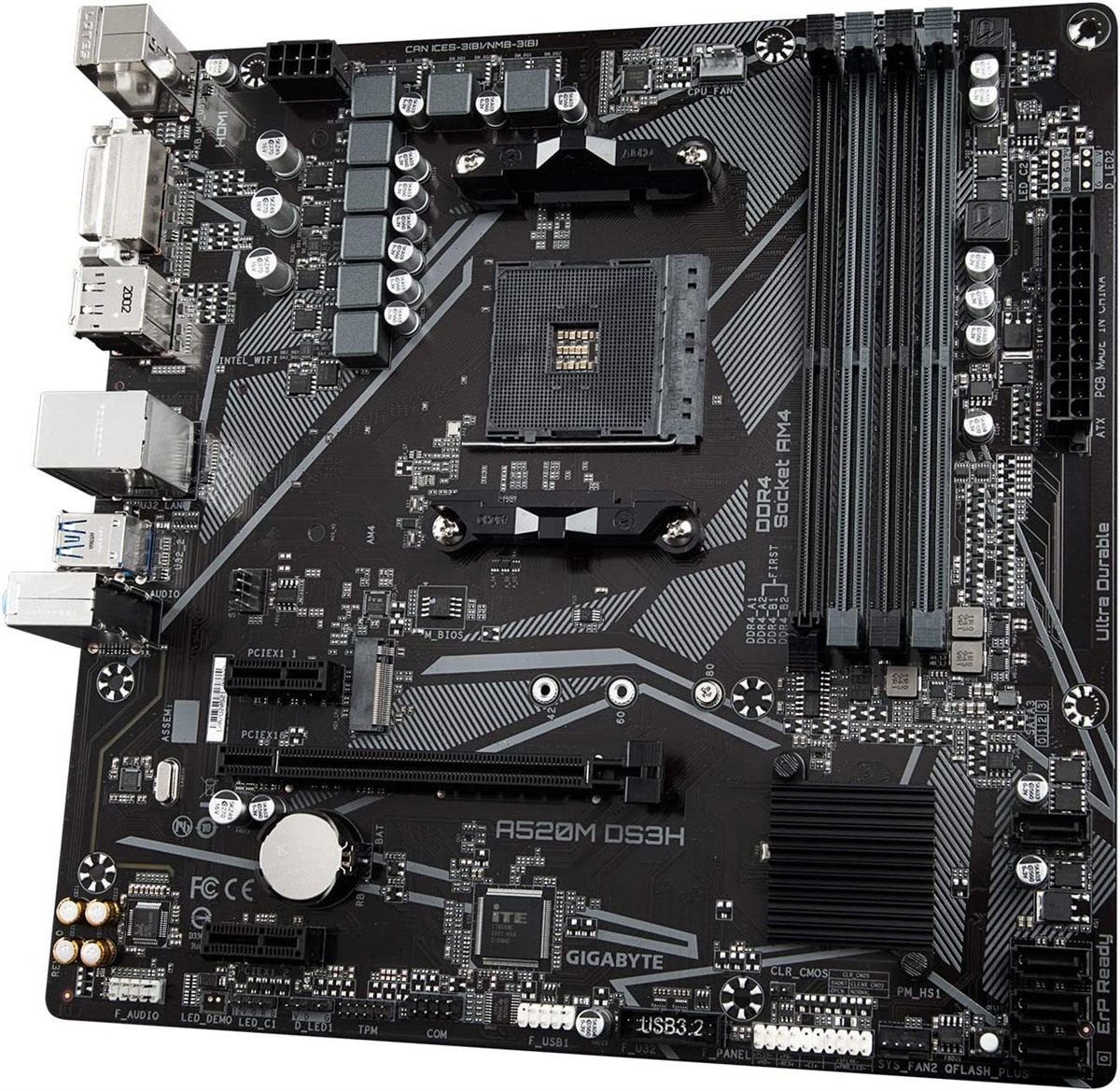

Gigabyte A520M Motherboard – AMD AM4, Micro ATX
₨ 25,000
Wide CPU Compatibility: Supports a broad range of AMD Ryzen™ processors including the latest 5000 series.
High-Speed Memory: Up to 128GB DDR4 RAM, with speeds up to 4733 MHz (O.C.), dual-channel, ECC & XMP ready.
Triple Display Support: Integrated GPU supports DisplayPort 1.4, HDMI 2.1, and DVI-D with 16GB shared memory and 4K+ resolutions.
Modern Connectivity: Includes USB 3.2 Gen 1, M.2 NVMe/SATA support, and Realtek Gigabit LAN for fast data and internet access.
Audio & Aesthetics: 7.1-channel HD audio and RGB/ARGB headers for vibrant lighting customization.
Feature-Rich BIOS: Q-Flash Plus and Smart Backup ensure smooth updates and system recovery.
Compact Form Factor: Micro ATX board ideal for space-saving builds without sacrificing performance.
Gigabyte A520M Motherboard – AMD AM4, Micro ATX Specifications Price in Pakistan
| Category | Details |
|---|---|
| CPU Support | AMD Socket AM4 – Ryzen™ 5000/4000/3000 & G-Series |
| Chipset | AMD A520 |
| Memory | 4× DDR4 DIMM, up to 128GB, DDR4 2133–4733 MHz (O.C.); ECC/Non-ECC, XMP supported |
| Graphics Outputs | 1× DVI-D (1920×1200@60Hz)1× DisplayPort 1.4 (5120×2880@60Hz)1× HDMI 2.1 (4096×2160@60Hz)Up to 3 displays, 16GB shared memory |
| Audio | Realtek® Codec, 7.1-channel HD Audio |
| LAN | Realtek® GbE LAN (1Gbps) |
| Expansion Slots | 1× PCIe 3.0 x162× PCIe 3.0 x1 |
| Storage | 1× M.2 (PCIe 3.0 x4/x2 & SATA)4× SATA 6Gb/sRAID 0/1/10 |
| USB Ports | 6× USB 3.2 Gen 1 (4 rear, 2 internal)4× USB 2.0 (2 rear, 2 internal) |
| Internal Headers | RGB/ARGB headers, TPM, Serial, Fan (CPU/System), Front Panel/Audio |

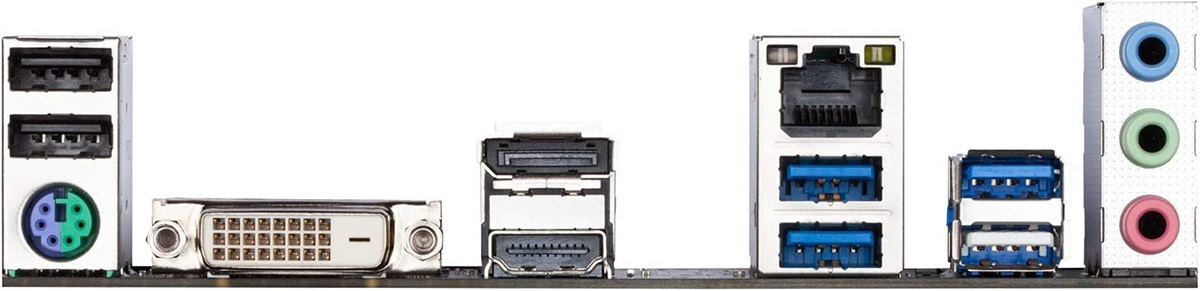

| Back Panel I/O | 1× PS/2, 1× DVI-D, 1× DP, 1× HDMI, 4× USB 3.2, 2× USB 2.0, LAN, Audio jacks |
| Monitoring | Voltage/Temp/Fan detection, Warnings, Speed Control |
| BIOS | AMI UEFI, 128Mbit flash, Q-Flash Plus |
| Unique Features | RGB Fusion, EasyTune, Smart Backup, System Info Viewer, APP Center |
| Software | Norton Internet Security OEM, LAN Management Software |
| OS Support | Windows 11 & 10 (64-bit) |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
| Brand | Gigabyte |
|---|
