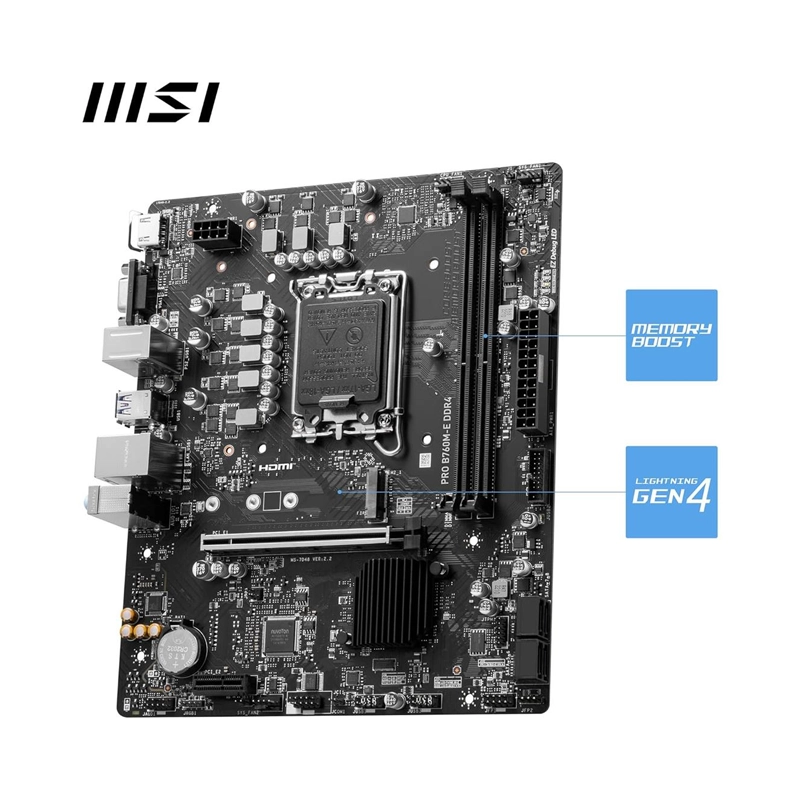

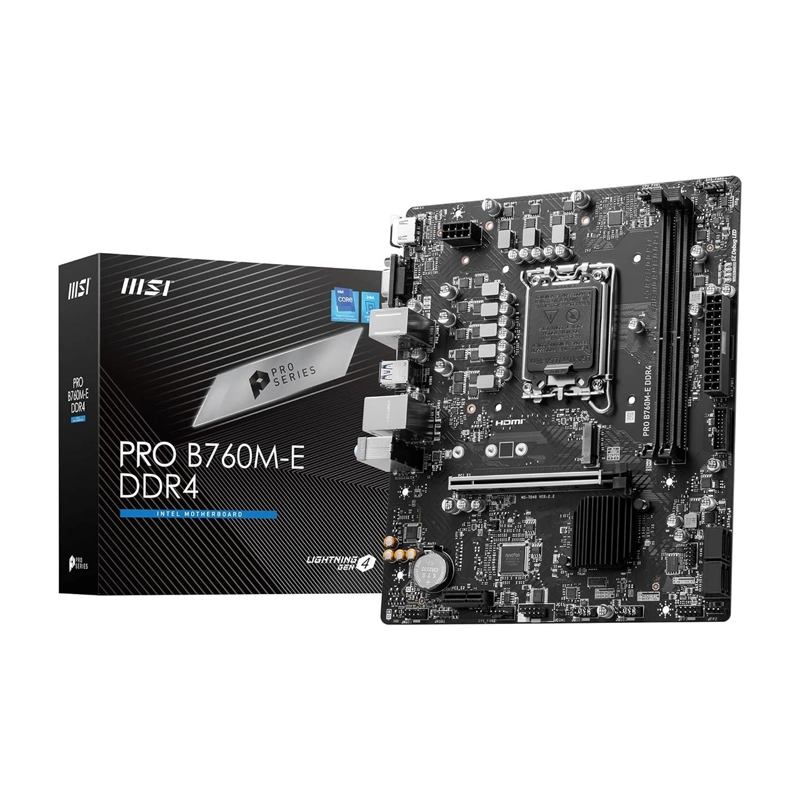

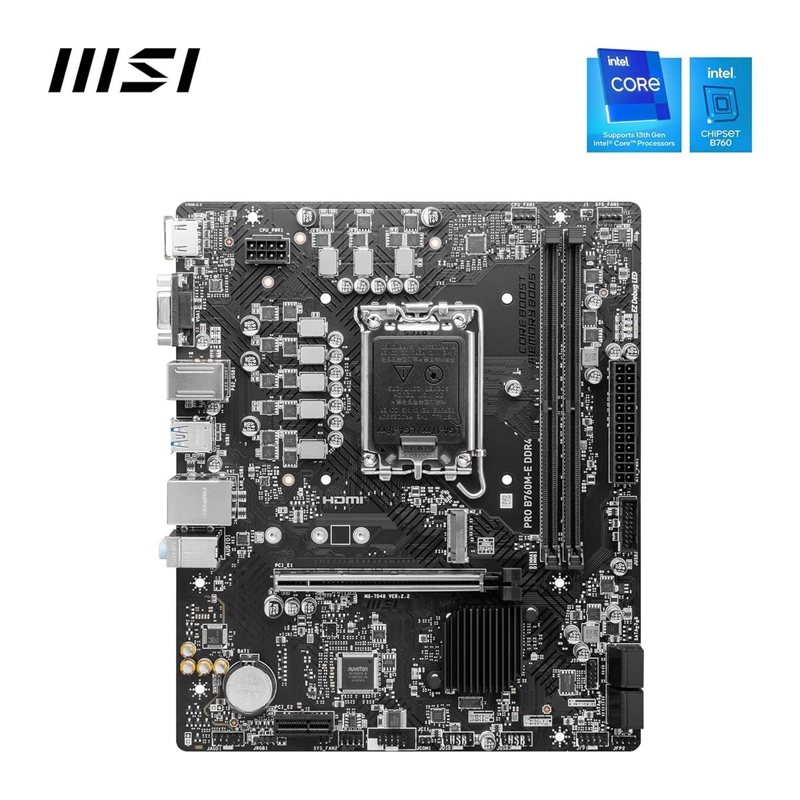

MSI PRO B760M-E DDR4 Intel LGA 1700 Micro-ATX Motherboard
₨ 29,499
Supports Intel 14th/13th/12th Gen CPUs – LGA 1700 socket with the Intel B760 chipset and Core Boost technology provides stable and reliable power for the latest processors .
DDR4 Memory up to 4800+ MHz (OC) – Two DIMM slots supporting up to 64GB of dual-channel DDR4 RAM with Intel XMP profiles for easy performance tuning .
Lightning Gen4 M.2 & PCIe 4.0 – Equipped with a PCIe 4.0 x16 slot featuring Steel Armor for heavy GPU support and a dedicated Gen4 x4 M.2 slot for ultra-fast NVMe SSDs .
Studio-Grade Audio & EZ Debug LED – Features 7.1-Channel HD Audio with Audio Boost for immersive sound and onboard diagnostic LEDs for quick and easy troubleshooting .
Gigabit LAN & Stable Connectivity – The Realtek RTL8111H Gigabit LAN controller delivers a dependable and responsive wired network connection for everyday productivity
| Overview | |
| Chipset | Intel B760 |
| CPU Support | Intel Core 14th/13th/12th Gen, Pentium Gold & Celeron Processors |
| Socket | LGA 1700 |
| Form Factor | mATX (200 mm x 236.16 mm) |
| OS Support | Windows 11 / 10 64-bit |
| Memory | |
| Memory | 2x DDR4 DIMM, Up to 64 GB |
| Memory Speeds | Up to 4800+ MHz (OC); JEDEC Up to 3200 MHz |
| Memory Features | Dual Channel, Non-ECC, Un-Buffered, XMP Support |
| Onboard Graphics | |
| Video Outputs | 1x HDMI 1.4 (4K@30Hz), 1x VGA (Up to 2048×1536@50Hz) |
| Expansion Slots | |
| PCIe Slots | 1x PCI-E x16 (Gen 4.0), 1x PCI-E x1 (Gen 3.0) |
| Audio | |
| Audio | Realtek ALC897, 7.1-Channel HD |
| Storage | |
| Storage | 1x M.2 (PCIe 4.0 x4 / SATA), 4x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |
| USB | |
| USB Ports | 8x USB 2.0 (4 Rear, 4 Front), 4x USB 5Gbps Type-A (2 Rear, 2 Front) |
| LAN | |
| LAN | Realtek RTL8111H Gigabit LAN |
| Internal I/O & Debug | |
| Internal I/O | ATX_PWR, CPU_PWR, CPU Fan, 2x System Fan, Front Panel, Audio, RGB LED, TPM Header, COM, USB Headers |
| Debug Features | 4x EZ Debug LEDs |
| Back Panel Ports | |

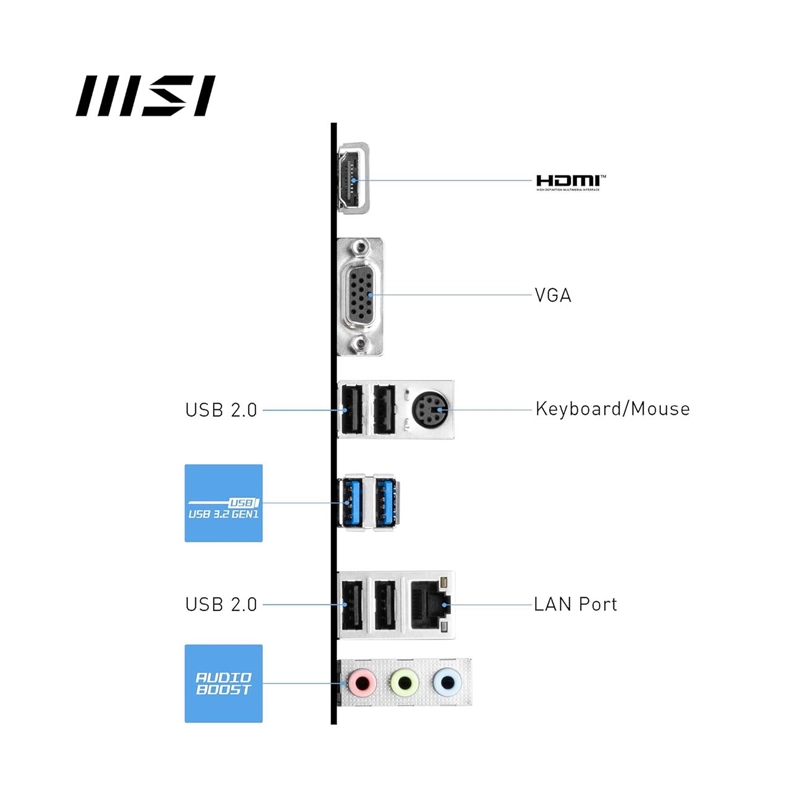

| Back Panel Ports | HDMI, VGA, LAN, Audio, 4x USB (2x 3.2 Gen 1, 2x 2.0), PS/2 Keyboard/Mouse |
| Box Contents | |
| In the Box | Motherboard, User Manual, Driver CD, SATA Cables (Dependent on Packaging) |
| Brand | MSI |
|---|
Brand
MSI
