IGABYTE B550M K AMD AM4 Micro-ATX Motherboard:

GIGABYTE B550M DS3H AC R2 AM4 Micro-ATX Motherboard - Image 2

Click to enlarge

GIGABYTE B550M DS3H AC R2 AM4 Micro-ATX Motherboard

Name: GIGABYTE B550M DS3H AC R2 AM4 Micro-ATX Motherboard
SKU: 45645
Price: 31999 PKR
Availability: InStock

₨ 31,999

Digital 5+3 Phases VRM & AM4 Socket – Ryzen 5000 Ready

Supports AMD Ryzen 5000, 4000 & 3000 Series processors with VRM Thermal Armor Advanced for stable power and efficient cooling.

PCIe UD Slot – PCIe 4.0 x16 with 10X Strength

Reinforced graphics slot delivers better heat dissipation and durability for heavy GPUs. Dual M.2 slots including PCIe 4.0 x1.

Dual Channel DDR4 – 4 DIMMs with EZ-Latch

Four DDR4 slots for high-capacity memory. PCIe EZ-Latch with quick release design for effortless graphics card upgrades.

Wi-Fi 5, GbE LAN, HDMI & DisplayPort

WIFI EZ-Plug for quick antenna installation, GbE LAN for fast networking, plus HDMI and DisplayPort for flexible display output.

Compare

Add to wishlist

Chat with us to Confirm Availability & Updated Price

Categories: AMD Motherboards, Motherboards Tags: Best B550M Price Pakistan, Buy GIGABYTE B550M DS3H AC R2 Motherboard Pakistan, GIGABYTE AMD B550 Motherboard, GIGABYTE B550M DS3H AC AM4, GIGABYTE B550M DS3H AC R2 Price in Pakistan, GIGABYTE B550M DS3H AC R2 Price Karachi Lahore Islamabad, GIGABYTE B550M DS3H WiFi, GIGABYTE EZ-Latch, GIGABYTE PCIe 4.0 Motherboard, GIGABYTE PCIe UD Slot, GIGABYTE VRM Thermal Armor, Woocommerce Motherboard Product Tags SEO

Description

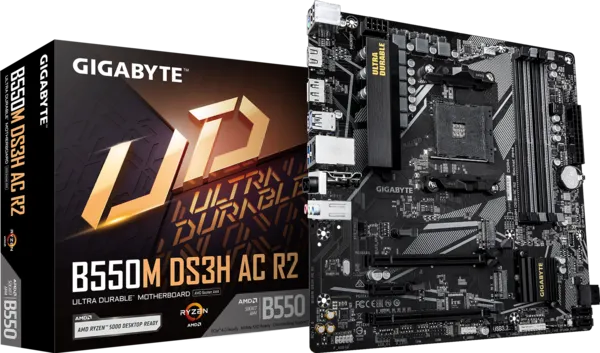

B550M DS3H AC R2

AMD B550 · DDR4 · Wi-Fi 5 · GbE LAN · M.2 PCIe 4.0 · Smart Fan 6

▸ AMD Socket AM4：Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
▸ Digital 5+3 phases VRM solution
▸ Dual Channel DDR4：4*DIMMs

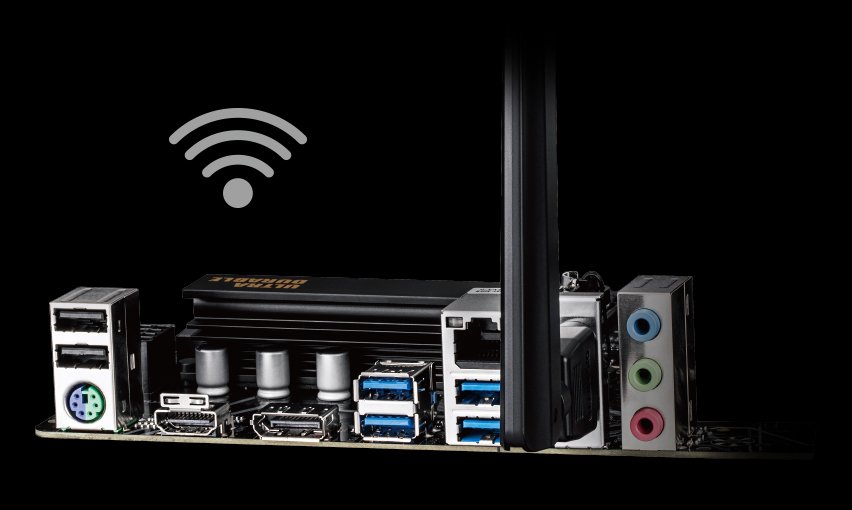

▸ WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation
▸ Ultra-Fast Storage：2*M.2 slots, including PCIe 4.0 x1
▸ Fast Networking：GbE LAN & Wi-Fi 5
▸ Extended Connectivity：HDMI, Displayport
▸ PCIe UD Slot：PCIe 4.0 x16 slots with 10X strength

AMD StoreMI Technology

AMD StoreMI

GIGABYTE B550 motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive.

PERFORMANCE

Divider

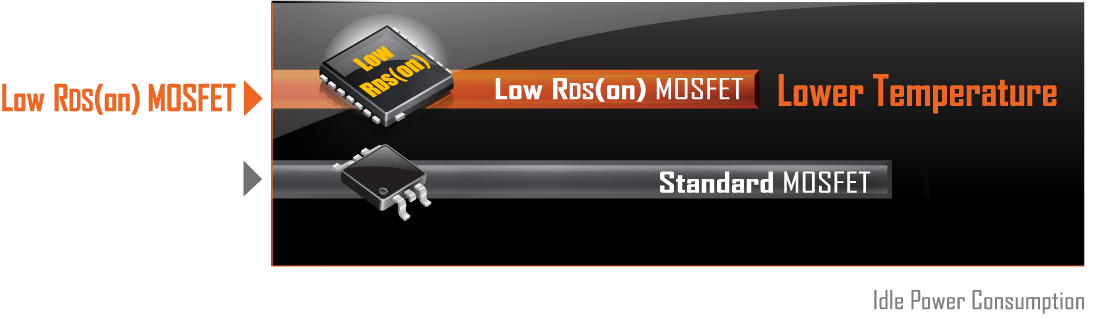

5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UD series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power.

VRM Table

CONNECTIVITY

Divider

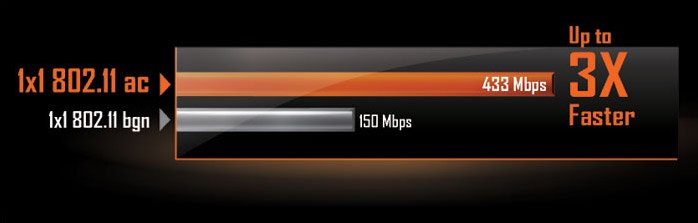

802.11ac WIFI + BT 4.2

The onboard 802.11ac WIFI module supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also supports BLUETOOTH 4.2.

Antenna

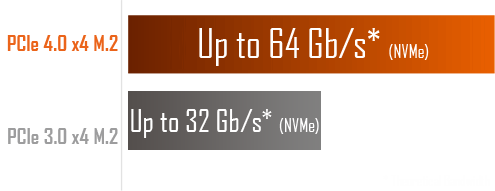

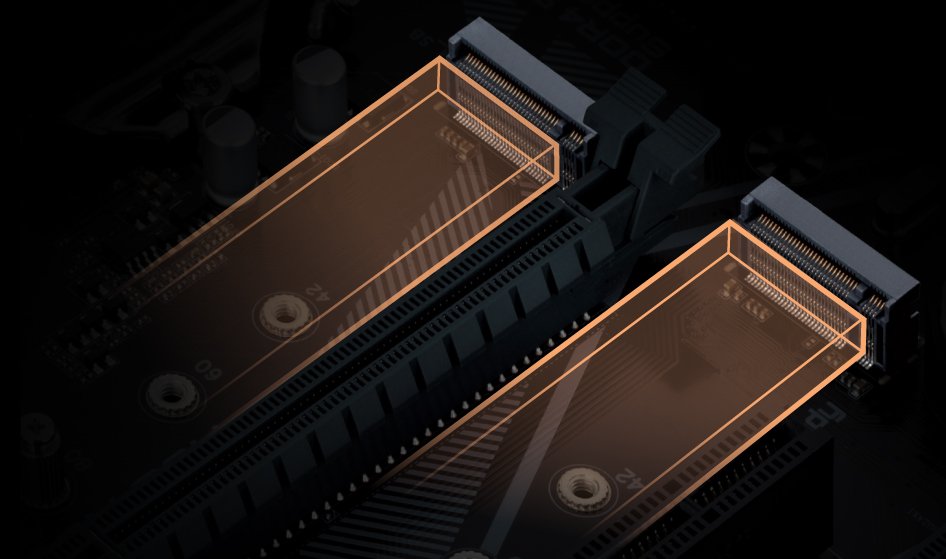

Dual NVMe PCIe 4.0*/3.0 M.2 Connectors

With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices.

M.2 Table

Realtek GbE LAN with Bandwidth Management

Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times.

LAN

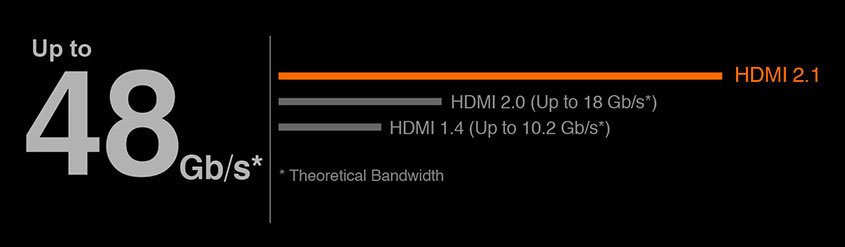

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI Port

HDMI 2.1, which is backwards compatible with HDMI 2.0/1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation.

HDMI

COOLING

Divider

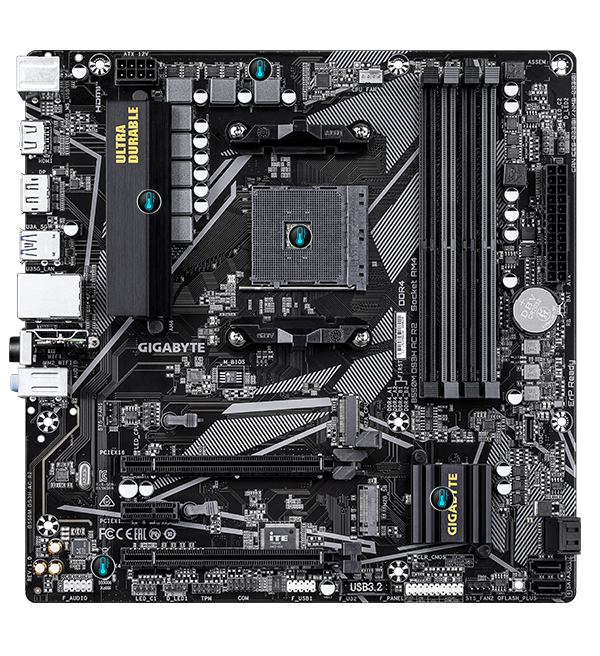

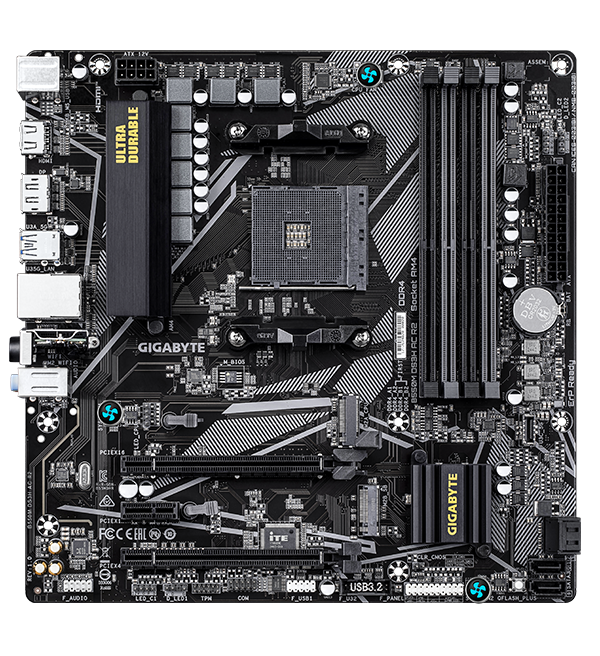

SMART FAN 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintains its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump.

Smart Fan 6 Detail

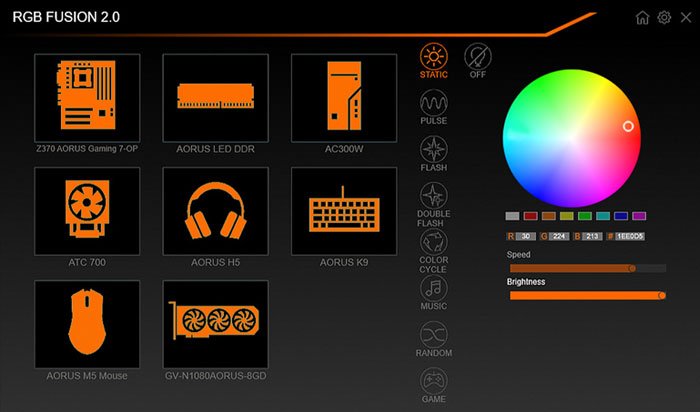

RGB Fusion 2.0 Software

RGB Fusion

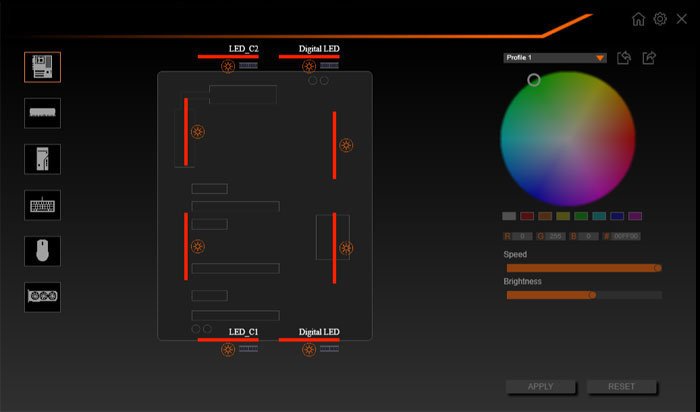

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices.

RGB Sync

Sync with one click

RGB Individual

Individual control as you wish

DOWNLOAD RGB FUSION

AUDIO

Divider Audio Guard

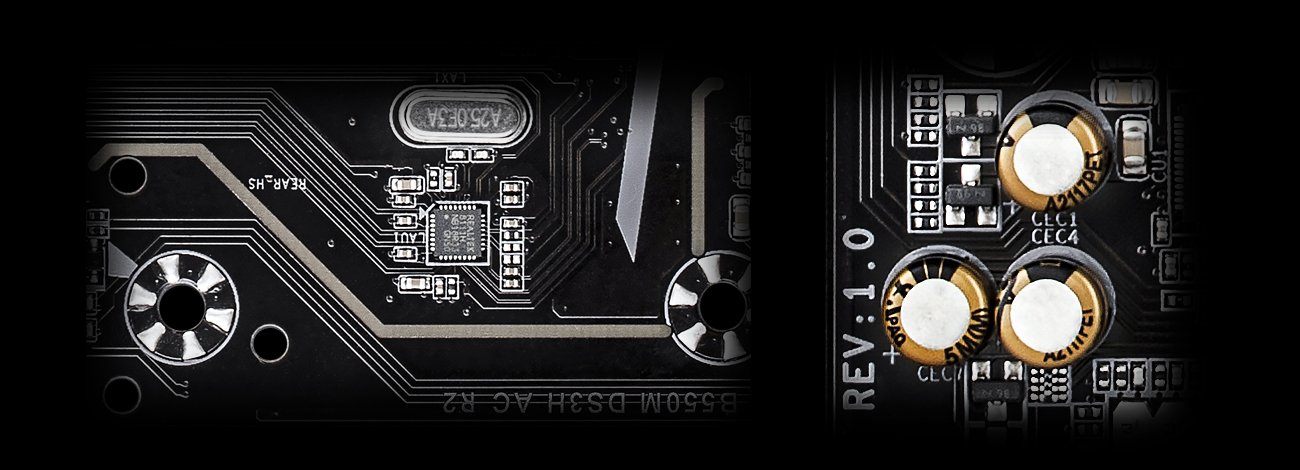

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors for high resolution and high fidelity audio.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that separates sensitive analog audio components from noise pollution.

ULTRA DURABLE

Divider

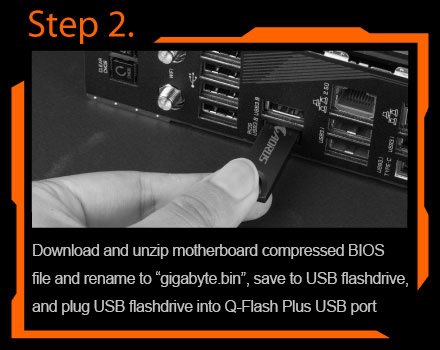

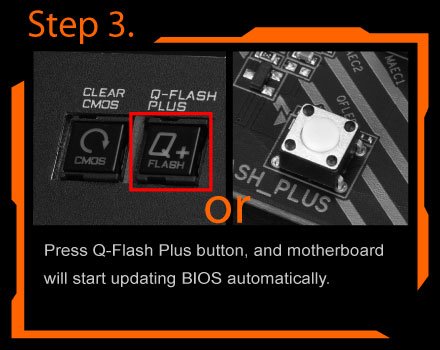

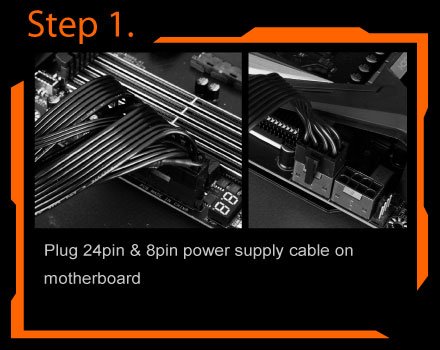

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.

Q-Flash Plus

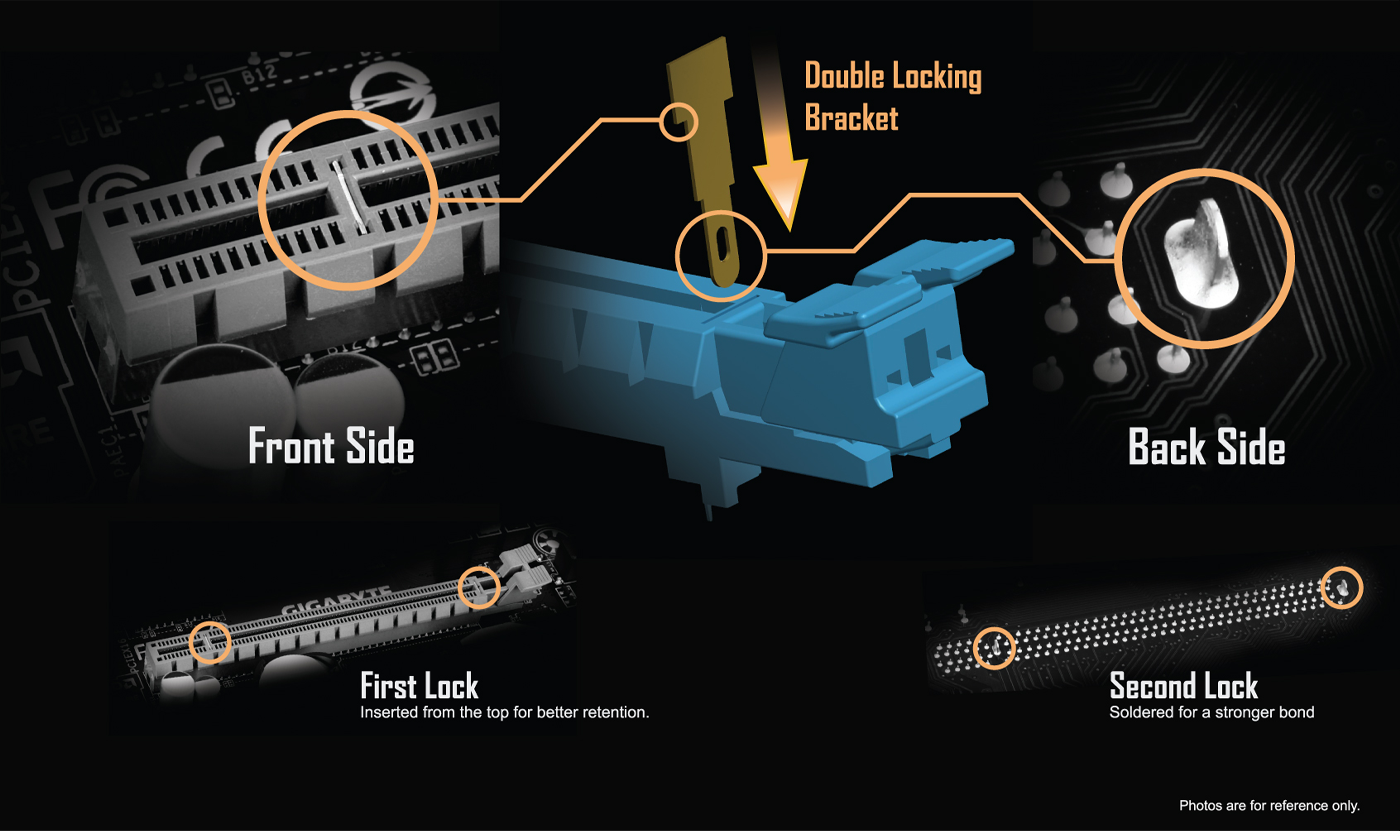

GIGABYTE Patented Double Locking Bracket

Double Locking Bracket

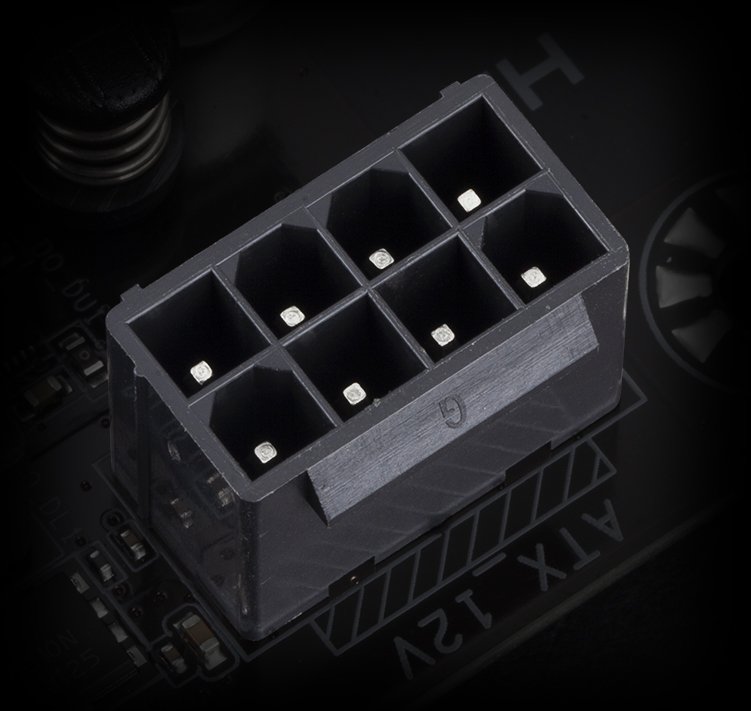

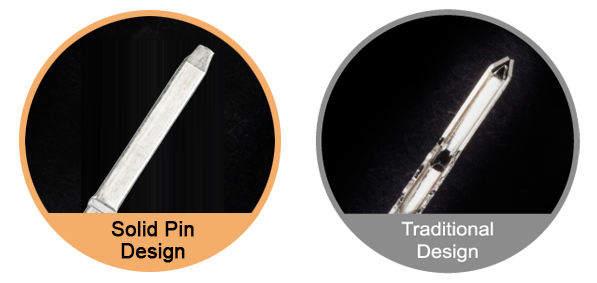

Solid Pin Power Connectors

B550 motherboards feature solid plated ATX 12V 8pin power connectors for stable power supply while CPU overloading.

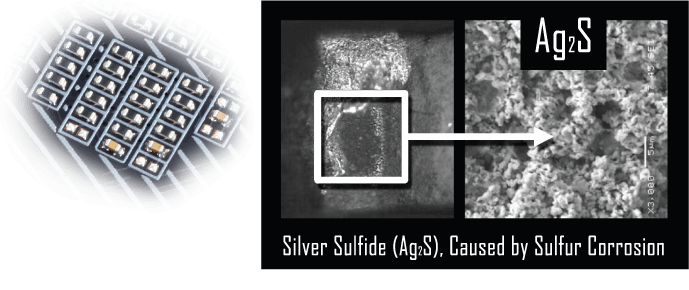

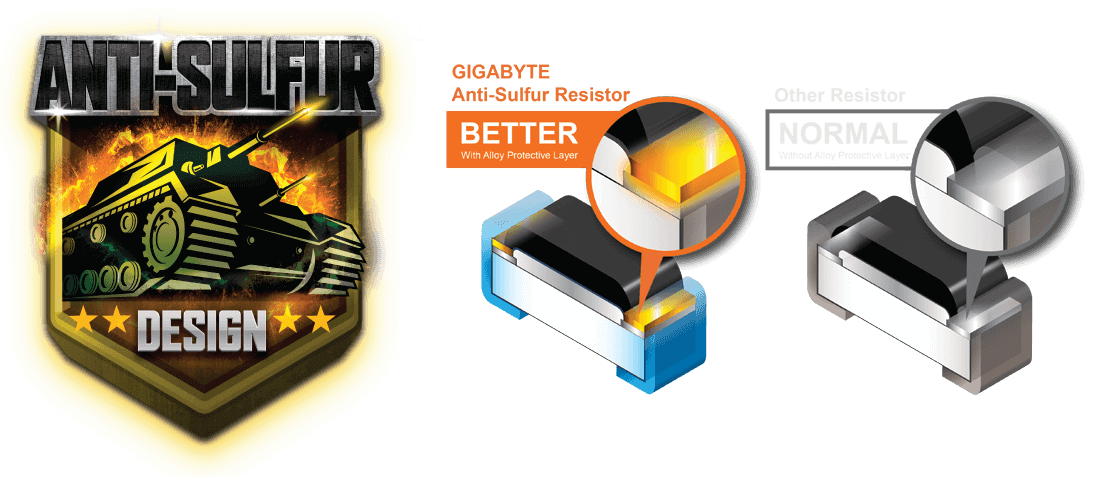

Anti-Sulfur Protection

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Anti-Sulfur 2
Anti-Sulfur 3

GIGABYTE EXCELLENCE

Divider

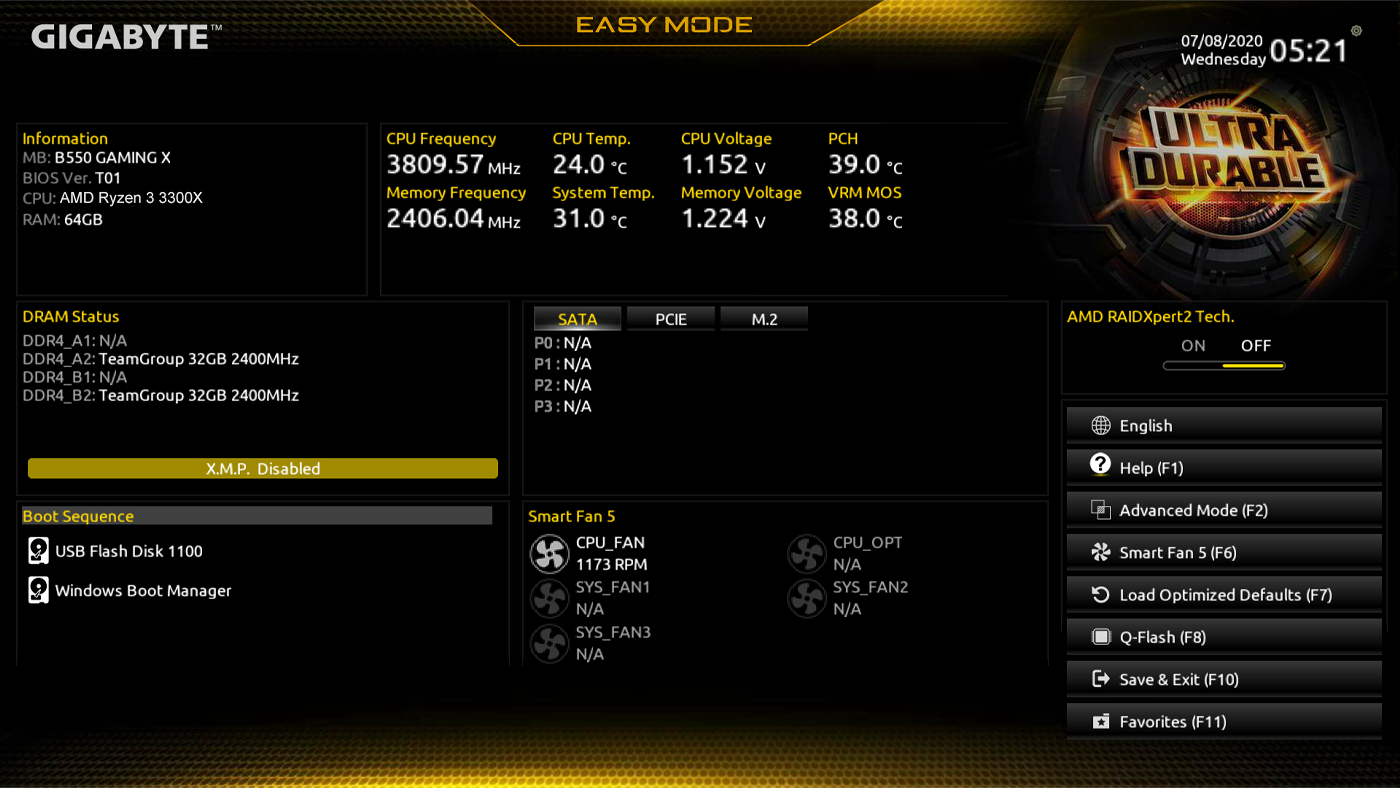

Refreshed BIOS

The BIOS is essential for users during initial setup. With a new GUI and easier to use functionalities, GIGABYTE has reinvented the BIOS.

BIOS

Product Specifications

CPU, Chipset & Memory▾

CPU: AMD Socket AM4 — Ryzen™ 5000 / 4000 / 3000 Series
Chipset: AMD B550
Memory: DDR4 up to 4733(O.C.) MT/s, 4 x DIMM up to 128GB, Dual Channel, XMP

Graphics, Audio & Network▾

Graphics: 1 x DisplayPort 1.4, 1 x HDMI 2.1
Audio: Realtek® ALC1220 CODEC, 2/4/5.1/7.1-ch
LAN: Realtek® GbE LAN
Wi-Fi: Realtek® RTL8821CE 802.11ac + BT 5.0

Expansion, Storage & USB▾

PCIe: 1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 3.0 x1
M.2: 1 x PCIe 4.0 x4 (CPU), 1 x PCIe 3.0 x2 (Chipset)
SATA: 4 x SATA 6Gb/s, RAID 0/1/10
USB: 4 x USB 3.2 Gen 1 (rear), 1 x USB-C® 3.2 Gen 1, 2 x USB 3.2 Gen 1 (internal), 4 x USB 2.0/1.1

BIOS, Features & Form Factor▾

BIOS: 128 Mbit AMI UEFI BIOS
Features: APP Center, Q-Flash Plus, Q-Flash
Bundled: Norton® Internet Security, LAN bandwidth manager
OS: Windows 11/10 64-bit
Form Factor: Micro ATX — 24.4cm x 24.4cm

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* Product specifications and product appearance may differ from country to country.
* Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
