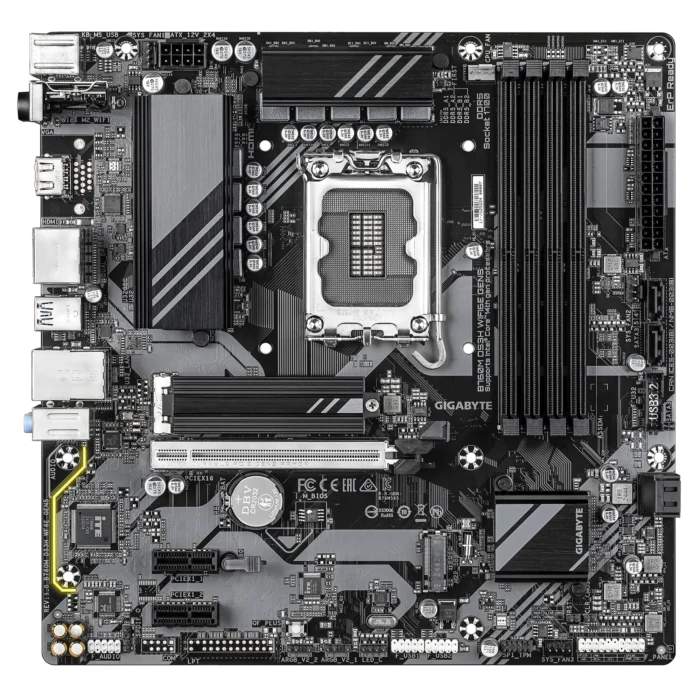

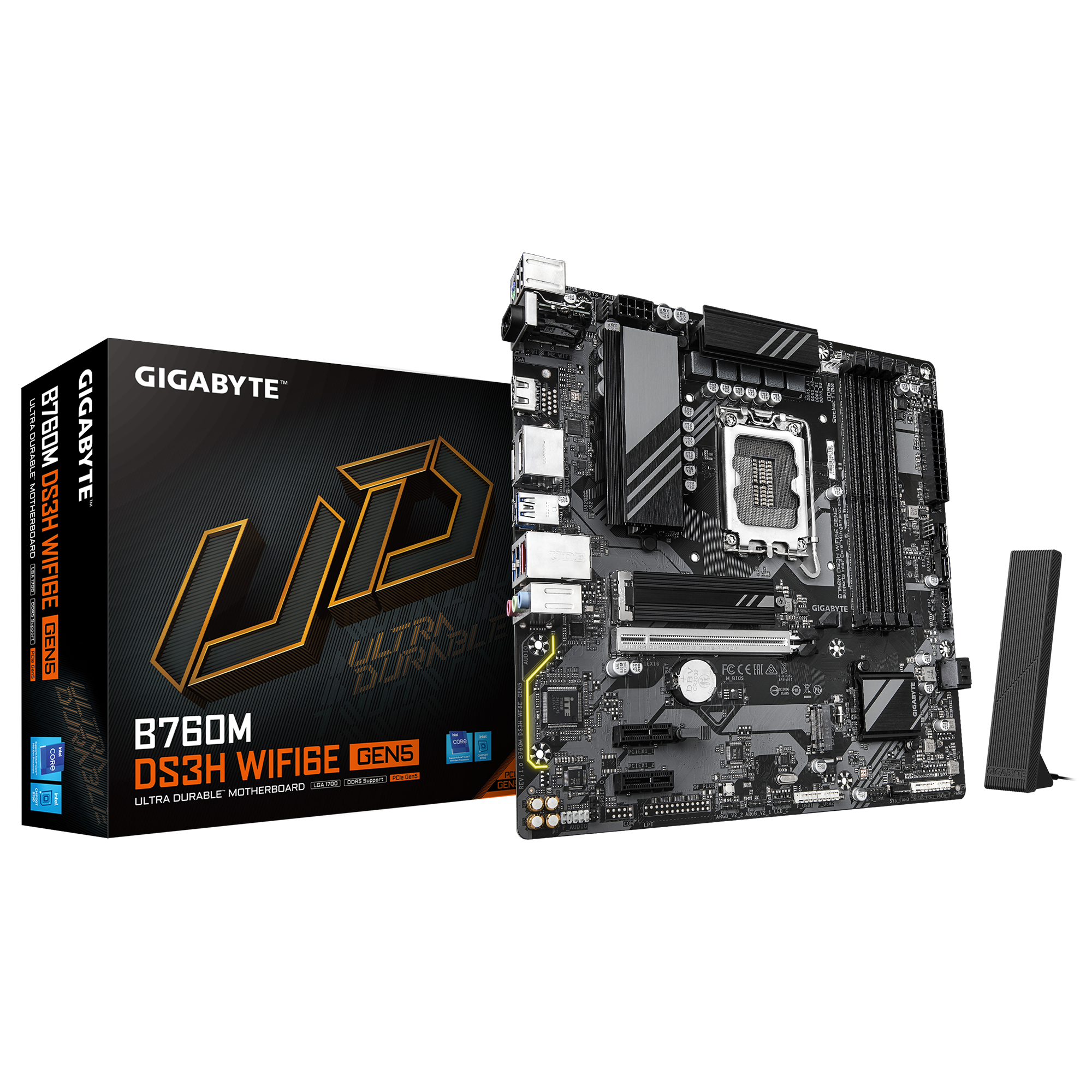

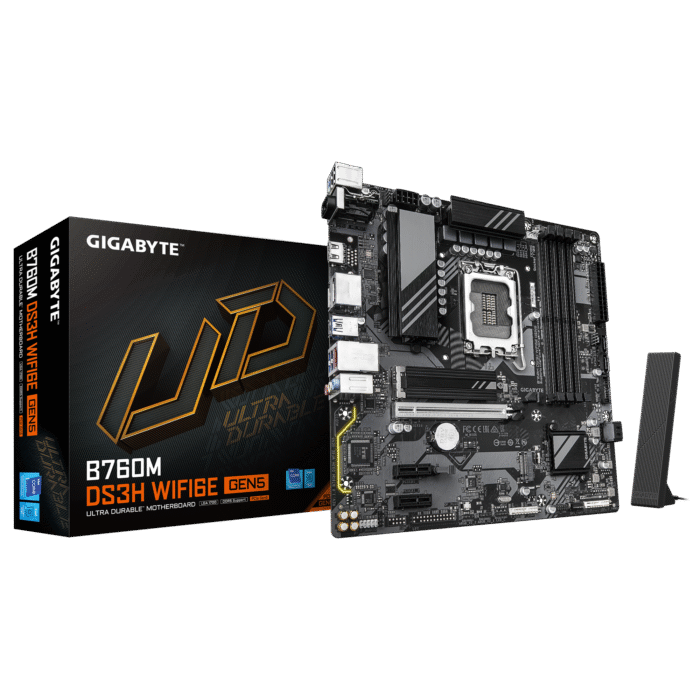

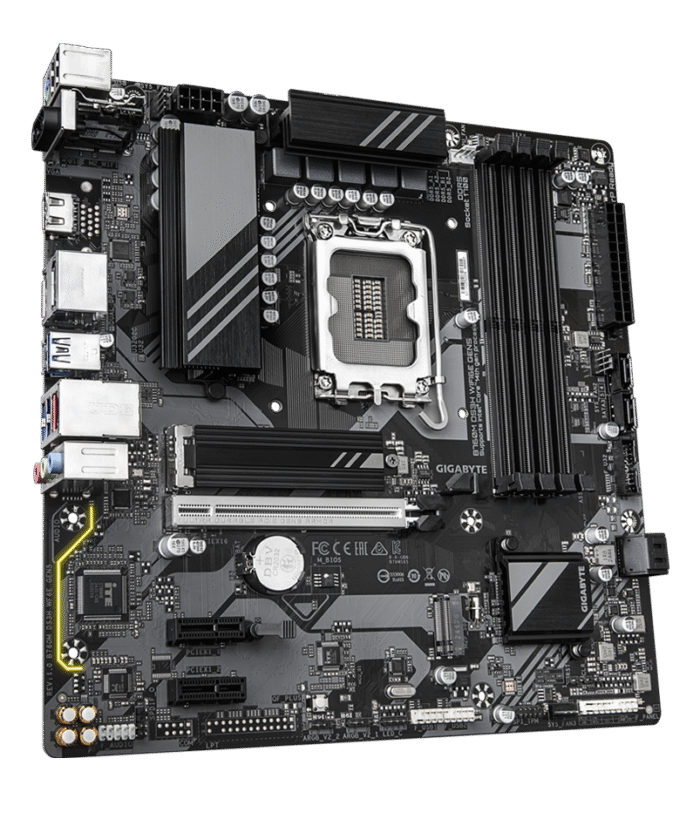

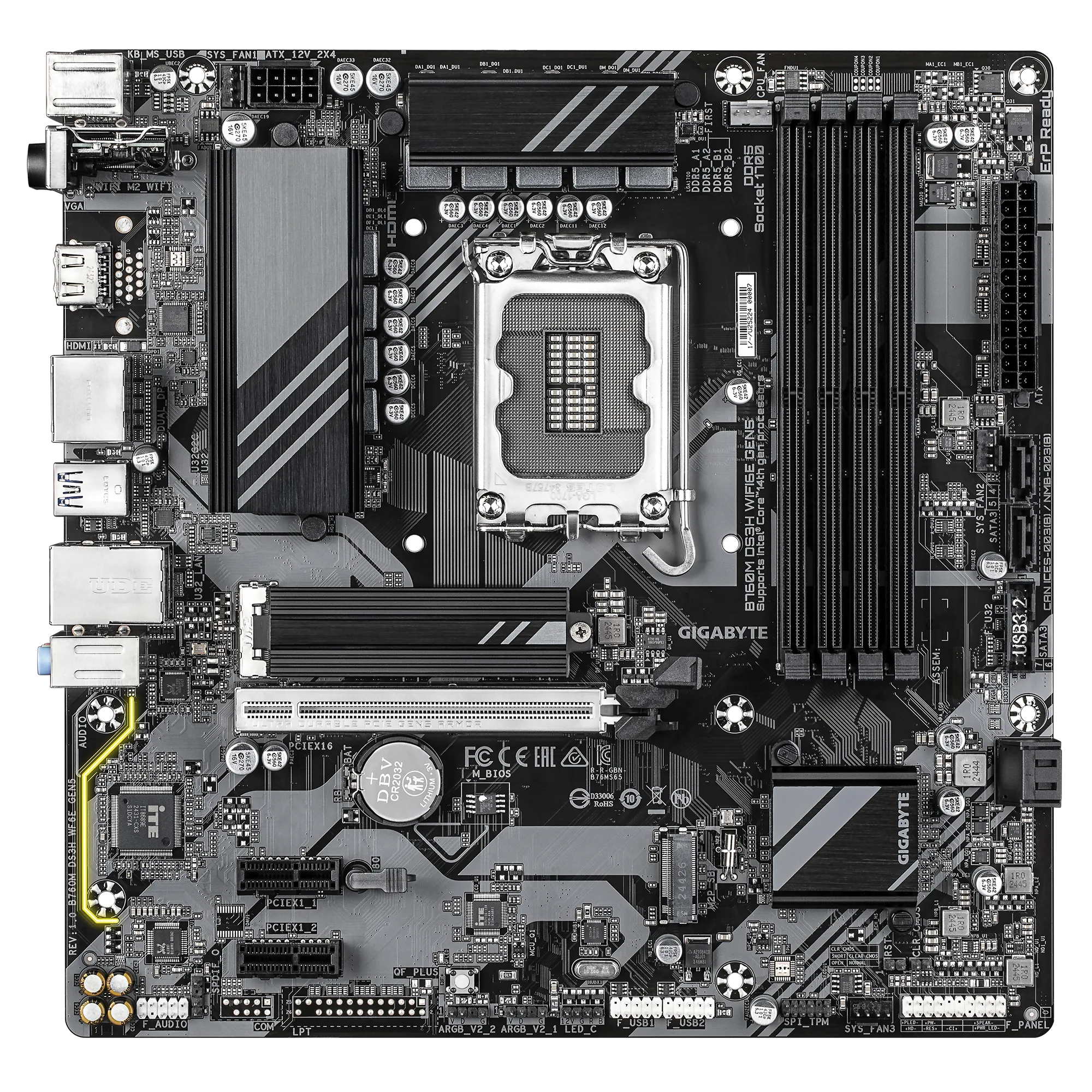

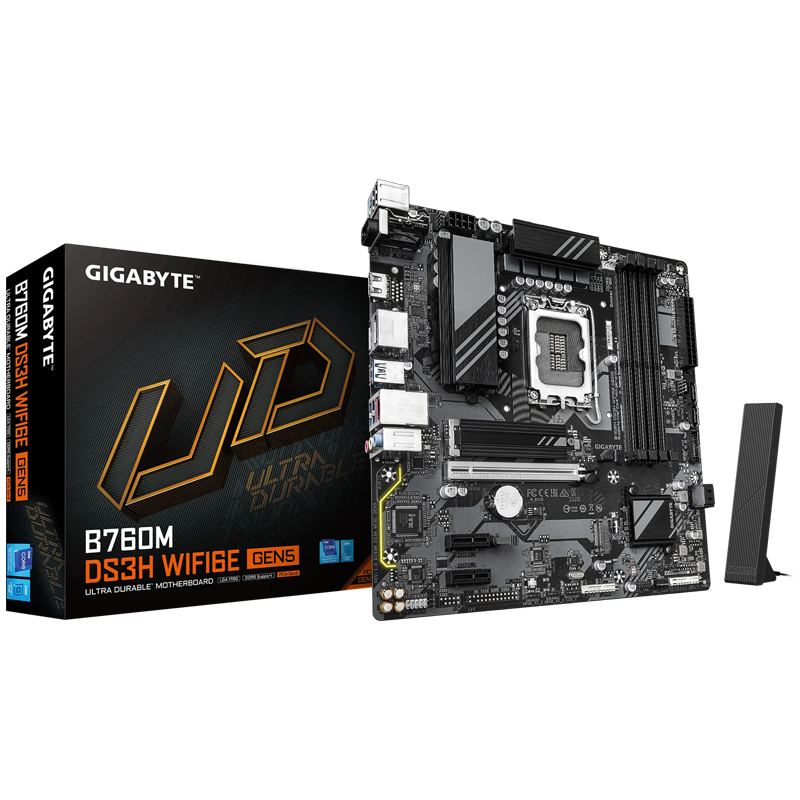

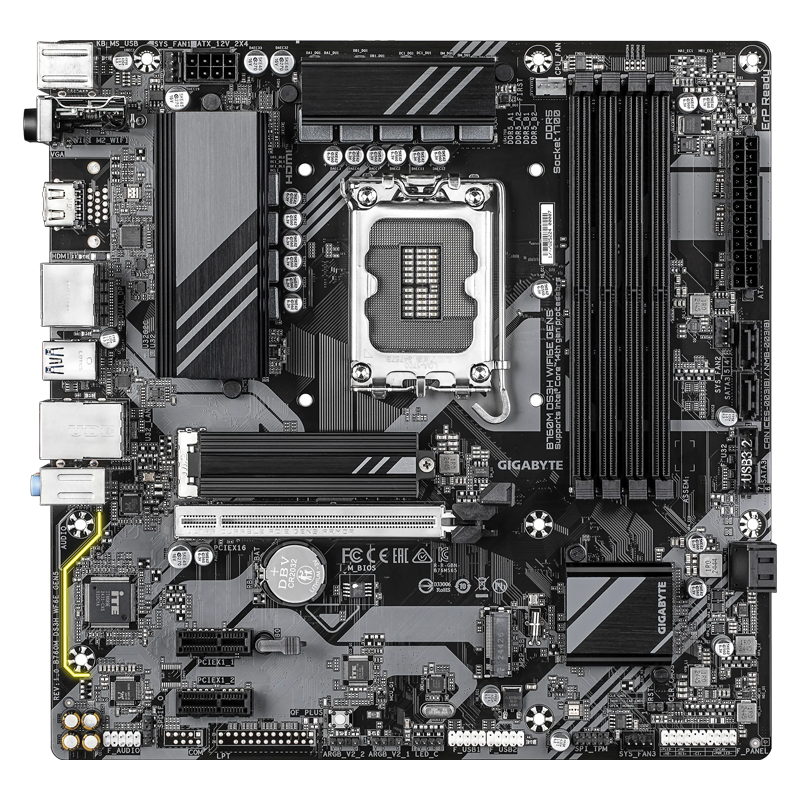

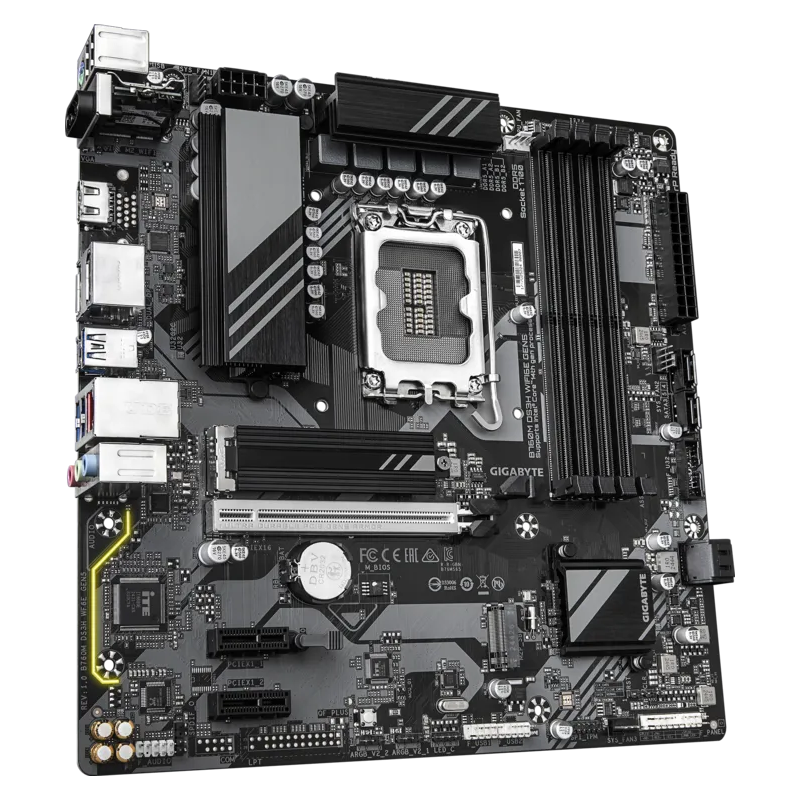

GIGABYTE B760M Motherboard (Intel LGA1700, DDR5, WiFi 6E, PCIe 5.0)
₨ 49,000
- Supports Intel 14th, 13th, and 12th Gen processors on LGA1700 with DDR5 up to 7600 MHz (OC) and up to 256 GB capacity
- PCIe 5.0 x16 slot for next-gen graphics, dual PCIe 4.0 M.2 connectors, and 4 SATA 6Gb/s ports with RAID support
- Intel® Wi-Fi 6E AX210 (2.4/5/6 GHz) with Bluetooth 5.3, Realtek® 2.5GbE LAN, rear USB-C 3.2 Gen 2, and triple display outputs
- GIGABYTE Control Center, Q-Flash Plus, 2x ARGB Gen2 headers and 1x RGB header for easy lighting customization
Available on backorder
| Overview | |
| Brand | GIGABYTE |
| Model | B760M DS3H WIFI6E GEN5 |
| Chipset | Intel B760 Express |
| Socket | LGA 1700 |
| CPU Support | Intel 14th, 13th, 12th Gen Core, Pentium Gold, Celeron |
| Memory Type | DDR5 |
| Form Factor | Micro-ATX (24.4 x 24.4 cm) |
| Memory | |
| Memory Slots | 4 x DIMM |
| Max Memory | 256 GB (64 GB single DIMM) |
| Memory Speed | DDR5 up to 7600 MT/s (OC), 5600/5200/4800/4400 native |
| Memory Architecture | Dual Channel |
| XMP Support | Yes (Intel XMP) |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 5.0 x16 (CPU), 2 x PCIe 3.0 x1 (B760) |
| M.2 Slots | 1 x PCIe 4.0 x4 (CPU, 2280), 1 x PCIe 4.0 x4 (B760, 2280) |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| Graphics & Audio | |
| Display Outputs | 1 x HDMI 2.1 (4K@60Hz), 2 x DisplayPort 1.2 (4K@60Hz) |
| Audio | Realtek Audio CODEC, 7.1-Channel HD Audio, S/PDIF Out |
| Networking | |
| Ethernet | 1 x Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Intel Wi-Fi 6E AX210 (802.11ax, 2.4/5/6 GHz, 160 MHz) |
| Bluetooth | Bluetooth 5.3 |

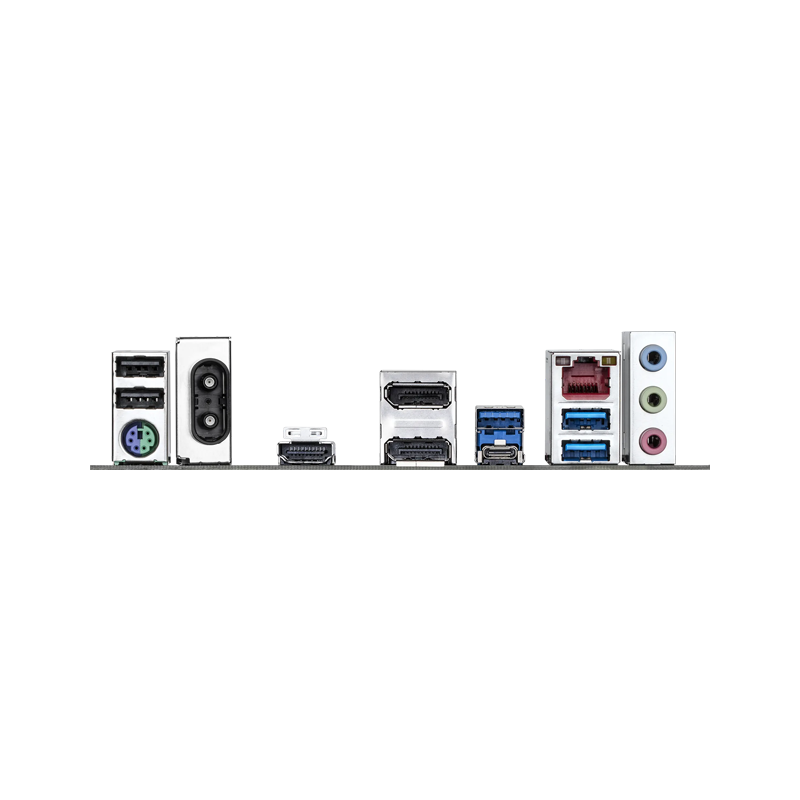

| Rear I/O | |

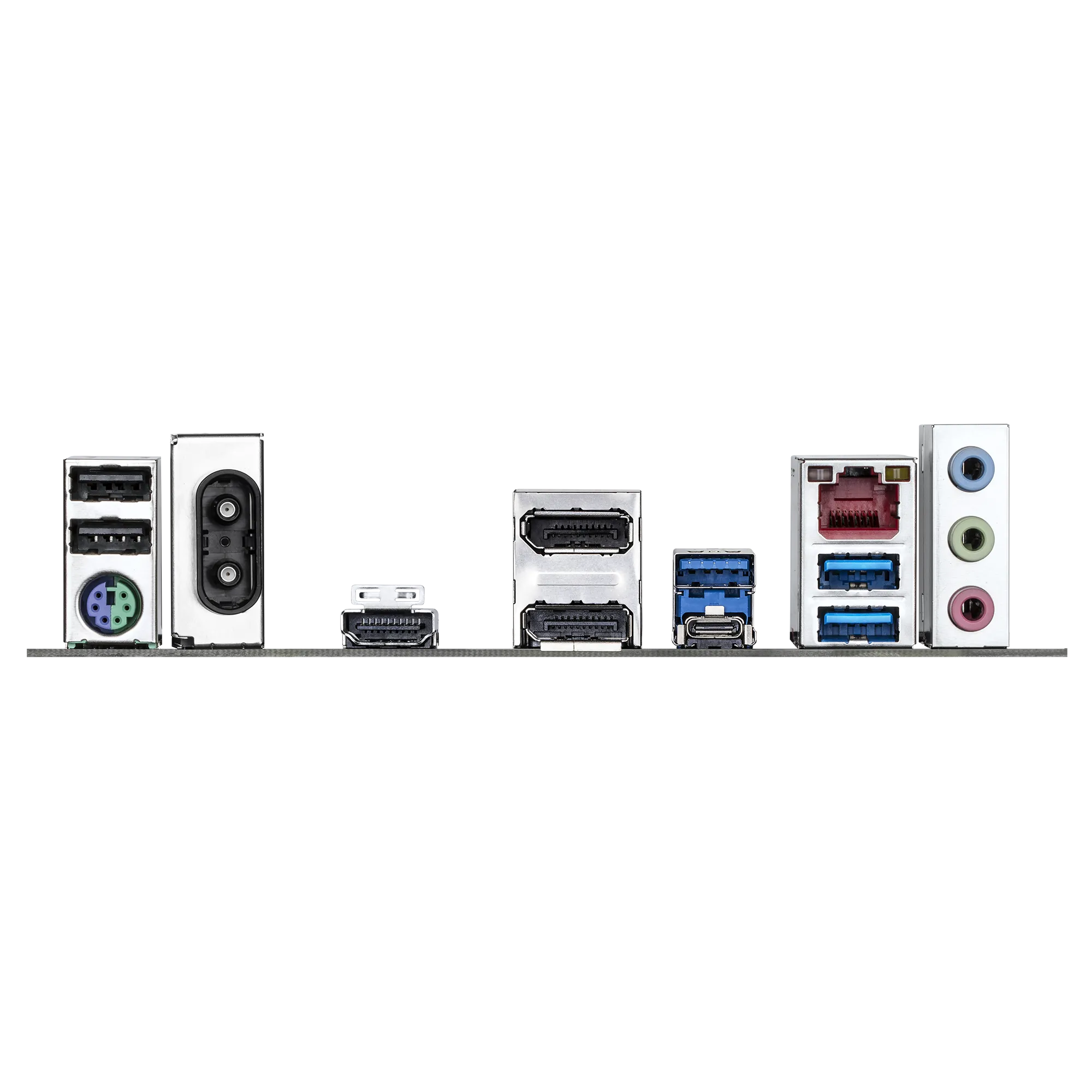

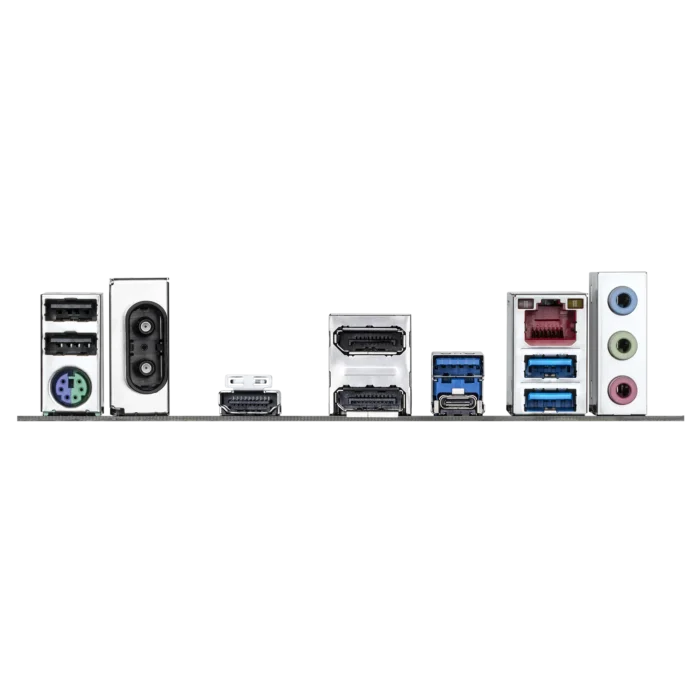

| USB Ports | 1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 |
| Other Ports | 1 x PS/2, 2 x Antenna, 1 x HDMI, 2 x DP, 1 x RJ-45, 3 x Audio Jacks |
| Internal I/O | |
| USB Headers | 1 x USB 3.2 Gen 1 (2 ports), 2 x USB 2.0 (4 ports) |
| Fan Headers | 1 x CPU Fan, 3 x System Fan (with speed control) |
| RGB Headers | 2 x Addressable Gen 2, 1 x RGB LED Strip |
| Special Headers | 1 x TPM, 1 x S/PDIF Out, Q-Flash Plus Button, Reset Jumper, Clear CMOS Jumper |
| Features | |
| BIOS | 1 x 128 Mbit UEFI AMI BIOS |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Bundled Software | Norton Internet Security (OEM) |
| Brand | Gigabyte |
|---|
