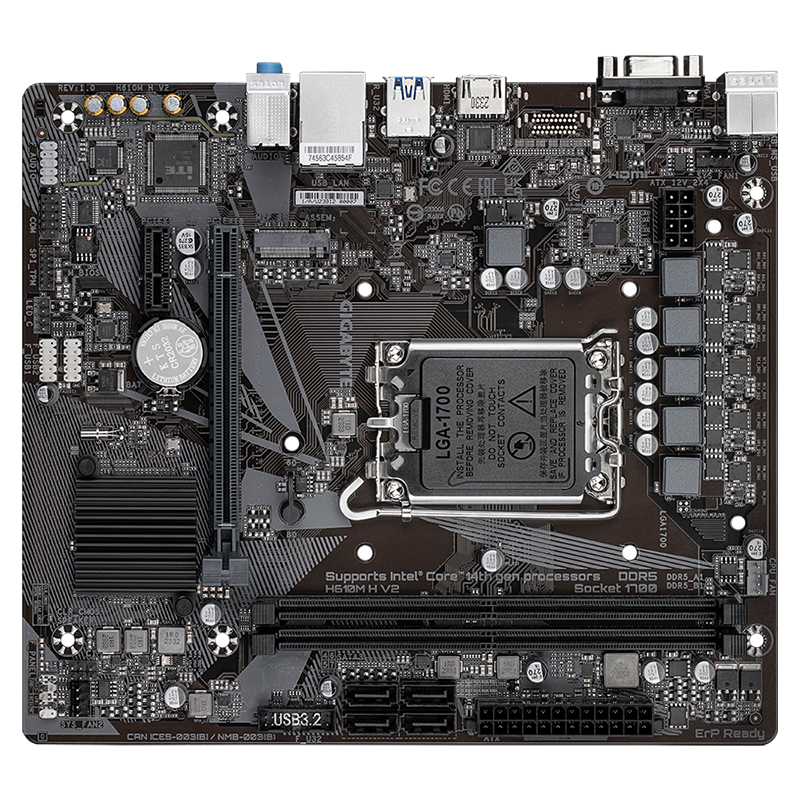

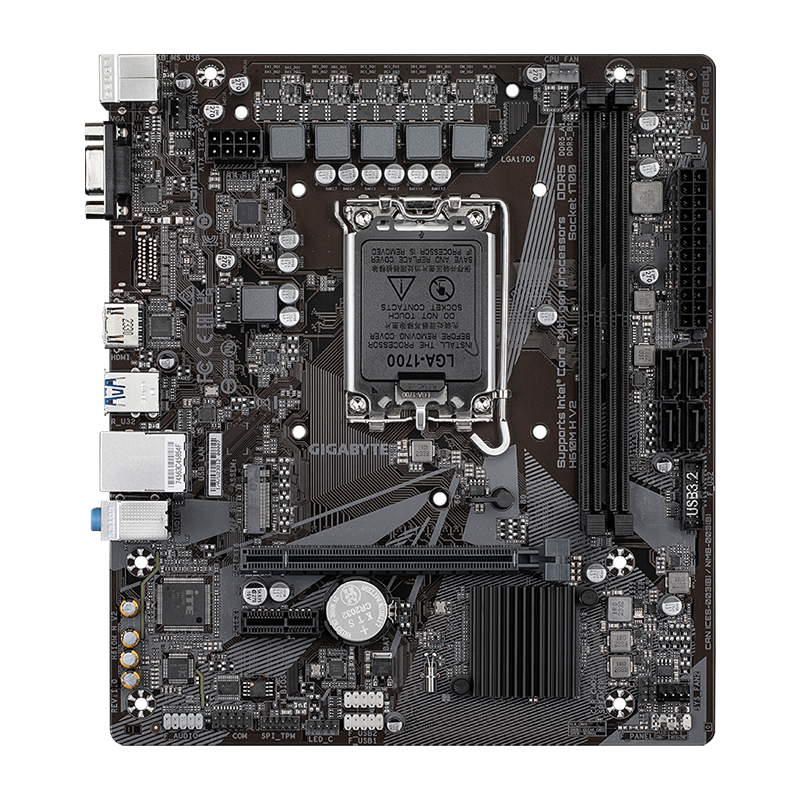

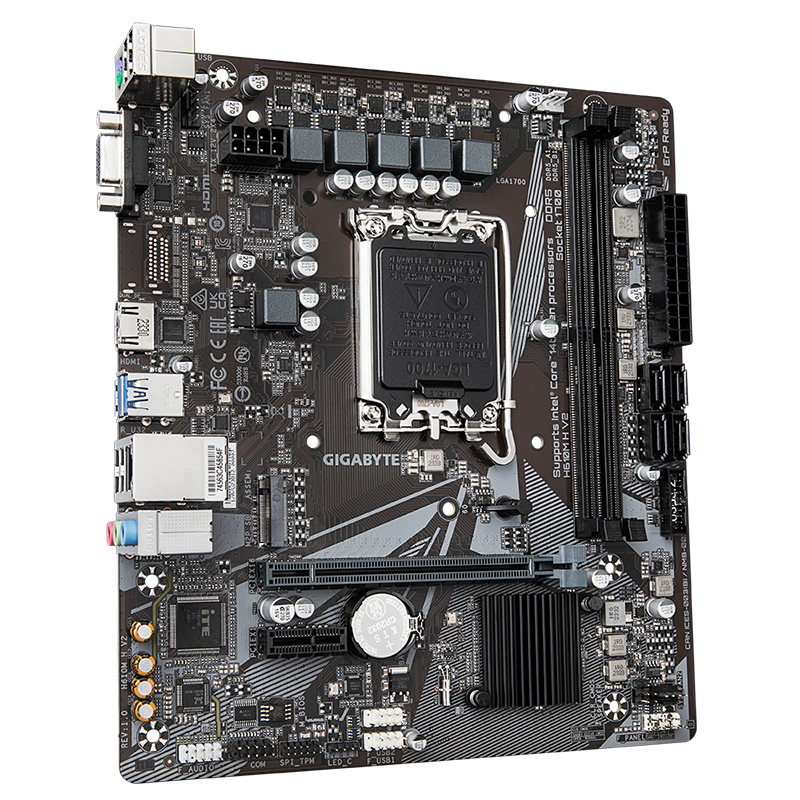

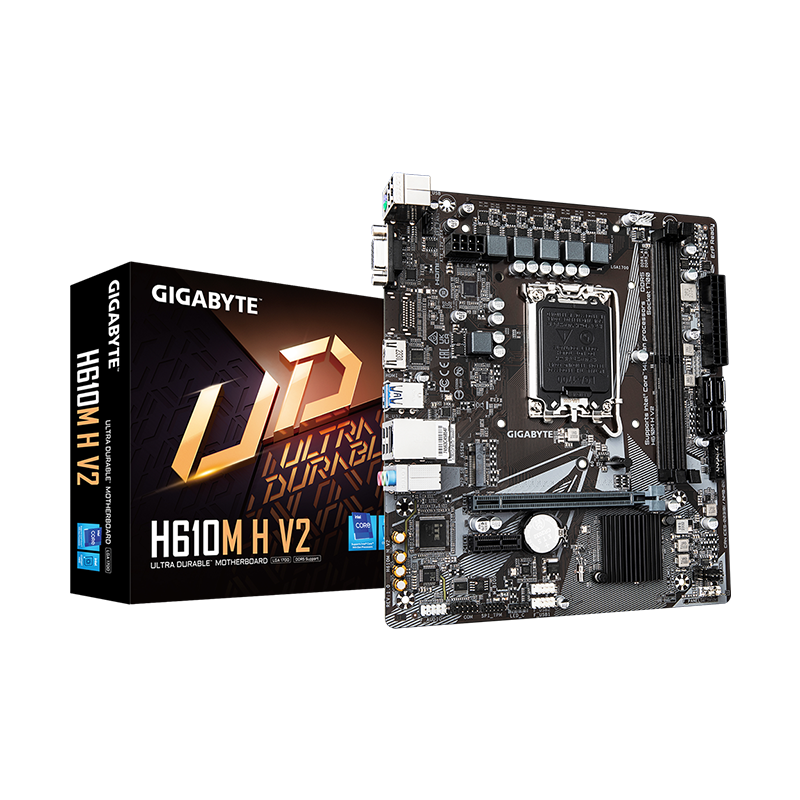

GIGABYTE H610M H V2 DDR5 Intel Motherboard

H610M H V2

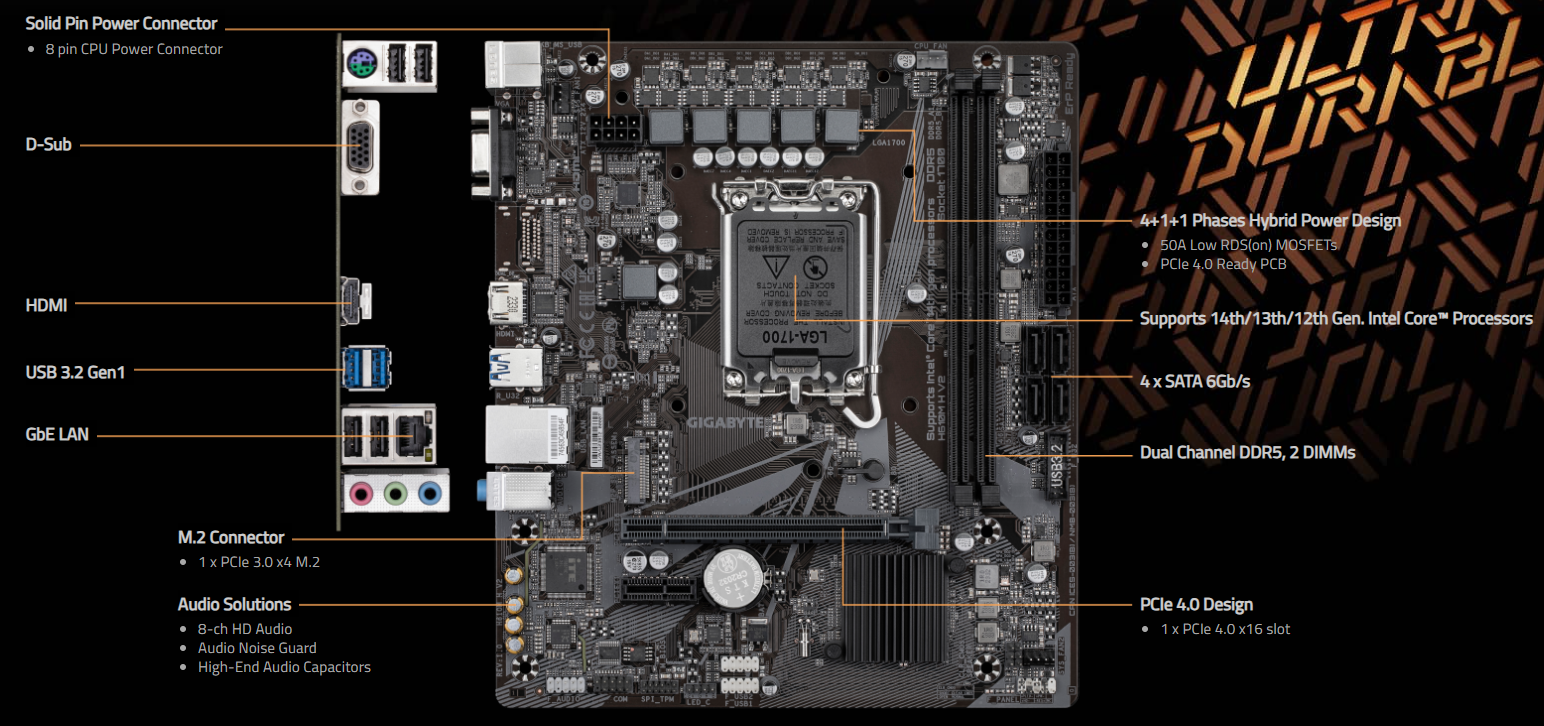

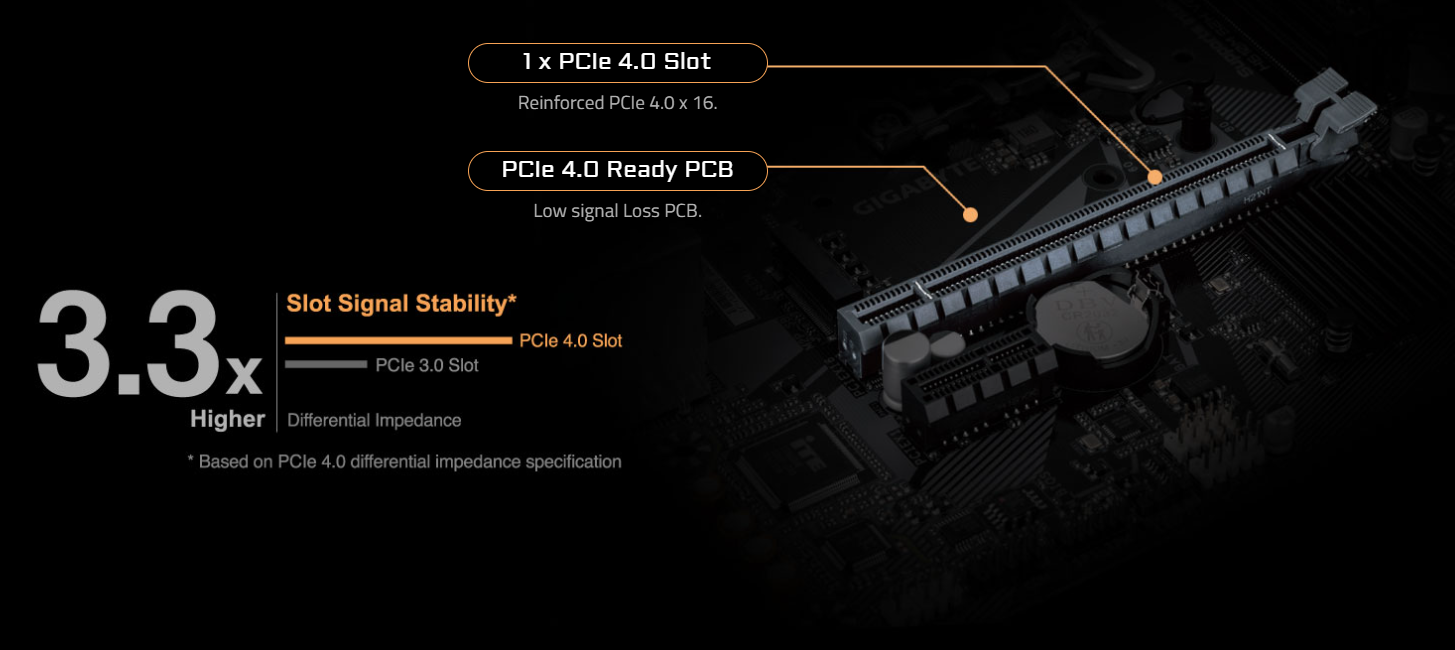

Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0 Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6

• ▸ Supports Intel® Core™ 14th/13th/12th processors
• ▸ Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
• ▸ 4+1+1 Hybrid Digital VRM Design
• ▸ GbE LAN with Bandwidth Management
• ▸ NVMe PCIe 3.0 x4 M.2
• ▸ High Quality Audio Capacitors & Audio Noise Guard
• ▸ Smart Fan 6 with FAN STOP
• ▸ Anti-Sulfur Resistors Design

* Actual support may vary by CPU.

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

• ▸ 4+1+1 Phases Low RDS(on) MOSFETs
• ▸ Solid capacitors to improve transient response and minimize oscillation.
• ▸ 8-pin Solid Pin CPU Power Connector.

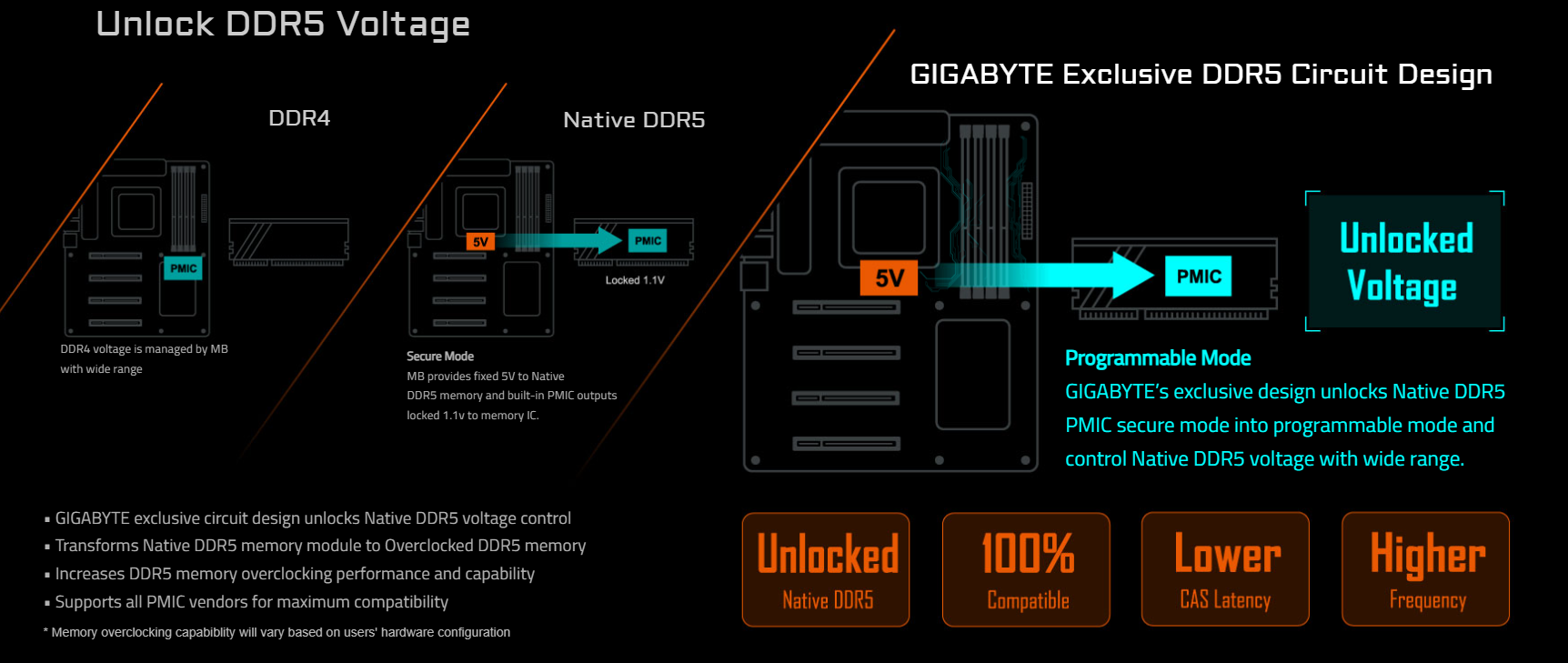

DDR5 Memory Upgrade

GIGABYTE BIOS offers pre-defined and retrievable profiles for users to get higher performance easily. The profiles are based on a database that is created by checking each memory IC and PMIC vendors to optimize the modules to unleash their full potential.

• Instantly upgrade memory performance
• Overclock Native and XMP 3.0 DDR5 memory to higher frequency easily
• No need to input dozens of memory parameters
• Built-in wide variety pre-tuned profiles database

*DDR5 MEMORY UPGRADE involves DDR5 memory overclocking,
overclocking capability depends on users’ hardware configuration

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

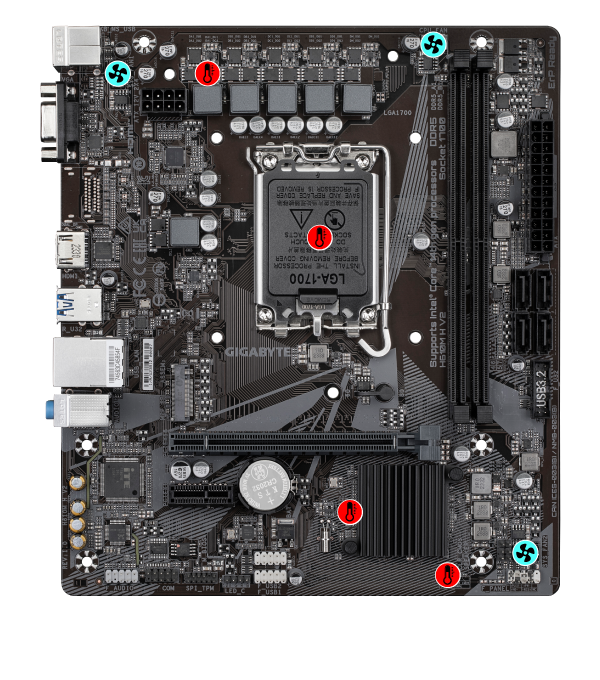

Headers & Sensors

3 PWM/DC Fan Headers

4 Internal Temperature Sensors

Cooling Features

• High Current Support: Each fan header supports PWM/DC fan and Water Cooling Pump, up to 24W (12V x 2A) with Over-Current Protection
• Precision Control: Up to 7 temperature/fan speed control points for precise fan curve
• Dual Curve Mode: Slope/Stair dual mode for different user scenario
• Fan Stop: Fan can stop completely below users’ specified temperature point

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Solid Pin Power connector advantages

1. Larger contact area for electricity
2. More metal quantity to sustain higher power and generated heat
3. Ultra durable and longer lifespan

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
