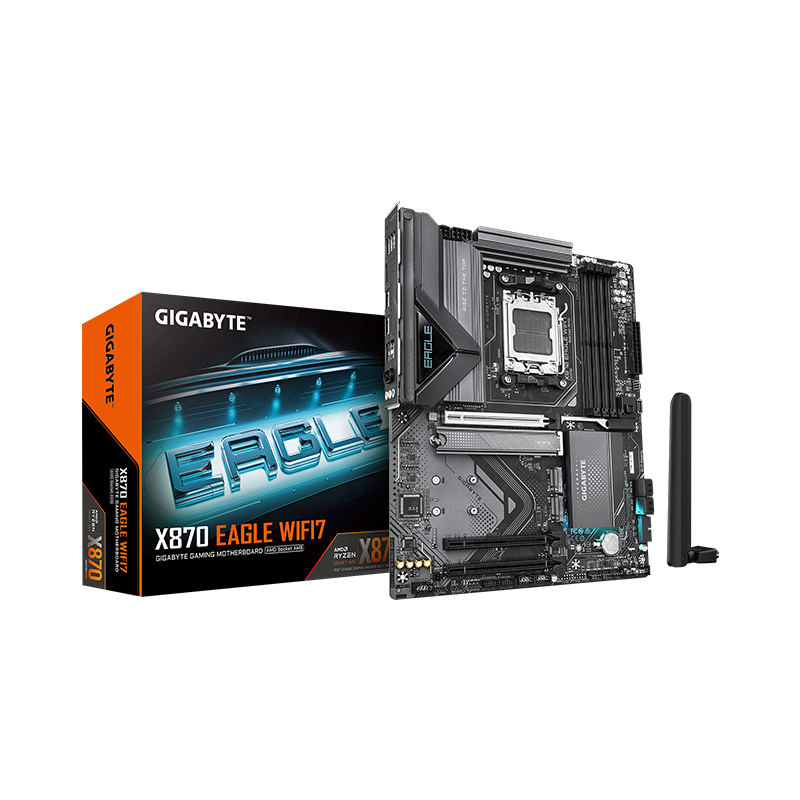

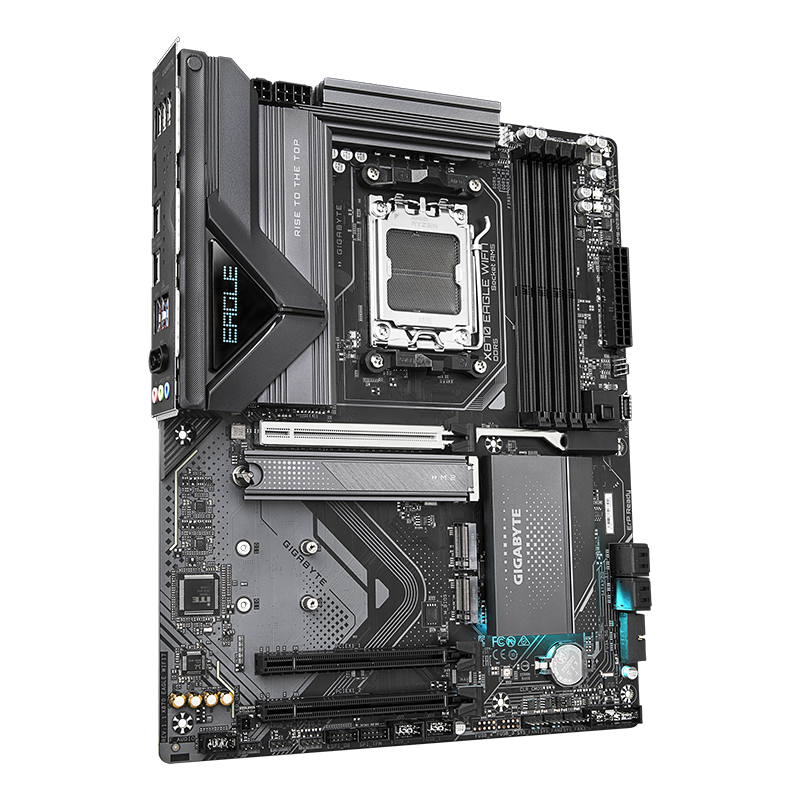

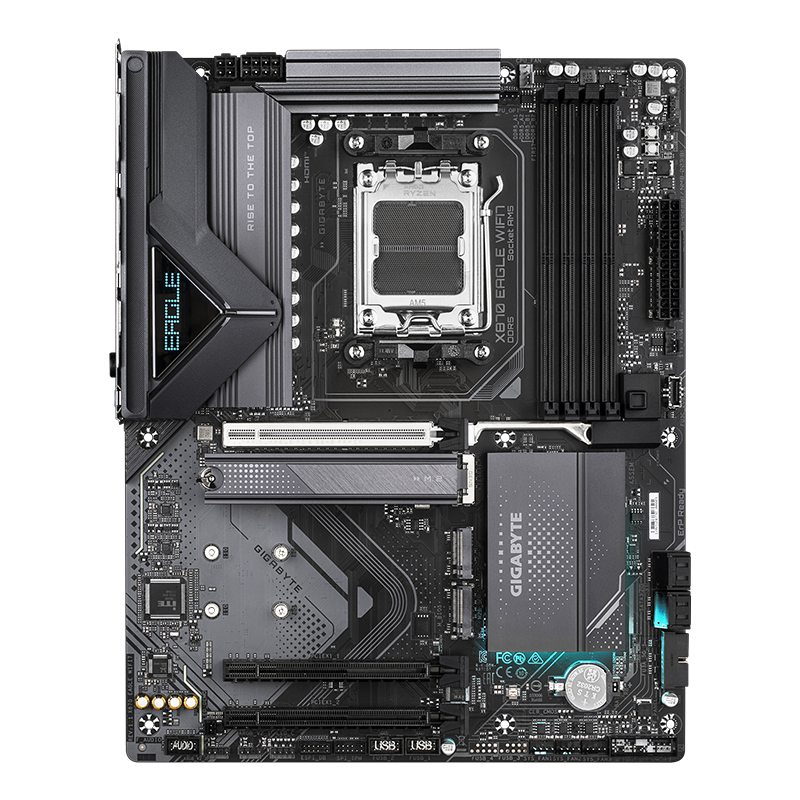

GIGABYTE X870 EAGLE WIFI7 AM5 ATX Motherboard
₨ 82,000
- AMD AM5 Socket – Ryzen 9000/8000/7000 Series – Digital twin 14+2+2 phases VRM with VRM Thermal Armor Advanced for stable, reliable power delivery
- DDR5 Dual-Channel – 4 DIMMs, Up to 256GB, 8200+ MT/s (OC) – AMD EXPO and XMP memory support with 30.5 x 24.4 cm ATX form factor
- Ultra-Fast Storage – 3x M.2 Slots (1x PCIe 5.0 x4 + 2x PCIe 4.0) – EZ-Latch Plus screwless M.2 design with M.2 Thermal Guard; 4x SATA 6Gb/s with RAID support
- Dual USB4 Type-C with DP-Alt + Wi-Fi 7 + 2.5GbE LAN – Bluetooth 5.4, ultra-high gain antenna (2T2R), HDMI 2.1 (4K 60Hz), and WIFI EZ-Plug
- EZ-Latch Plus & Click – Screwless PCIe & M.2 Design – Multi-Theme BIOS with AIO Fan Control, Q-Flash Plus, power/reset buttons onboard, and 3x ARGB Gen2 headers
| Overview | |
| Product Name | GIGABYTE X870 EAGLE WIFI7 |
| Brand | GIGABYTE |
| Series | EAGLE Series |
| Form Factor | ATX (30.5 x 24.4 cm) |
| Operating System | Windows 11 64-bit |
| Condition | New |
| CPU & Chipset | |
| Socket | AMD Socket AM5 |
| Chipset | AMD X870 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series |
| VRM | Digital Twin 14+2+2 Phases VRM Solution |
| Thermal | VRM Thermal Armor Advanced | M.2 Thermal Guard |
| Memory | |
| Memory Slots | 4 x DDR5 DIMM (Dual-Channel) |
| Max Capacity | 256 GB (64 GB Single DIMM) |
| Max OC Speed | DDR5 8200+ MT/s (OC) |
| Memory Technology | AMD EXPO | Intel XMP |
| Onboard Graphics | |
| HDMI | 1 x HDMI 2.1 – 4096×2160 @ 60 Hz with HDCP 2.3 and HDR |
| USB4 Type-C (DP-Alt) | 2 x USB4 Type-C – Up to 3840×2160 @ 240 Hz (DP 1.4 + HDR) |
| Expansion Slots | |
| PCIe x16 (PCIEX16) | PCIe 5.0 x16 (CPU) – EZ-Latch Plus |
| PCIe x16 (PCIEX1_1/2) | 2 x PCIe 3.0 x1 (Chipset) |
| Storage | |
| M.2 Slots | 3x M.2 (1x PCIe 5.0 x4 CPU + 2x PCIe 4.0 Chipset) – EZ-Latch Plus & Click |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID | NVMe: RAID 0, 1, 5, 10 | SATA: RAID 0, 1, 10 |
| Networking & Wireless | |
| LAN | Realtek 2.5GbE LAN |
| Wi-Fi | Wi-Fi 7 – 2.4/5/6 GHz, 160 MHz (MediaTek MT7925 / Realtek RTL8922AE) |
| Bluetooth | Bluetooth 5.4 |
| Antenna | WIFI EZ-Plug – Ultra-High Gain Antenna (2T2R) |

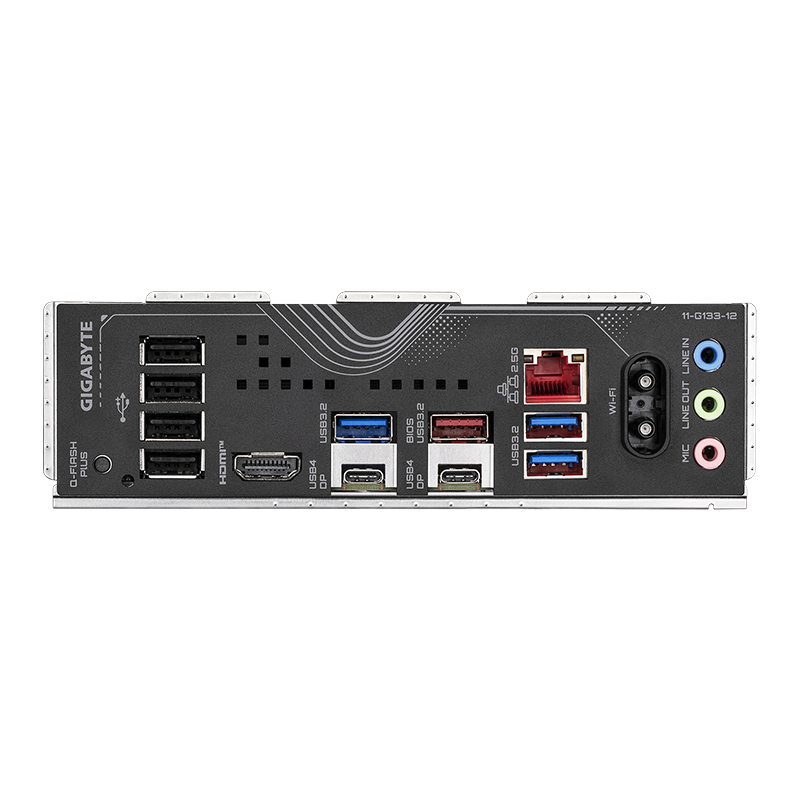

| Back Panel USB | |
| USB4 Type-C | 2 x USB4 Type-C with DisplayPort Alt Mode |
| USB 3.2 Gen 2 Type-A | 1 x (Red) |
| USB 3.2 Gen 1 Type-A | 3 x |
| USB 2.0 | 4 x |
| Audio | |
| Audio Codec | Realtek Audio CODEC – 7.1-Channel HD Audio (2/4/5.1/7.1) |
| Special Features | |
| BIOS | Multi-Theme | AIO Fan Control | Q-Flash Auto Scan | Q-Flash Plus |
| EZ-Latch | EZ-Latch Plus (PCIe + M.2 Screwless) | EZ-Latch Click (M.2 Heatsink Screwless) |
| Onboard Buttons | Power Button | Reset Button |
| RGB | 3 x Addressable RGB Gen2 LED Strip Headers | 1 x RGB LED Strip Header |
| Software | GIGABYTE Control Center (GCC) | Norton Internet Security (OEM) |
| In The Box | |
| Package Contents | GIGABYTE X870 EAGLE WIFI7 Motherboard | Wi-Fi Antenna | SATA Cables | I/O Shield | M.2 Screws | User Documentation |
