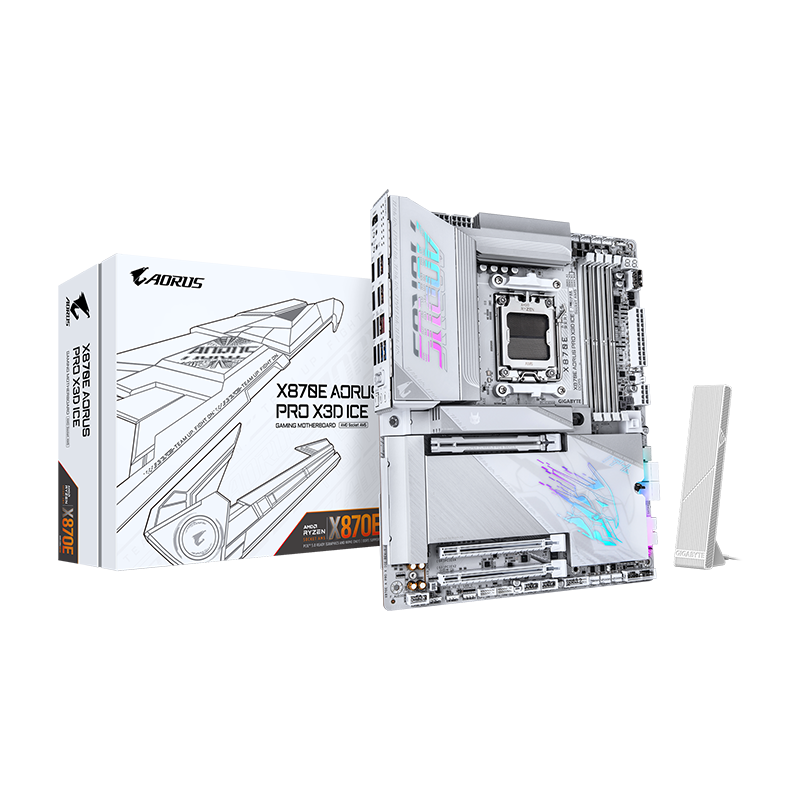

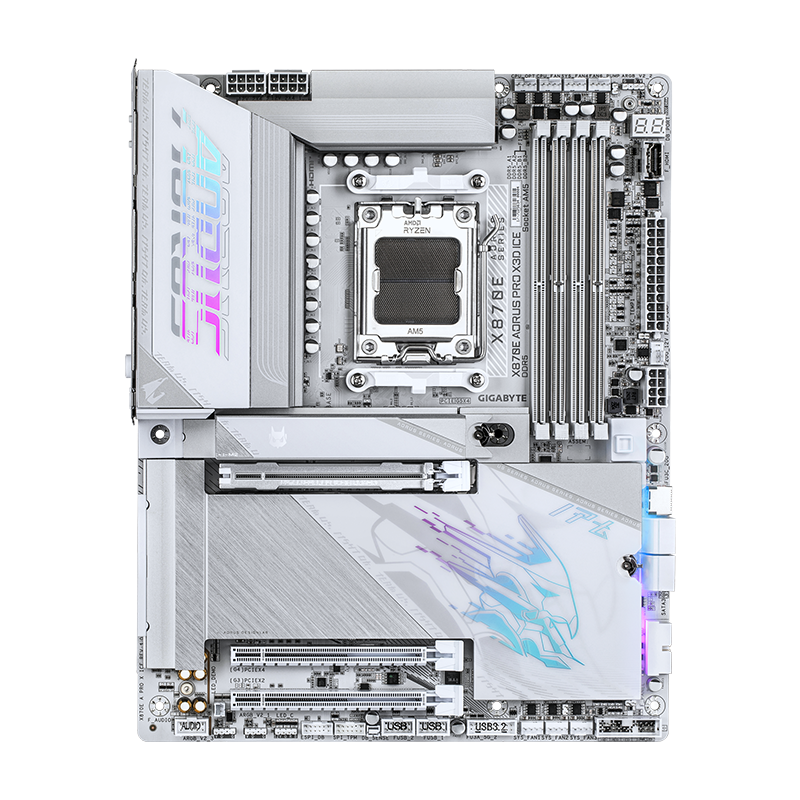

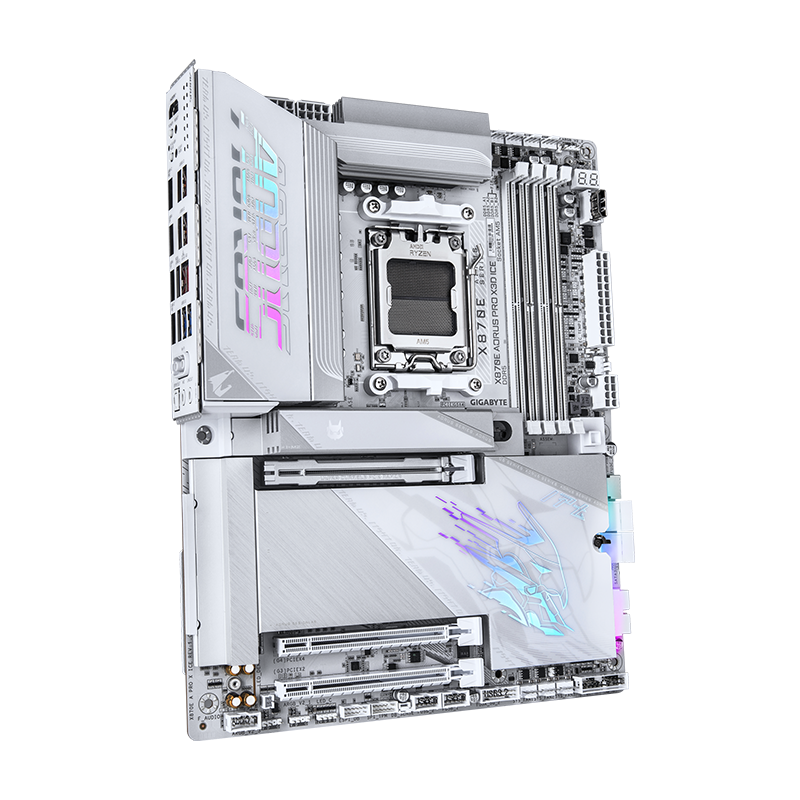

GIGABYTE X870E AORUS PRO X3D ICE AM5 ATX Motherboard
₨ 134,999
- X3D Turbo Mode 2.0 – AI-Enhanced Gaming Performance – One-click activation boosts Ryzen X3D performance by up to 25% with built-in AI models and hardware circuits for real-time optimization
- 18+2+2 Phases Digital Twin VRM – SPS 110A – 9+9 phases parallel power design with 8-layer server-grade PCB, back drilling technology, and 2X copper for ultimate power delivery
- DDR5 Quad-Channel – Up to 256GB, 9000+ MT/s (OC) – D5 Bionic Corsa AI-enhanced memory overclocking with AMD EXPO and XMP support; 512 Mbit BIOS flash
- Ultra-Fast Storage – 4x M.2 (2x PCIe 5.0 + 2x PCIe 4.0) – M.2 EZ-Flex, EZ-Latch Click & Plus screwless design, M.2 Thermal Guard L & Ext, and 4x SATA 6Gb/s with RAID
- Qualcomm Wi-Fi 7 + 5GbE LAN + Dual USB4 40Gbps – Front QC-USB 65W fast charging, Realtek ALC1220 audio with DSD support, PCIe UD Slot X (10X strength), and DriverBIOS
| Overview | |
| Product Name | GIGABYTE X870E AORUS PRO X3D ICE |
| Brand | GIGABYTE |
| Series | AORUS PRO X3D Series |
| Form Factor | ATX (30.5 x 24.4 cm) |
| Operating System | Windows 11 64-bit |
| Condition | New |
| CPU & Chipset | |
| Socket | AMD Socket AM5 |
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series |

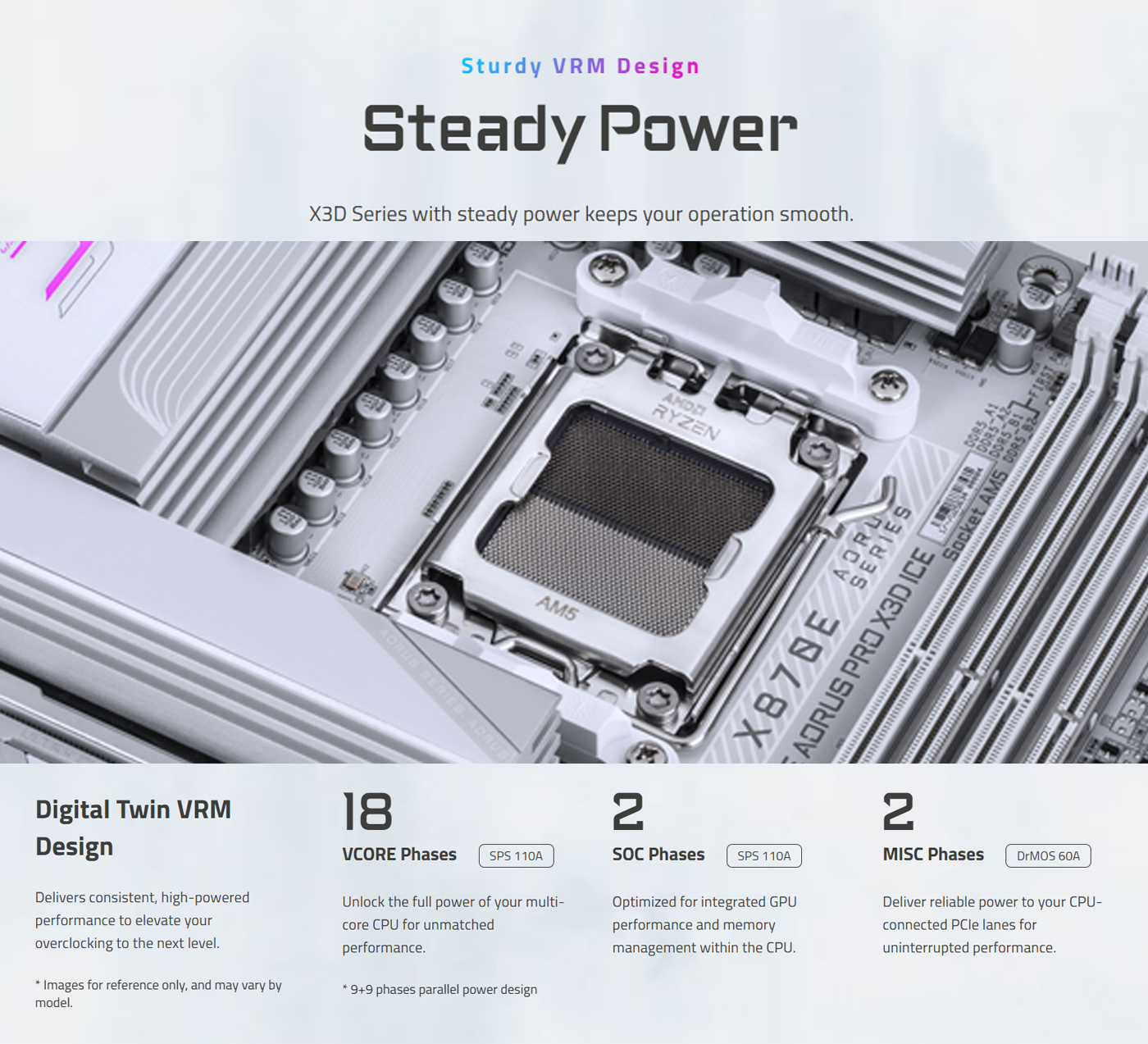

| VRM | Digital Twin 18+2+2 Phases (SPS 110A VCORE, DrMOS 60A MISC) |
| X3D Turbo Mode 2.0 | Yes – AI-Enhanced One-Click X3D Performance Boost (Up to 25%) |
| Memory | |
| Memory Slots | 4 x DDR5 DIMM (Dual-Channel) |
| Max Capacity | 256 GB (64 GB Single DIMM) |
| Max OC Speed | DDR5 9000+ MT/s (OC) with D5 Bionic Corsa AI |
| Memory Technology | AMD EXPO | Intel XMP |
| PCB & Build | |
| PCB | 8-Layer Server-Grade with 2X Copper + Back Drilling Technology |

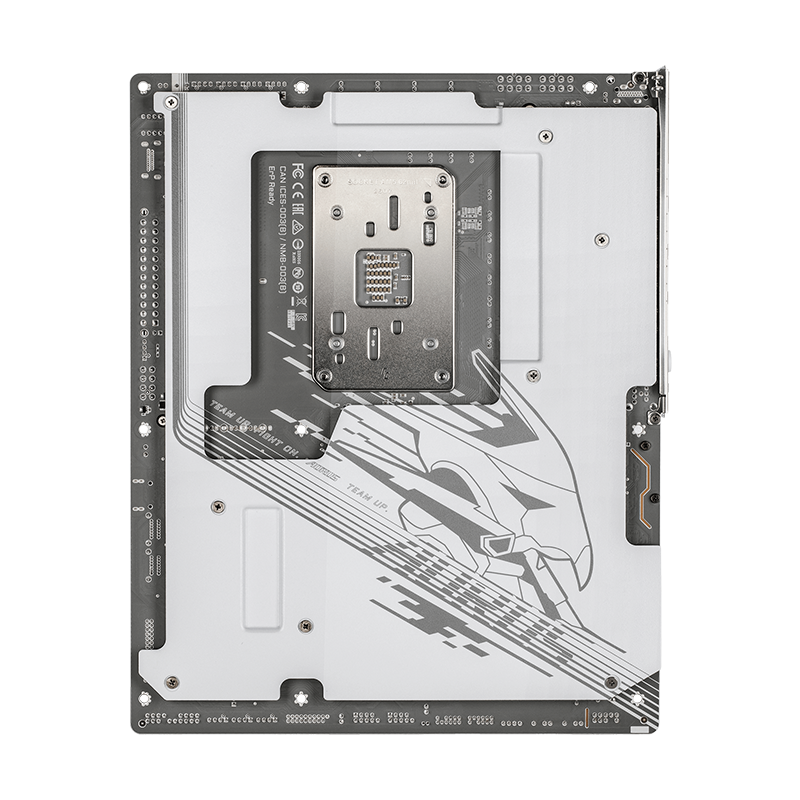

| Thermal Plate | PCB Thermal Plate – 14% Thermal Improvement & Reinforced Stability |
| PCIe UD Slot X | PCIe 5.0 x16 with 10X Strength for Graphics Card |
| Storage | |
| M.2 Slots | 4x M.2 (2x PCIe 5.0 x4 + 2x PCIe 4.0 x4) – EZ-Latch Click & Plus |
| M.2 Thermal | M.2 Thermal Guard L | M.2 Thermal Guard Ext. | M.2 EZ-Flex |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID | NVMe: RAID 0, 1, 5, 10 | SATA: RAID 0, 1, 10 |
| Networking & Wireless | |
| LAN | Realtek 5GbE LAN |
| Wi-Fi | Qualcomm Wi-Fi 7 QCNCM865 – 2.4/5/6 GHz, 320 MHz |
| Bluetooth | Bluetooth 5.4 |
| Antenna | WIFI EZ-Plug – Directional Ultra-High Gain Antenna (2T2R) |

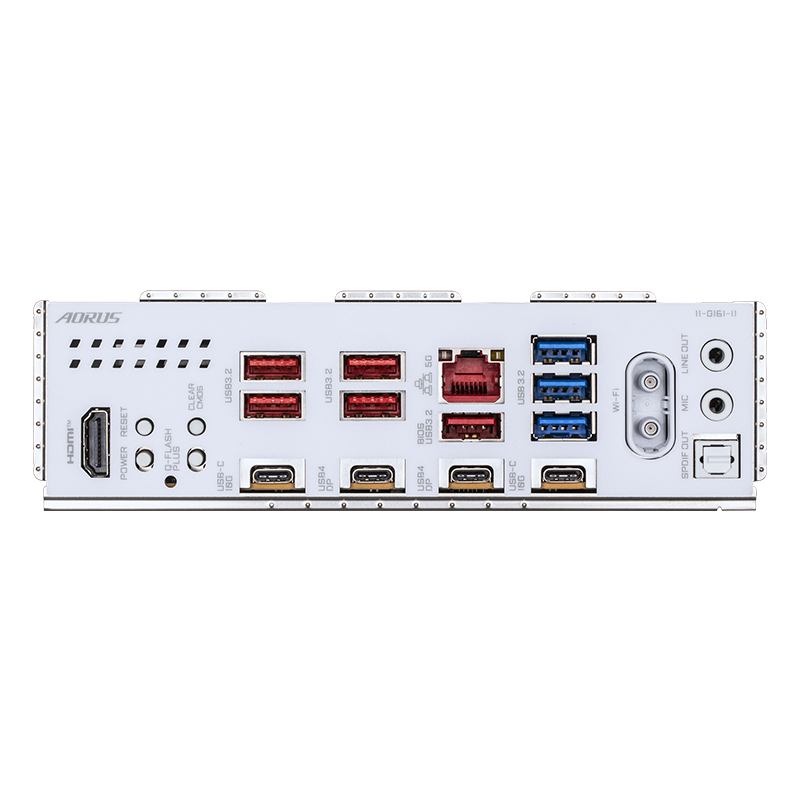

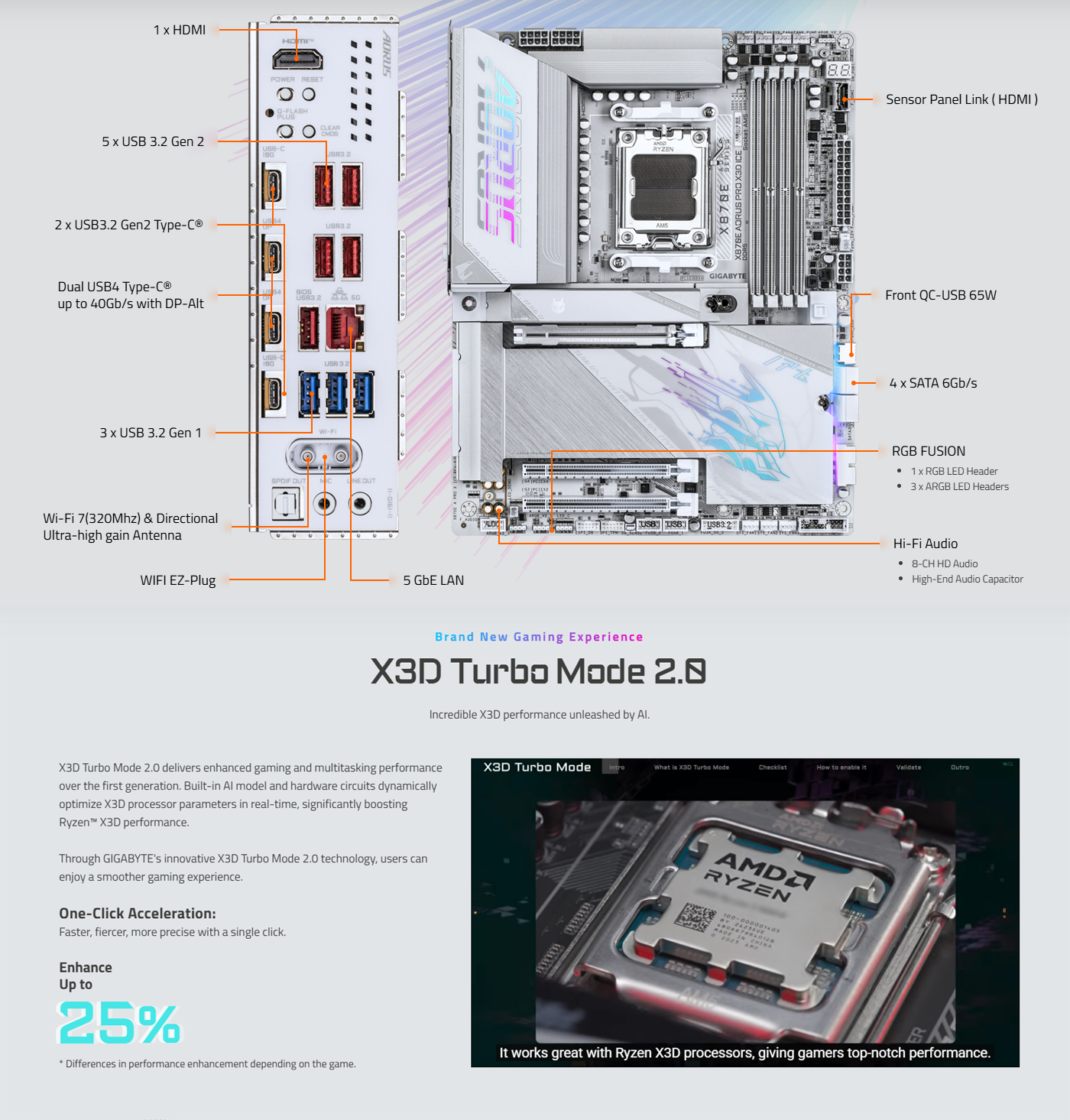

| USB Ports | |
| USB4 Type-C (Rear) | 2 x USB4 40Gbps with DisplayPort Alt Mode |
| USB 3.2 Gen 2 Type-C (Rear) | 2 x |
| USB 3.2 Gen 2 Type-A (Rear) | 5 x (Red) |
| USB 3.2 Gen 1 Type-A (Rear) | 3 x |
| Front QC-USB 65W | 1 x USB Type-C with USB 3.2 Gen 2×2 (Supports 65W PD 3.0/QC 4+) |
| Audio | |
| Audio Codec | Realtek ALC1220 HD Audio – 7.1-Channel with DSD and S/PDIF Out |
| Special Features | |
| DriverBIOS | Wi-Fi Driver Pre-Install, Power-On & EZ to Launch the Network |
| BIOS | 512 Mbit Flash | Multi-Theme | AIO Fan Control | Q-Flash Plus |
| Onboard Buttons | Power | Reset | Clear CMOS | Q-Flash Plus |
| RGB | 3 x ARGB Gen2 Headers | 1 x RGB LED Header |
| Software | GIGABYTE Control Center (GCC) | Norton Internet Security (OEM) |
| In The Box | |
| Package Contents | GIGABYTE X870E AORUS PRO X3D ICE Motherboard | Wi-Fi Antenna | SATA Cables | I/O Shield | M.2 Screws | User Documentation |
