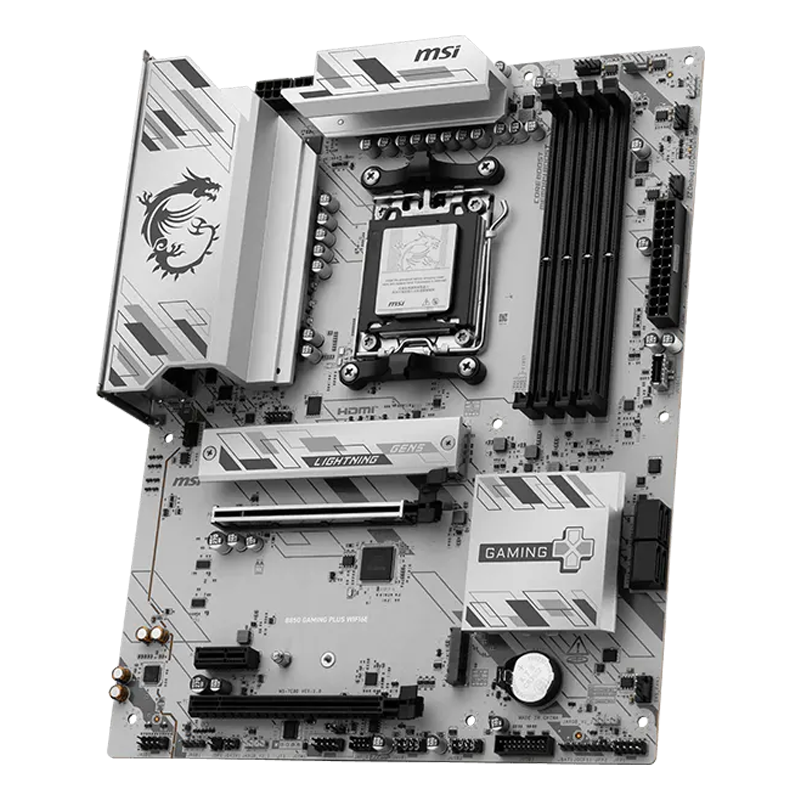

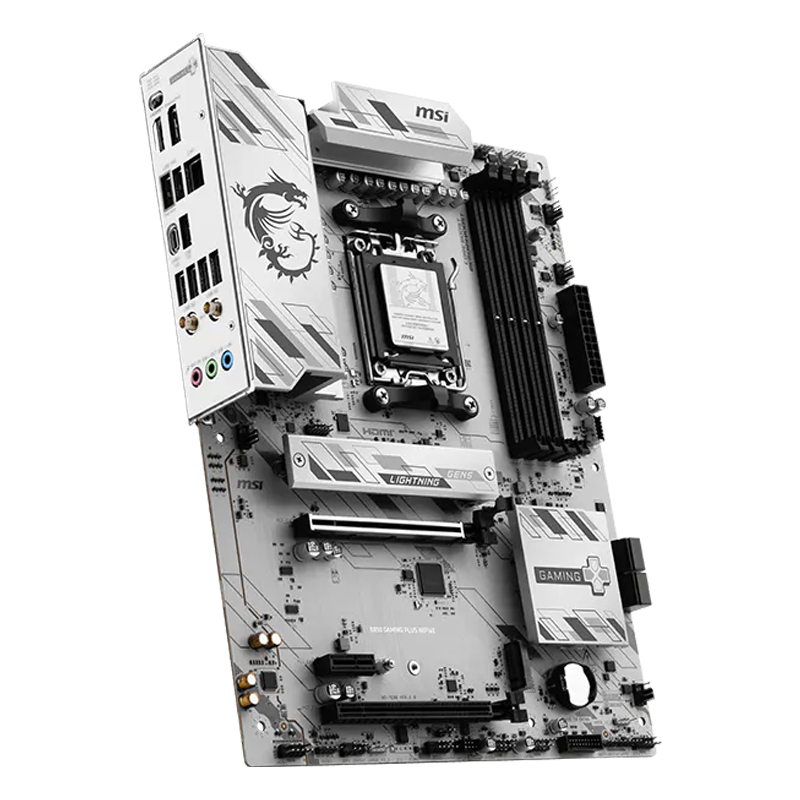

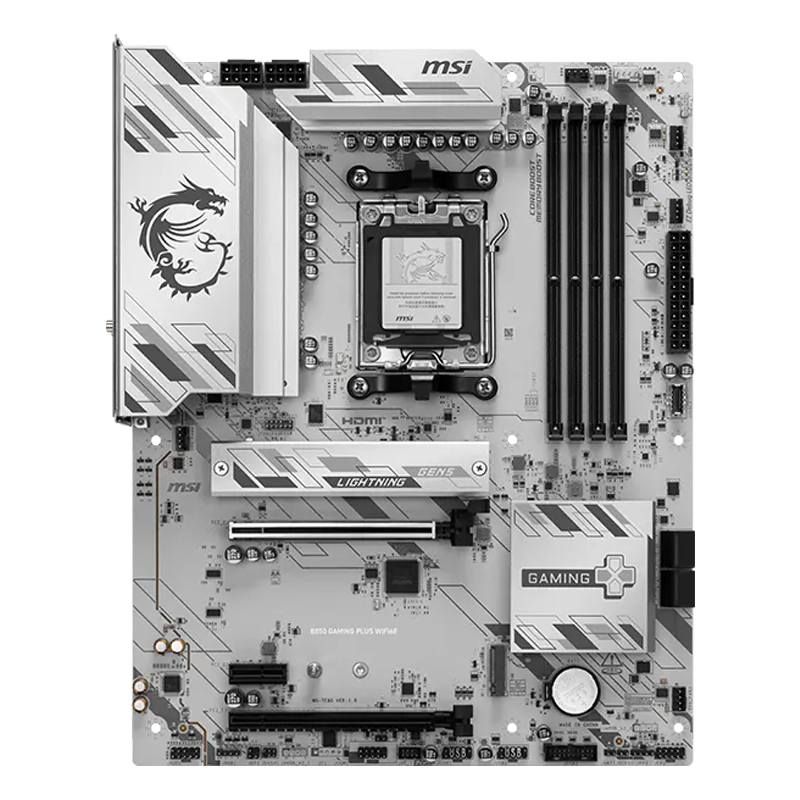

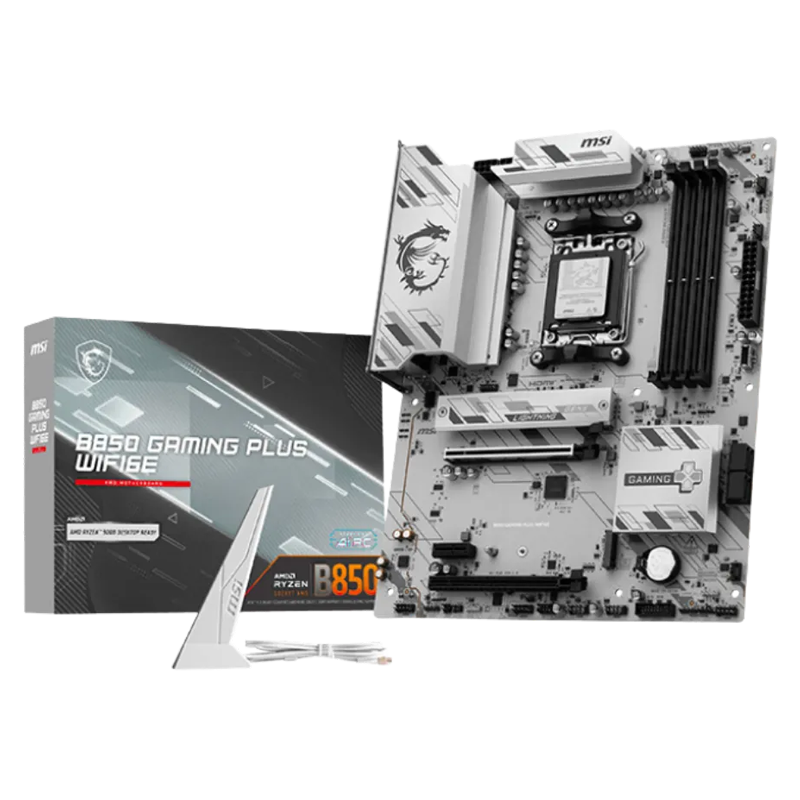

MSI B850 Gaming Plus WiFi6E DDR5 AMD AM5 ATX Motherboard
₨ 64,999
Supports AMD Ryzen™ 9000/8000/7000 Series: AM5 socket with dual 8-pin CPU power connectors delivers stable, reliable power for responsive multi-core performance.
DDR5 Memory up to 8200+ MT/s (OC): Four DIMM slots supporting up to 256GB of dual-channel DDR5 RAM with AMD EXPO profiles for extreme memory overclocking.
M.2 Gen5 & PCIe 4.0: One dedicated PCIe 5.0 x4 M.2 slot (from CPU) for next-gen NVMe SSDs, plus a second PCIe 4.0 x4 M.2 slot and four SATA 6G ports with RAID support.
Wi-Fi 6E & 2.5Gbps LAN: Integrated Wi-Fi 6E with Bluetooth 5.3 and a Realtek 2.5Gbps Ethernet port for ultra-fast, low-latency wired and wireless networking.
USB 10Gbps Type-C & EZ Debug: Rear and front USB 10Gbps Type-C ports, rear USB 10Gbps Type-A, plus MSI EZ Debug LED, EZ Memory Detection LED, and Clear CMOS/Flash BIOS buttons.
| Overview | |
| Brand & Model | MSI B850 Gaming Plus WiFi6E |
| Socket & Chipset | AMD AM5 / AMD B850 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series – Dual 8-Pin CPU Connectors |
| Form Factor | ATX (243.84 mm x 304.8 mm) |
| Memory | |
| Memory | 4x DDR5 DIMM, Up to 256 GB, 8200+ MT/s (OC), AMD EXPO |
| Expansion Slots | |
| Graphics Slot | 1x PCIe 4.0 x16 (CPU) |
| Additional Slots | 1x PCIe 4.0 x4 (Chipset), 1x PCIe 3.0 x1 (Chipset) |
| Storage | |
| M.2 Storage | 1x Gen5 x4 (CPU, 22110/2280), 1x Gen4 x4 (CPU, 2280/2260) |
| SATA Ports | 4x SATA 6G (Supports RAID 0/1/10) |
| Networking | |
| Wired | Realtek 8125D 2.5G LAN |
| Wireless & Bluetooth | Wi-Fi 6E (802.11ax), Bluetooth 5.3 |
| USB | |

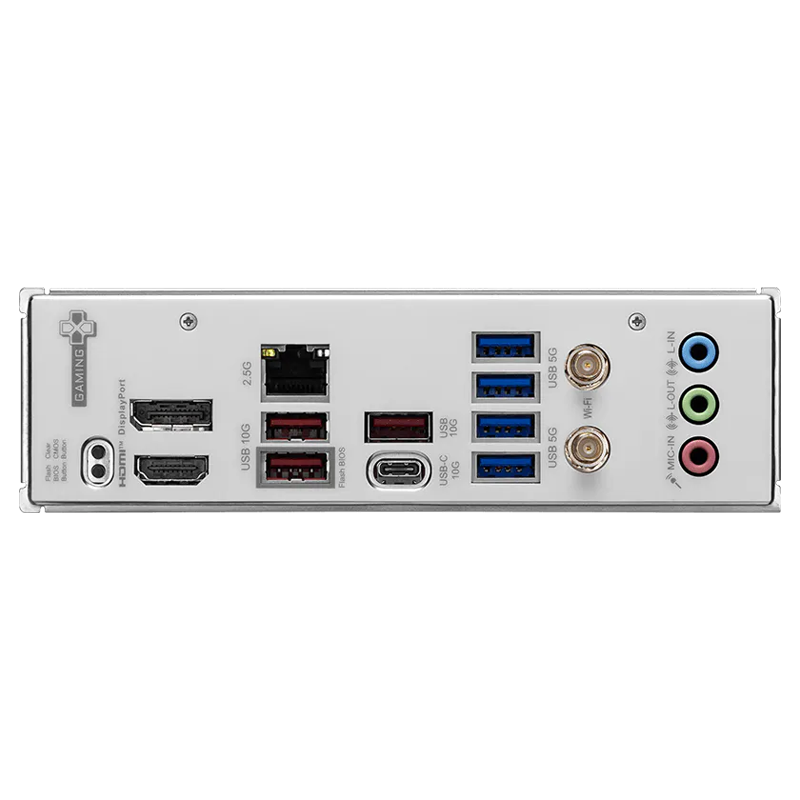

| Rear USB | 1x USB 10Gbps Type-C, 3x USB 10Gbps Type-A, 4x USB 5Gbps Type-A |
| Front USB | 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video & Audio | |
| Video Outputs | HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| Special Features | |
| Special Features | EZ Debug LED, EZ Memory Detection LED, EZ Conn-Header, Clear CMOS, Flash BIOS |
| Warranty | |
| Warranty | 1 Year Local Warranty (Varies by Retailer) |
