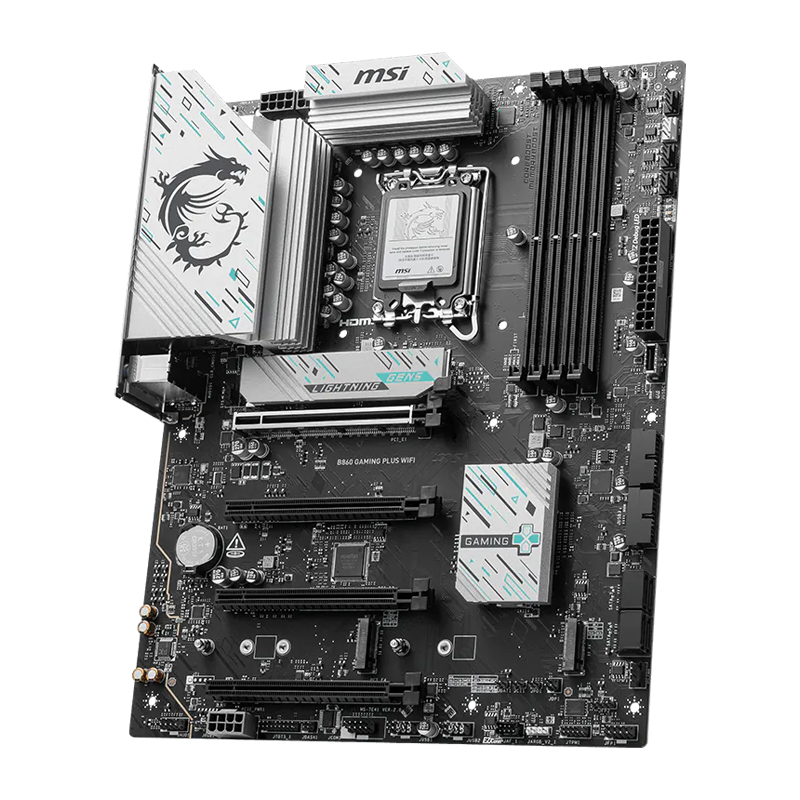

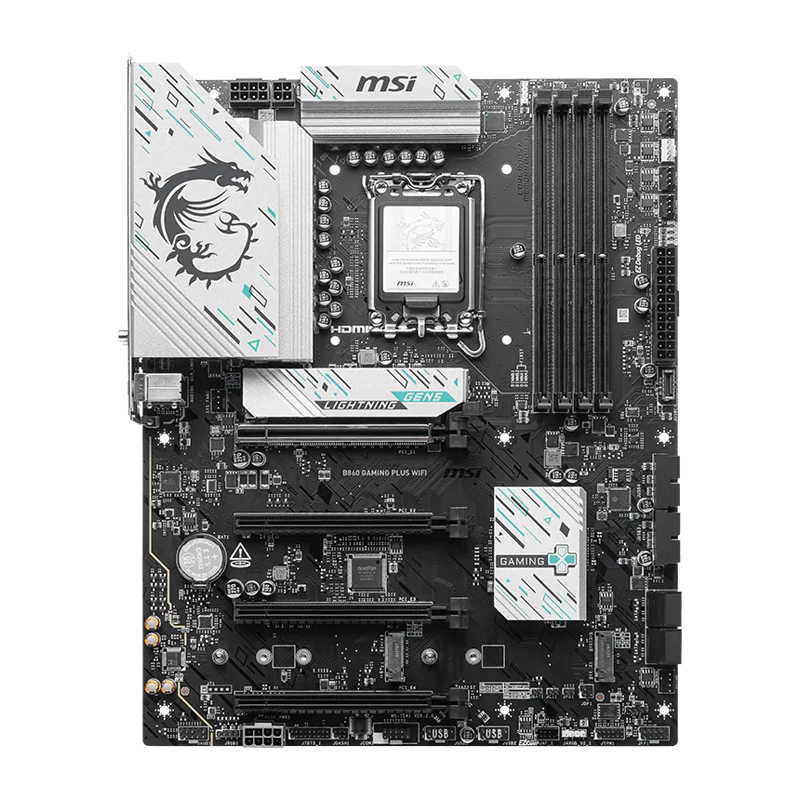

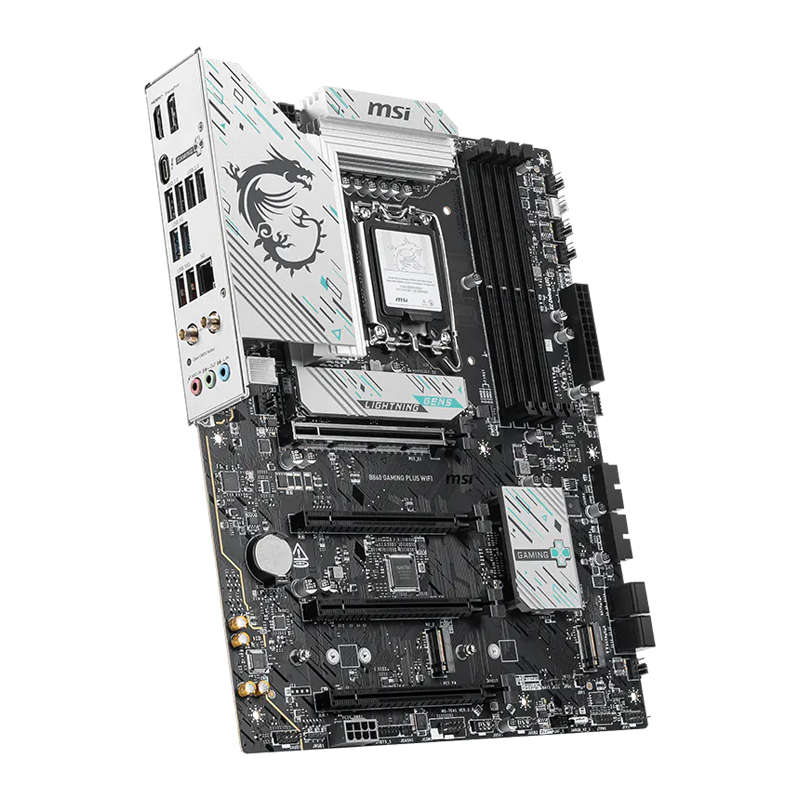

MSI B860 GAMING PLUS WIFI Intel Motherboard
₨ 64,999
- Intel LGA 1851 Socket – Core Ultra Processors (Series 2) – B860 chipset with 4x DDR5 UDIMM slots up to 256GB, overclocking up to 8800+ MT/s, Intel XMP 3.0 and CUDIMM support
- PCIe 5.0 x16 Slot + Triple M.2 (1x PCIe 5.0 x4) – Next-gen GPU and NVMe storage with supplemental PCIe 8-pin power for stable, sustained performance
- Intel Killer Wi-Fi 7 BE1750x + Bluetooth 5.4 + Intel Killer 5G LAN – Full-speed wireless up to 5.8Gbps with MLO and 4KQAM, plus 5Gbps wired networking for lag-free gaming
- Thunderbolt 4 40Gbps Type-C – 8K DisplayPort 2.1 – Rear Thunderbolt 4 with 15W power delivery, DisplayPort 2.1 UHBR20 (4K 120Hz / 8K 60Hz), plus HDMI 2.1 and DP 1.4
- EZ DIY Features + 7.1-Channel ALC897 Audio – 4x EZ Debug LED, EZ Conn-header, Clear CMOS button, 2x ARGB V2 headers, Tuning Controller connector, and RAID support
| Overview | |
| Product Name | MSI B860 GAMING PLUS WIFI |
| Brand | MSI |
| Series | GAMING Series |
| Form Factor | ATX (243.84 x 304.8 mm) |
| Operating System Support | Windows 11 64-bit |
| Condition | New |
| CPU & Chipset | |
| Chipset | Intel B860 |
| Socket | LGA 1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Memory | |
| Memory Slots | 4x DDR5 UDIMM (Single-Sided Latches) |
| Max Capacity | 256 GB |
| Max OC Frequency | DDR5 8800+ MT/s (1DPC 1R) |
| Channel Mode | Dual-Controller Dual-Channel |
| Memory Technology | Intel XMP 3.0 | CUDIMM Support | Non-ECC, Un-Buffered |
| Onboard Graphics | |
| HDMI | 1x HDMI 2.1 – 4K @ 60Hz |
| DisplayPort | 1x DP 1.4 – 4K @ 60Hz |
| Thunderbolt 4 (DisplayPort 2.1) | 1x Type-C – 4K @ 120Hz / 8K @ 60Hz (UHBR20) |
| Expansion Slots | |
| PCIe x16 Slots | 4x PCI-E x16 |
| PCI_E1 (Primary) | PCIe 5.0 x16 (From CPU) |
| PCI_E2 / PCI_E4 | PCIe 4.0 x1 (From Chipset) |
| PCI_E3 | PCIe 4.0 x4 (From Chipset) |
| Storage | |
| M.2 Slots | 3x M.2 (M.2_1: PCIe 5.0 x4 | M.2_2: PCIe 4.0 x4 | M.2_3: PCIe 4.0 x2) |
| SATA Ports | 4x SATA 6G |
| RAID Support | SATA: RAID 0, 1, 5, 10 |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Audio Channels | 7.1-Channel High Definition Audio |
| Thunderbolt | |
| Rear Thunderbolt 4 | 1x Thunderbolt 4 40Gbps Type-C (15W Power Delivery, Daisy-Chain Up to 3 TB4/5 TB3 Devices) |
| USB Ports | |
| Rear USB | 4x USB 2.0 | 2x USB 5Gbps Type-A | 2x USB 10Gbps Type-A |
| Front USB | 4x USB 2.0 | 4x USB 5Gbps Type-A | 1x USB 10Gbps Type-C |

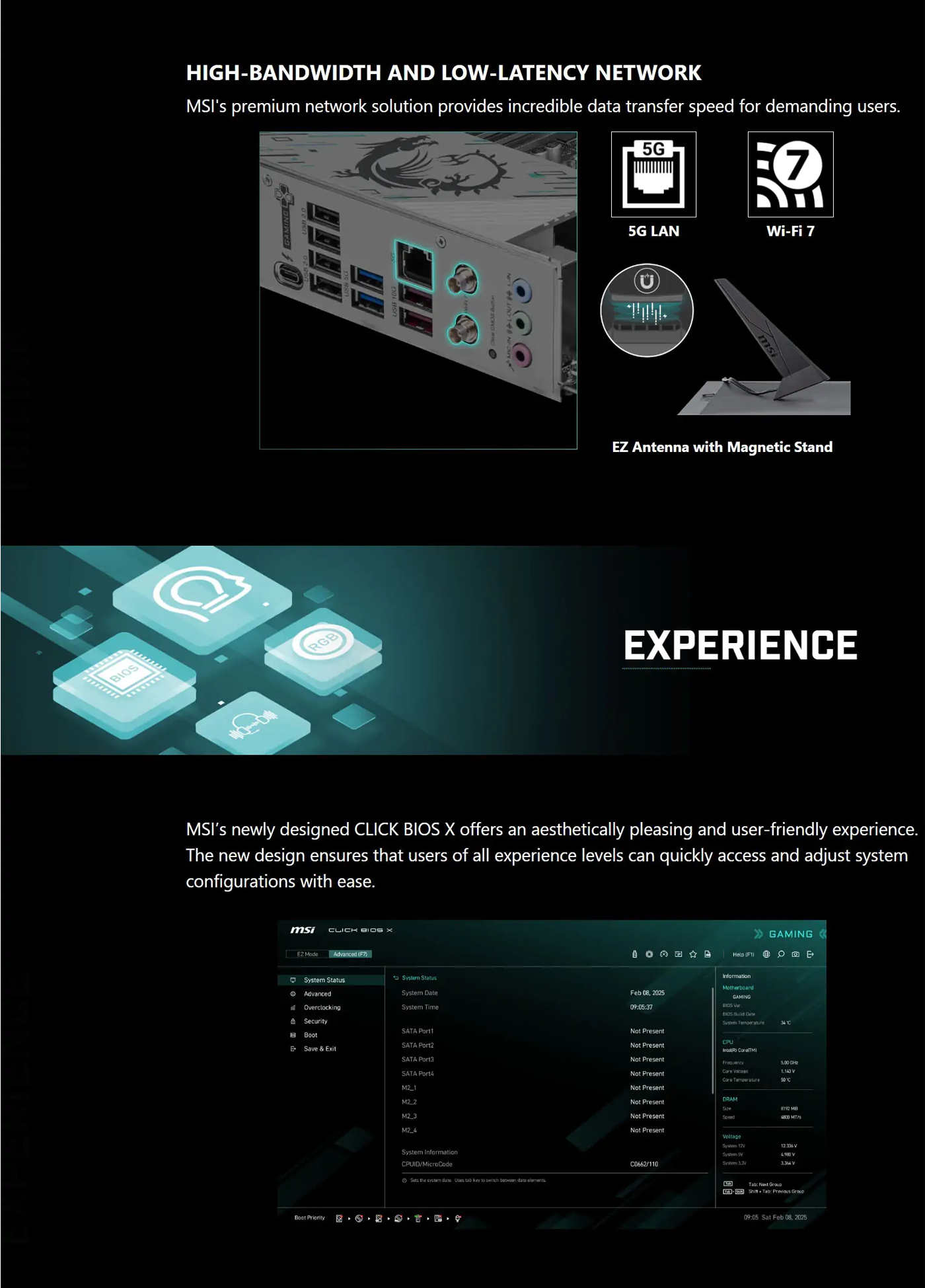

| Networking & Wireless | |
| Wired LAN | Intel Killer E5000 5G LAN |
| Wi-Fi | Intel Killer BE1750x Wi-Fi 7 (Pre-Installed in M.2 Key-E Slot) |
| Wi-Fi Bands / Speed | 2.4GHz / 5GHz / 6GHz (320MHz) – Up to 5.8Gbps |
| Bluetooth | Bluetooth 5.4 (MLO, 4KQAM, MU-MIMO TX/RX) |
| Internal I/O | |

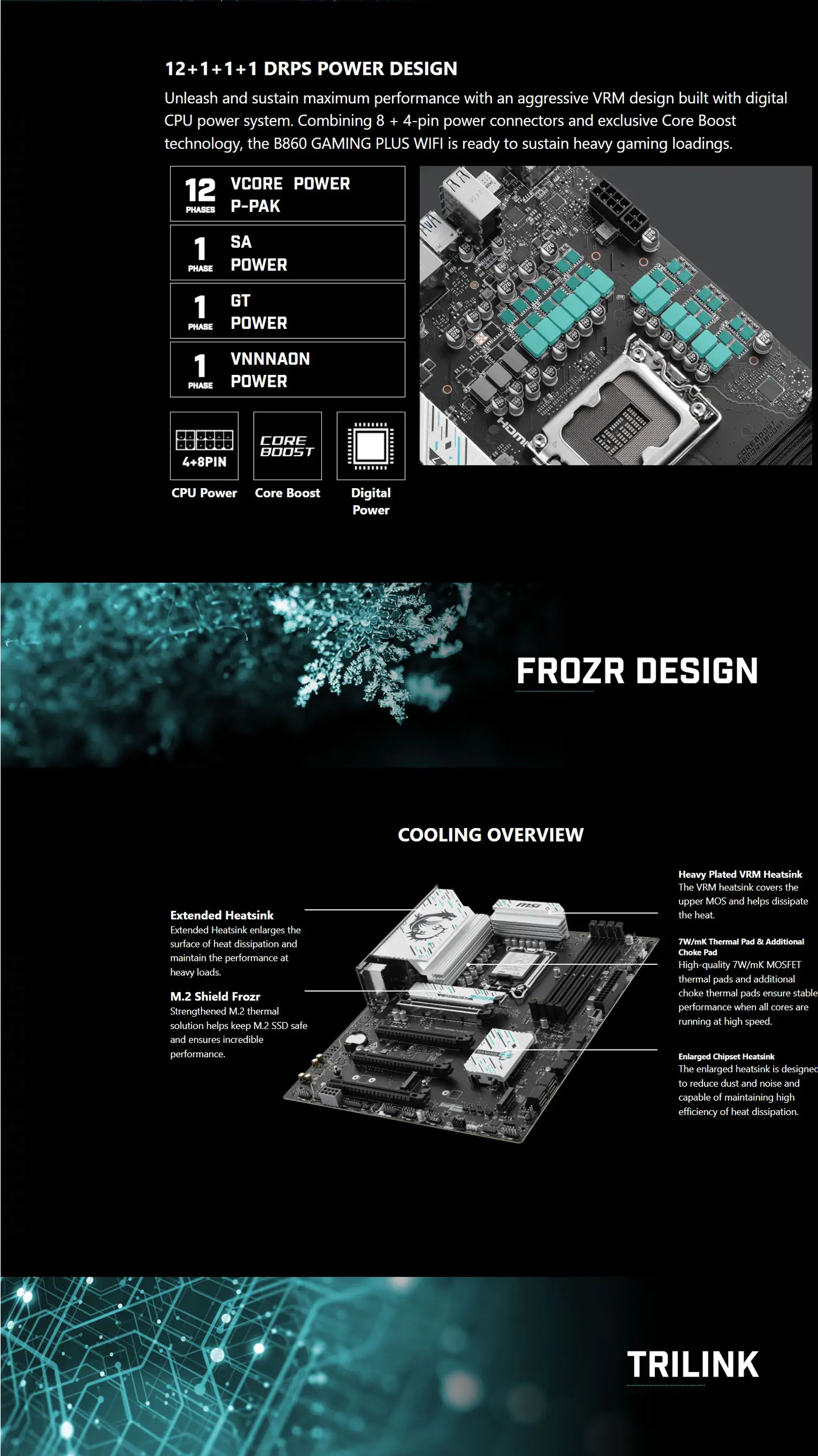

| Power Connectors | 1x ATX_PWR | 2x CPU_PWR | 1x PCIE_PWR (8-pin) |
| Fan Headers | 1x CPU Fan | 1x Combo Fan (Pump/Sys) | 4x System Fan |
| RGB Headers | 2x Addressable V2 RGB LED (JARGB_V2) | 1x RGB LED (JRGB) |
| Other Headers | JTBT5 (Thunderbolt 5 Card) | 2x Front Panel (JFP) | 1x Chassis Intrusion (JCI) | 1x Front Audio (JAUD) | 1x Com Port (JCOM) | 1x JDASH | 1x TPM 2.0 |
| LED Features | |
| EZ Debug LED | 4x EZ Debug LED |

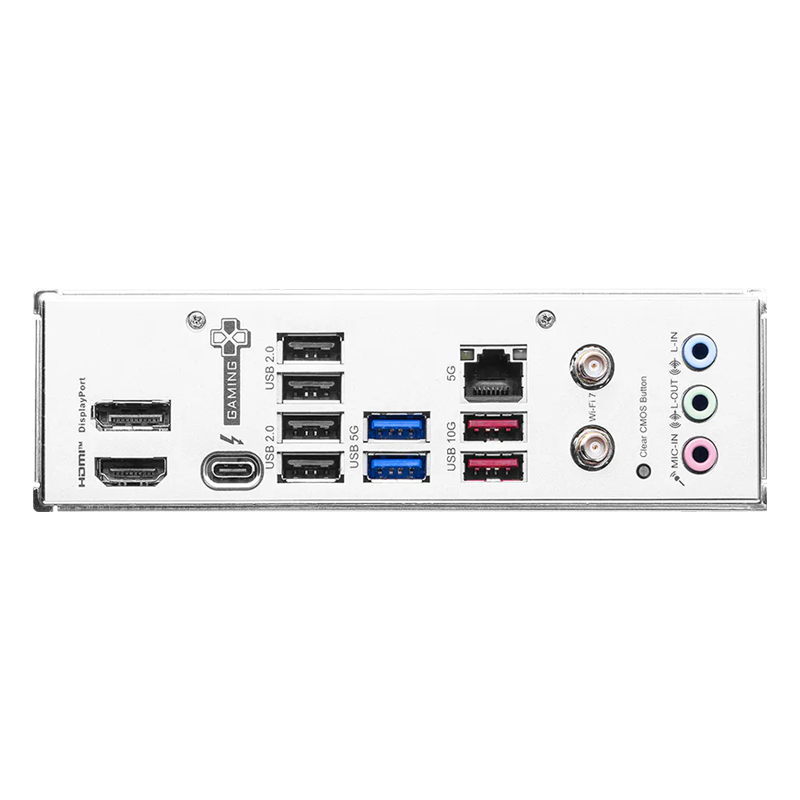

| Back Panel Ports | |
| Back Panel Ports | DisplayPort | USB 2.0 | 5G LAN | Wi-Fi / Bluetooth | Audio Connectors | HDMI | Thunderbolt 4 40Gbps (Type-C) | USB 5Gbps (Type-A) | USB 10Gbps (Type-A) | Clear CMOS Button |

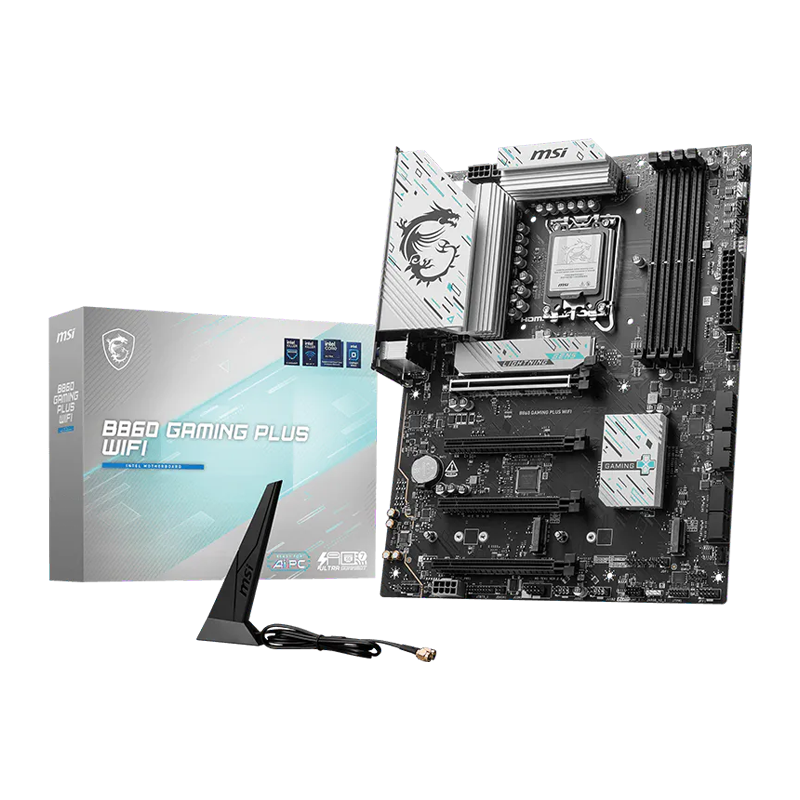

| In The Box | |
| Package Contents | MSI B860 GAMING PLUS WIFI Motherboard | Wi-Fi Antenna | SATA Cables | I/O Shield | M.2 Screws | User Documentation |
