MSI MAG Z790 Tomahawk Max WiFi DDR5 LGA 1700 ATX Motherboard
₨ 91,999
Supports Intel 14th/13th/12th Gen Core Processors: LGA 1700 socket backed by a massive 16+1+1 Duet Rail Power System with dual 8-pin CPU connectors for ultimate multi-core stability.
DDR5 Memory up to 7800+ MHz (OC): Four DIMM slots supporting up to 256GB of dual-channel DDR5 memory with Intel XMP 3.0 for extreme overclocking headroom.
PCIe 5.0 x16 & M.2 Gen5 Storage: A Lightning Gen 5 PCIe slot for next-gen GPUs, plus a dedicated Gen5 x4 M.2 slot and three additional Gen4 M.2 slots for ultra-fast NVMe SSDs with RAID support.
Wi-Fi 7 & Intel 2.5G LAN: Integrated next-generation Wi-Fi 7 with Bluetooth 5.4 and a high-speed Intel 2.5Gbps Ethernet port for ultra-fast, low-latency wired and wireless networking.
USB 20Gbps Type-C & Premium Audio: Rear USB 3.2 Gen 2×2 20Gbps Type-C port, front USB 10Gbps Type-C, Realtek ALC4080 32-bit/384 kHz USB audio, and a USB4 card connector for future expansion.
| Overview | |
| Brand & Model | MSI MAG Z790 Tomahawk Max WiFi |
| Socket & Chipset | LGA 1700 / Intel Z790 |
| CPU Support | Intel Core 14th, 13th, 12th Gen |
| Form Factor | ATX (243.84 mm x 304.8 mm) |
| VRM Design | 16+1+1 Duet Rail Power System (90A SPS) – Dual 8-Pin CPU Connectors |
| Memory | |
| Memory | 4x DDR5 DIMM, Up to 256 GB, 7800+ MHz (OC), XMP 3.0 |
| Expansion Slots | |
| Graphics Slot | 1x PCIe 5.0 x16 (CPU) – Lightning Gen 5 for Next-Gen GPUs |
| Additional PCIe | 1x PCIe 4.0 x4, 1x PCIe 3.0 x1 (Chipset) |
| Storage | |
| M.2 Storage | 1x Gen5 x4 (CPU), 3x Gen4 x4 (Chipset) – Supports RAID 0/1/5/10 |
| SATA Ports | 8x SATA 6G (Supports RAID 0/1/5/10) |
| Networking | |
| Wired | Intel 2.5Gbps LAN |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| USB | |

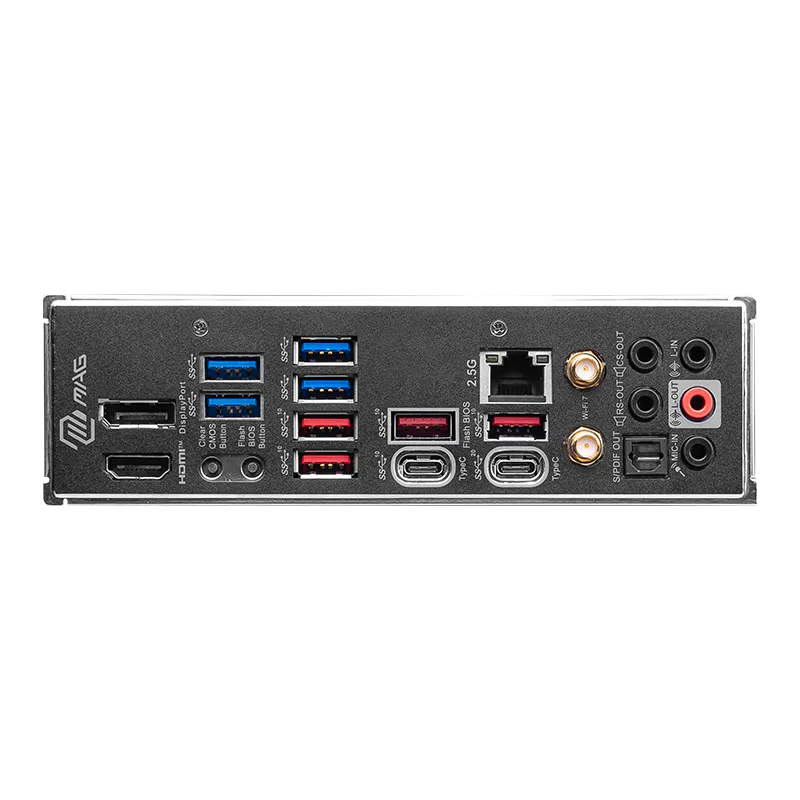

| Rear USB | 1x USB 20Gbps Type-C, 1x USB 10Gbps Type-C, 4x USB 10Gbps Type-A, 4x USB 5Gbps Type-A |
| Front USB | 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video & Audio | |
| Video Outputs | HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (8K@60Hz) |
| Audio | Realtek ALC4080 32-bit/384 kHz 7.1-Channel USB Audio |
| Special Features | |
| Special Features | EZ Debug LED, Clear CMOS, Flash BIOS Button, USB4 Card Connector |
| Warranty | |
| Warranty | 1 Year Local Warranty (Varies by Retailer) |
