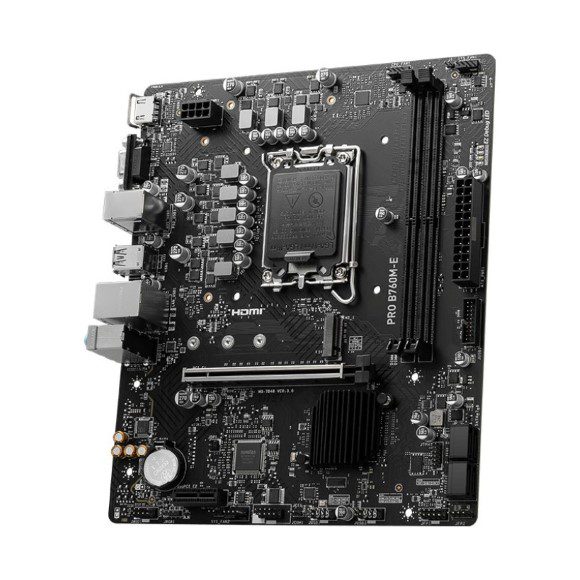

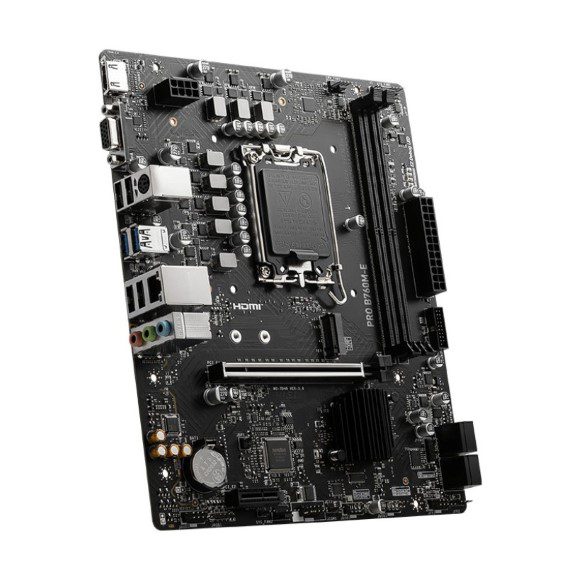

MSI PRO B760M-E DDR5 Micro-ATX LGA 1700 Motherboard
₨ 29,500
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
| Overview | |
| Chipset | Intel B760 |
| Form Factor | mATX (200mm x 236.16mm) |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| CPU | |
| CPU Socket | LGA 1700 |
| CPU Support | Intel Core 14th / 13th / 12th Gen Processors, Pentium Gold and Celeron Processors |
| Memory | |
| Memory Slots | 2x DDR5 |
| Maximum Memory Capacity | 96 GB |
| Memory Support | DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz |
| Max Overclocking Frequency | 1DPC 1R: Up to 6400+ MHz / 1DPC 2R: Up to 5600+ MHz |
| Intel XMP Support | Intel XMP 3.0 OC |
| Channel Architecture | Dual-Controller Dual-Channel |
| Memory Type | Non-ECC, Un-buffered Memory |
| Onboard Graphics | |
| HDMI | 1x HDMI 1.4 with HDR, Max Resolution: 4K @ 30Hz |
| VGA | 1x VGA, Max Resolution: 2048×1536 @ 50Hz / 2048×1280 @ 60Hz / 1920×1200 @ 60Hz |
| Note | Available only on processors featuring integrated graphics. Specifications may vary depending on CPU installed. |
| Expansion Slots | |
| PCI-E x16 Slot | 1x PCIe 4.0 x16 (From CPU) |
| PCI-E x1 Slot | 1x PCIe 3.0 x1 (From Chipset) |
| Storage | |
| M.2 Slots | 1x M.2 (From Chipset) – PCIe 4.0 x4 / SATA Mode, Supports 2280/2260/2242 Devices |
| SATA Ports | 4x SATA 6G |
| Note | SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| RAID | |
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 10 for SATA Storage Devices |
| USB | |
| USB 2.0 (Rear) | 4x |
| USB 2.0 (Front) | 4x |
| USB 3.2 Gen1 Type A (Rear) | 2x |
| USB 3.2 Gen1 Type A (Front) | 2x |
| LAN | |
| Ethernet | Realtek RTL8111H Gigabit LAN |
| Audio | |
| Audio Codec | Realtek ALC897 Codec |
| Audio Channels | 7.1-Channel High Definition Audio |
| Internal I/O | |
| Power Connectors | 1x ATX_PWR, 1x CPU_PWR |
| Fan Headers | 1x CPU Fan, 2x System Fan |
| Front Panel | 2x Front Panel (JFP) |
| Other Headers | 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x RGB LED (JRGB), 1x TPM (Support TPM 2.0) |
| USB Headers | 4x USB 2.0, 2x USB 3.2 Gen1 Type A |
| LED Feature | |
| EZ Debug LED | 4x EZ Debug LED |
| Back Panel Ports | |
| Ports | HDMI, VGA, Keyboard/Mouse, USB 3.2 Gen 1 5Gbps (Type-A), LAN Port, Audio Connectors, USB 2.0 |
