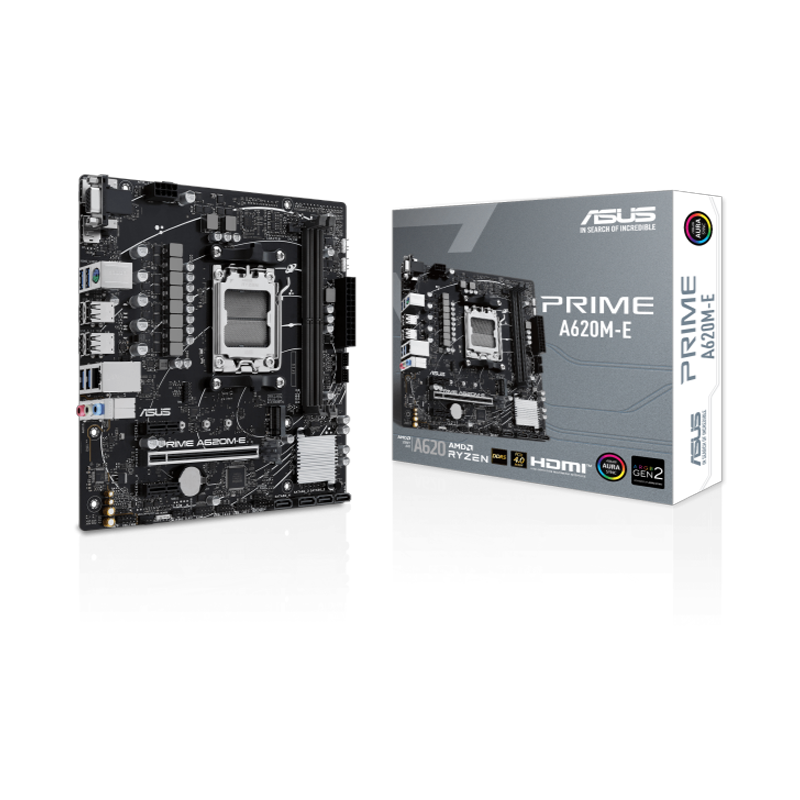

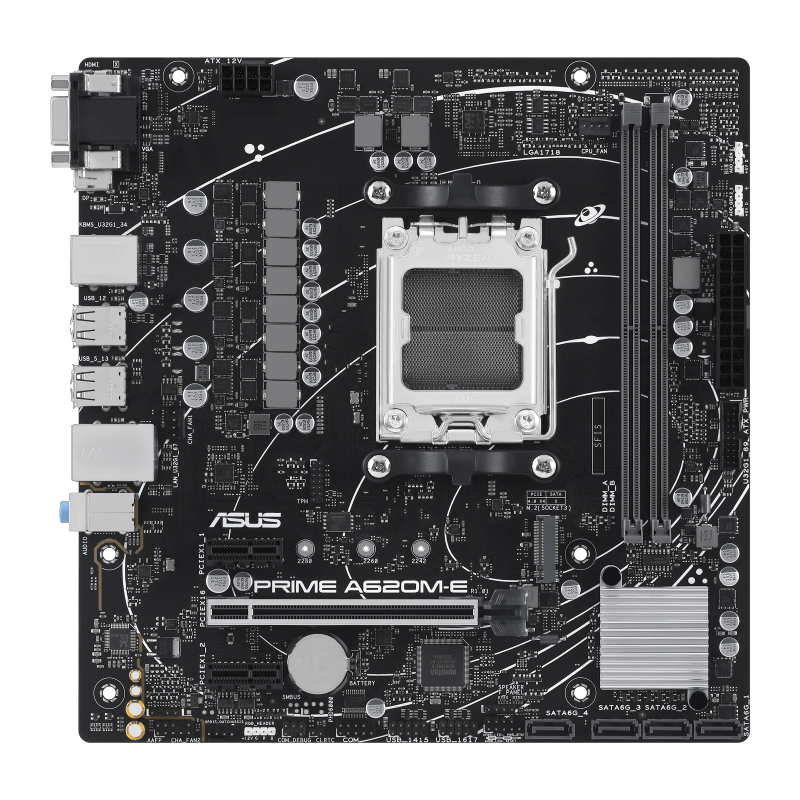

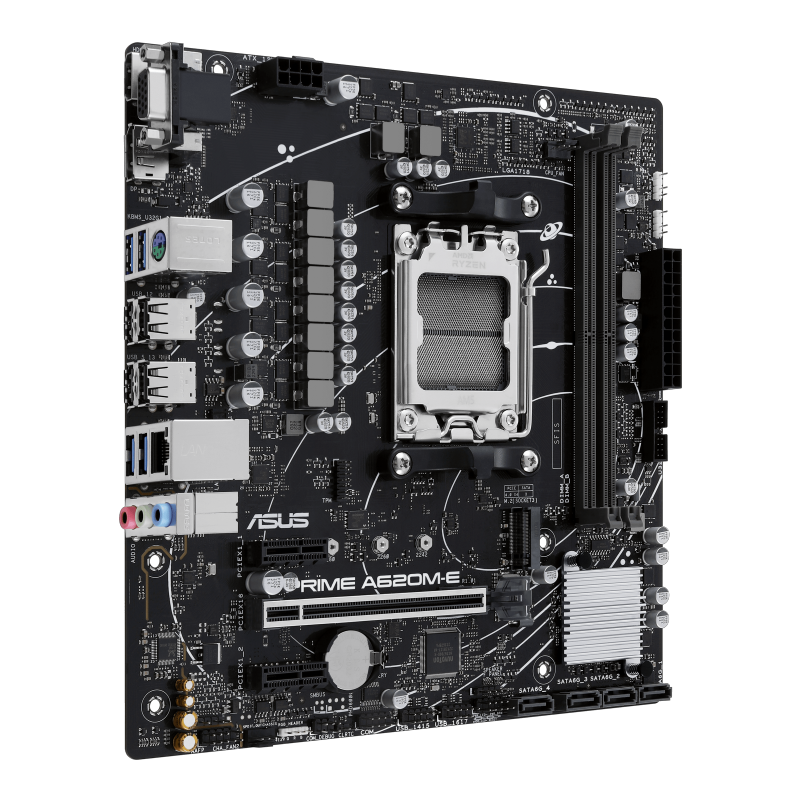

Asus Prime A620M-E DDR5 AMD AM5 microATX Motherboard
₨ 30,000
AMD AM5 socket with A620 chipset for Ryzen 7000 and 8000 series desktop processors
Two DIMM slots supporting up to 96GB dual-channel DDR5 RAM with EXPO overclocking
PCIe 4.0 x16 slot for graphics and one PCIe 4.0 M.2 slot for high-speed NVMe storage
Onboard addressable Gen 2 headers and Aura RGB header for customizable lighting synchronization
ASUS 5X Protection III with DIGI+ VRM and SafeSlot Core+ for stable power and long-term reliability
| Overview | |
| Product Name | ASUS PRIME A620M-E |
| Brand | ASUS |
| Series | PRIME Series |
| Form Factor | micro-ATX (22.6 x 22.1 cm) |
| Operating System Support | Windows 11 64-bit | Windows 10 64-bit |
| Condition | ✔️ New |
| CPU & Chipset | |
| Chipset | AMD A620 |
| Socket | AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series (Up to 120W TDP) |
| Protection | ASUS 5X Protection III |
| Memory | |
| Memory Slots | 2x DDR5 DIMM |
| Max Capacity | 96 GB |
| Channel Mode | Dual-Channel |
| Max OC Frequency | DDR5 7200+ MHz (OC) |
| Memory Technology | AMD EXPO Support |
| Onboard Graphics | |
| HDMI | 1x HDMI 2.1 – 4K @ 60Hz |
| DisplayPort | 1x DP 1.4 – 8K @ 60Hz |
| VGA | 1x VGA |
| Expansion Slots | |
| PCIe x16 Slot | 1x PCIe 4.0 x16 |
| PCIe x1 Slots | 2x PCIe 3.0 x1 |
| Storage | |
| M.2 Slots | 1x M.2 (PCIe 4.0 x4) |
| SATA Ports | 4x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 10 |
| Ethernet | |
| LAN | Realtek 1Gb Ethernet |
| USB Ports | |
| Rear USB | 4x USB 3.2 Gen 1 (5Gbps) | 4x USB 2.0 |
| Front USB | 2x USB 3.2 Gen 1 (5Gbps) | 4x USB 2.0 |
| Audio | |
| Audio | Realtek 7.1 Surround Sound |
| Audio Resolution | 24-bit / 192 kHz |
| Audio Features | Audio Shielding | Premium Capacitors |
| Back Panel I/O | |

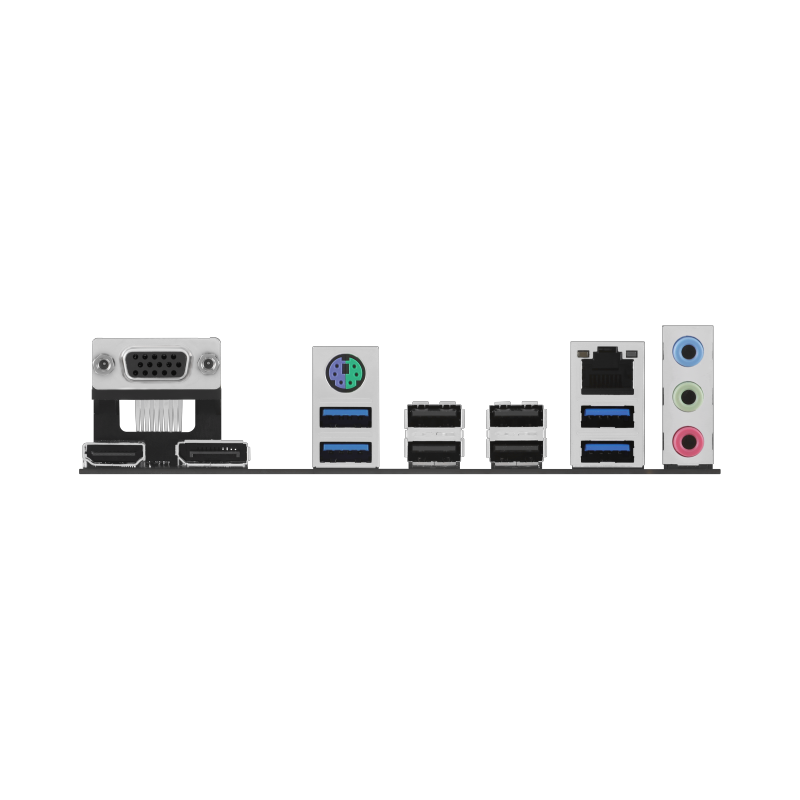

| Back Panel Ports | DisplayPort | HDMI | VGA | 4x USB 3.2 Gen 1 | 4x USB 2.0 | Ethernet | 3x Audio Jacks | PS/2 |
| Internal Connectors | |
| Internal Connectors | CPU/Chassis Fan Headers | RGB Headers | M.2 | SATA | USB Headers | TPM | SPDIF |
| Special Features | |
| Special Features | ASUS 5X Protection III | Q-Design | Aura Sync RGB | Armoury Crate Software |
| BIOS | |
| BIOS | 256Mb Flash ROM | UEFI AMI BIOS |
| In The Box | |
| Package Contents | ASUS PRIME A620M-E Motherboard | 2x SATA Cables | I/O Shield | M.2 Screw Kit | User Guide |
| Brand | Asus |
|---|
