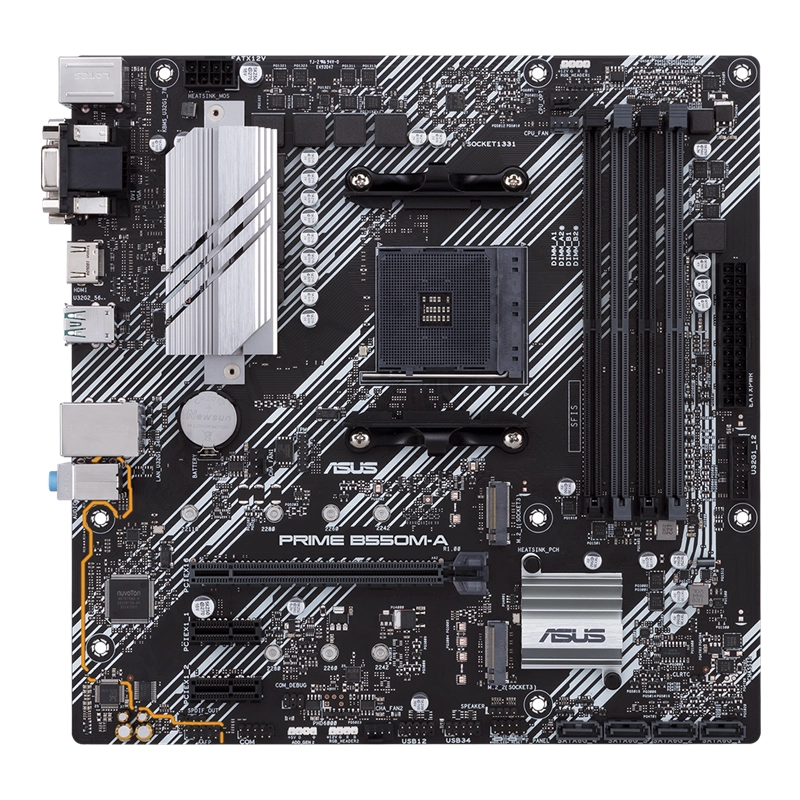

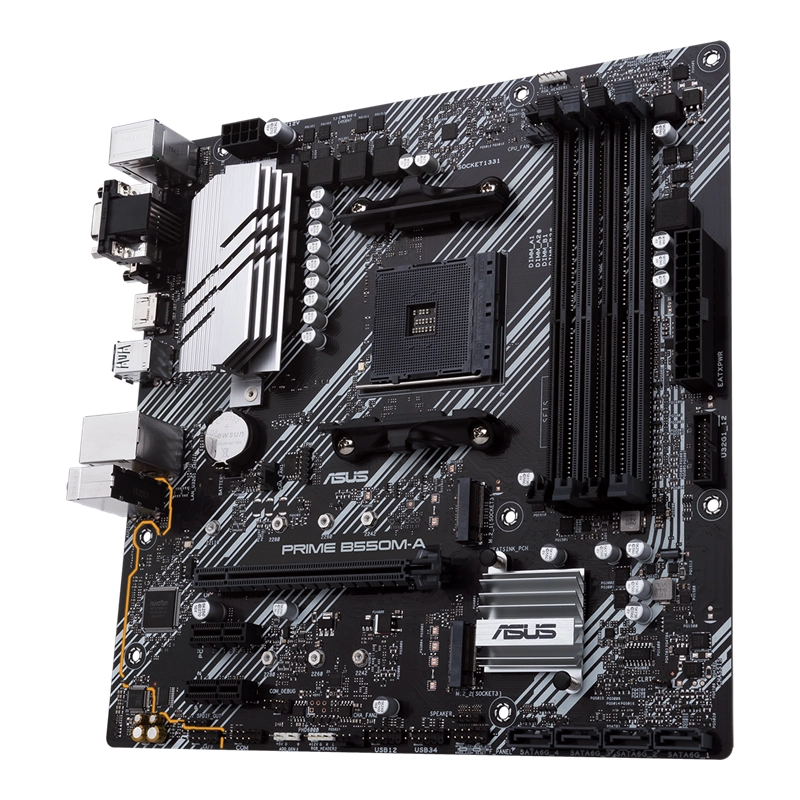

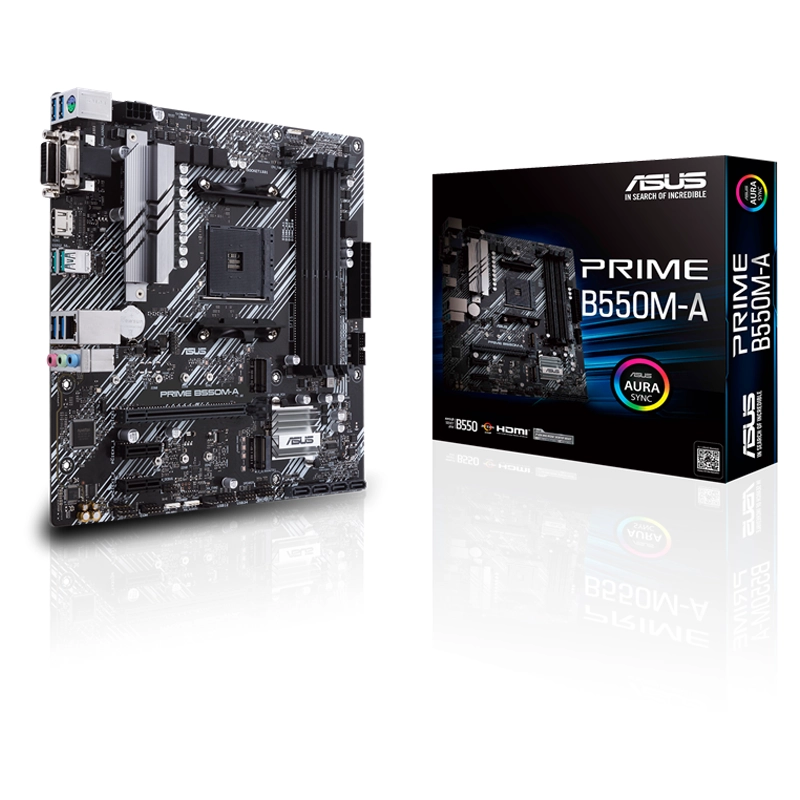

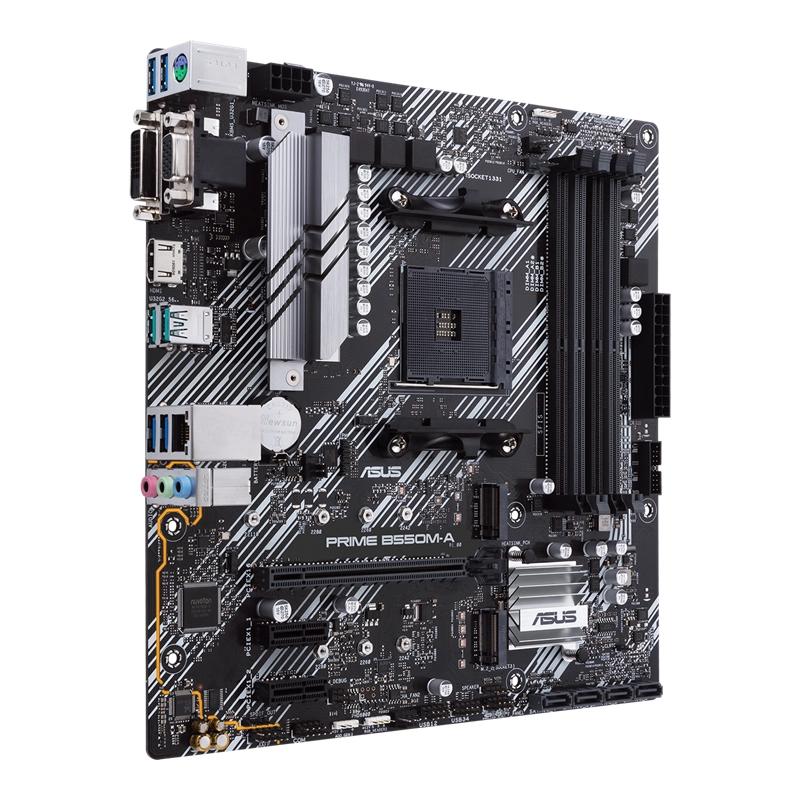

ASUS PRIME B550M-A AMD Motherboard
₨ 39,500
- Supports AMD Ryzen 5000/3000 Series processors on AM4 socket with DDR4 memory up to 128GB at 4800+ MHz (OC)
- PCIe 4.0 x16 slot and dual M.2 slots (PCIe 4.0 x4 + PCIe 3.0 x4 both with SATA mode), plus 4x SATA 6Gb/s with RAID 0/1/10
- Rear I/O with 2x USB 3.2 Gen 2 Type-A, HDMI 2.1 (4K@60Hz), DVI-D, D-Sub, Realtek 1Gb Ethernet, and PS/2 combo
- Aura Sync with 2x RGB headers and 1x Addressable Gen 2 header for comprehensive lighting customization
Available on backorder
| Overview | |
| Brand | ASUS |
| Model | PRIME B550M-A |
| Chipset | AMD B550 |
| Socket | AMD AM4 |
| Form Factor | mATX (24.4 x 24.4 cm) |
| CPU Support | AMD Ryzen 5000/5000G/4000G/3000 Series |
| Memory Type | DDR4 |
| Memory | |
| Memory Slots | 4 x DIMM |
| Max Memory | 128 GB |
| Memory Speed | DDR4 up to 4866+ MHz (OC) |
| Memory Architecture | Dual Channel |
| ECC Support | Yes (Varies by CPU) |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4), 2 x PCIe 3.0 x1 |
| M.2_1 Slot (CPU) | PCIe 4.0 x4 & SATA (2242/2260/2280/22110) |
| M.2_2 Slot (Chipset) | PCIe 3.0 x4 & SATA (2242/2260/2280) |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/10) |
| Graphics & Audio | |
| Display Outputs | 1 x HDMI 2.1 (4K@60Hz), 1 x DVI-D, 1 x D-Sub |
| Audio | Realtek ALC887/897 7.1 HD Audio (24-Bit/192 kHz), Premium Audio Capacitors |
| Networking | |
| Ethernet | 1 x Realtek RTL8111H 1Gb Ethernet |
| Rear I/O | |
| USB Ports | 2 x USB 3.2 Gen 2 Type-A (Teal Blue), 4 x USB 3.2 Gen 1 Type-A (Blue) |
| Other Ports | 1 x PS/2 Combo, 1 x RJ45 LAN, 3 x Audio Jacks |
| Internal I/O | |
| USB Headers | 1 x USB 3.2 Gen 1 (2 ports), 2 x USB 2.0 (4 ports) |
| Fan Headers | 1 x CPU Fan, 1 x CPU OPT Fan, 2 x Chassis Fan |
| RGB Headers | 2 x Aura RGB, 1 x Addressable Gen 2 |
| Power Connectors | 1 x 24-pin EATX, 1 x 8-pin EATX 12V |
| Special Headers | 1 x COM Port, 1 x S/PDIF Out, 1 x SPI TPM, 1 x Clear CMOS, 1 x Speaker |
| Features | |
| Protection | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage, SafeSlot Core, Stainless-Steel I/O) |
| ASUS Q-Design | Q-DIMM, Q-Slot |
| Thermal Solution | Aluminum Heatsink Design |
| Lighting Control | Aura Sync (2 x RGB + 1 x Addressable Gen 2), Aura Creator |
| Software Suite | Armoury Crate, AI Suite 3, TurboV EVO, Fan Xpert 2+ |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 10 64-bit |
| Included Accessories | |
| In the Box | 2 x SATA 6Gb/s Cables, 1 x I/O Shield, 1 x M.2 SSD Screw Package, 1 x Supporting DVD, User Manual |
| Brand | Asus |
|---|
Brand
Asus
PRIME
1 review for ASUS PRIME B550M-A AMD Motherboard
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery
At Amir Traders, we aim to provide a smooth and hassle-free shopping experience to our valued customers. We offer fast, secure, and nationwide delivery services across Pakistan.
All orders are typically processed and dispatched within 1 to 2 working days after confirmation. Once shipped, delivery timelines vary depending on your location, usually taking between 2 to 5 business days. For customers in major cities, delivery is often quicker.
We currently offer Cash on Delivery (COD) for your convenience, allowing you to pay when the product arrives at your doorstep. Our packaging is done with care to ensure your products reach you safely and in perfect condition.
If you have any questions regarding your delivery or would like to track your order, feel free to contact our support team anytime.
