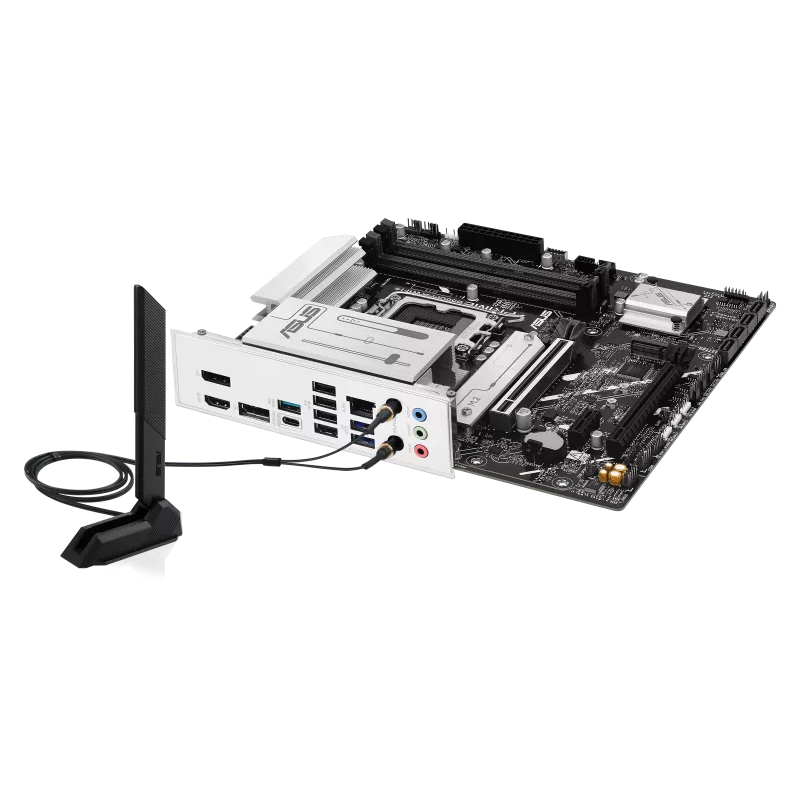

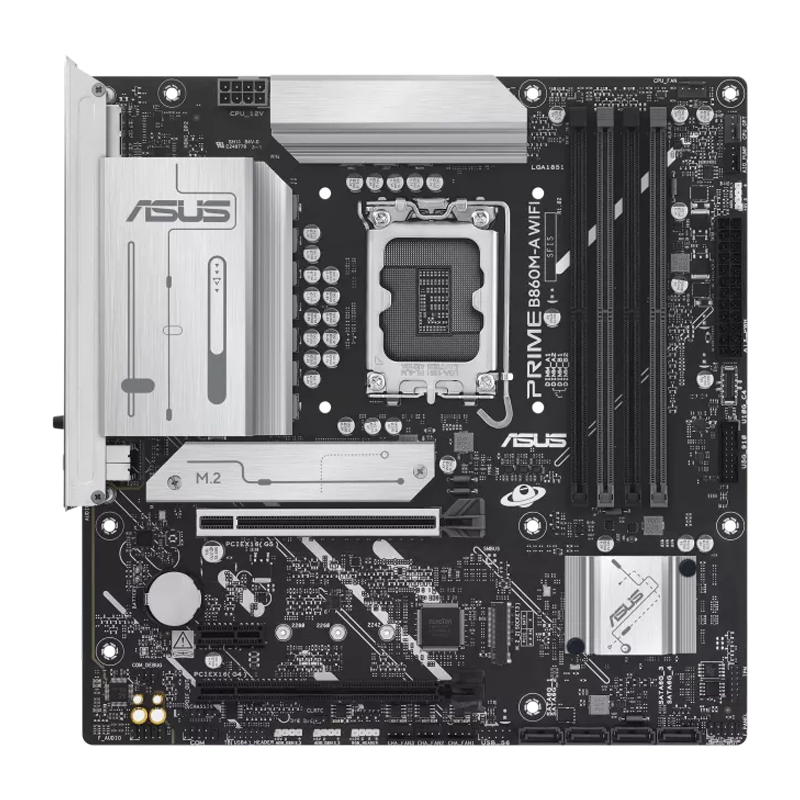

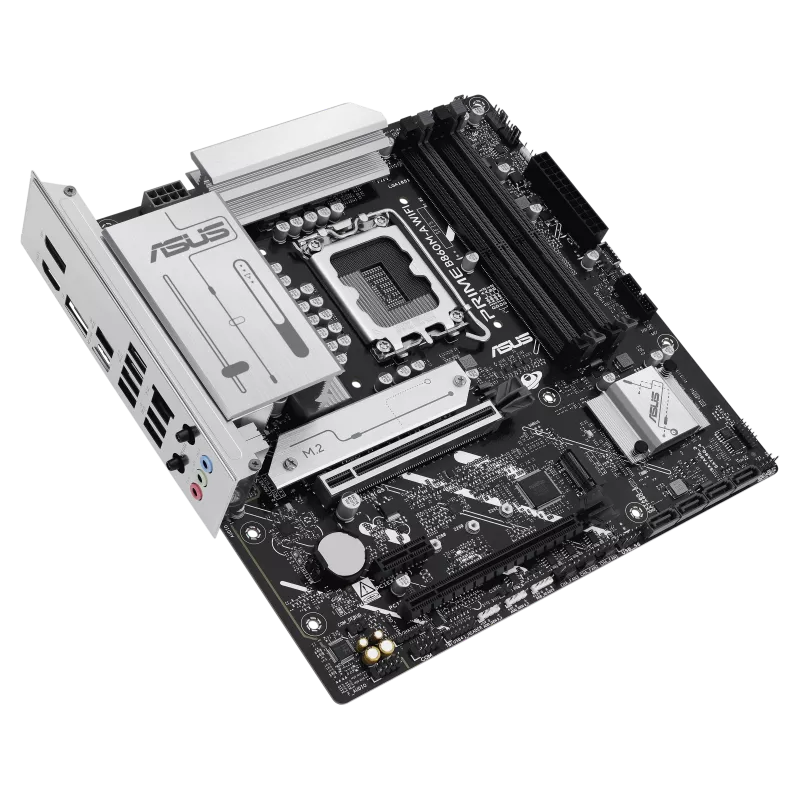

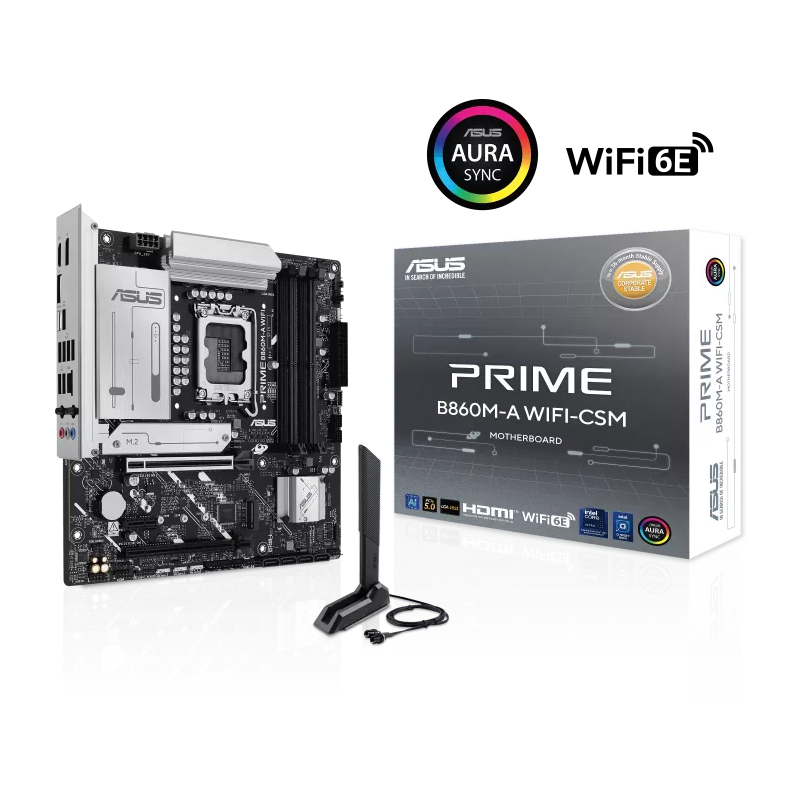

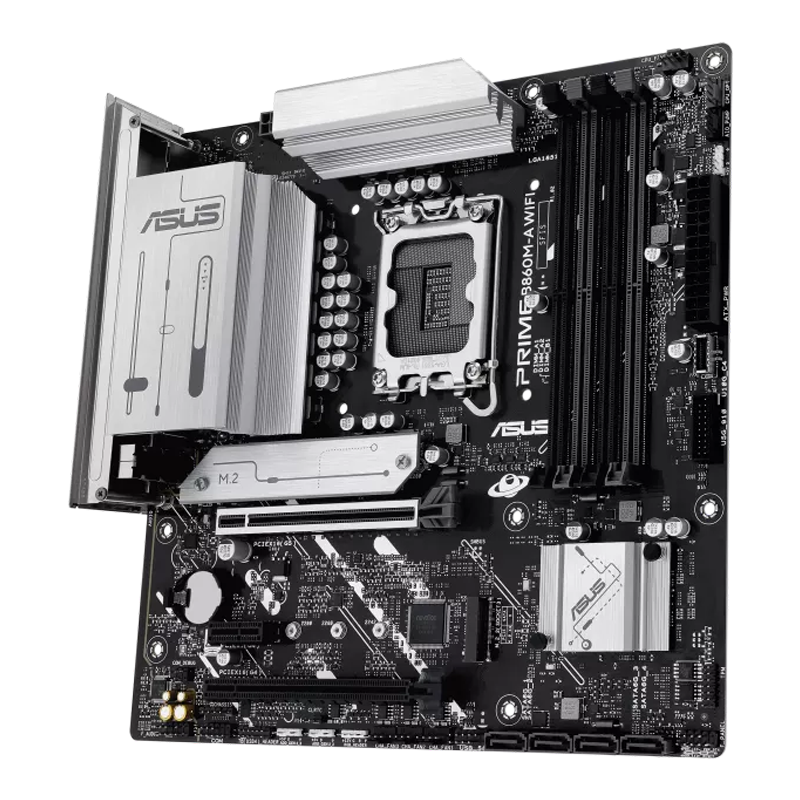

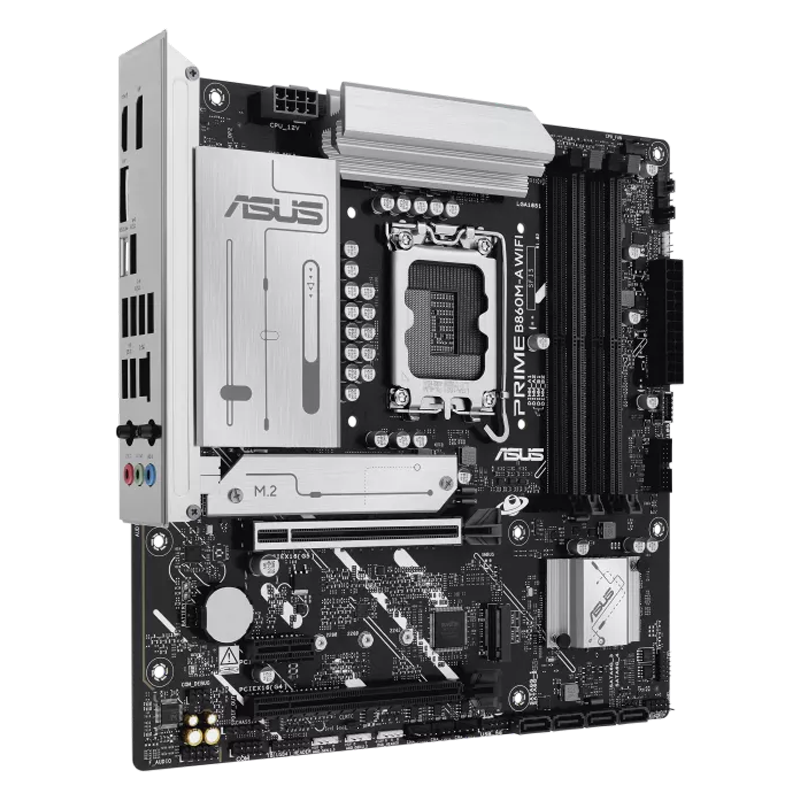

ASUS PRIME B860M-A WIFI-CSM Intel Motherboard
₨ 58,000
- Supports Intel Core Ultra Processors (Series 2) on LGA1851 with 4x DIMM DDR5 up to 256GB at 8666+ MT/s
- PCIe 5.0 x16 slot and PCIe 5.0 M.2 for next-gen graphics and storage, plus PCIe 4.0 M.2 and 4x SATA 6Gb/s

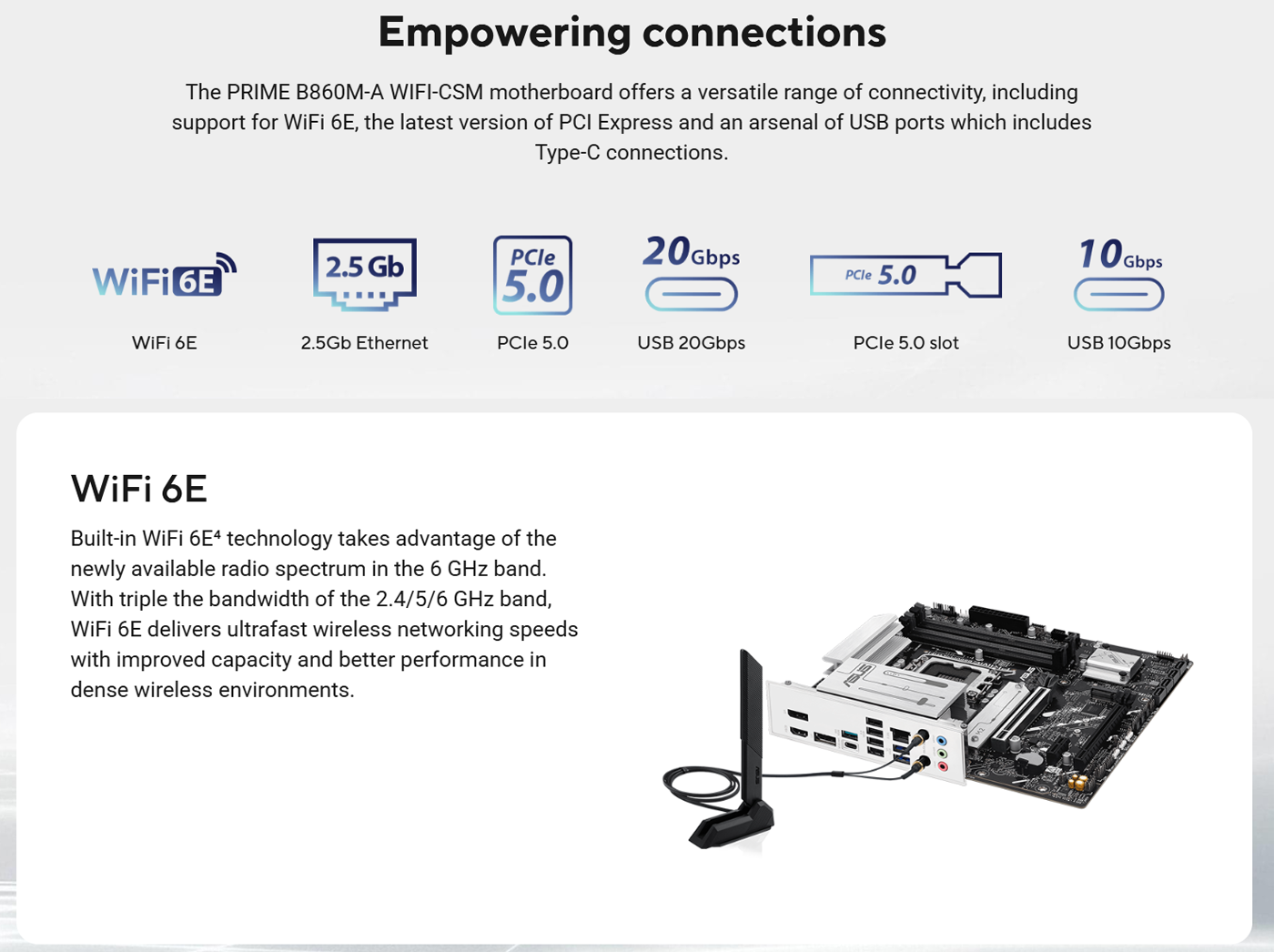

- WiFi 6E with Bluetooth 5.3, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C® with DP Alt mode, and Thunderbolt™ header
- Comprehensive cooling with VRM and M.2 heatsinks, 6 fan headers, pre-mounted I/O shield, and Aura Sync RGB
| Overview | |
| Brand | ASUS |
| Model | PRIME B860M-A WIFI-CSM |
| Chipset | Intel B860 |
| Socket | LGA 1851 |
| Form Factor | micro-ATX (24.4 x 24.4 cm) |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Memory Type | DDR5 |
| Memory | |
| Memory Slots | 4 x DIMM |
| Max Memory | 256 GB |
| Memory Speed | DDR5 up to 8666+ MT/s (OC), CUDIMM Support |
| Memory Architecture | Dual Channel |
| Memory Technology | Intel XMP, ASUS AEMPIII, DIMM Fit |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4), 1 x PCIe 4.0 x1 |
| M.2 Slots | 1 x PCIe 5.0 x4 (CPU), 1 x PCIe 4.0 x4 (B860) |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| Graphics & Audio | |
| Display Outputs | 2 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI 2.1 (4K@60Hz), 1 x USB-C DP Alt Mode (4K@120Hz) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC |
| Networking | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with ASUS LANGuard |
| Wireless | Wi-Fi 6E (802.11ax) 2×2, 2.4/5/6GHz |
| Bluetooth | Bluetooth 5.3 |

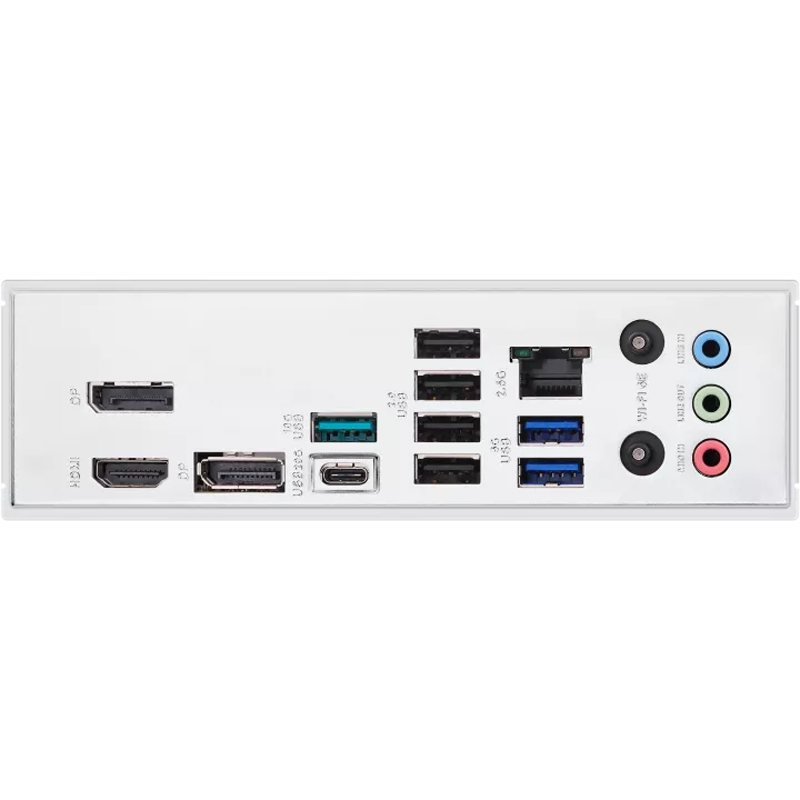

| Rear I/O | |
| USB Ports | 1 x USB 20Gbps Type-C (DP Alt), 1 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A |
| Audio Ports | 3 x Audio Jacks |
| Internal I/O | |

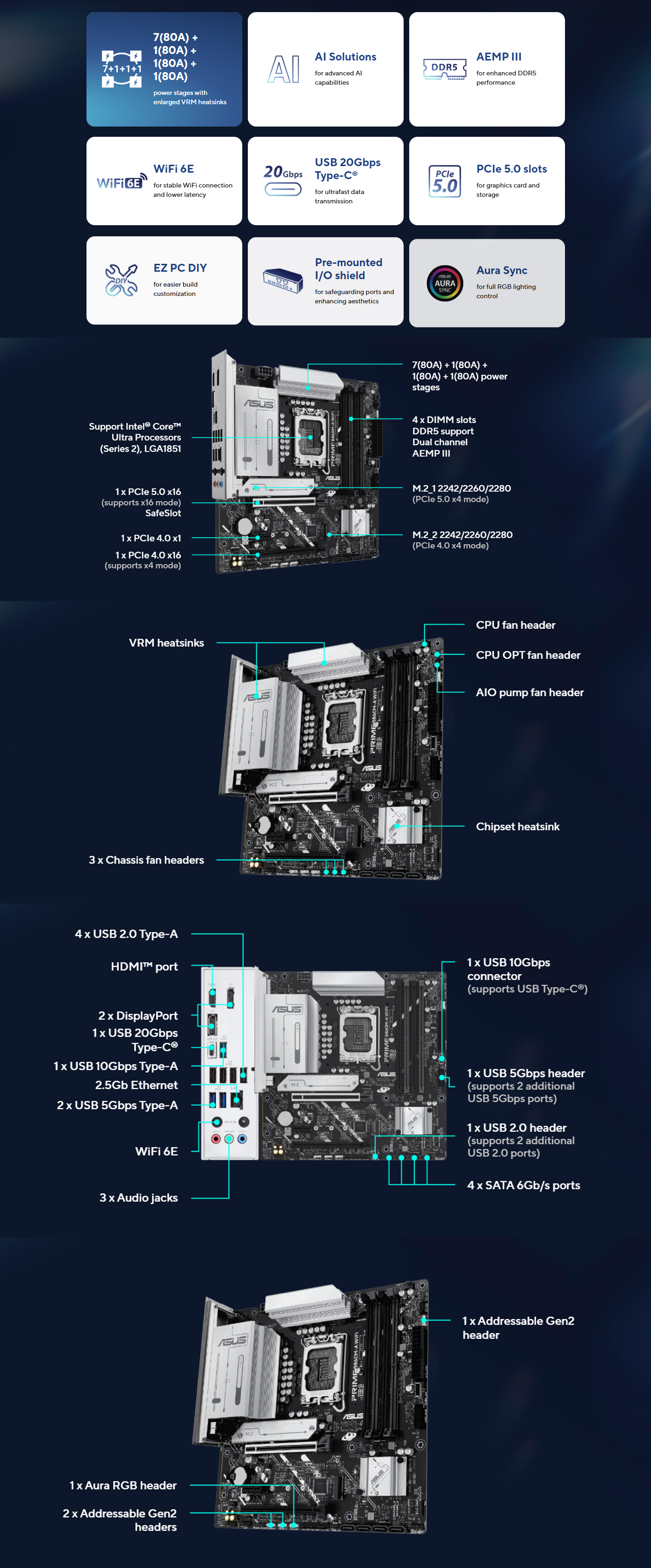

| Fan Headers | 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 3 x Chassis Fan |
| Power Connectors | 1 x 24-pin Main, 1 x 8-pin +12V CPU |
| Front USB | 1 x USB 10Gbps Type-C®, 2 x USB 5Gbps (header), 2 x USB 2.0 (header) |
| RGB Headers | 3 x Addressable Gen 2, 1 x Aura RGB |
| Special Headers | 1 x Thunderbolt™ (USB4®), 1 x COM Port, 1 x S/PDIF Out, 1 x SPI TPM, 1 x Chassis Intrusion |
| Features | |
| Protection | ASUS 5X PROTECTION III (DIGI+ DrMOS, ESD Guards, LANGuard, Overvoltage, SafeSlot, Stainless-Steel I/O) |
| ASUS Q-Design | Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot |

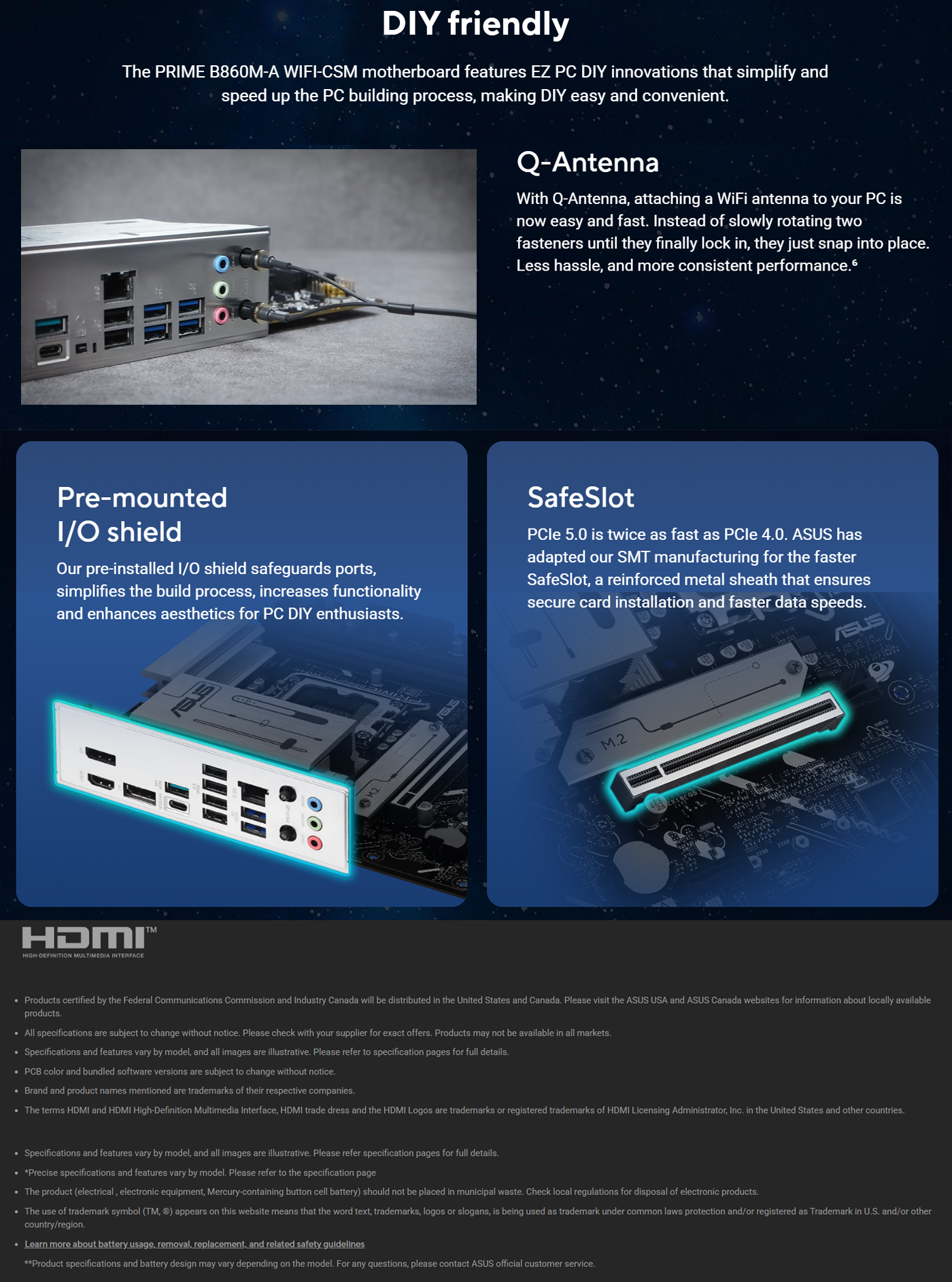

| Thermal Solution | VRM Heatsink, M.2 Heatsink, ProCool, Pre-Mounted I/O Shield |
| Lighting Control | Aura Sync (3 x Addressable Gen 2 + 1 x Aura RGB) |
| Software Suite | Armoury Crate, Aura Creator, Fan Xpert 2+, ASUS DriverHub, ASUS GlideX |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 (22H2+), Windows 10 64-bit (21H2+) |
| Included Accessories | |
| In the Box | 2 x SATA 6Gb/s Cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 Rubber Package, 1 x M.2 Screw Package, ACC Express Activation Key Card, Quick Start Guide |
| Brand | Asus |
|---|
Brand
Asus
PRIME
