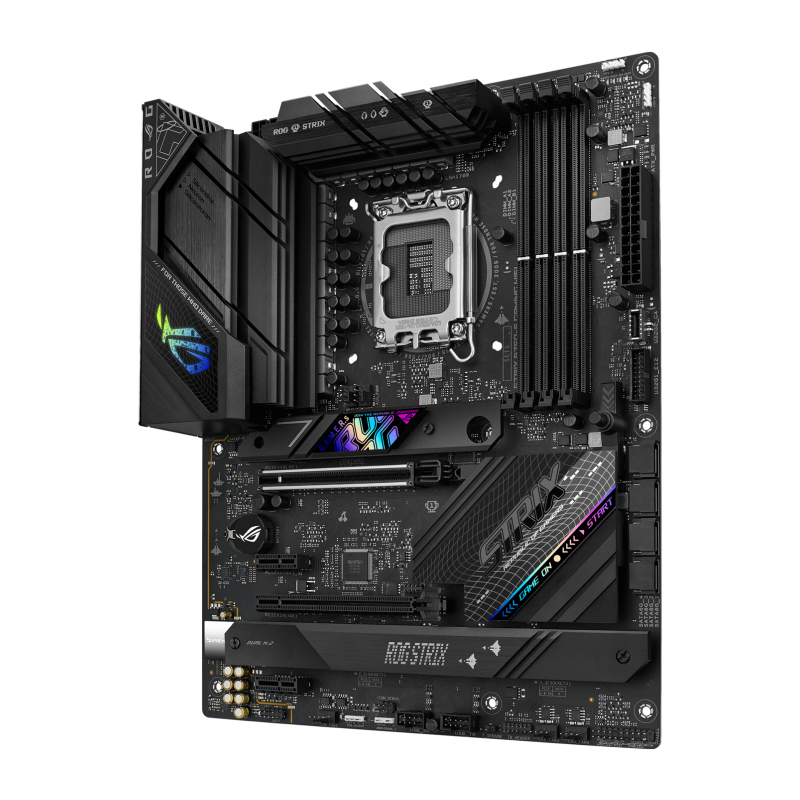

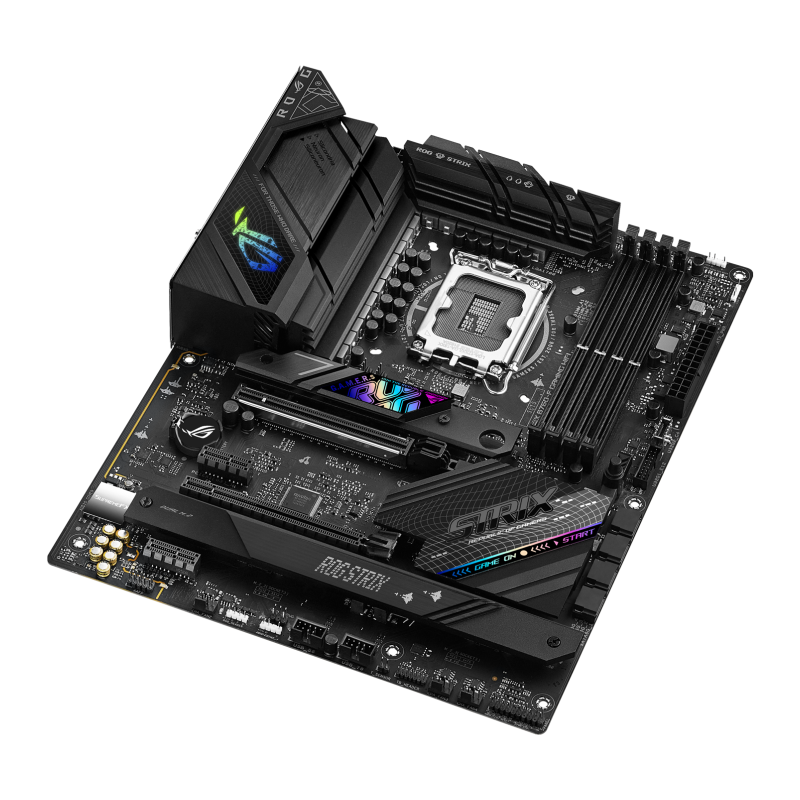

ASUS ROG STRIX B760-F GAMING WIFI Intel Motherboard – [USED]

Name: ASUS ROG STRIX B760-F GAMING WIFI Intel Motherboard - [USED]
SKU: 48218
Price: 49999 PKR
Availability: InStock

₨ 49,999

16+1 Power Stages & LGA1700 Socket – PCIe 5.0 Support

Supports Intel Core 14th, 13th & 12th Gen processors with robust power delivery and a PCIe 5.0 x16 slot for next-gen graphics cards.

DDR5 Memory – Up to 7800+ MT/s with AEMP II & XMP

4 DIMM slots supporting high-frequency DDR5 with ASUS AEMP II and Intel XMP profiles for optimized memory performance.

Wi-Fi 6E & 2.5GbE LAN – USB 3.2 Gen 2×2 Type-C

Ultra-fast networking with Intel Wi-Fi 6E and 2.5Gb Ethernet. Rear USB 3.2 Gen 2×2 Type-C port for high-speed data transfer.

DIY-Friendly Design – Used Item with Box

PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack, and Q-LED for easy building. Pre-owned unit with original box.

Compare

Add to wishlist

Chat with us to Confirm Availability & Updated Price

Description

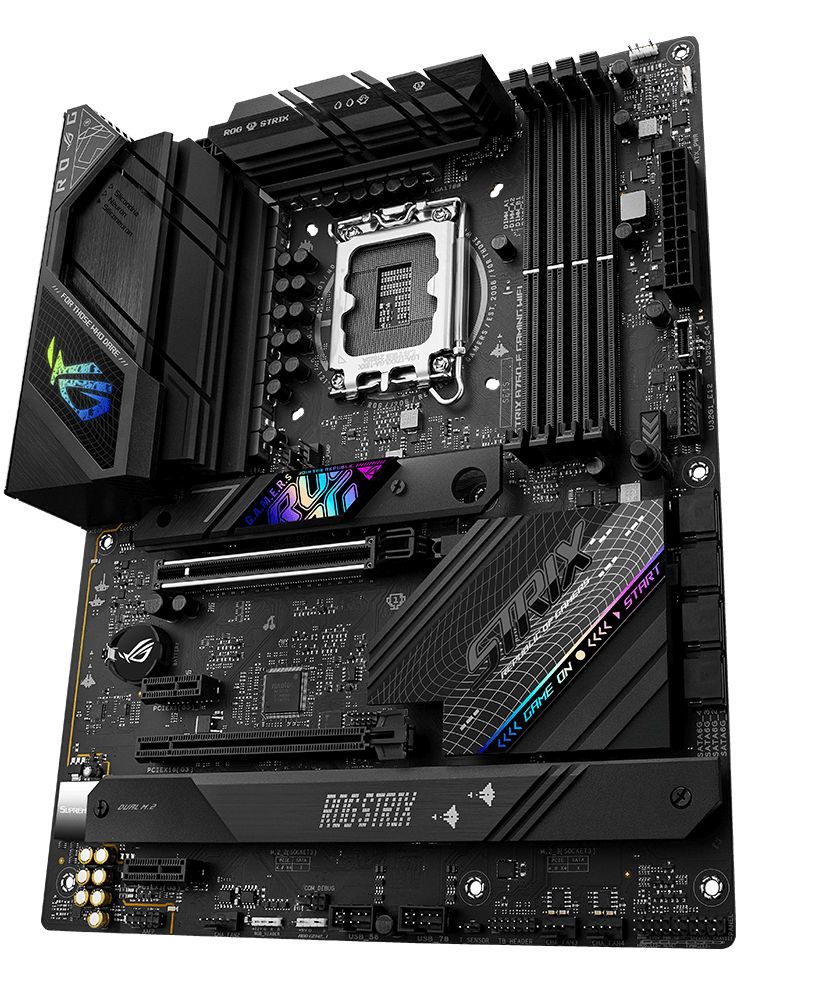

ROG STRIX B760-F GAMING WiFi

Leap into the future with the ROG Strix B760-F, a fantastic upgrade into 14^th Gen with its dominant power solution and best-in-class DDR5 speeds. Its next-gen PCIe 5.0 slot gives overwhelming graphics card throughput for maximum FPS, and you can minimize lag via hyperfast WiFi 6E or 2.5G LAN. All these perks come alongside distinctive rainbow stripes and retro accents so you can show off your gamer pride. This platform delivers the power and connectivity that advanced AI PC applications demand.

GEN 5 SUPPORT

x1 PCIe 5.0 x16 slot

USB 3.2 GEN 2X2

Type-C® rear I/O port

ROBUST POWER SOLUTION

16 + 1 + 1 Power Stages

DDR5 MEMORY

7800+ MT/s, AEMP II, XMP

WiFi 6E

+ Intel 2.5G Ethernet

DIY-FRIENDLY DESIGN

Q-Release, Q-Latch, Q-LED

LEADING CONNECTIVITY

Supersmooth networking, extensive USB bandwidth, and immersive audio all come together to give the ROG Strix B760-F a robust connectivity package.

PCIE PERFORMANCE

The top x16 expansion slot is ready for the future with incredible PCIe 5.0 bandwidth, and it is protected with a SafeSlot retention bracket to support the bulk of the latest graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.

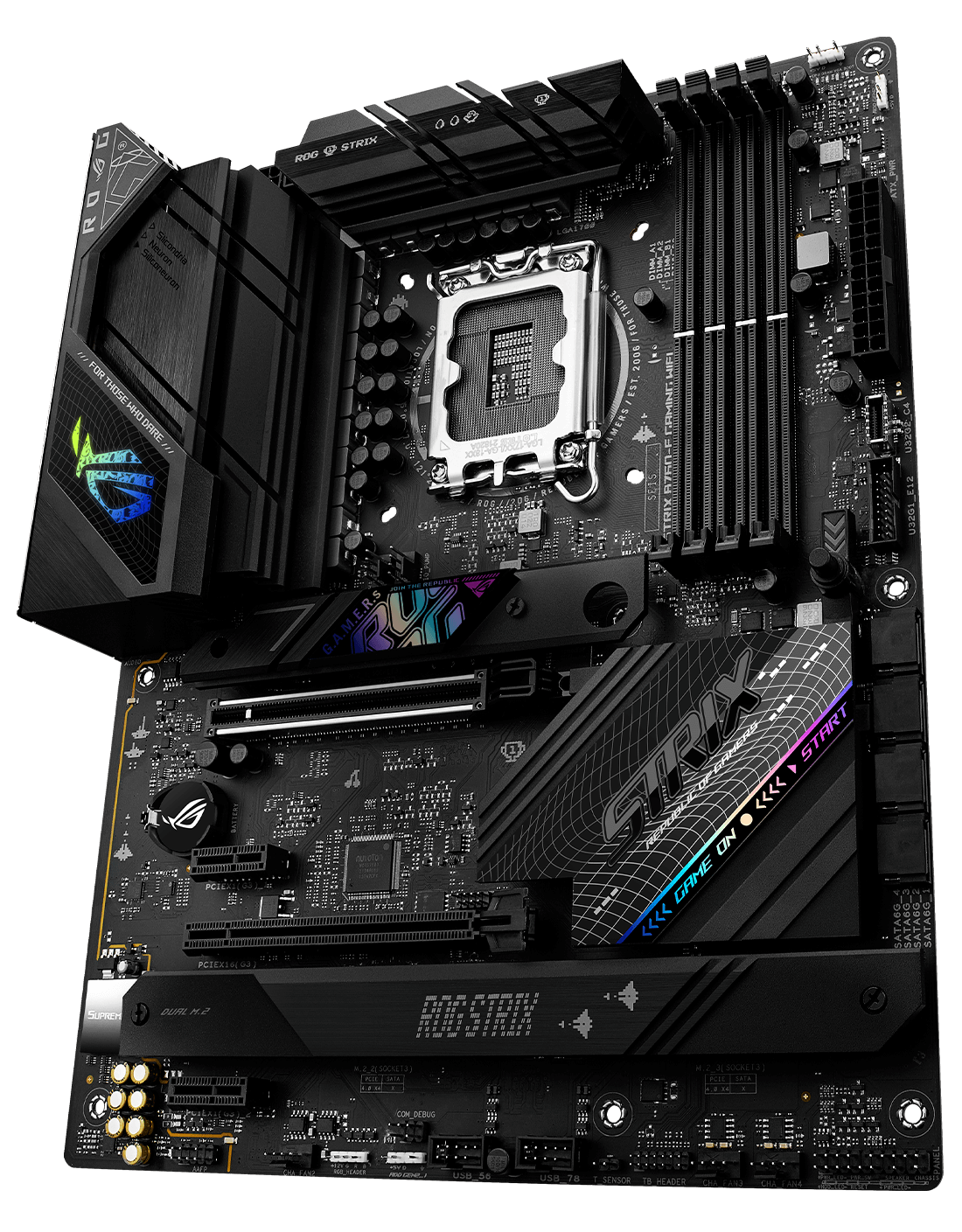

Strix B760-F M.2 & expansion slot layout

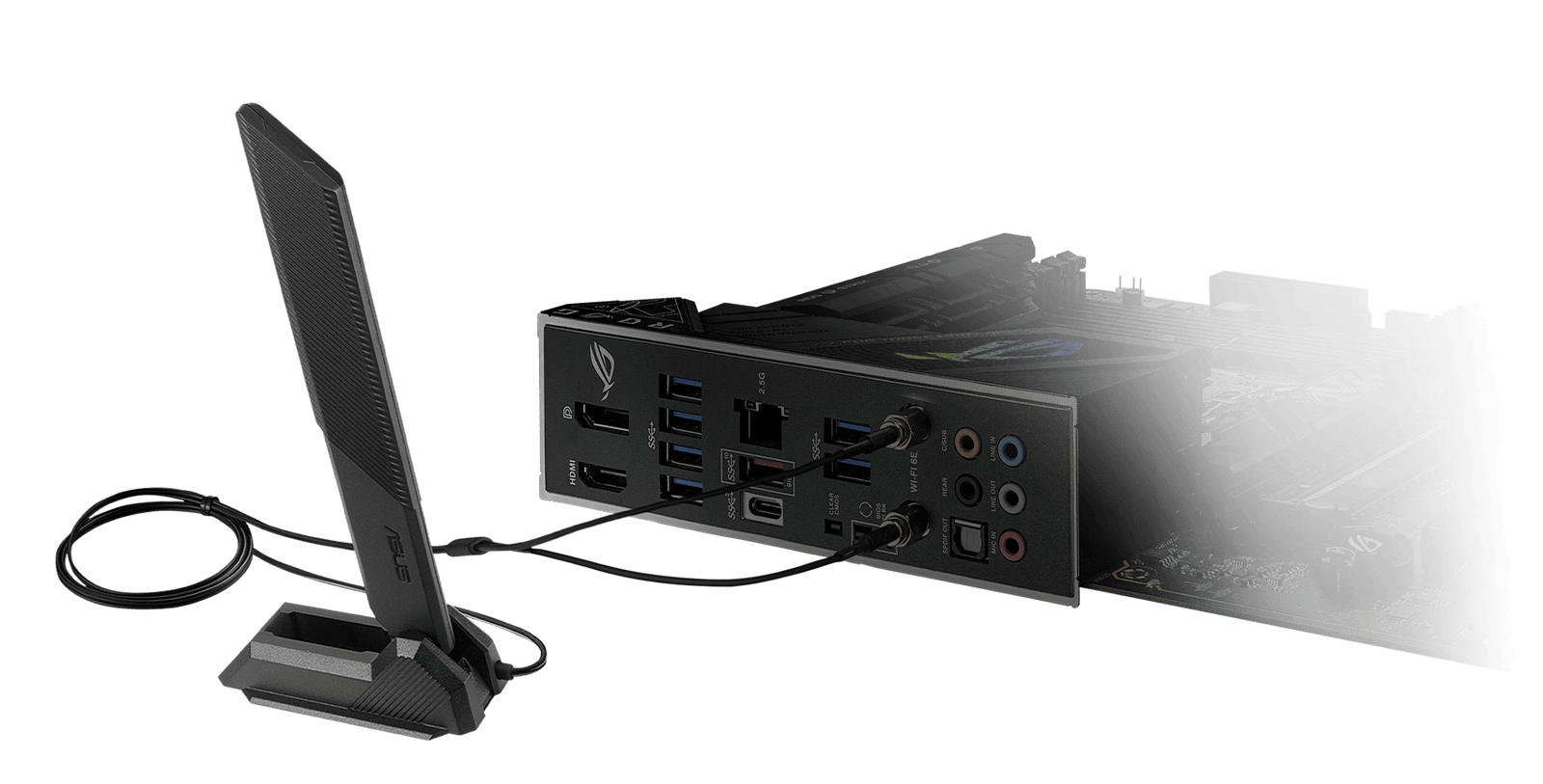

WIFI 6E

Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

Intel 2.5G Ethernet

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-F implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

DIY-FRIENDLY FEATURES

PCIE® SLOT Q-RELEASE

A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

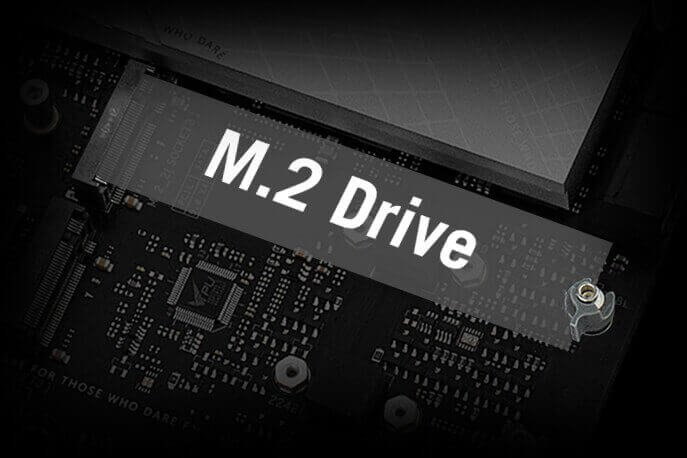

M.2 Q-LATCH

The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

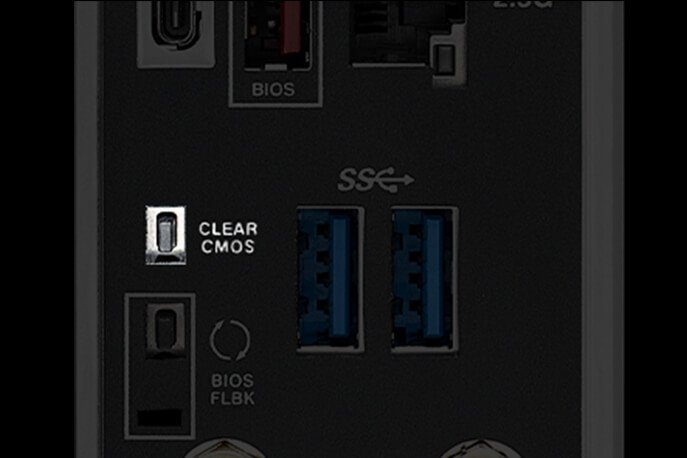

CLEAR CMOS

The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

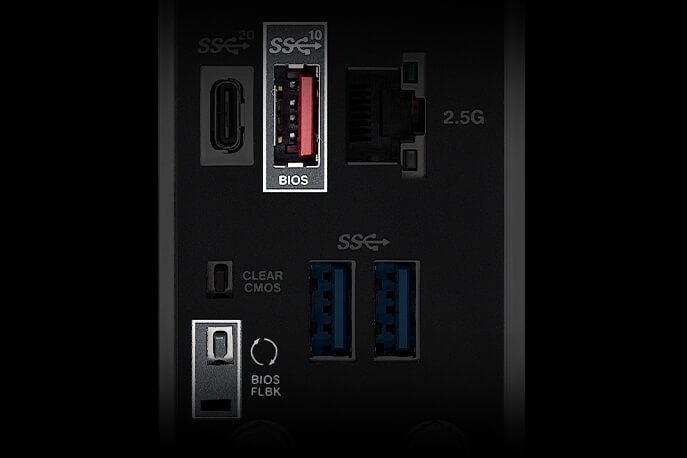

BIOS FLASHBACK™

BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

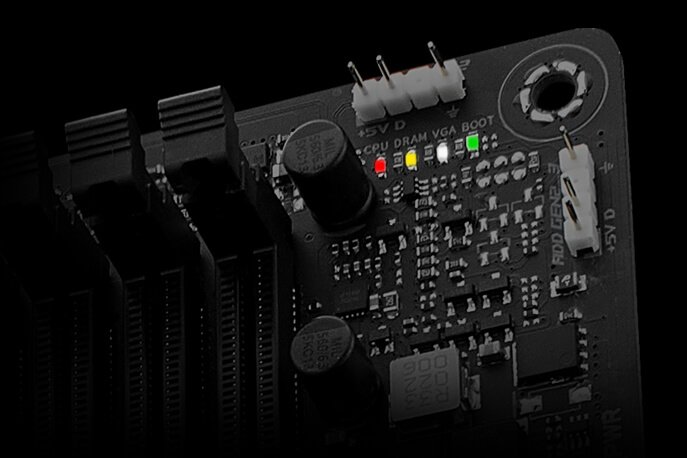

Q-LED

Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

PLAY IN STYLE

With colorful accents, Aura Sync lighting, and a sleek black PCB, the ROG Strix B760-F gives you a bold start to your rig, especially when complemented by similarly vibrant products in the ROG ecosystem.

UNDENIABLY ROG STRIX

Keeping true to its roots, the Strix B760-F is proudly decorated with allusions to games of yesteryear. Scattered decals create a techno-retro fusion backdrop that is punctuated with vibrant highlights and a signature illuminated ROG logo on the I/O shroud.

OUTSHINE THE COMPETITION

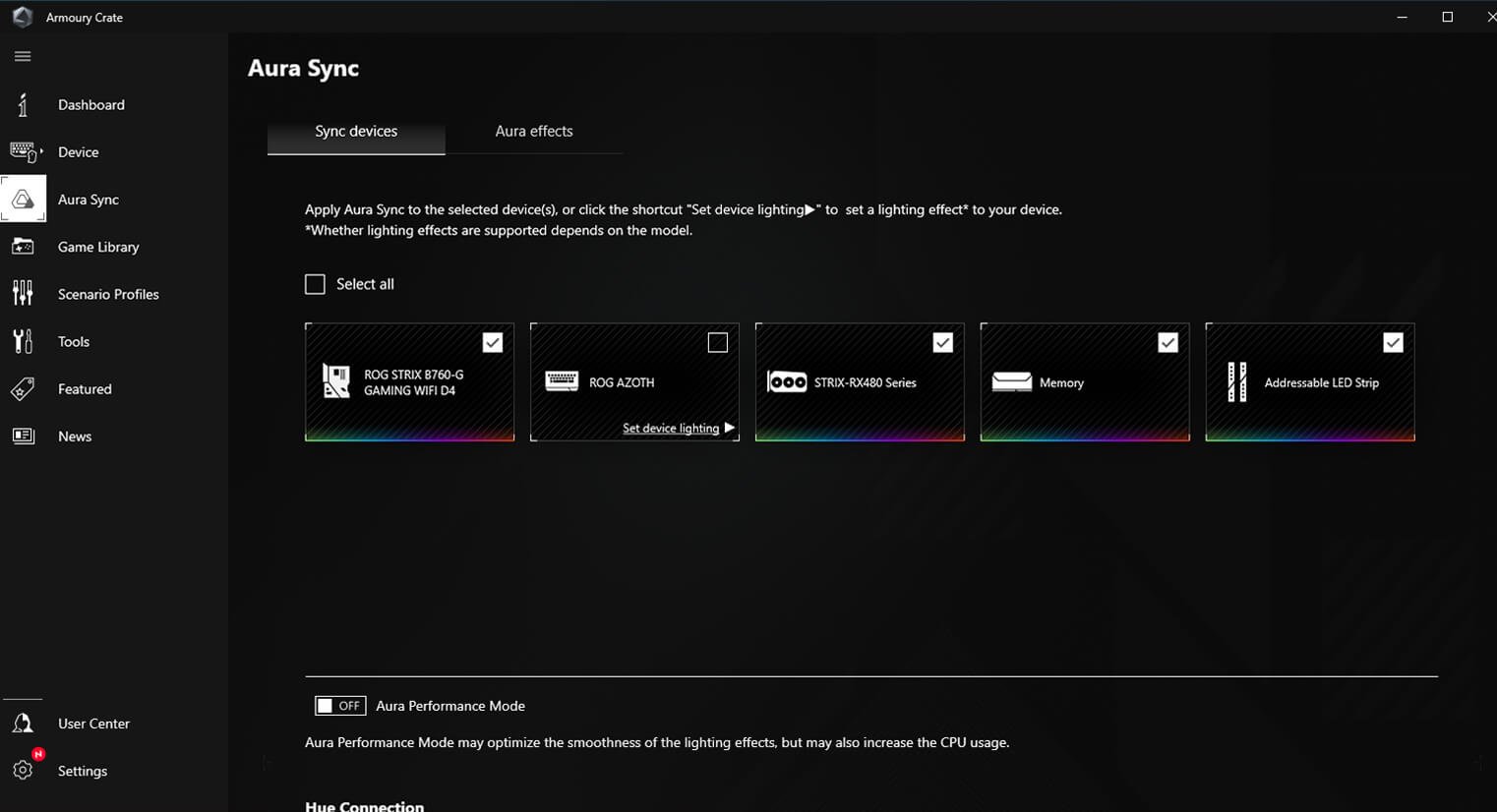

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

Static
Breathing
Strobing
Rainbow
Music

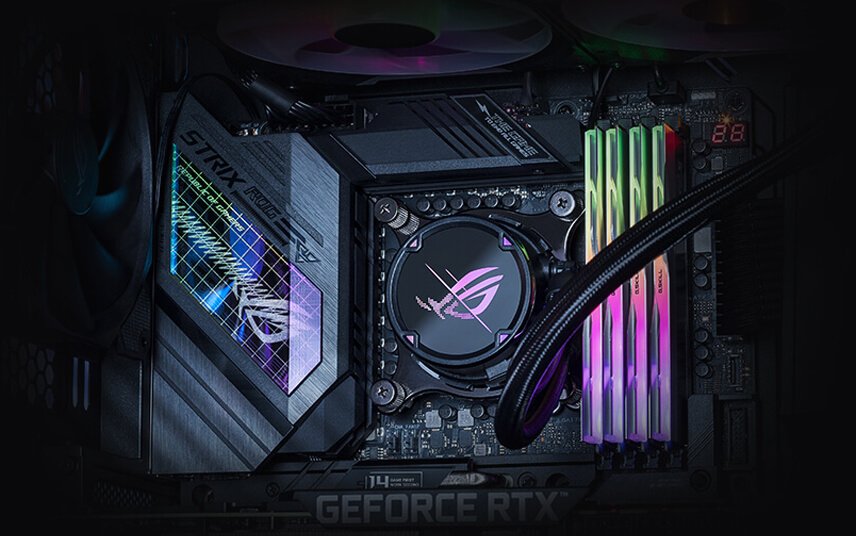

COOLER COMPATIBILITY

The ROG Strix B760-F bears the same LGA 1700 socket as Z690 and B660 models, so many existing coolers are compatible, including all AIO offerings from ASUS and ROG.

Specifications

CPU & Chipset▾

CPU: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen, 12th Gen, Pentium® Gold and Celeron® Processors
Chipset: Intel® B760 Chipset

Memory▾

4 x DIMM, Max. 192GB, DDR5 7800(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Graphics▾

1 x DisplayPort (max. 8K@60Hz as specified in DisplayPort 1.4)
1 x HDMI® port (supports 4K@60Hz as specified in HDMI 2.1)
* Graphics specifications may vary between CPU types.

Expansion Slots▾

Intel® Core™ Processors (14th & 13th & 12th Gen):
1 x PCIe 5.0 x16 slot (supports x16 mode)
Intel® B760 Chipset:
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots

Storage▾

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Processors (14th & 13th & 12th Gen):
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet, Wireless & Bluetooth▾

Ethernet: 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
Wireless: Wi-Fi 6E, 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz
Bluetooth: Bluetooth® v5.3

USB▾

Rear USB (Total 8 ports):
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
6 x USB 3.2 Gen 1 ports (6 x Type-A)
Front USB (Total 7 ports):
1 x USB 3.2 Gen 2 connector
1 x USB 3.2 Gen 1 header (2 ports)
2 x USB 2.0 headers (4 ports)

Audio & Back Panel I/O▾

Audio: ROG SupremeFX 7.1 Surround Sound HD Audio CODEC ALC4080
– Supports up to 32-Bit/384 kHz playback

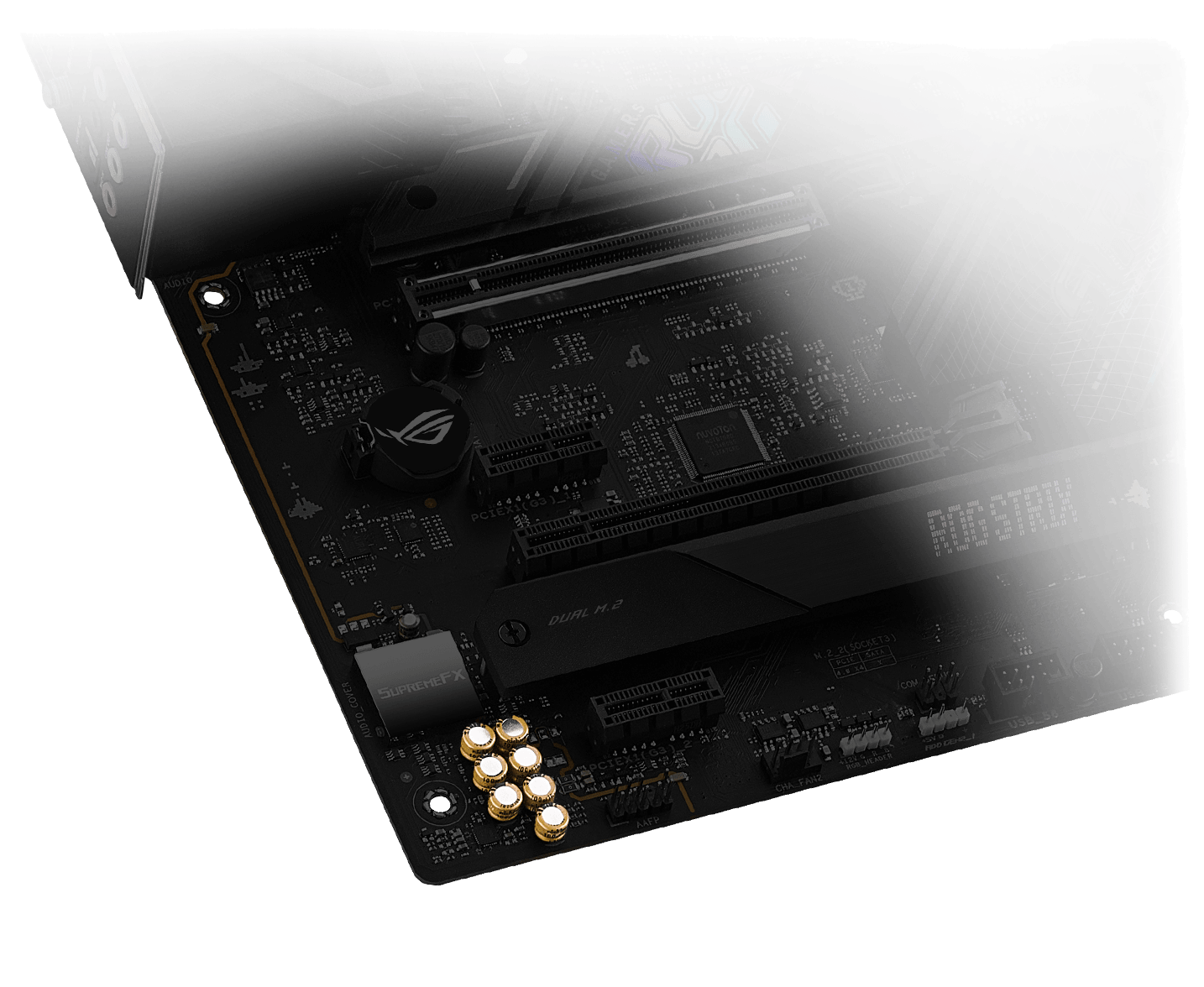

– SupremeFX Shielding Technology, Savitech SV3H712 AMP, Premium audio capacitors
Back Panel: 1 x USB 3.2 Gen 2×2 (Type-C®), 1 x USB 3.2 Gen 2 (Type-A), 6 x USB 3.2 Gen 1, 1 x DisplayPort, 1 x HDMI®, 1 x Wi-Fi Module, 1 x Intel® 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button

BIOS, OS & Form Factor▾

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME
Operating System: Windows® 11, Windows® 10 64-bit
Form Factor: ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

* The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

* WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.

* Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.

* Brand and product names mentioned are trademarks of their respective companies.
