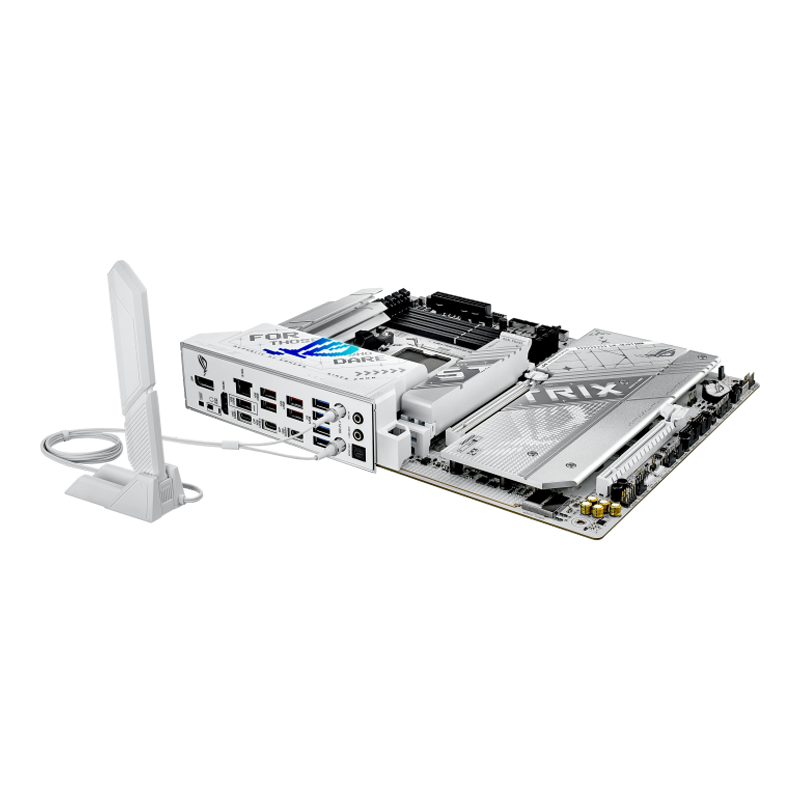

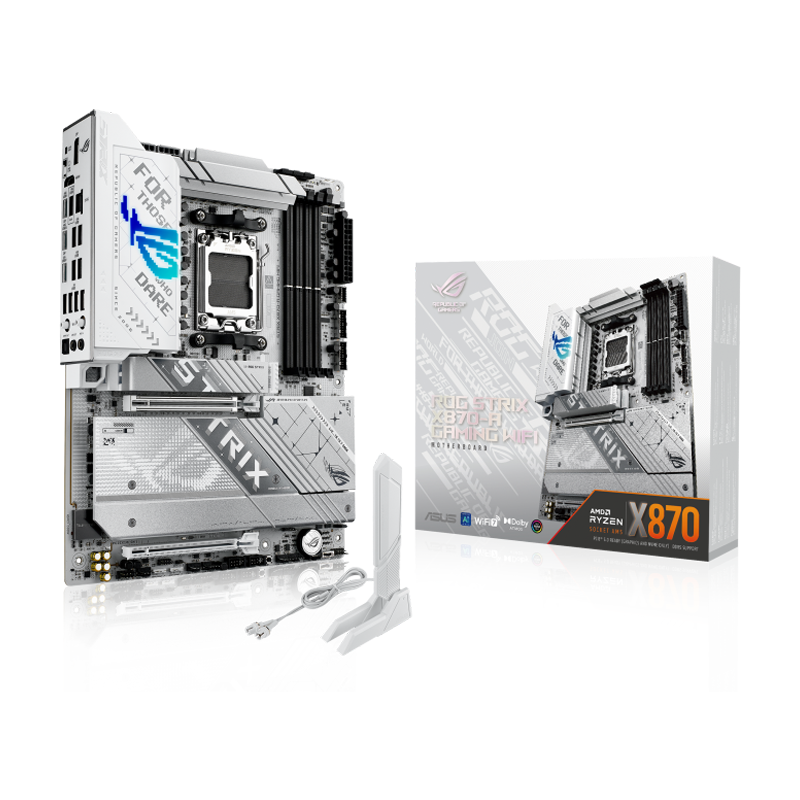

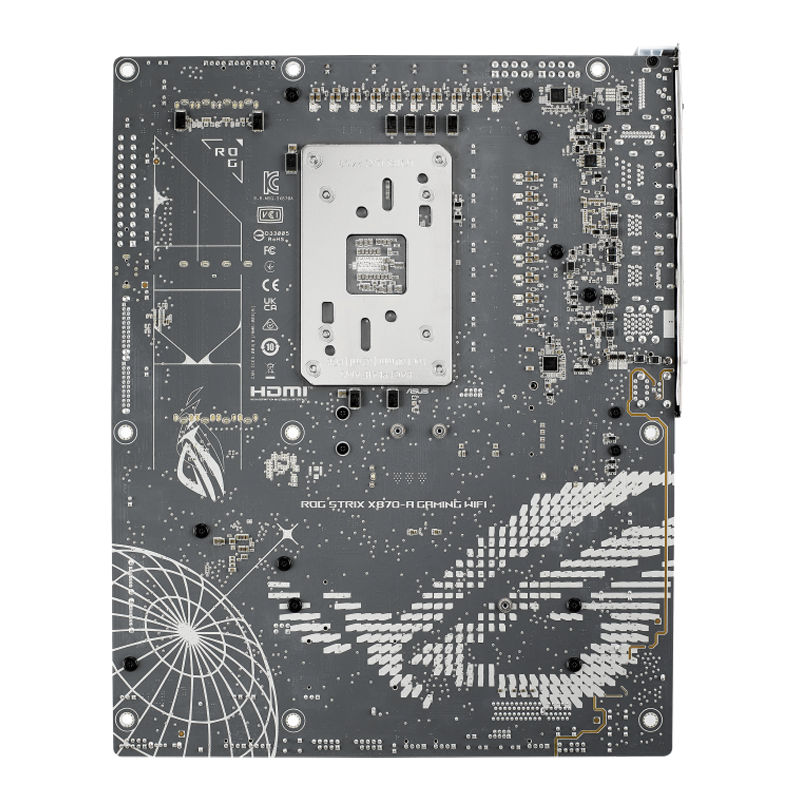

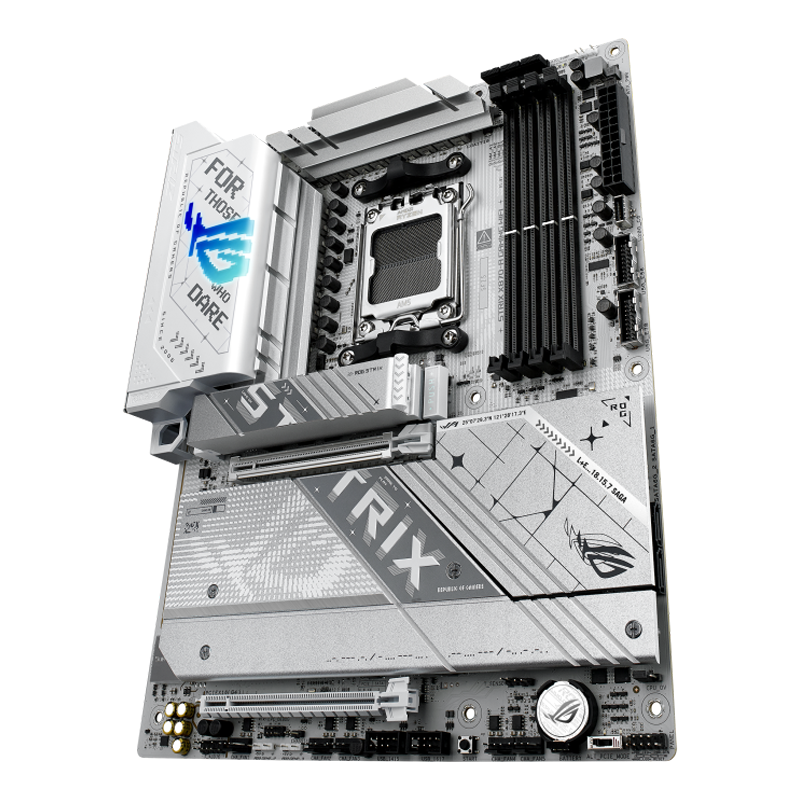

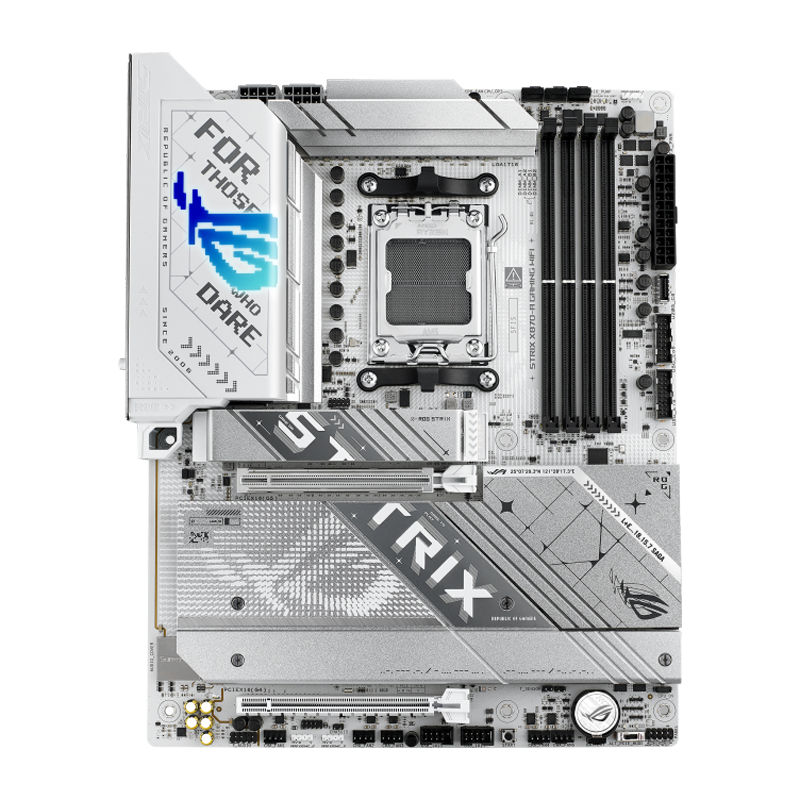

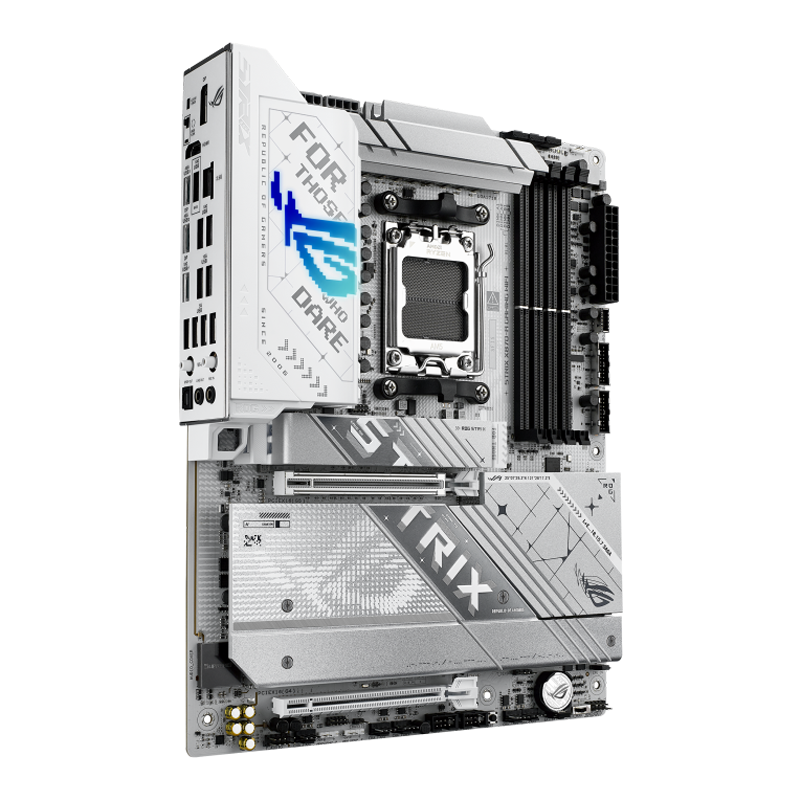

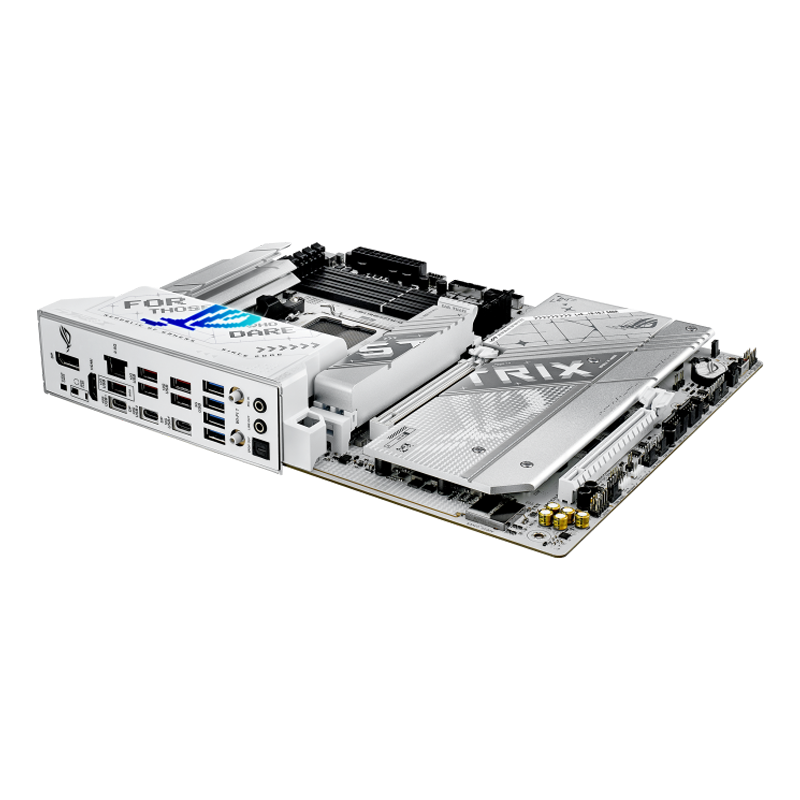

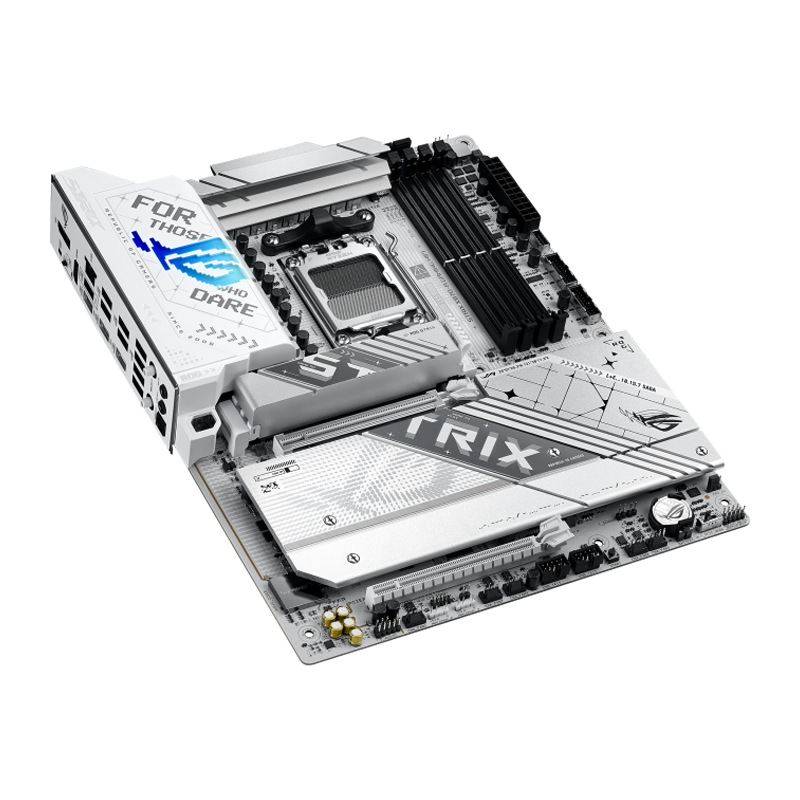

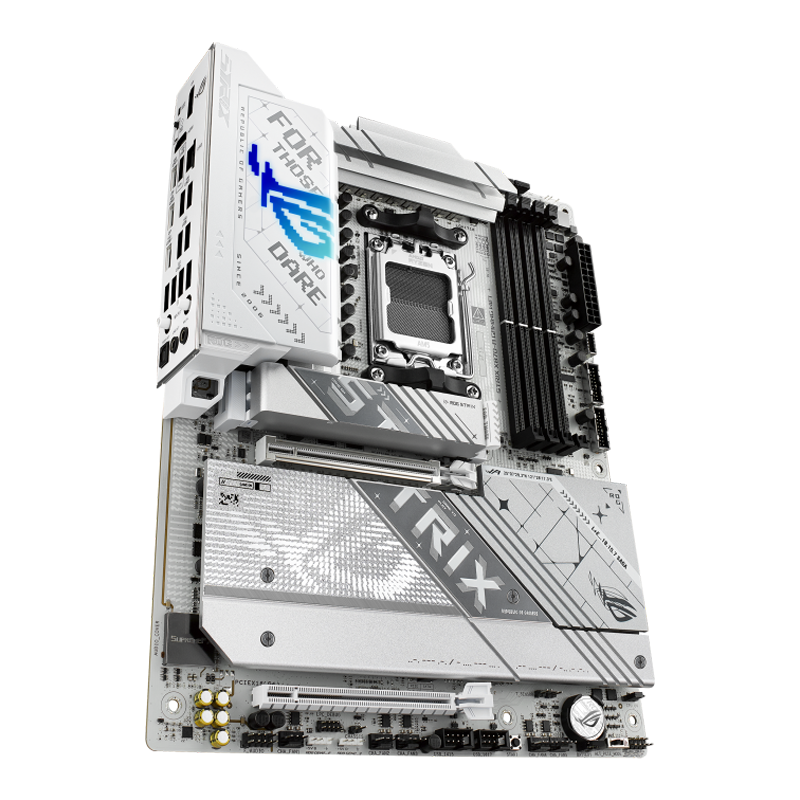

ASUS ROG STRIX X870-A GAMING WIFI AMD AM5 ATX Motherboard
₨ 124,999
- Flagship ROG STRIX X870 ATX motherboard with dual USB4 40Gbps Type-C® with DP Alt, supporting Ryzen 9000/8000/7000 on AM5
- PCIe 5.0 x16 slot and dual PCIe 5.0 M.2 for ultimate GPU and NVMe performance, plus two additional PCIe 4.0 M.2 slots
- WiFi 7 with Bluetooth 5.4, Intel 2.5Gb Ethernet, rear USB 10Gbps Type-C® with 30W PD, and front USB 20Gbps Type-C®
- ROG SupremeFX ALC4080 audio with 120dB SNR, Savitech amplifier, AI Cooling II, Dynamic OC Switcher, and Q-Release Slim
Available on backorder
| Overview | |
| Brand | ASUS ROG |
| Model | ROG STRIX X870-A GAMING WIFI |
| Chipset | AMD X870 |
| Socket | AMD AM5 |
| CPU Support | Ryzen 9000, 8000, 7000 Series |
| Memory Type | DDR5 |
| Form Factor | ATX (30.5 x 24.4 cm) |
| Memory | |
| Memory Slots | 4 x DIMM |
| Max Memory | 256 GB |
| Memory Speed | DDR5 up to 8000+ MT/s (OC) |
| Memory Architecture | Dual Channel |
| EXPO/AEMP Support | Yes (AMD EXPO + ASUS AEMP) |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 5.0 x16 (x16/x8), 1 x PCIe 4.0 x16 (x4) |
| M.2 Slots | 2 x PCIe 5.0 x4 (CPU), 2 x PCIe 4.0 x4 (X870) |
| SATA Ports | 2 x SATA 6Gb/s (RAID 0/1) |
| NVMe RAID | RAID 0/1/5/10 (RAID 5: Ryzen 9000 only) |
| Graphics & Audio | |
| Display Outputs | 1 x DisplayPort 1.4 (8K@30Hz), 1 x HDMI 2.1 (4K@60Hz), 2 x USB4 DP Alt (4K@60Hz) |
| Audio | ROG SupremeFX ALC4080 7.1 HD Audio, 120dB SNR, Savitech SV3H712 Amp |
| Audio Format | Up to 32-Bit/384 kHz (Front Panel) |
| Audio Software | Dolby Atmos |
| Networking | |
| Ethernet | 1 x Intel 2.5Gb Ethernet with ASUS LANGuard |
| Wireless | Wi-Fi 7 (802.11be) 2×2, 160MHz, up to 2.9Gbps |
| Bluetooth | Bluetooth 5.4 |

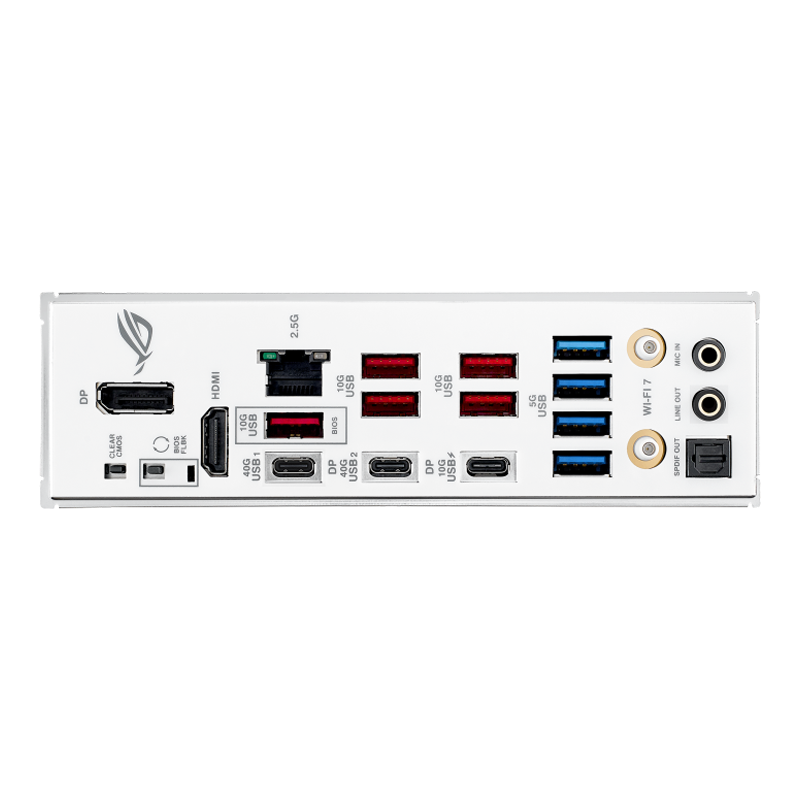

| Rear I/O | |
| USB Ports | 2 x USB4 40Gbps Type-C (DP Alt), 6 x USB 10Gbps (5A + 1C 30W PD), 4 x USB 5Gbps Type-A |
| Audio Ports | 2 x Audio Jacks, 1 x Optical S/PDIF Out |
| Buttons | BIOS FlashBack™, Clear CMOS |
| Internal I/O | |
| Fan Headers | 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 5 x Chassis Fan |
| Power Connectors | 1 x 24-pin Main, 2 x 8-pin +12V CPU (ProCool II) |
| Front USB | 1 x USB 20Gbps Type-C®, 4 x USB 5Gbps (headers), 4 x USB 2.0 (headers) |
| RGB Headers | 3 x Addressable Gen 2 |
| Special Features | Start Button, Thermal Sensor, Chassis Intrusion, CPU Over Voltage Jumper, Alteration PCIe Mode Switch |
| Features | |
| Engine | Extreme Engine Digi+ with 5K Black Metallic Capacitors |
| ASUS Q-Design | M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (4-color), Q-Slot |
| Thermal Solution | M.2 Heatsink Backplate, M.2 Heatsinks, ProCool II, Pre-Mounted I/O Shield, SafeSlot, SafeDIMM |
| EZ DIY | BIOS FlashBack™, Clear CMOS, FlexKey, Dynamic OC Switcher |
| AI Features | AI Overclocking Guide, AI Cooling II |
| Lighting Control | Aura Sync (3 x Addressable Gen 2), Aura Creator |
| Software Suite | Armoury Crate, Fan Xpert 4, GameFirst, TurboV Core, AIDA64 Extreme, HWiNFO |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 |

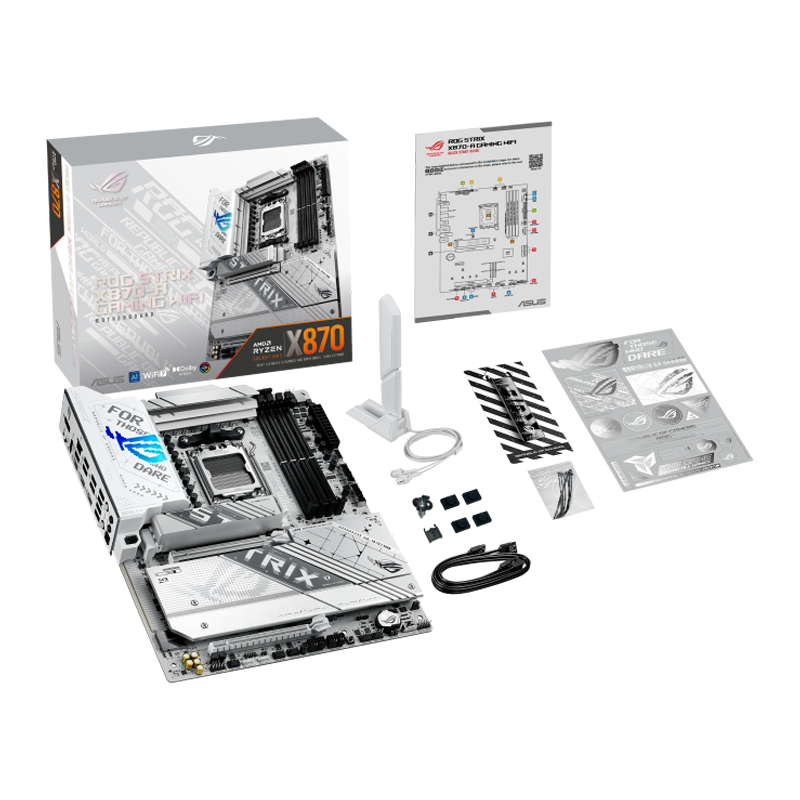

| In the Box | |
| Accessories | 2 x SATA 6Gb/s Cables, 1 x ASUS WiFi Q-Antenna, 1 x Cable Ties, 1 x M.2 Q-Latch, 1 x M.2 Q-Slide, 1 x ROG Key Chain, 1 x ROG Strix Stickers, 4 x M.2 Rubbers, Quick Start Guide |
