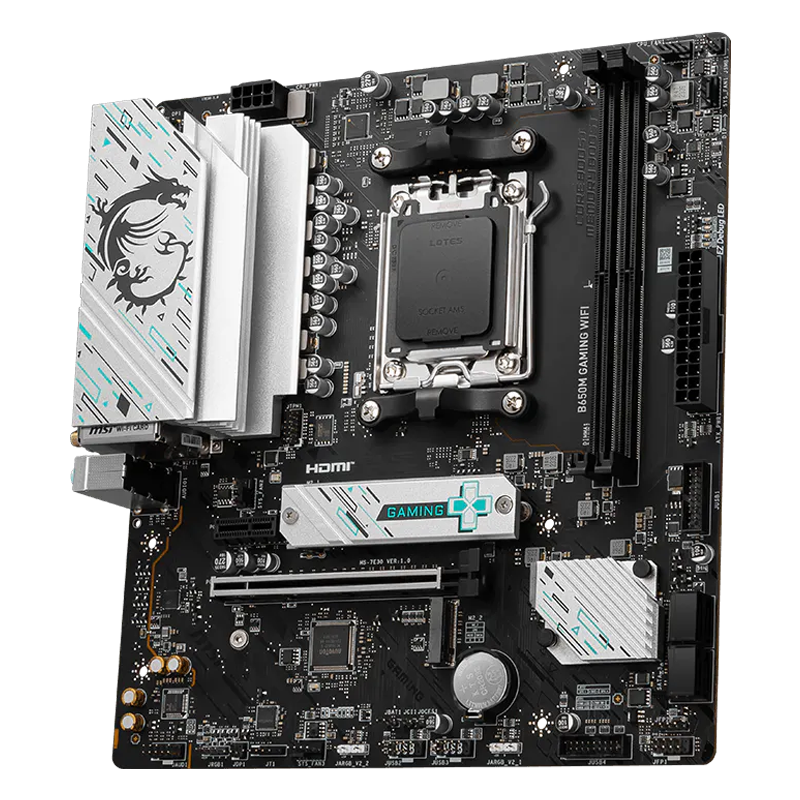

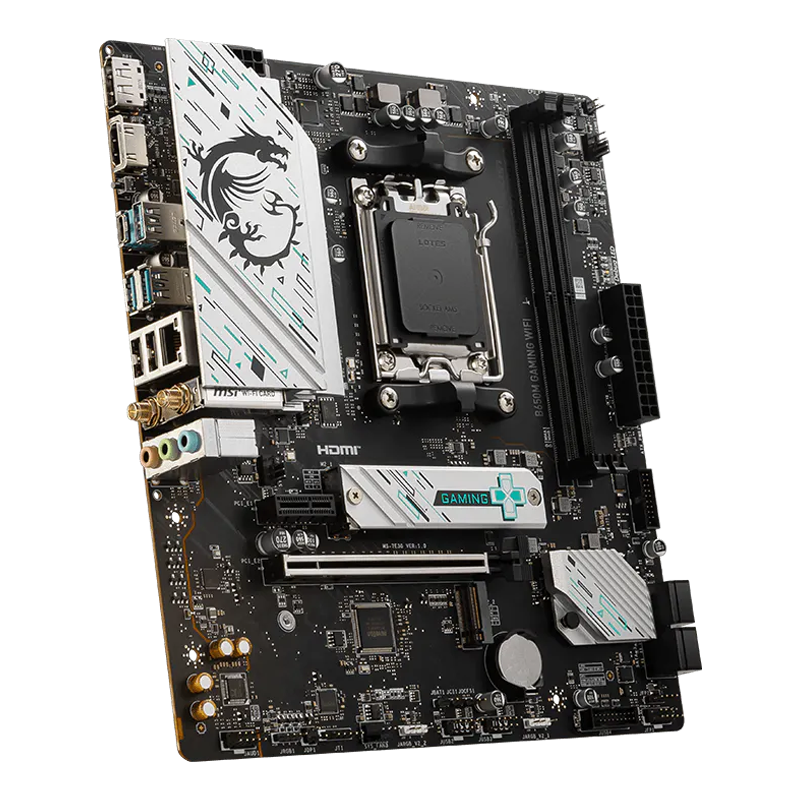

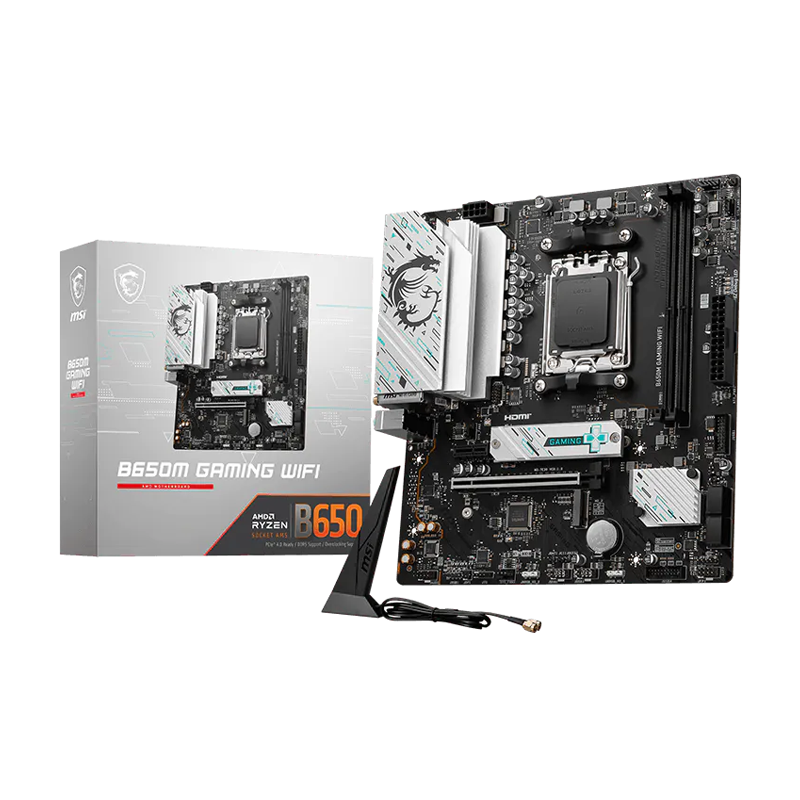

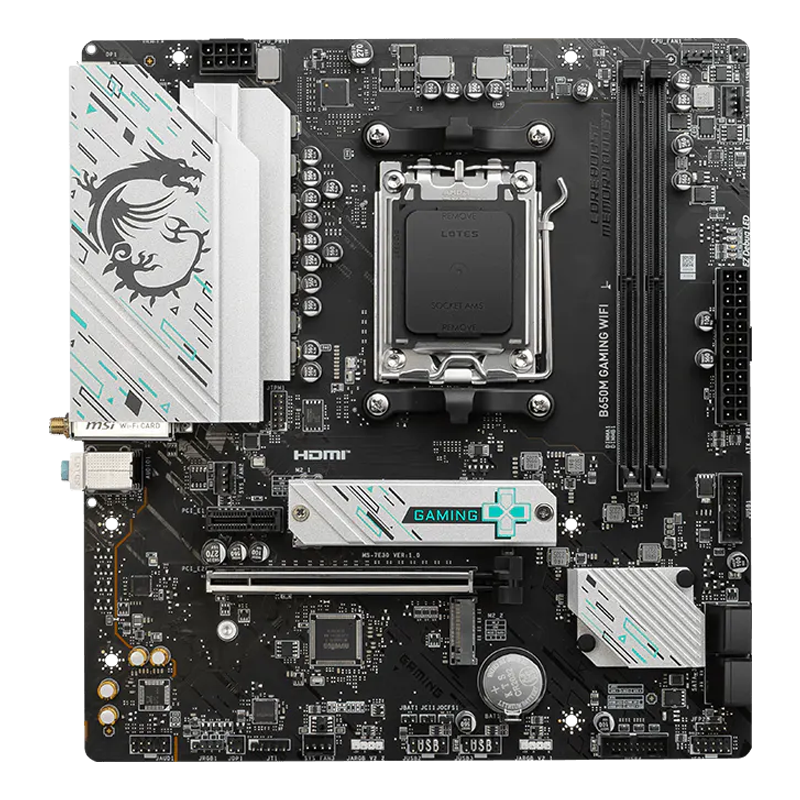

MSI B650M Gaming WiFi DDR5 AMD AM5 Micro-ATX Motherboard
₨ 44,999
- Supports AMD Ryzen™ 9000/8000/7000 Series: AM5 socket with Core Boost technology delivers stable, reliable power for responsive multi-core performance.
- DDR5 Memory up to 7800+ MHz (OC): Two DIMM slots supporting up to 128GB of dual-channel DDR5 RAM with AMD EXPO profiles for effortless high-speed memory overclocking.
- Dual PCIe 4.0 M.2 Storage: Two dedicated PCIe 4.0 x4 M.2 slots (both from CPU) for lightning-fast NVMe SSDs, plus four SATA 6G ports with RAID support.
- Wi-Fi 6E & 2.5Gbps LAN: Integrated Wi-Fi 6E with Bluetooth 5.3 and a Realtek 2.5Gbps Ethernet port for ultra-fast, low-latency wired and wireless networking.
- Comprehensive Connectivity & Gaming Aesthetics: Front USB 5Gbps Type-A ports, rear USB 5Gbps Type-C, HDMI 2.1, DisplayPort 1.4, and MSI’s addressable RGB lighting with EZ Debug LED.
| Overview | |
| Brand & Model | MSI B650M Gaming WiFi |
| Socket & Chipset | AMD AM5 / AMD B650 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series – Core Boost Technology |
| Form Factor | Micro-ATX (226 mm x 243.84 mm) |
| Memory | |
| Memory | 2x DDR5 DIMM, Up to 128 GB, 7800+ MHz (OC), AMD EXPO |
| Expansion Slots | |
| Graphics Slot | 1x PCIe 4.0 x16 (CPU) |
| Additional PCIe | 1x PCIe 3.0 x1 (Chipset) |
| Storage | |
| M.2 Storage | 2x M.2 PCIe 4.0 x4 (CPU) – Dual M.2 for Lightning-Fast NVMe SSDs |
| SATA Ports | 4x SATA 6G (Supports RAID 0/1/10) |
| Networking | |
| Wired | Realtek RTL8125BG 2.5Gbps LAN |
| Wireless & Bluetooth | Wi-Fi 6E (802.11ax), Bluetooth 5.3 |
| USB | |

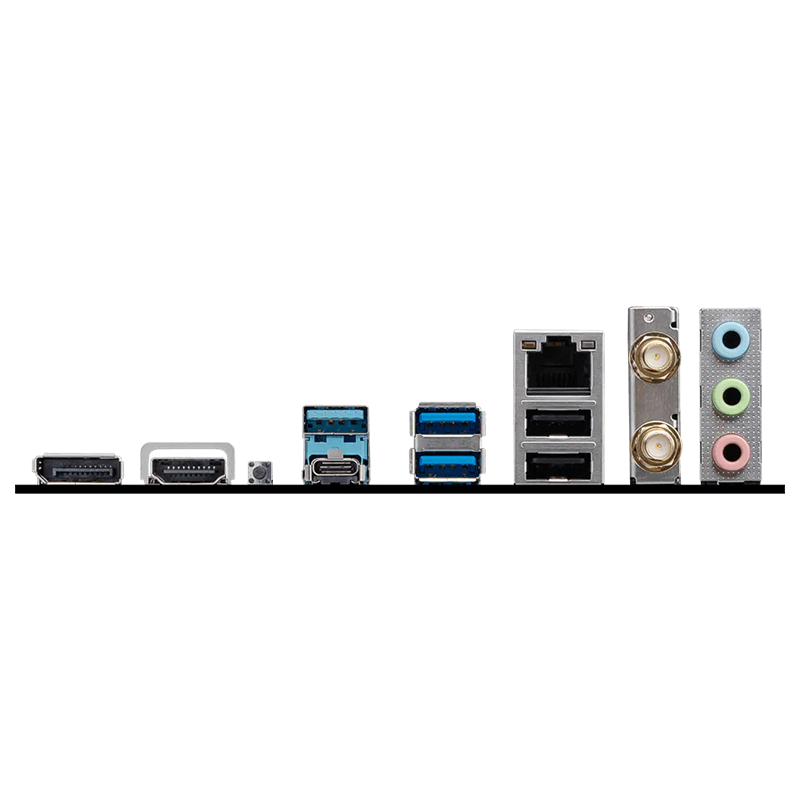

| Rear USB | 1x USB 5Gbps Type-C, 3x USB 5Gbps Type-A, 2x USB 2.0 |
| Front USB | 4x USB 5Gbps Type-A, 4x USB 2.0 |
| Video & Audio | |
| Video Outputs | HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| Special Features | |
| Special Features | EZ Debug LED, Flash BIOS Button, Addressable RGB Headers |
| Warranty | |
| Warranty | 1 Year Local Warranty (Varies by Retailer) |
