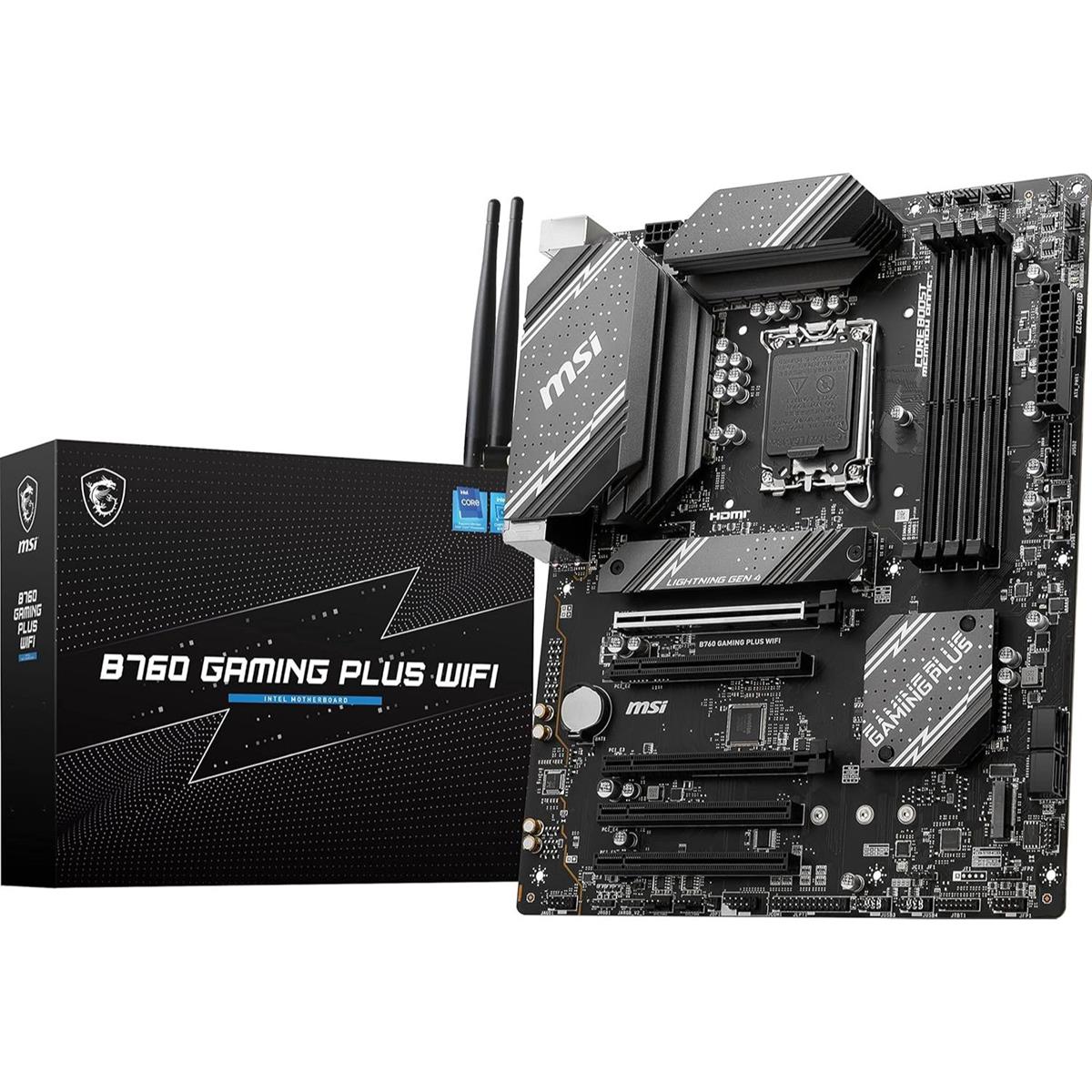

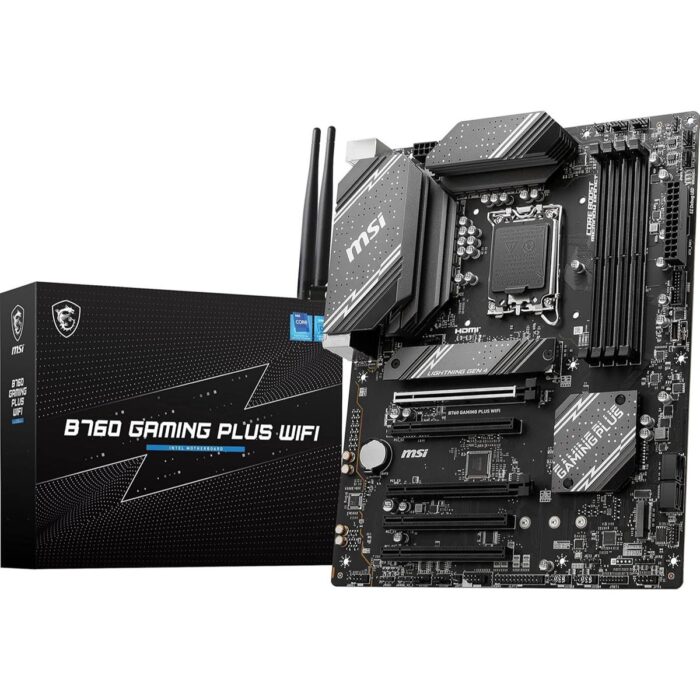

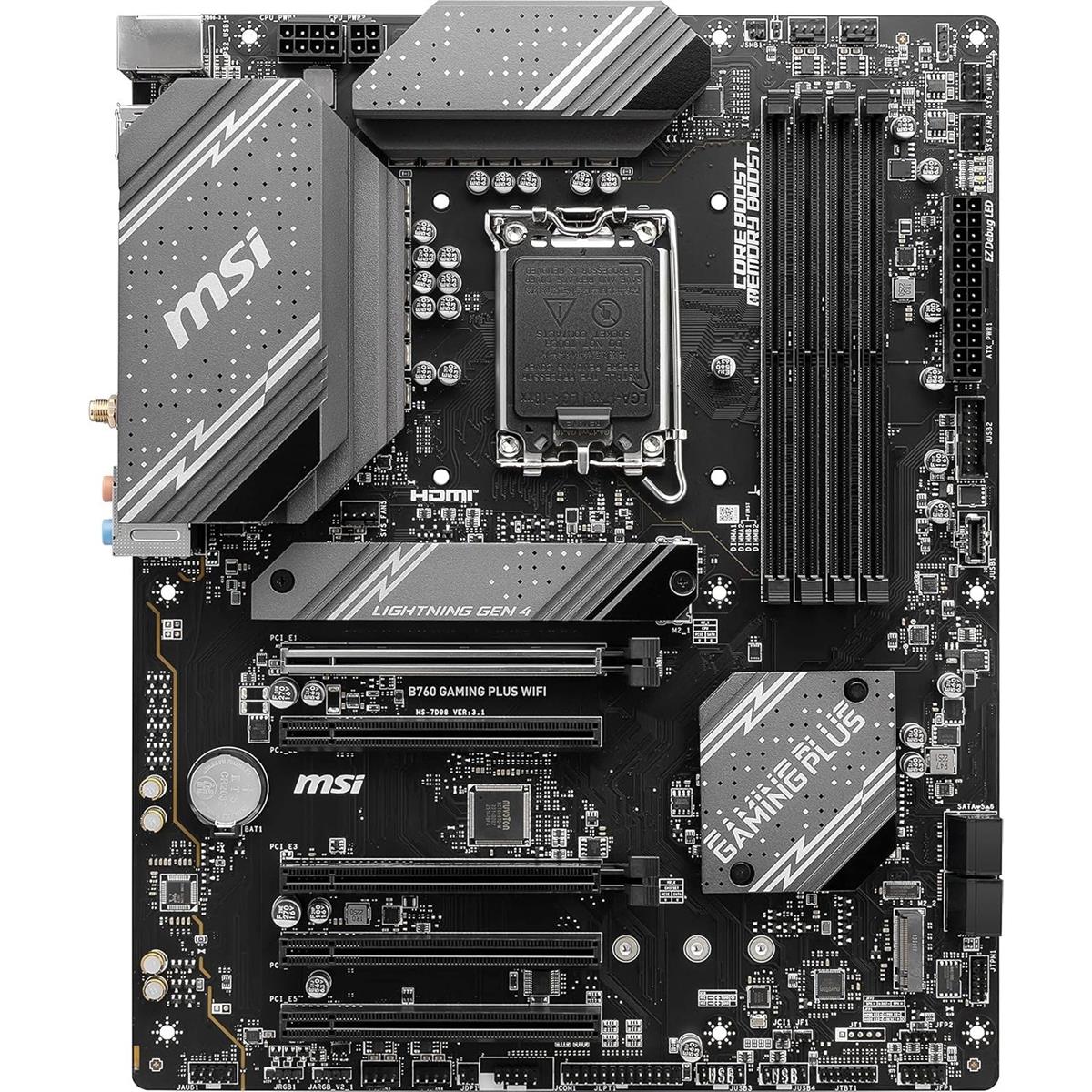

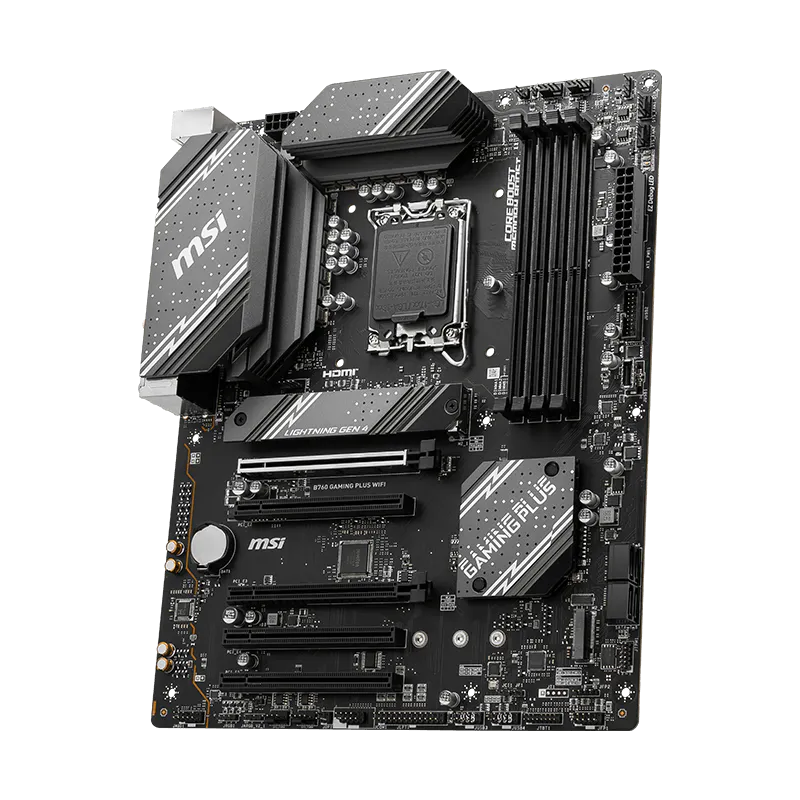

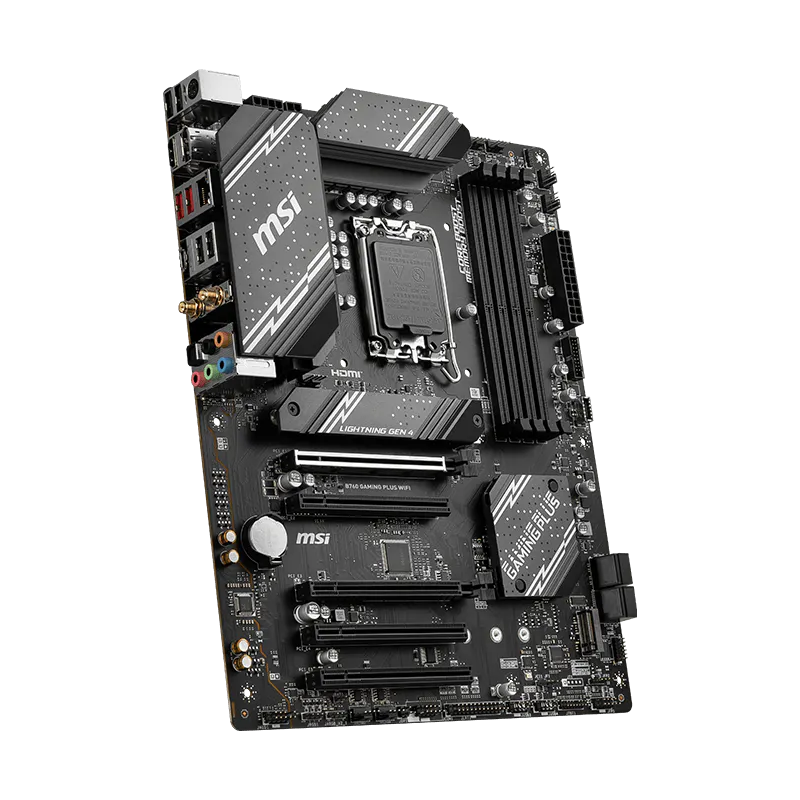

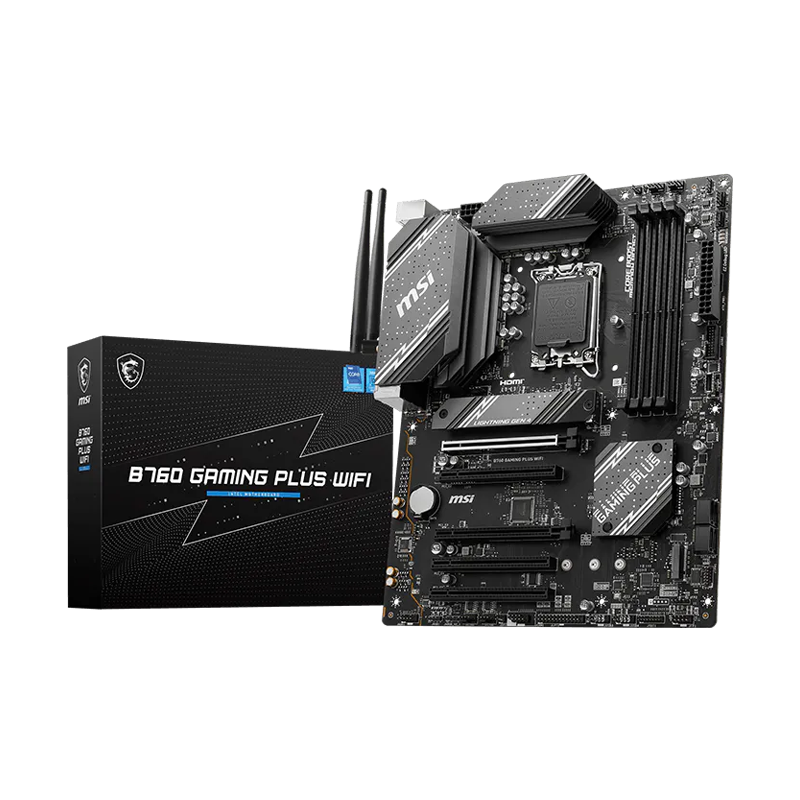

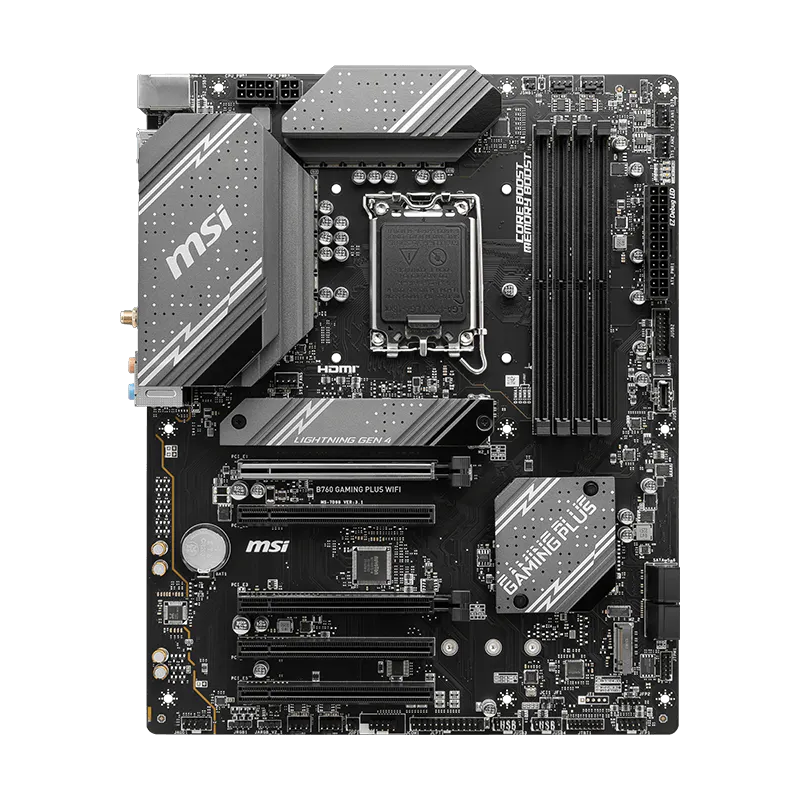

MSI B760 Gaming Plus WiFi Gaming Motherboard (LGA 1700, DDR5, WiFi 6E, PCIe 4.0, ATX)
Original price was: ₨ 53,000.₨ 44,999Current price is: ₨ 44,999.
Short Description of Highlighted Points
Modern Intel CPU Support & Socket: With the LGA 1700 socket and B760 chipset, the board supports current-generation Intel CPUs (12th, 13th, some 14th Gen) and offers a good platform for future upgrades.
High-Performance DDR5 Memory: Four DDR5 slots allow substantial memory capacity. With overclocking support up to DDR5-6800+ MHz (OC) in optimal setups, it provides strong memory bandwidth for gaming, multitasking and creative workloads.
Robust Expansion & Storage: The presence of a full-length PCIe 4.0 x16 slot for a graphics card, plus additional slots, gives flexibility. Dual M.2 Gen4 NVMe slots and SATA ports ensure fast storage options and legacy compatibility.
Top-Tier Connectivity: Featuring 2.5 Gbps wired LAN alongside Wi-Fi 6E and Bluetooth 5.3 gives both wired and wireless networking strong performance for gaming and streaming. Rear I/O includes high-speed USB ports (Type-A and Type-C) and modern display outputs for CPUs with integrated graphics.
Quality Build & Cooling Focus: The board includes enhanced power delivery with a premium VRM design and thermal solution (MOSFET pads, extended heatsinks) to maintain stability under load. It’s designed for gamers and power users who push their systems.
Audio & Additional Features: With an Audio Boost design and 7.1-channel HD audio, the board aims to provide immersive sound. Additional conveniences like multiple USB-C ports, internal headers, and sturdy PCB construction round out a feature-rich package.
MSI B760 Gaming Plus WiFi Gaming Motherboard (LGA 1700, DDR5, WiFi 6E, PCIe 4.0, ATX) Specification Price In Pakistan
| Category | Specification |
|---|---|
| Form Factor | ATX (≈ 243.84 × 304.8 mm) |
| Chipset | Intel® B760 |
| CPU Socket | LGA 1700 — supports Intel 12th, 13th (and some 14th) Gen Core, Pentium Gold, Celeron |
| Memory Support | 4 × DDR5 DIMM slots, up to ~192 GB (or possibly 256GB per some listing |
| Memory Speed (OC) | Up to DDR5-6800+ MHz (OC) depending on configuration. |
| Expansion Slots | • 1× PCIe 4.0 x16 (from CPU) • 1× PCIe 4.0 x16 (x4 mode, from chipset) • 3× PCIe 3.0 x1 slots |
| Storage Interfaces | • 2× M.2 Gen4 x4 slots (PCIe 4.0) • 4× SATA 6Gb/s ports |

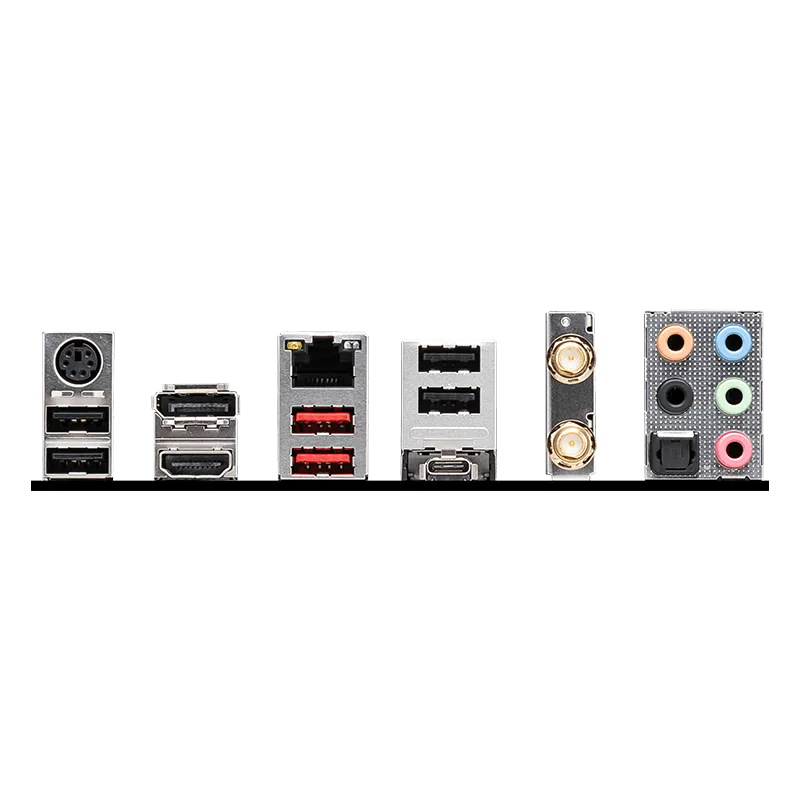

| Rear I/O / Display | • HDMI 2.1, DisplayPort 1.4 (for CPUs with iGPU) • USB Ports: 3× USB 3.2 Gen2 (10Gbps: 2 Type-A + 1 Type-C) 3× USB 3.2 Gen1 (5Gbps: 2 Type-A + 1 Type-C) 8× USB 2.0 (via internal/board) |
| Networking | • 2.5 GbE LAN (Realtek® RTL8125BG) • Wi-Fi 6E (Intel® module) + Bluetooth 5.3 |
| Audio Codec | Realtek® ALC897 7.1-Channel HD Audio with “Audio Boost” branding. |
| Power / VRM | Enhanced power design: cited as “12-Duet Rail” or similar, extended heatsinks, MOSFET thermal pads rated ~7 W/mK |
| Brand | MSI |
|---|
