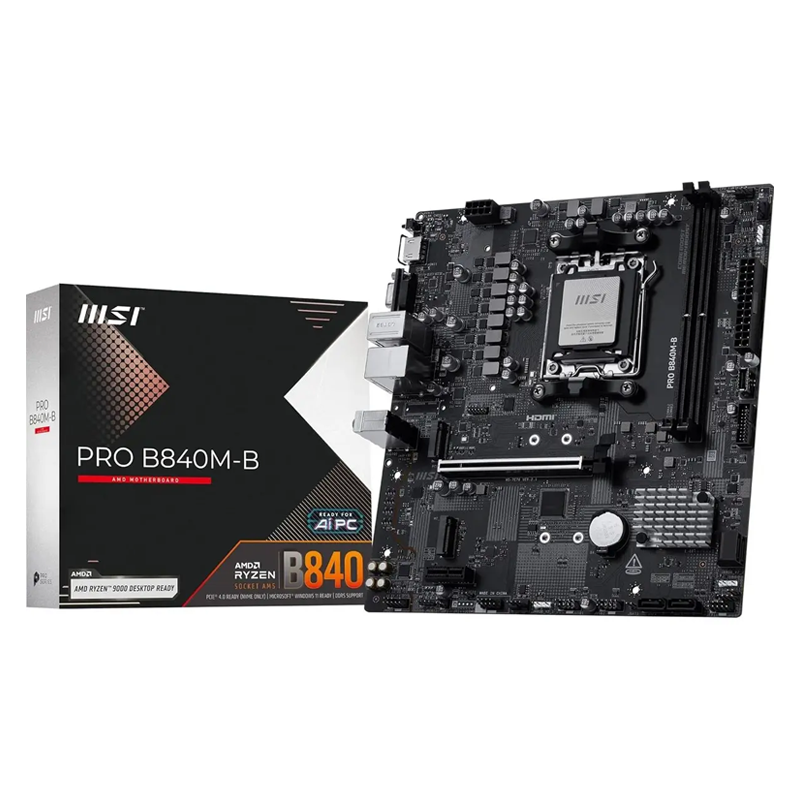

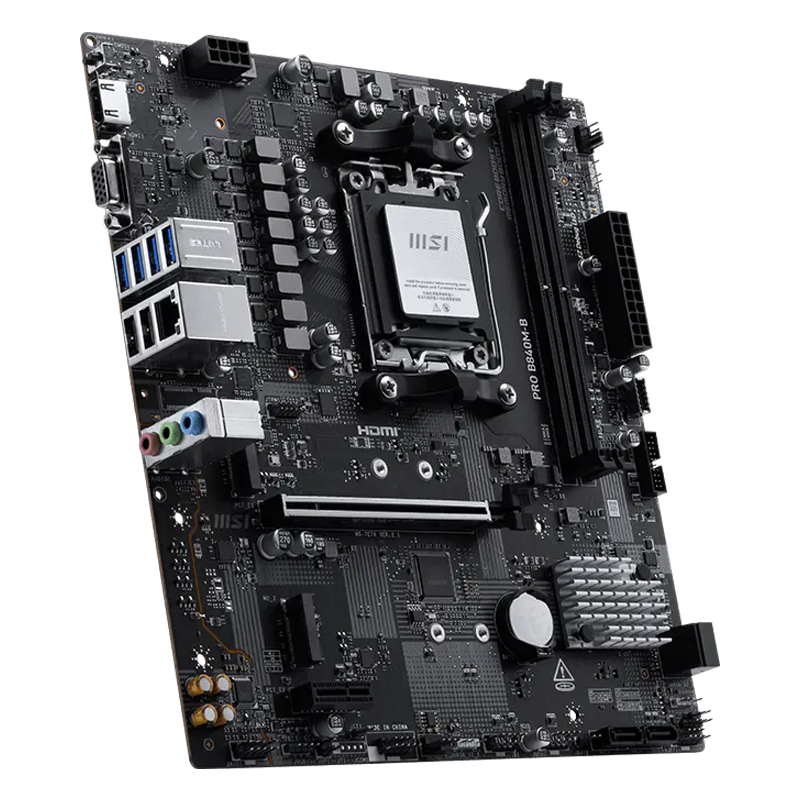

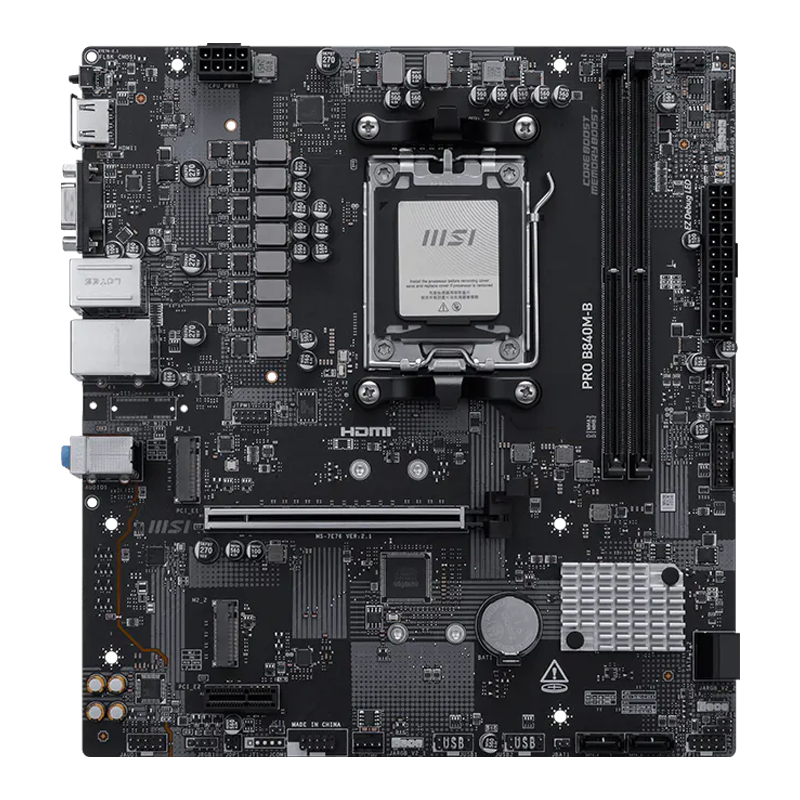

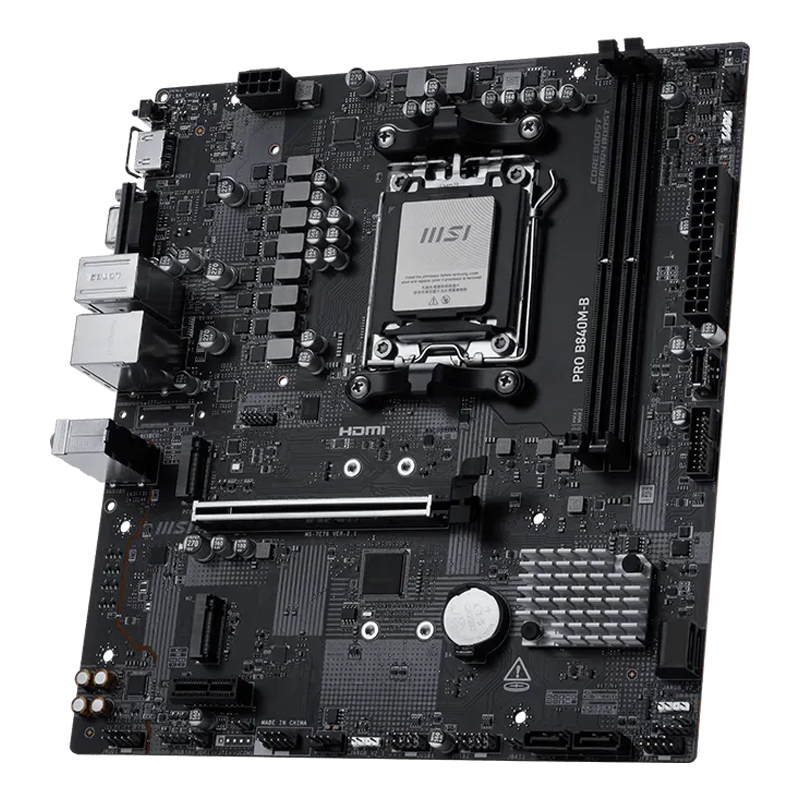

MSI PRO B840M-B DDR5 AMD AM5 Micro-ATX Motherboard
₨ 33,499
Supports AMD Ryzen™ 9000/8000/7000 Series: AM5 socket with the B840 chipset ensures wide compatibility with the latest processors for responsive performance and future upgradeability.
DDR5 Memory up to 8000+ MT/s (OC): Two DIMM slots support dual-channel DDR5 RAM with AMD EXPO profiles for a quick performance boost, plus CUDIMM support for future memory technology.
Dual PCIe 4.0 M.2 Storage: Two dedicated PCIe 4.0 x4 M.2 slots (both from CPU) for lightning-fast NVMe SSDs with RAID 0/1 support, plus four SATA 6G ports.
Front USB 5Gbps Type-C & 2.5G LAN: A convenient front USB 5Gbps Type-C port for modern devices, paired with a Realtek 2.5Gbps LAN for high-speed, stable wired networking.
Comprehensive Connectivity & EZ Debug: Features HDMI 2.1 (4K@60Hz) and VGA ports, plus MSI EZ Debug LED and EZ Memory Detection LED for simple troubleshooting.
| Overview | |
| Brand & Model | MSI PRO B840M-B |
| Socket & Chipset | AM5 / AMD B840 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series |
| Form Factor | Micro-ATX |
| Memory | |
| Memory | 2x DDR5 DIMM, Up to 128 GB, 8000+ MT/s (OC), AMD EXPO, CUDIMM Support |
| Expansion Slots | |
| Graphics Slot | 1x PCIe 4.0 x16 (CPU) |
| Expansion Slot | 1x PCIe 3.0 x1 (Chipset) |
| Storage | |
| M.2 Storage | 2x M.2 PCIe 4.0 x4 (CPU, 2280/2260) – Dual M.2 for Lightning-Fast NVMe SSDs |
| SATA Ports | 4x SATA 6G (Supports RAID 0/1/10) |
| Networking & Audio | |
| Networking | Realtek 8125D 2.5G LAN – High-Speed Stable Wired Connection |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| USB | |
| Rear USB | 4x USB 5Gbps Type-A, 2x USB 2.0 |
| Front USB | 1x USB 5Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video & Features | |

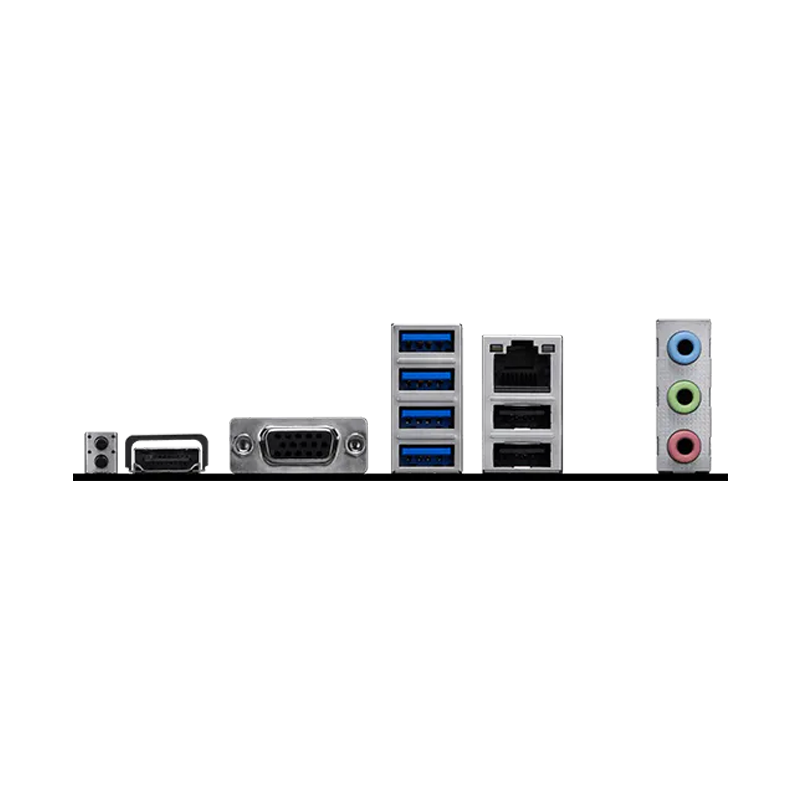

| Video Outputs | HDMI 2.1 (4K@60Hz), VGA |
| Special Features | EZ Debug LED, EZ Memory Detection LED, Clear CMOS, Flash BIOS, Addressable RGB Headers |
| Warranty | |
| Warranty | 1 Year Local Warranty (Varies by Retailer) |
